The operator met me at the gate with a grin. “We do everything by the book here,” he said. “Air filter, every three months. On the dot.”
The 400 kVA set behind him was pulling a rock crusher, and it sounded wrong — that high, thin whistle under the diesel rumble that means the turbo is working too hard for the air it’s getting. Black smoke puffed with every load change. I walked over to the air cleaner, a steel canister the size of a trash can, and tapped the little round window on its side.
Yellow. Locked on yellow.
“When did you last reset this?” I asked.
He stared at it like he’d never seen it before. In three years of by-the-book filter changes, nobody had. That’s the thing about the air restriction indicator — the filter minder, that fifteen-dollar plastic gauge screwed into the intake tract. It knows exactly when your filter is done. And almost nobody on site knows it exists.
Forget the marketing. A filter minder is a spring-loaded vacuum gauge. One side sees the air coming in, the other side feels the suction downstream of the filter element. As the element loads up with dust, the engine has to pull harder to breathe through it. Vacuum rises. A little piston creeps upward inside the gauge, and the window slides from green to yellow to red.
Most trip somewhere around 20 to 25 inches of water — roughly 5 to 6 kPa of restriction. That’s the filter maker’s “change me” line, not a random number. Past it, the engine starts paying for every breath: fuel burn climbs, exhaust temperature creeps up, and the turbo spins faster trying to drag air through a straw.
There’s a reset button on top. Push it, the piston drops back, the window goes green again. If it snaps straight back to yellow on the next loaded run, the filter is genuinely done. If it sits on green for two years while the plastic is cracked and sun-faded — well. More on lying gauges below.
Here’s the part that gets me argued with on every site: changing air filters on a fixed schedule is mostly theater.

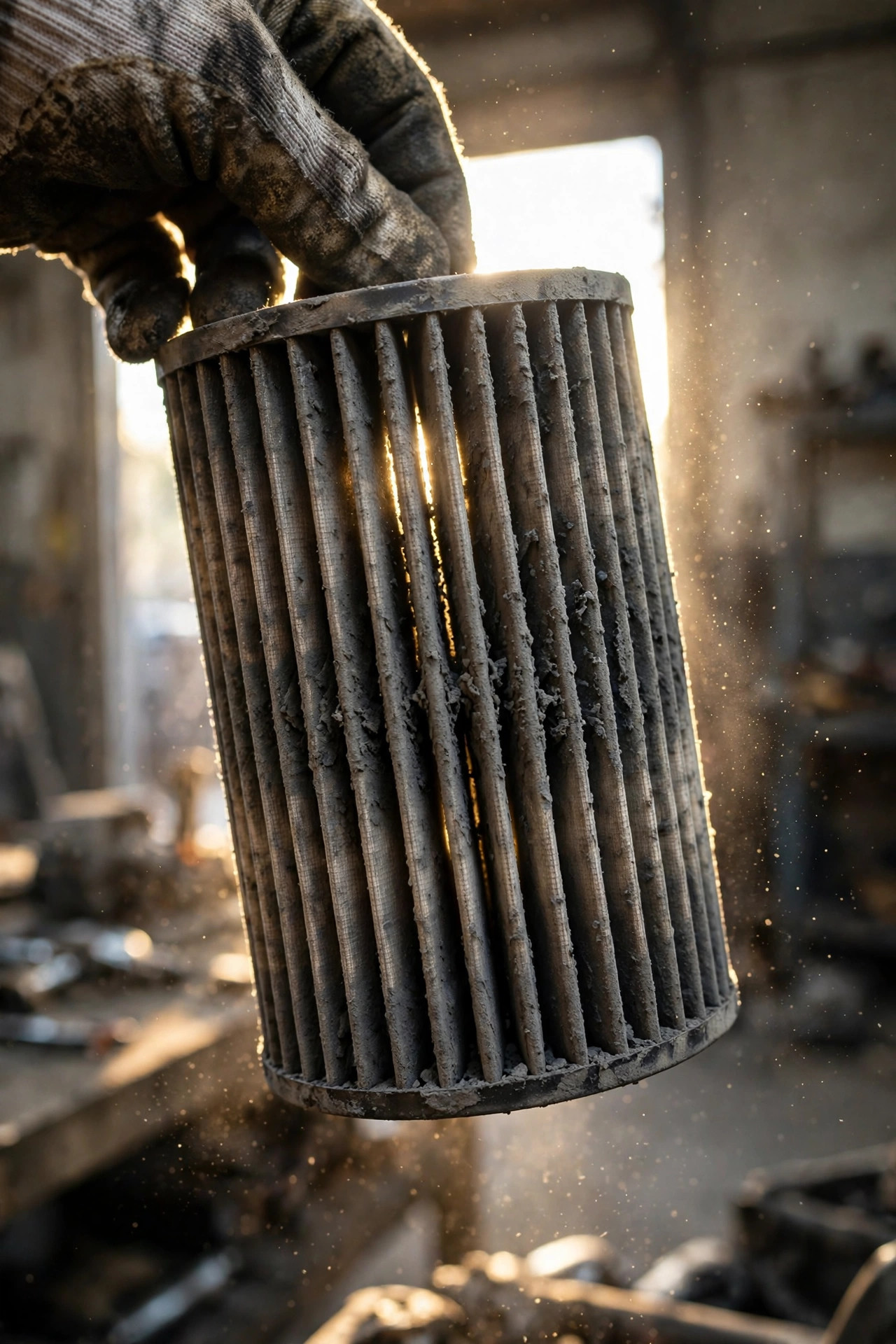

A fresh filter is at its worst the day you install it. New media lets the finest dust straight through — the sub-10-micron stuff that does the real damage inside an engine. As the element loads, that dust cake becomes part of the filter. Efficiency goes up. A filter sitting at eighty percent of its restriction limit catches finer particles than the brand-new one you just threw in the bin. I know that sounds backwards. It’s true anyway.
So the crew changing elements every three months “by the book” is spending money to make its filtration worse. And — this is the part nobody puts in the spreadsheet — every change is a chance to dust the engine. You pull the cover off in a dusty yard, the wind is up, the new element sits on the tailgate for ten minutes collecting grit on its clean side before it ever sees the housing. I’ve watched it happen. The gauge exists so you change the filter when it’s actually finished: loaded, restricted, at the limit. Not a day before.
That said, the calendar isn’t useless. It’s a backstop. If that window hasn’t moved in two years on a quarry set, the gauge is broken, not the dust. Which brings us to the lies.
Lie number one is silence. The gauge gets old. Sun bakes the plastic, the little piston gums up with dust and oil mist, the spring takes a set. It sits on green forever. I found one on a food-distribution warehouse set — clean-looking indoor site, but the intake pulled from a loading dock where trucks idled all day. Gauge green for three years straight. The element weighed nearly twice what a new one did. And the turbo’s compressor wheel had its leading edges rounded like river stones. Classic dusting. That turbo cost more than thirty years of fifteen-dollar gauges.
Lie number two is the stuck yellow. Somebody changes the filter and forgets the reset button. The next tech sees yellow, assumes the new element is somehow already dirty, and orders another one. I watched a site burn through three two-hundred-dollar elements in two months chasing a yellow window that only needed a thumb-press. The operator at the quarry — the one from the gate — had done exactly this. I pushed the button. Green. He laughed, but it was the embarrassed kind.
Five seconds. That’s the whole diagnostic for the gauge itself: push the reset, run the set up under load, look again. If it won’t reset, or the window is cracked and fogged beyond reading, replace the gauge. Fifteen dollars. It’s the cheapest instrument on the entire machine, and the most ignored.
Mechanics have a word for what happens when fine dust gets past the filter for months on end: dusted. There’s no bang, no warning light, no drama. The compressor wheel just gets slowly sandblasted. Then the dust rides through the aftercooler into the cylinders and starts honing the liners. Oil consumption creeps up a liter at a time. Power fades a little every month. By the time anyone notices, you’re looking at a turbo rebuild and glazed liners — on an engine whose air filter was “changed on schedule.”
(Here’s what that dust does to a turbo, up close.)
The cruel part: a choked filter and a dusted engine look identical from the outside. Black smoke under load, sluggish response, exhaust temps running high. (Smoke color tells you a lot, if you read it right.) The gauge is what separates them. Red window plus smoke means change the filter. Green window plus smoke means the dust already got through — stop, investigate, and don’t expect a new element to fix what’s downstream.
I do this on every service visit now, same as checking the oil. Half a minute, four moves:
One more thing, and this is where an old-timer I work with and I genuinely stop agreeing. He blows out dirty elements with compressed air and runs them again. “Saves money,” he says, thirty years on engines. I won’t do it. Shop air drives fine dust deeper into the media and can crack the pleats — and a cracked pleat is an open door with a filter-shaped frame around it. The gauge will tell you when the element is done. I trust the fifteen-dollar gauge over the thirty-year habit. He thinks I’m wasteful. I think he’s gambling a turbo to save two hundred bucks. We’ve agreed to keep disagreeing.
Add the check to whatever maintenance routine you’re already running. The element itself deserves proper care — here’s how I look after the filter — but the element is the expensive part and the gauge is the brain. A generator that can’t breathe can’t work, and the little window on the side of the canister is the only part of the machine that tells you the truth about it.
If yours has been yellow since before anyone can remember — talk to us. We’ve seen what comes next.
