The Gauge Said Zero. The Engine Was Fine.

The call came at 1:40 in the morning. An 800 kVA set at a logistics park, controller screaming low oil pressure, engine shut itself down on its own protection, and forty dock doors about to go dark at shift change. I drove out there expecting the worst — a seized engine, a sump full of metal glitter. What I found was a dead sender and sixty-five psi of perfectly healthy oil pressure on my mechanical gauge. Ten-dollar part. Zero damage.

I’ve also seen the other kind of zero. That one doesn’t end with a shrug.

Here’s the thing nobody tells you when they hand you a generator: every low-oil-pressure reading is one of two completely different stories. The sender is lying. Or the engine is dying. From the controller’s display they look identical — same red lamp, same shutdown, same sinking feeling. I’ve been wrong about both, which is exactly why I stopped guessing and started testing. This is the honest comparison I wish someone had given me twelve years ago.

Three ways the sender lies to you

Lie number one is the slow drift. An oil pressure sender is a diaphragm and a resistor living in a brutal neighborhood — vibration, heat cycles, oil mist. After enough years the diaphragm gets tired and the reading sags. Not suddenly. Gradually, over weeks. You glance at the panel one Tuesday and hot idle reads lower than you remember. Next month it’s flirting with the shutdown setpoint.

I chased one of these on a 2 MW unit at a data center. Three months of “declining oil pressure” in the logs, trending down like a stock chart. The operator was pricing an in-frame rebuild in his head. I screwed in a mechanical gauge and the pressure hadn’t moved a hair in three months. The sender was just dying of old age, one heat cycle at a time. (Honestly, that mechanical gauge has embarrassed more senders than I can count. Keep reading.)

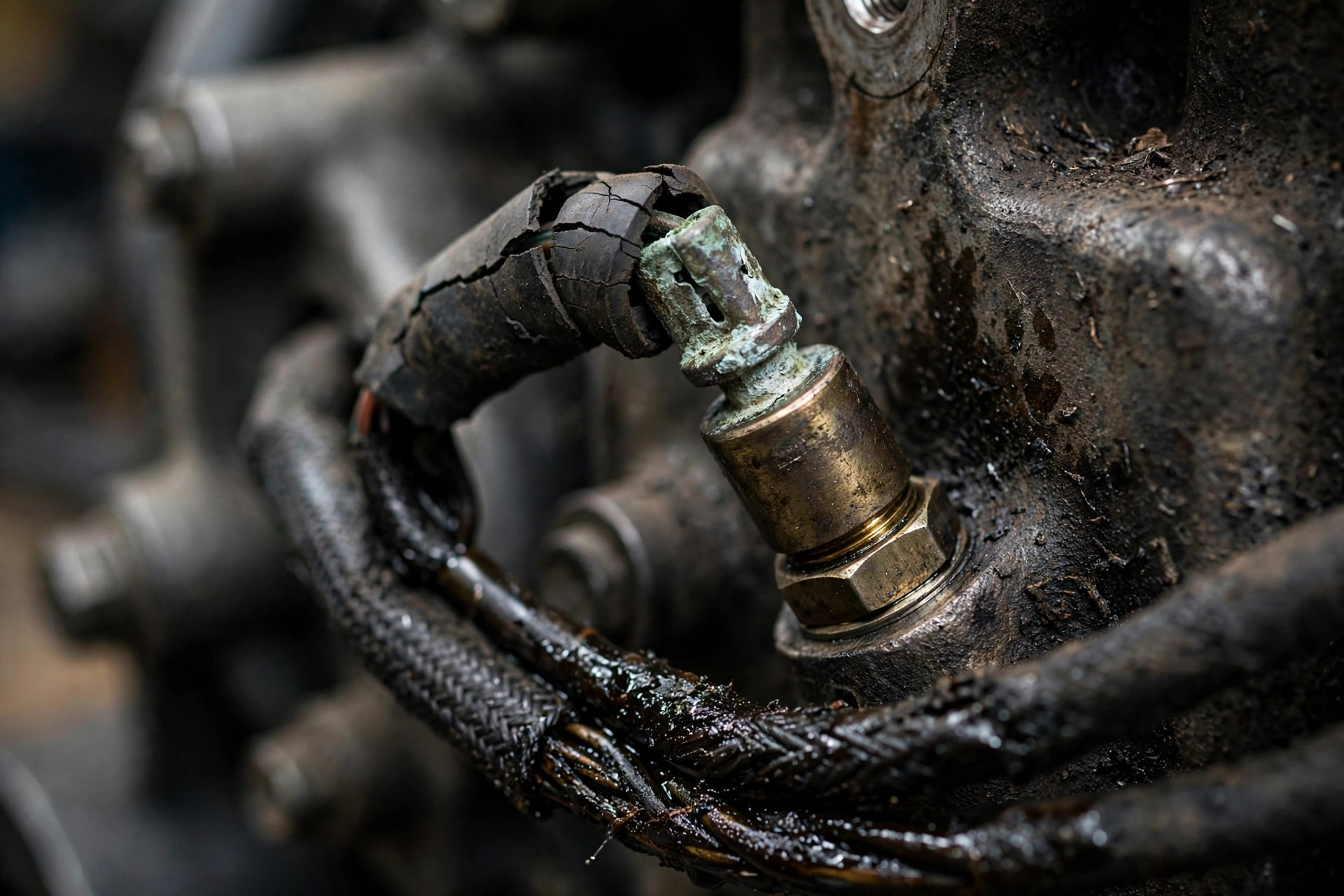

Lie number two is the wiring, and it’s the cheapest lie of all. The sender’s spade terminal sits in a damp, vibrating engine room for a decade. Corrosion creeps in. A chafed wire kisses the block and grounds out. Depending on the sender type, that reads as zero — or pegs the needle somewhere absurd. Either way the engine doesn’t know anything happened.

Coastal telecom site, salt air, a sender terminal green as a copper roof. The controller read zero psi at rated speed while the engine purred like it always had. I cleaned the terminal, put a dab of dielectric grease on it, and the “catastrophic failure” was over. Total parts cost: nothing. My rule now is simple — before I touch anything expensive, I wiggle the sender wire and watch the reading. If it jumps, the engine was never the problem.

Lie number three is the one people create themselves. Somebody replaces the controller, or the sender, and nobody checks that the two speak the same language. Resistive senders and 4–20 mA transmitters are not interchangeable. Even among resistive senders, the ohm range at zero and full scale varies by brand. Bolt the wrong curve onto the controller and your “45 psi” is really 65, or your “20 psi” is really 5 — and you can’t tell which direction the error goes without checking.

I watched a contractor do this after a control panel upgrade. New controller, old sender, readings off by nearly thirty psi across the whole range. The site ran like that for a year, one bad number away from a nuisance shutdown every hot afternoon, because nobody spent ten minutes with a mechanical gauge on commissioning day. Controllers don’t calibrate themselves. Somebody has to tell them what zero means.

Four ways the pressure is actually gone

Real loss number one: the relief valve sticks open. Here’s how it happens. January morning, minus ten, the 15W-40 in the sump has the consistency of honey. You crank, the pump hammers cold thick oil against a relief valve that was designed for hot thin oil, and the valve slams open — and doesn’t quite seat again when things warm up. From then on, pressure runs low at every speed, oil still looks clean, engine sounds fine. It fools everybody because nothing looks wrong except the number. Cold starts punish engines in ways the brochure never mentions.

Real loss number two lives on the suction side. A cracked pickup tube sucking air, or a pickup screen slowly choking on years of sludge. The fingerprint is distinctive: pressure that’s fine cold and fades as the oil warms and thins, or a needle that flickers and dances instead of sitting still. I pulled a pan on a 14,000-hour unit once and the pickup screen looked like it was wearing a felt coat. The engine had been telling us for months. We just kept reading the sender instead of the pattern.

Real loss number three is the oil itself going wrong — and the dipstick will rat you out if you let it. A dribbling injector washes fuel past the rings into the sump, and diesel is a terrible lubricant. The giveaway is an oil level that climbs instead of falling. I checked a 400 kVA set where the level sat a full inch over the full mark, and the oil smelled like a fuel dock. One bad injector had been diluting the sump for weeks, and the low pressure reading was the engine’s last honest complaint before the bearings started paying for it. If your oil level is rising, stop looking at the pressure gauge and start looking for fuel in the oil — an oil sample will confirm it in a day.

Real loss number four is the quiet one: worn main bearings on a high-hour engine. The fingerprint is almost diagnostic by itself — pressure looks respectable at rated speed but sags at hot idle, when the pump is turning slowest and the worn clearances leak the most. It creeps in over thousands of hours. No drama, no sudden event. Just a hot-idle number that gets a little lower every year until one summer afternoon it crosses the shutdown line. When I see that pattern, I don’t argue with it. Bearings don’t heal.

The five-minute test that ends the argument

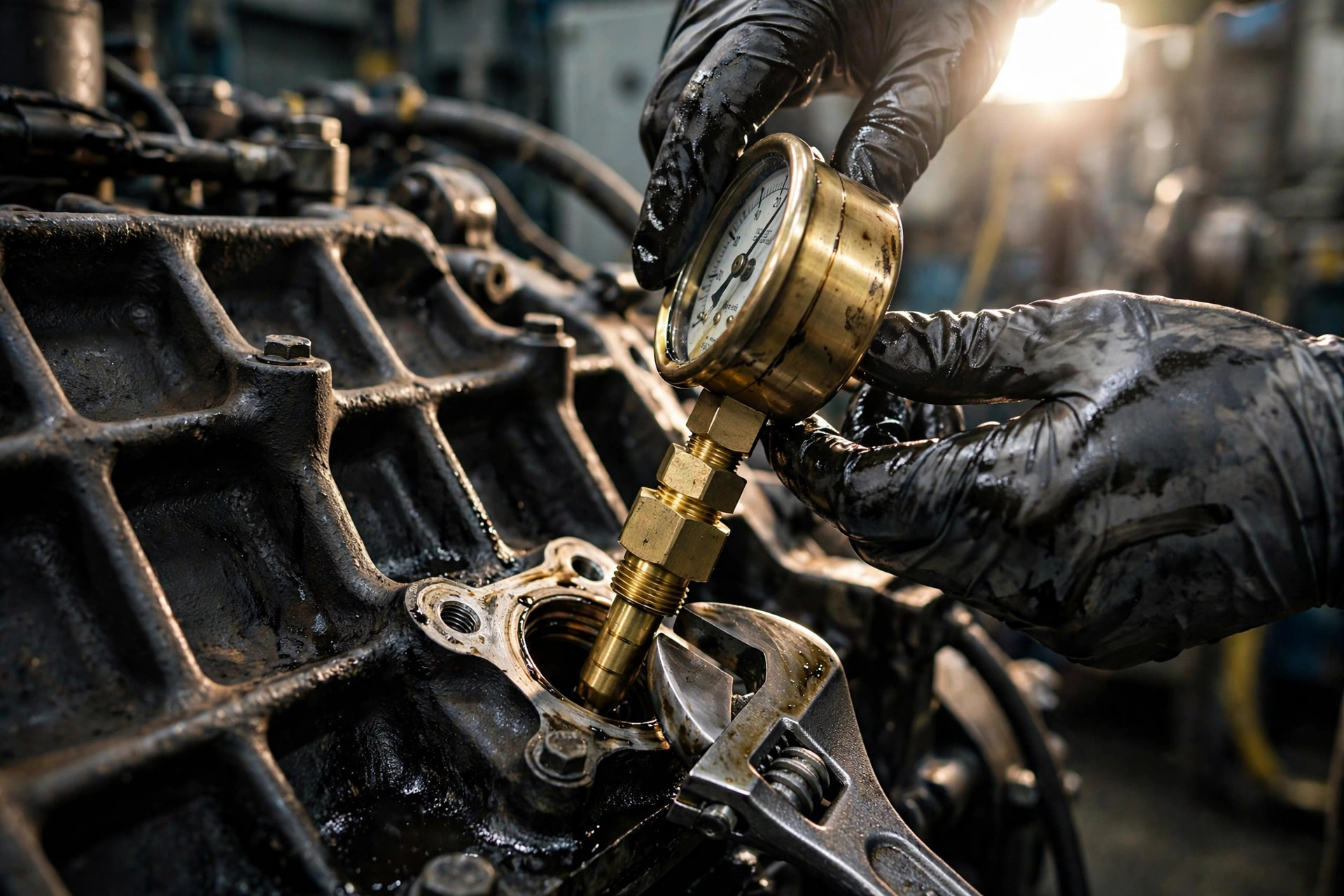

Everything above is pattern recognition. This is proof. A mechanical gauge threaded into the oil gallery tells you the truth with no electronics in between, and the whole test takes about five minutes:

1. Let the engine cool enough to work around, then find the sender on the block — usually near the oil filter head or on the main gallery.
2. Pull the sender and thread in a mechanical gauge with the right adapter. Teflon tape on the threads, snug, don’t over-torque brass into cast iron.
3. Run the engine to full operating temperature. Read the gauge at hot idle, then at rated speed.
4. Compare. If the mechanical gauge reads healthy and the panel doesn’t, you have a sender problem. If the mechanical gauge agrees with the panel, you have an engine problem — and you just saved yourself from chasing wiring for a week.

The mechanical gauge doesn’t have opinions. That’s what makes it the best diagnostic tool in the truck.

What ninety seconds of real zero costs

If the mechanical gauge confirms the pressure is truly gone, stop. Do not restart it “just to see if it comes back.” I know the temptation — I’ve felt it.

Here’s the order of casualties. The turbocharger dies first. Its bearings float on a film of oil at well over a hundred thousand rpm, and they have no patience for dry running. Then the main and rod bearings, which go from hydrodynamic film to metal-on-metal in seconds. An engine can survive a lot of abuse. It cannot survive without oil pressure, and the bill for finding out starts at five figures and climbs.

An old-timer I worked under had a different philosophy. His answer to low pressure was thicker oil — pour in a heavier grade and “buy some pressure back.” I understand the logic, and on a worn-out engine limping to its rebuild date, I’ve seen it done. But I don’t do it. Thicker oil masks the fingerprint — that hot-idle sag that tells you the bearings are going — and it starves the turbo on cold starts, which is exactly when a thick grade flows worst. You’re not fixing anything. You’re turning down the volume on the alarm. I’d rather know.

Keep a mechanical gauge in the truck. Ten minutes and a forty-dollar fitting have saved me from pulling more engines than I can count. The sender is usually lying. Usually. Which is exactly why I check. And if low pressure is one item on your regular walkaround, put it on the maintenance checklist next to the coolant and the belts — the senders on Pavo units I service get a look every visit, because the ten-dollar parts are the ones that cause the thousand-dollar scares. Questions about your own set’s readings? Talk to us — bring the hot-idle number and we’ll tell you what it means.
