It was August, just past noon, at a quarry outside town. The air was thick enough to chew. A 400 kVA set was supposed to be carrying the full plant — two crushers, the conveyor, the batch house. Instead the site manager was standing next to me with his shirt sticking to his back, pointing at the load bank readouts like they’d personally insulted him.
“She’s down maybe ten percent from last summer,” he said. “Same load. Same diesel. Something’s wrong with the engine.”
Nothing was wrong with the engine. I put my infrared gun on the intake pipe downstream of the charge-air cooler — the intercooler, as most people call it — and the number was way hotter than it should have been. The turbocharger was doing its job. The cooler wasn’t. And that ten percent of “missing” power was never coming back until someone fixed the air the engine was breathing.
Here’s the thing most generator owners never think about. A turbocharger doesn’t hand the engine “more air” the way people imagine. It hands the engine hot air. Compress anything and it gets hot — squeeze intake air to a couple of atmospheres and it comes out of the turbo at roughly 150 to 200°C, depending on the set and the load.
Hot air is thin air. Thin air means less oxygen per stroke, less fuel the controller can burn cleanly, and less power out of the same pistons. So every turbocharged diesel generator on the planet has a charge-air cooler (CAC) bolted between the turbo and the intake manifold: a fin-and-tube heat exchanger whose entire job is to drag that charge air back down to roughly 40–55°C before it enters the cylinders. Cool dense air, full oxygen, rated power.
I’ve had customers stare at me when I say the cooler is a power part, not a cooling part. Honestly, it deserves the credit more than the turbo does. The turbo makes the boost; the cooler decides whether that boost is actually usable. When the cooler degrades, you don’t get an alarm. You get a generator that quietly makes 92 percent of its nameplate and behaves as though that’s all it ever had.

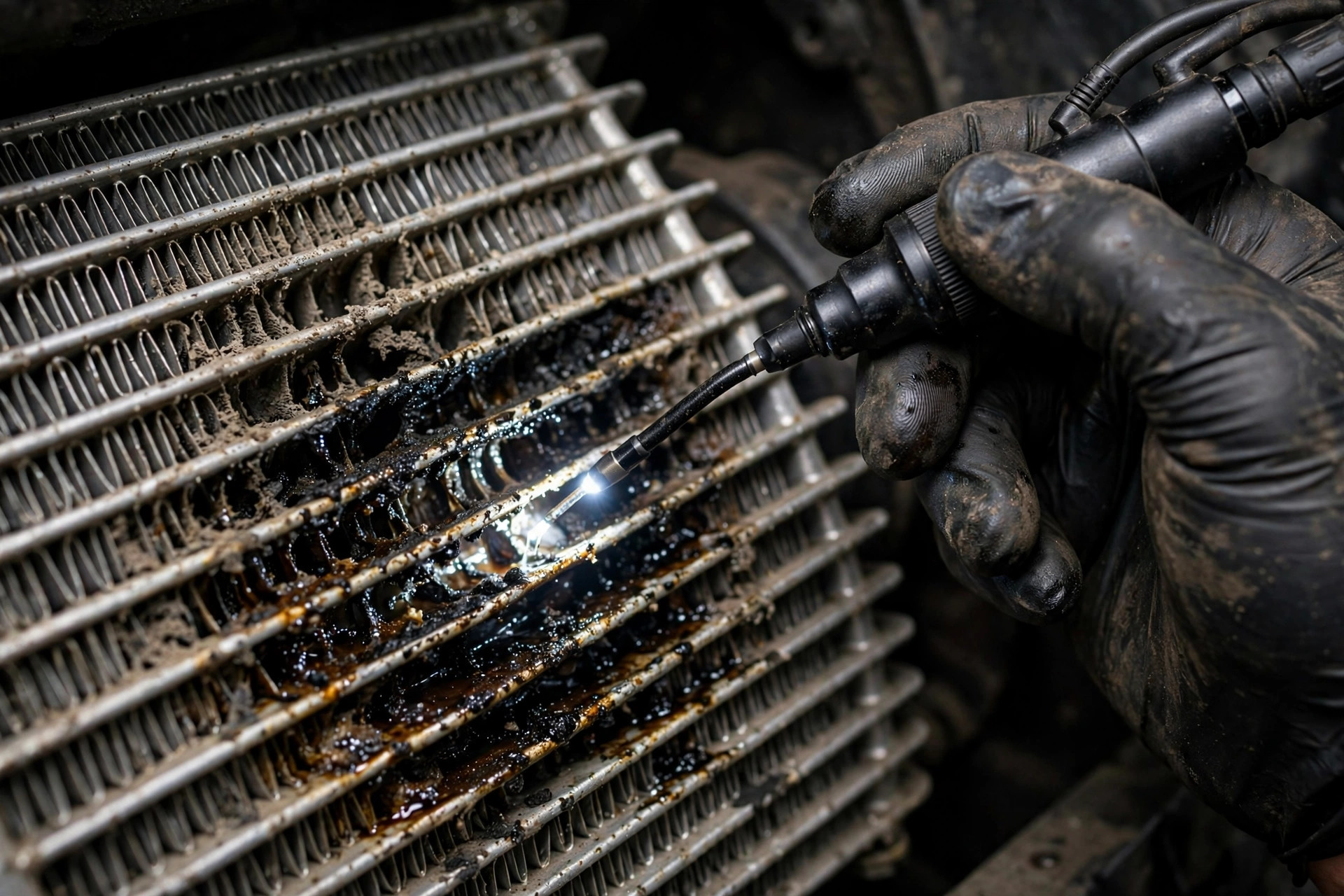

That quarry set? Its cooler core was choked with quarry dust mixed into an oily film. I’d guess the charge air was reaching the manifold 30°C hotter than designed. Rough math — every 3°C of extra intake temperature costs roughly one percent of power — and there was his missing ten percent, sitting in the fins.
A bad charge-air cooler almost never announces itself with a shutdown. It works through symptoms people blame on other things, and I’ve watched the same misdiagnosis play out three or four times on my own projects.
First: power fade on hot days that “recovers” overnight. Heat soak stacks on top of an already-degraded cooler. The set makes rated power at 8 a.m. and 92 percent at 2 p.m. I’ve seen site managers order fuel tests, controller updates, even injector replacements — one plant swapped all twelve injectors on an 800 kVA set — before someone finally measured intake temperature and found the cooler core was half-blocked. That 800 kVA bill still annoys me. The injectors were fine. The air was hot.
Second: black smoke under load that the smoke-chasing crew can’t fix. Too-hot charge air is too-thin charge air; the engine over-fuels for the oxygen it has and the excess fuel becomes smoke. I’ve written before about reading what exhaust smoke color actually means, and the cooler is one of the first suspects when black smoke shows up on a set that used to run clean. The embarrassing version of this story is a food-processing plant where the cooler had a crack in the outlet tank. The engine was huffing intake air out through the crack instead of into the cylinders. They’d scheduled a turbocharger replacement for the following Monday. We canceled it on Friday afternoon.
Third: exhaust gas temperature creeping up while everything else looks normal. EGT — exhaust gas temperature — is the engine’s fever thermometer. Thinner intake air means the burn runs hotter at the exhaust valves and the turbo inlet. Most controllers log it, few people watch it. When I see EGT drifting up month over month at the same load, the charge-air cooler is where I look second, right after the air filter.
This is the part where I get unpopular with service crews. Cleaning a charge-air cooler sounds simple and everyone has a method, but I’ve seen more coolers killed by “cleaning” than by the dust they were built to survive.
The classic mistake is the pressure washer at close range. A logistics park ran a 500 kVA set that had started derating on summer afternoons. Their in-house tech, a good kid, hit the cooler core with a pressure washer from about six inches to “save time.” He folded the aluminum fins flat across half the core. Airflow through that half didn’t drop to zero, it dropped to almost zero — which is worse, because now the other half carries all the heat load and the whole thing runs lopsided. We ended up replacing the core. The cleaning bill was two hours of labor. The replacement bill was roughly forty times that.
The right way is boring and that’s the point. Soft brush, low-pressure rinse from the fan side back through the core — against the normal airflow direction — and a proper degreaser first if the fins are oily. Oil plus dust bakes into a cement that water alone won’t touch. Degrease it, let it dwell, then rinse gently. Compressed air is fine if you keep the pressure modest and the nozzle moving; a stationary blast will fold fins the same way a pressure washer does.
And here’s the disagreement part. Some old hands in the trade tell you to pull the core and boil it out, or to acid-flush it every year as “preventive” work. I’ve been in this business twelve years and I still won’t do an aggressive chemical flush on a cooler that isn’t showing symptoms. Those fins are thin aluminum, the tube-to-header joints are brazed, and a strong acid doesn’t know the difference between the grime and the metal. If the intake temperature spread is healthy and the fins are clean to a visual check, leave the chemistry in the bottle. My rule: clean for dirt, test for damage, replace for leaks. Nothing more.

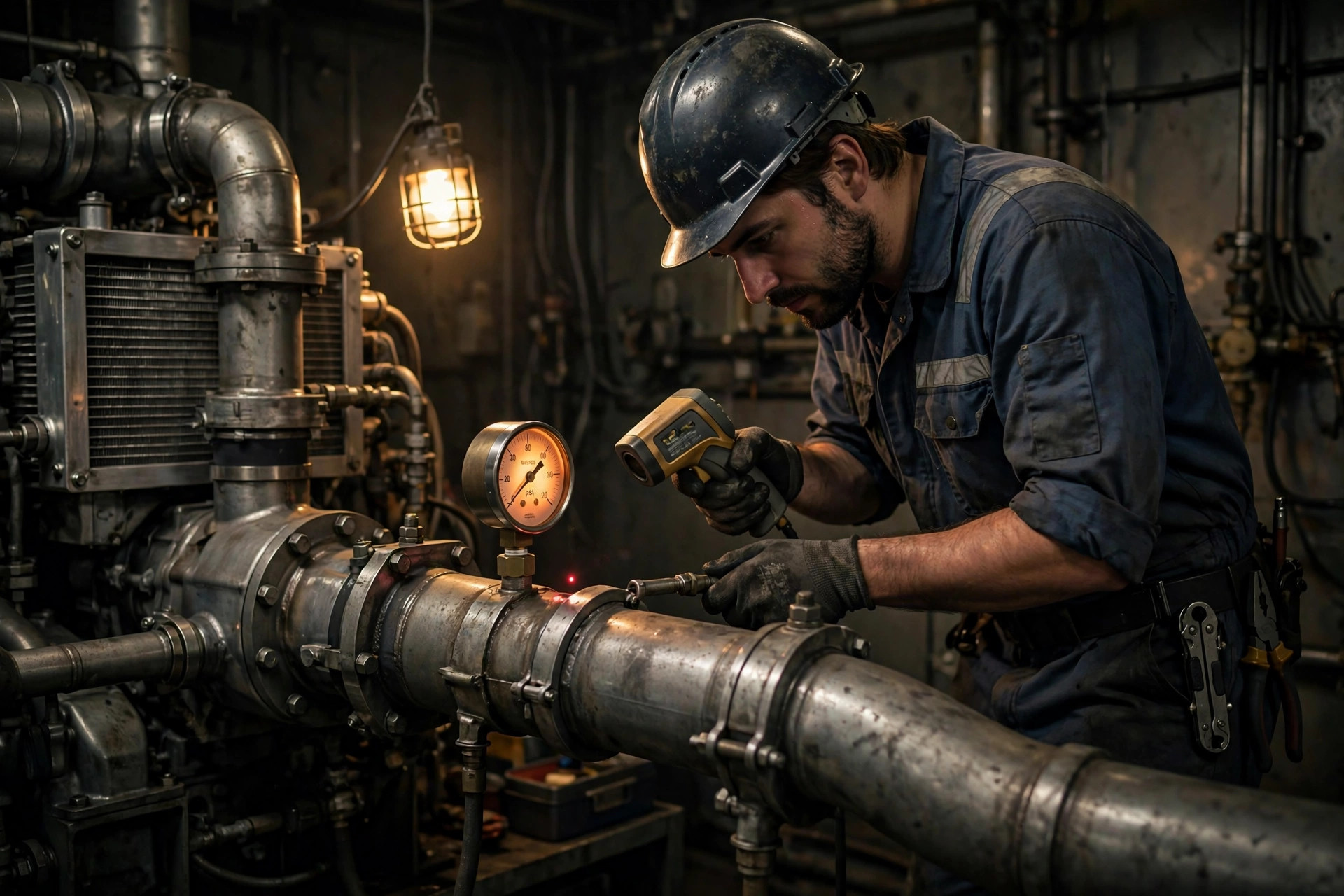

The five-minute test that settles every argument about the cooler: measure the charge-air temperature on both sides of it, at stable load. Upstream, right out of the turbo, you’ll see the hot number — roughly 150 to 200°C at rated load on most sets. Downstream, at the intake manifold, you want something near ambient plus 20 to 30°C. On a 35°C day, a healthy cooler delivers charge air in the 55 to 65°C range. If you’re reading 90-plus downstream, the cooler is not cooling.
Do it at load, not at idle. An idling set barely works the turbo, so the temperature spread looks fine and tells you nothing. Put the set under real load — half load at minimum, rated if you can manage it safely — let it stabilize for ten minutes, then shoot both pipes. I’ve solved more “mystery power loss” complaints with a twenty-dollar infrared gun than with a laptop full of controller logs. Not glamorous. Just true.
While you’re there, check boost pressure against the commissioning record. A cracked tank or a blown gasket on the cooler outlet side shows up as low boost pressure and an audible hiss under load — and it looks exactly like a dying turbocharger on the gauges. The turbocharger guide I wrote a while back covers how a turbo actually dies, and “boost leak at the cooler” belongs on that list. If boost is low and EGT is high, don’t order the turbo. Check the cooler and its clamps first. The clamps, by the way — silicone hoses and T-bolt clamps age out, slip, and whistle. I’ve found more than one “bad cooler” that was a ten-dollar clamp.
When the core actually leaks — coolant in the intake on a jacket-water type, or boost air escaping on an air-to-air — the job is a replacement, not a repair. I know the welding shops will offer to fix it. On a radiator, fine. On a charge-air cooler core, the pressure cycling and vibration eat the repair alive, and a cooler that lets go at rated load can feed the engine a gulp of coolant or dump its boost pressure in a second. I’ve watched a “repaired” core fail again within one season, on a set where the owner had specifically asked me to save the money. He saved it. Then he spent it twice.
What I do instead, and what I’d tell you to do: pressure-test the replacement core before it goes in, verify the full temperature spread at commissioning load, and log the numbers. That log is the thing that saves you two years later, when the power fade starts and somebody wants to blame the engine. The commissioning numbers are your baseline truth. I keep a running maintenance checklist habit on every set I touch, and the cooler temperatures are one of the first lines on it — upstream, downstream, load, ambient, date. Five columns. Two minutes. The most valuable two minutes in the whole schedule.
One more thing before I stop talking, because someone always asks: does the charge-air cooler matter on a set that mostly sits as standby? Less, honestly — a standby set spends its life at zero load. But the fins still collect dust, the clamps still age, and the first time that set runs hard for real is exactly when you need the air cool. So put the cooler on the same cooling-system inspection rhythm as the radiator. When that day comes and the grid actually dies, you want the engine breathing cool, dense air — not the hot stuff the turbo tried to hand it.
