It was a Tuesday in July, 11 a.m., and the 400 kVA set at a precast concrete plant was doing its first full-load test of the summer. The temperature needle walked past 95, kept walking, and at 104 the controller did its job and shut the engine down. Steam everywhere.
The coolant level had been checked full that morning. The thermostat opened on schedule. The water pump was fine, the radiator core was clean, the fan belt was tight. Everything the manual told you to check was checked. And the engine still boiled.
The killer was a twelve-dollar part. The radiator cap’s spring had gone soft over five summers, and it couldn’t hold 15 psi anymore. Without that pressure, the coolant boiled at the hottest spots in the cylinder head — right where the engine could least afford it. Nobody had touched that cap in five years. Nobody ever does.
Here’s the physics in one paragraph. Water boils at 100°C at sea level, but a diesel engine runs coolant at roughly 80–95°C — uncomfortably close to boiling, especially at the hot spots inside the cylinder head where the metal is far hotter than the coolant average. Pressurize the system to 15 psi and the boiling point climbs to roughly 120°C. That margin is the whole reason your engine survives a full-load afternoon in July. No pressure, no margin. The coolant flashes to steam in the hottest passages, and steam doesn’t carry heat worth a damn.
Job two lives in the center of the cap: a little vacuum valve. When the engine cools down, the coolant contracts. Without that valve, the shrinking coolant would pull a vacuum and collapse a lower radiator hose flat. The vacuum valve opens and lets coolant sip back in from the expansion tank. One valve pushes out, one pulls back. And the rubber seal around the edge makes both jobs possible.
It’s the cheapest part in the cooling system. It guards the most expensive one.
Ask me how often I see a radiator cap inspected during a service visit. Almost never. Techs check oil, filters, belts, batteries, coolant level — then they slam the hood and leave. The cap sits there for years, getting cooked, until the spring is tired and the seal is cracked.

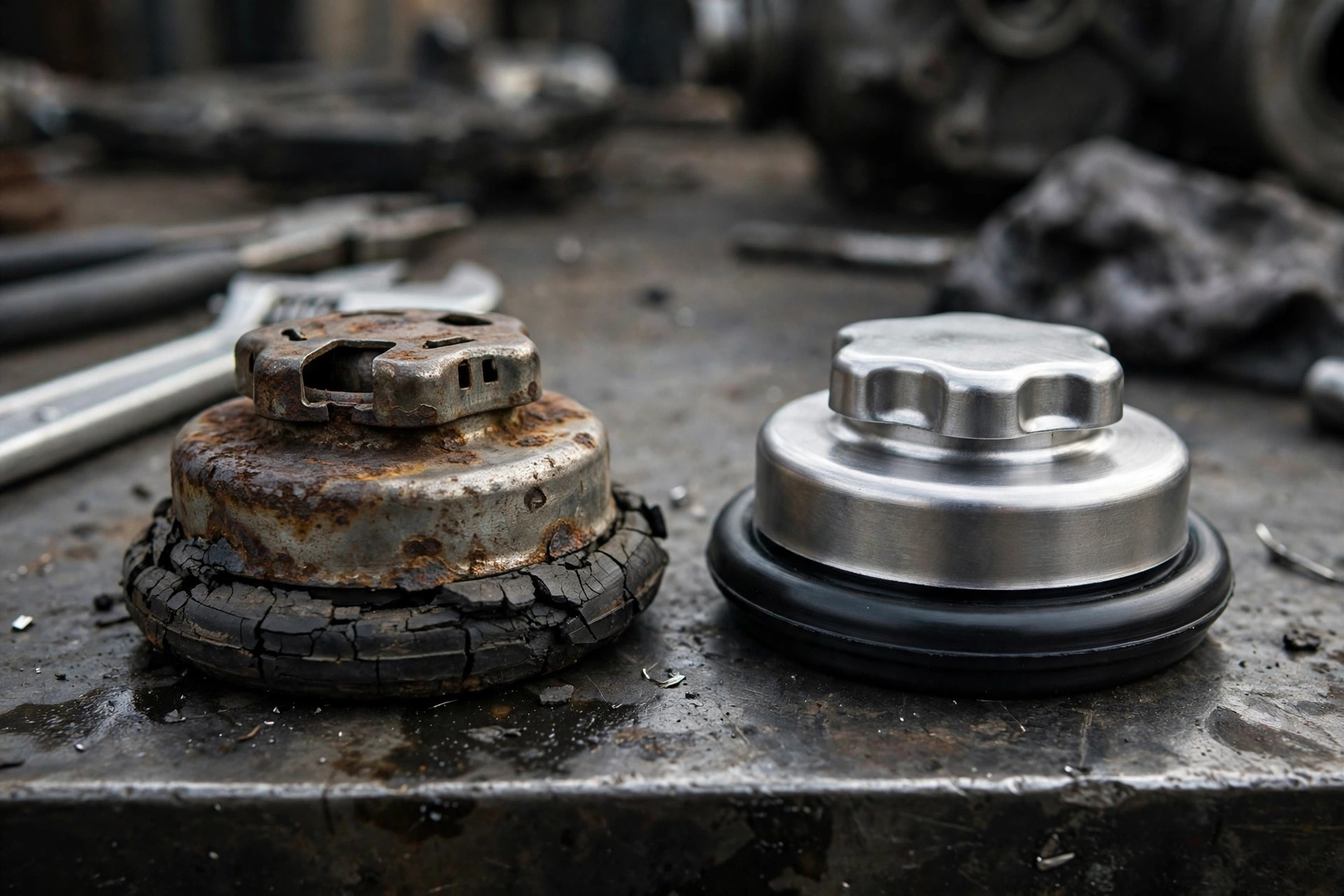

It’s a one-minute check on a cold engine. Twist the cap off. Run your finger around the big rubber seal — if it’s cracked, hard as plastic, or chunked at the edge, it’s done. Push the spring-loaded disc in the middle with your thumb. It should fight you. If it moves with no resistance, the spring is shot and the cap can’t hold its rated pressure. Then look at the filler neck seat where the seal lands — rust or pitting there means the seal can’t seat even if the seal itself is fine.
I’ve pulled caps off five-year-old sets that looked twenty. The seal had the texture of a dried apricot. The owner had been topping up a liter of coolant a month and calling it normal. It wasn’t normal. It was the cap.
This one I’ve seen twice, and both times it ended badly. An engine runs hot, someone decides the fix is a heavier cap — 20 psi where the factory fitted 13. The logic feels airtight: more pressure, higher boiling point, no more boilover.
Except the cap rating isn’t matched to the cap. It’s matched to the weakest part of the whole system. The pressure will find that part. On one site set it was the top radiator hose — it ballooned over a week and split at 3 a.m., dumping the coolant in the dark. On another it was the seam of a plastic expansion tank, which started weeping and got mistaken for a “minor leak” until the engine cooked itself on a real outage.
There’s an old-timer I work with who swears a heavier cap “fixed” an overheating set back in 2011. We still argue about it. My position: it didn’t fix anything. It moved the failure from the cylinder head to a hose, which is cheaper to replace but much harder to predict. A cap is a relief valve, not a performance part. Replace it with the same rating stamped on it. Every time.
Every shop has the story. Mine involves a young tech, a rag, and a 500 kVA set that had just come off load. He put a rag over the cap and twisted — the way he’d seen someone do it once. The pressure drop flashed the coolant to steam and the rag turned into a very brief, very effective branding iron on his forearm. He was fine after a week. The lesson stuck longer.
Here’s what the rag trick gets wrong. The system is at 90-plus degrees and 15 psi. The only thing keeping the coolant liquid is the pressure. Crack the cap and the pressure vanishes instantly — and so does the boiling-point margin. Superheated coolant flashes to steam and comes out as a geyser. A rag doesn’t change the physics; it just gives you false confidence.
The rule is boring and absolute: cold engine only. And while we’re here — never dump cold water into a hot, low engine either. Cold water on a hot cylinder head is a fast way to learn what thermal shock does to cast iron. Wait for it to cool. Always.
The slow leak is the quiet killer. A liter a month, topped up from a jug, month after month. Nobody logs it because a liter feels like nothing.
Two things go wrong. First, every liter of plain water or fresh coolant you add dilutes the additive package — the SCA chemicals that protect wet cylinder liners from cavitation erosion. Run that dilution long enough and you’re eating liners from the outside in, one microscopic bubble collapse at a time. (I went deep on that chemistry in my coolant maintenance piece — worth ten minutes if you own a standby set.)
Second, constant topping-up hides the leak. A weeping hose clamp, a pinhole in the radiator, an early head-gasket seep — all of them stay invisible behind the jug. I keep a strip of tape on the expansion tank of every set I service, marked with the date and level. If the level drops a finger’s width in a month, something’s leaking and I go find it. Your memory will lie to you about how much you’ve added. The tape doesn’t.
A cooling-system pressure tester is a hand pump with a gauge and a couple of adapters, and it costs less than a tank of diesel. Pump the filler neck up to the cap’s rated pressure and watch the needle for five minutes. It should sit still. If it sinks, you’ve got a leak — and now you can find it with your eyes instead of your wallet, because pressurized systems leak where you can see them: hose connections, the water pump weep hole, the radiator seams.
There’s an adapter that tests the cap itself. Pump it to the rating stamped on the cap. If the needle won’t hold, the cap is scrap. I run both tests at every annual service, and I keep the readings in the service log. Trending beats guessing: a system that held 15 psi for five minutes last year and drops to 12 this year is telling you something long before it tells the temperature gauge.
That test takes five minutes. The boilover at the concrete plant took an afternoon, a tow, and a very uncomfortable conversation with the plant manager. Your call.
One honest caveat before I close. A good cap on a sick system just raises the boiling point of a system that’s still cooking. If the radiator core is half-blocked with scale, the water pump impeller is corroded down to a stub, or the room has no airflow, pressure buys you time — it doesn’t buy you a fix. (Overheating has a whole family of causes, and I walked through the other warnings your engine gives you there. And if the room itself is the problem, the ventilation design matters as much as the cap.)
The cap is the last thing to check and the first thing to rule out. It’s a twelve-dollar part with a five-minute test. There is no excuse for letting it be the thing that kills a thirty-thousand-dollar engine.
So next time you walk into the generator room, do the thing nobody does. Wait for the engine to be cold, twist that cap off, and look at the seal. If it’s cracked, you’re holding the cheapest insurance policy in the building. Replace it with the same rating, write the date on it with a marker, and go check the rest of your maintenance list. The engine will thank you by simply never mentioning the cap again — which is exactly what a good cap does. Still not sure what you’re looking at? Talk to us — a photo of your cap is enough to start.
