The outage lasted thirty-one hours. The 800 kVA set at the logistics park ran the whole time without a hiccup — the facility manager even bragged about it over lunch. Then the grid came back, the set cooled down, and everybody went home feeling good about their backup power.
Six days later the weekly auto-test kicked in. Crank… crank… click. Nothing.
Two batteries, installed that spring, stone dead. And the little float charger bolted to the wall beside the set? Green light. Smiling at us like everything was fine.
Here’s what nobody had told that facility manager: his diesel generator has two alternators. The big one — the one the size of a washing machine — makes the 800 kVA that keeps the warehouses lit. The small one, about the size of a grapefruit, hangs off the side of the engine on a rubber belt. Its entire job is keeping those two starting batteries charged while the engine runs. Nobody maintains it. Most owners don’t know it exists. And when it quits, the generator runs beautifully — right up until the morning it needs to start twice.
This confusion is the whole disease, so let me untangle it.
Charger number one is the float charger on the wall. It runs on mains power. While the grid is up and your generator sits in standby, it trickles the batteries along at 13.5 to 13.8 volts — double that on a 24-volt bank — and keeps them full. It’s a babysitter. The moment the grid dies, the babysitter goes home. It has no power either.
Charger number two is the engine-driven charge alternator. Belt off the crankshaft, spins whenever the engine spins, pushes 13.8 to 14.4 volts into the batteries — 27.6 to 28.8 on a 24-volt set — while the engine runs. During a thirty-one-hour outage, it is the only thing feeding the batteries. The starter motor’s cranking draw, the controller staying awake, the fuel solenoid holding open — all of it comes out of the bank, and the little alternator is supposed to put it back.
At the logistics park, it wasn’t putting anything back. Thirty-one hours of running, and the batteries came out emptier than they went in. A float charger maintains; it doesn’t resurrect. Six days later: click.
I’ll admit this one stings, because I’ve done it too. You walk past the set, glance at the charger, green light, keep walking. The green light means the charger has mains power and believes the batteries are full. That’s all it means. It doesn’t mean the batteries are healthy — battery maintenance is its own discipline. And it definitely doesn’t mean the charge alternator did its job during the last run. It’s a report from the babysitter, and the babysitter only works the day shift.
These days I check running voltage on every monthly visit, same as checking the oil. Takes less time than the coffee I drink while the set warms up.

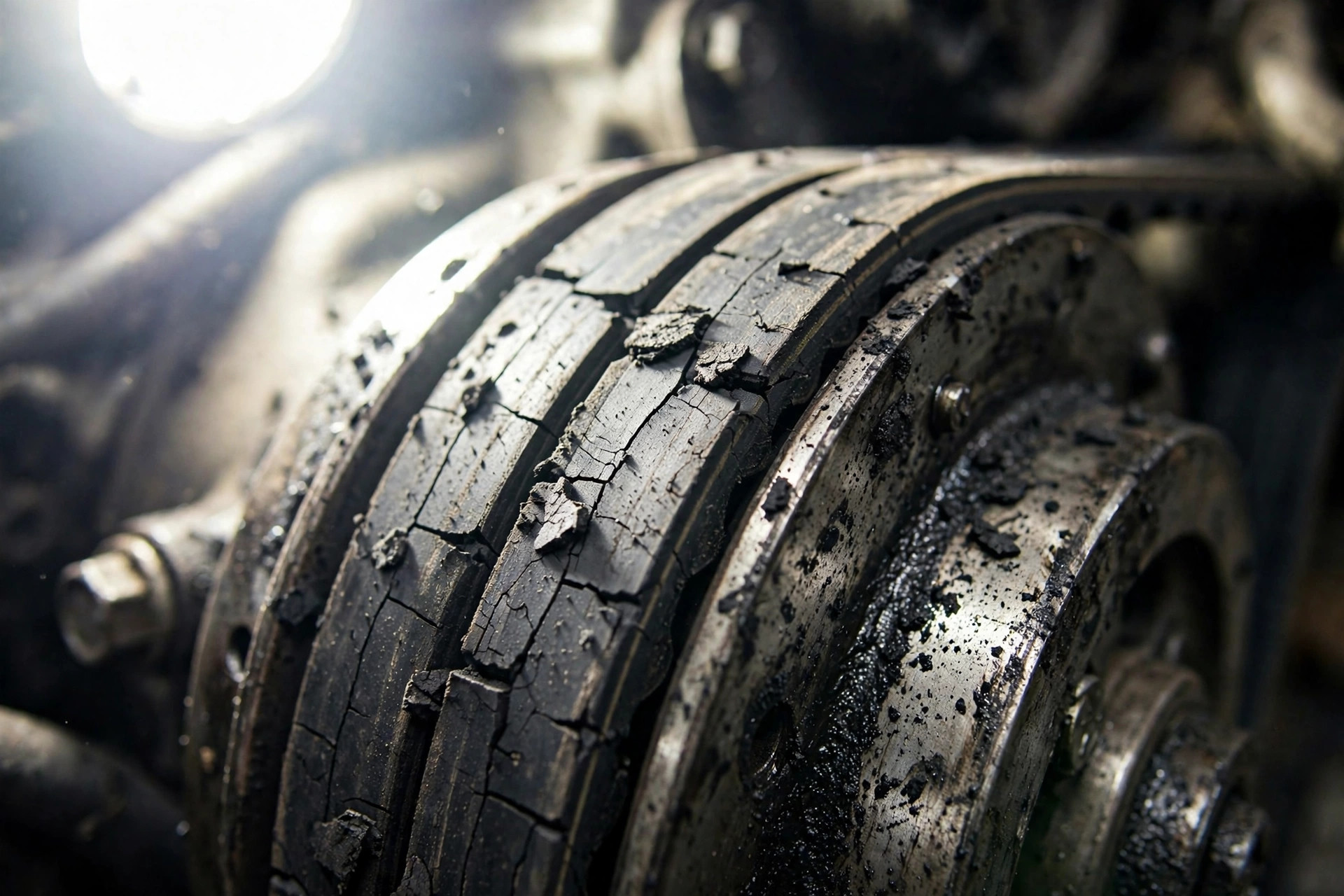

On most sets, a single V-belt drives the charge alternator, the radiator fan, and the engine water pump. One belt, three critical jobs, and it gets inspected… never. I’ve opened enclosures where the belt was glazed shiny as glass, cracked across every rib, dusting black rubber powder all over the alternator bracket. The owner thought the black dust was normal. “It’s a diesel,” he said. “They’re dirty.”
A slipping belt doesn’t fail dramatically. It just lets the alternator spin ten percent slow, forever. Output sags, the batteries never quite top up, and everything looks fine until a long run exposes it. I worked on a quarry set like that — the belt had been slipping for a year. The fan was turning slow too, so the set ran a little hot. Not enough to trip anything. Just enough to age everything faster. One forty-dollar belt, two slow-motion failures. It’s on every maintenance checklist I write for clients, and it’s still the most-skipped item on the page.
Check it with your thumb. Press the longest span — you want roughly half an inch of give, not guitar-string tight. And here’s where an old colleague and I part ways: thirty years on engines, and he swears a belt should be “tight enough to play a tune on.” He’s wrong on this one, and I’ve got the howling alternator bearings to prove it. An overtight belt side-loads those little bearings until they sing, then fail. Snug, not singing.
Most controllers have a charge-fail alarm — sometimes just a small red lamp on the panel, sometimes a proper alarm contact you can wire into your monitoring. At a food distribution warehouse I service, that lamp had been glowing for four months. “We figured it was a bad sensor,” the maintenance lead told me. “The generator runs fine.”
It ran fine the way a car with the oil light on “runs fine.” The charge alternator’s internal regulator had died — a fifteen-dollar part inside a two-hundred-dollar alternator — and the set had been quietly eating its batteries for months. They were on their second set of batteries that year and about to buy a third. The lamp had been telling the truth the entire time.
If your controller offers a charge-fail input, wire it up and believe it. And when the lamp comes on, don’t start with the sensor. Start with the meter.
That warehouse story deserves its own heading, because it’s the most expensive version of this mistake and I see it constantly. Batteries die; the owner buys batteries. Eight months later the new ones die; the owner buys batteries again and curses the battery brand. Nobody measures anything. Three sets of batteries, the better part of two thousand dollars, and the actual fault was a glazed belt plus a dead regulator — under three hundred dollars in parts on a good day.
Batteries are guilty until proven innocent on a no-crank call — I’ve written the troubleshooting steps before and I stand by them. But when batteries keep dying young, the batteries aren’t the problem. They’re the victim. The killer is whatever was supposed to be charging them — and on a running engine, that’s the little alternator hanging off the side of the block.
Here’s the whole diagnostic. You need a ten-dollar meter and five minutes, and cold mornings are the best time to do it — that’s when weak charging shows up first, because the engine needs every amp it’s got.

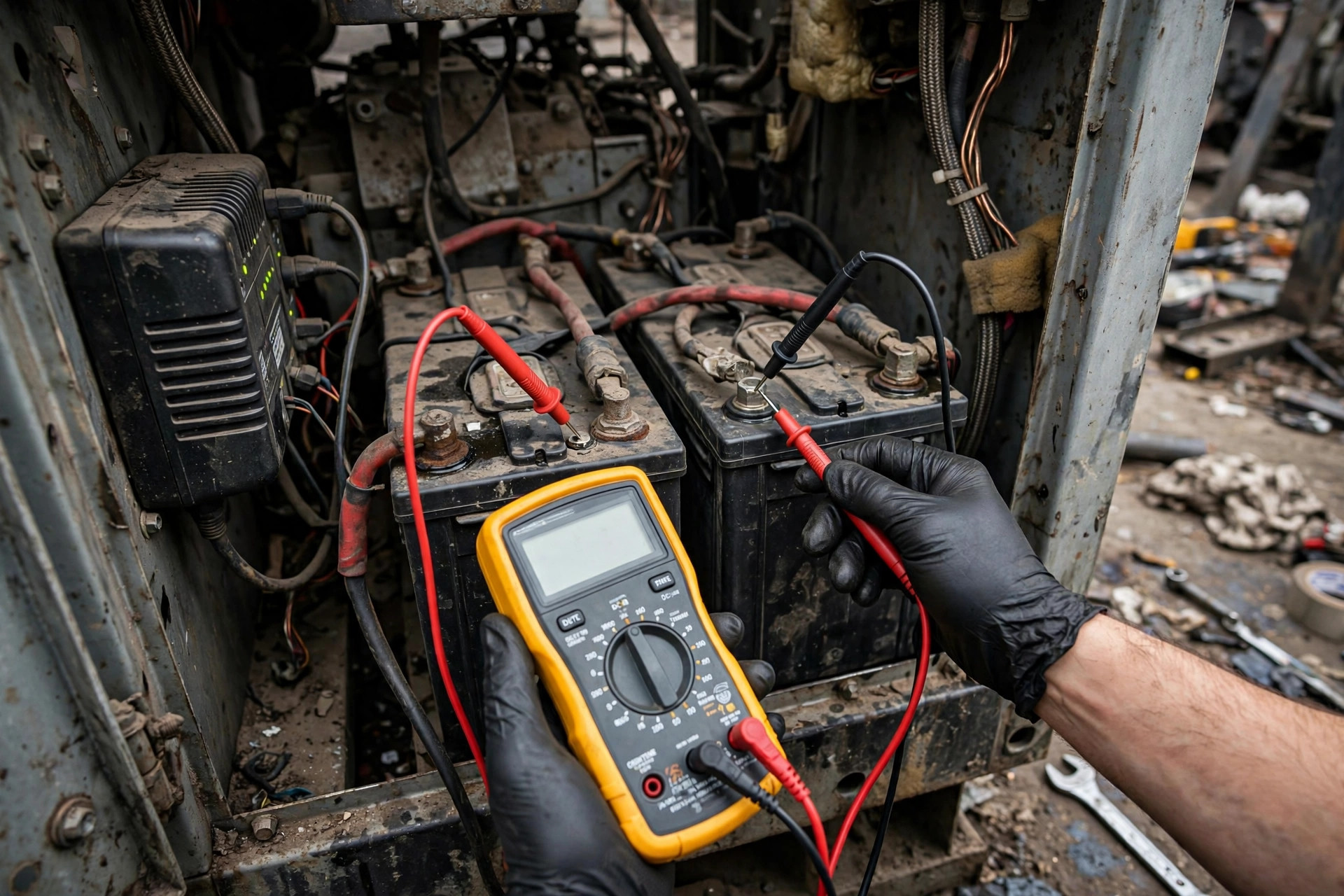

Engine off, meter across the battery terminals. A full bank reads about 12.6 to 12.8 volts — 25.2 to 25.6 on a 24-volt set. Start the engine, let it settle, measure again. You want the jump: 13.8 to 14.4 volts, or 27.6 to 28.8. That jump is the charge alternator doing its job.
No jump? Work the chain. Belt first — glazed, cracked, loose, or missing entirely. Yes, missing: I once found a set with the belt gone and nobody had noticed, the fan just being dragged around by airflow, sort of. Then the wiring — the little exciter wire and its fuse, chewed by mice more often than anyone admits. Then the regulator and diode trio inside the alternator, which die quietly of heat and age. Nine times out of ten, it’s the belt. Start there.
One more thing worth knowing: on a lot of modern sets, the charge alternator also feeds the controller’s engine-running signal. When it dies, you can get phantom alarms that send you chasing sensors for a week. Ask me how I know. Actually don’t — it was a long week, and the belt cost forty dollars.
So next time you walk past your generator, do two things. Glance at the wall charger if you like — then open the enclosure, find the little alternator on the side of the engine, and press that belt with your thumb. Half an inch of give, no cracks, no shine. Five seconds. It’s the cheapest insurance on the whole machine, and it’s the part everybody forgets until the morning the set just goes click.
