The Generator Cranks Fine. It Never Fires. That’s a Solenoid Problem.

The call came at 4:50 on a Thursday morning. Cold storage warehouse, 500 kVA set, and the manager’s voice was doing that thing voices do when the freezers are warming up.

“It cranks. It just won’t fire.”

I asked him to do one thing before I drove out there. Turn the key switch to run — not start, just run — and put his ear near the engine. Listen for a click. Half a second, like a relay snapping.

Nothing. Silence.

“That’s your problem,” I told him. “The fuel’s in the tank. The injectors are fine. But there’s a little electromagnetic gate sitting between them, and it never opened.”

He’d never heard of it. Most people haven’t. And that little part — the fuel shutoff solenoid, maybe $150 on a good day — strands more generators than any other single component I’ve seen in twelve years. Not because it’s complicated. Because nobody thinks about it until 4:50 in the morning.

Question 1: “It cranks and cranks. How do I know it’s the solenoid and not something else?”

Fair question, because a no-fire crank has about six possible fathers, and I’ve written about most of them before (start with the battery, always).

But here’s what makes the solenoid special: it’s the one part whose whole job is to say yes or no to fuel. The controller decides the engine should run, sends voltage down a wire, and an electromagnet yanks a plunger back. Fuel flows. When the controller wants the engine dead — normal stop, or a fault — it cuts the voltage (or sends a stop pulse, more on that below) and a spring slams the plunger shut. Fuel stops. Engine stops. Simple as a light switch.

So the test is stupidly easy. Key to run, ear near the injection pump, listen for the click. No click, no fuel, no fire. It takes ten seconds and it’s free. I do it on every service visit now, the same way I check oil. Because I once spent two days on a site chasing “air in the fuel lines” after a filter change — bled everything twice, cursed the priming pump — before a junior tech pointed out that the manual stop lever on the pump had been bumped during the filter job and the solenoid was never getting its run signal. Two days. For a lever the size of my thumb.

If you hear the click, the solenoid is probably fine and your problem lives elsewhere. If you don’t, grab a meter.

Question 2: “ETS or ETR — what’s the difference, and which one do I have?”

This is the part where an old-timer I know and I stop agreeing.

ETS means energize-to-stop. The solenoid stays open with no power. To kill the engine, the controller sends voltage and the electromagnet pulls the fuel gate shut. Lose all power — dead battery, cut wire — and the engine keeps running.

ETR is energize-to-run. Power holds the gate open. Kill the power and a spring slams it shut. Dead battery, chewed wire, blown fuse — engine stops. Or refuses to start.

My old colleague, thirty years on engines, swears ETS is the only sane choice. “A coil dies at 2 a.m.,” he says, “and with ETS the site stays powered until morning. With ETR you’re standing in the dark.” He’s not wrong. That’s a real scenario.

I still prefer ETR on standby sets. Here’s why: a generator that can’t start is an inconvenience. A generator that can’t stop is a liability. I worked on a set where an ETS coil failed to close during a governor fault, and the only way to kill that engine was the emergency air intake shutoff. That was a bad ten minutes. Nobody got hurt. But I’d rather explain a 2 a.m. no-start than a 2 a.m. engine that ignores its own stop button.

Which one do you have? Check the manual, or look at the wiring: if the solenoid gets power only during cranking and running, it’s ETR. If it only gets a pulse (or steady power) when the controller calls for stop, it’s ETS. Most modern electronic controllers I’ve worked with run ETS on the shutdown side with a mechanical overspeed device as the last backstop. Older mechanical-governor sets are usually ETR.

And whichever you have, test the stop side, not just the start side. Monthly test runs prove the engine can start. Almost nobody verifies it will stop on command. Hit the stop button during your next test and watch the RPM gauge. If it hunts or keeps turning, your stop circuit has a problem and you just found it on your schedule instead of during a real fault.

Question 3: “How do I test the solenoid in the field without a laptop?”

You don’t need software. You need a multimeter and ten minutes.

1. The click test. Key to run, listen at the pump. No click — move to step two.

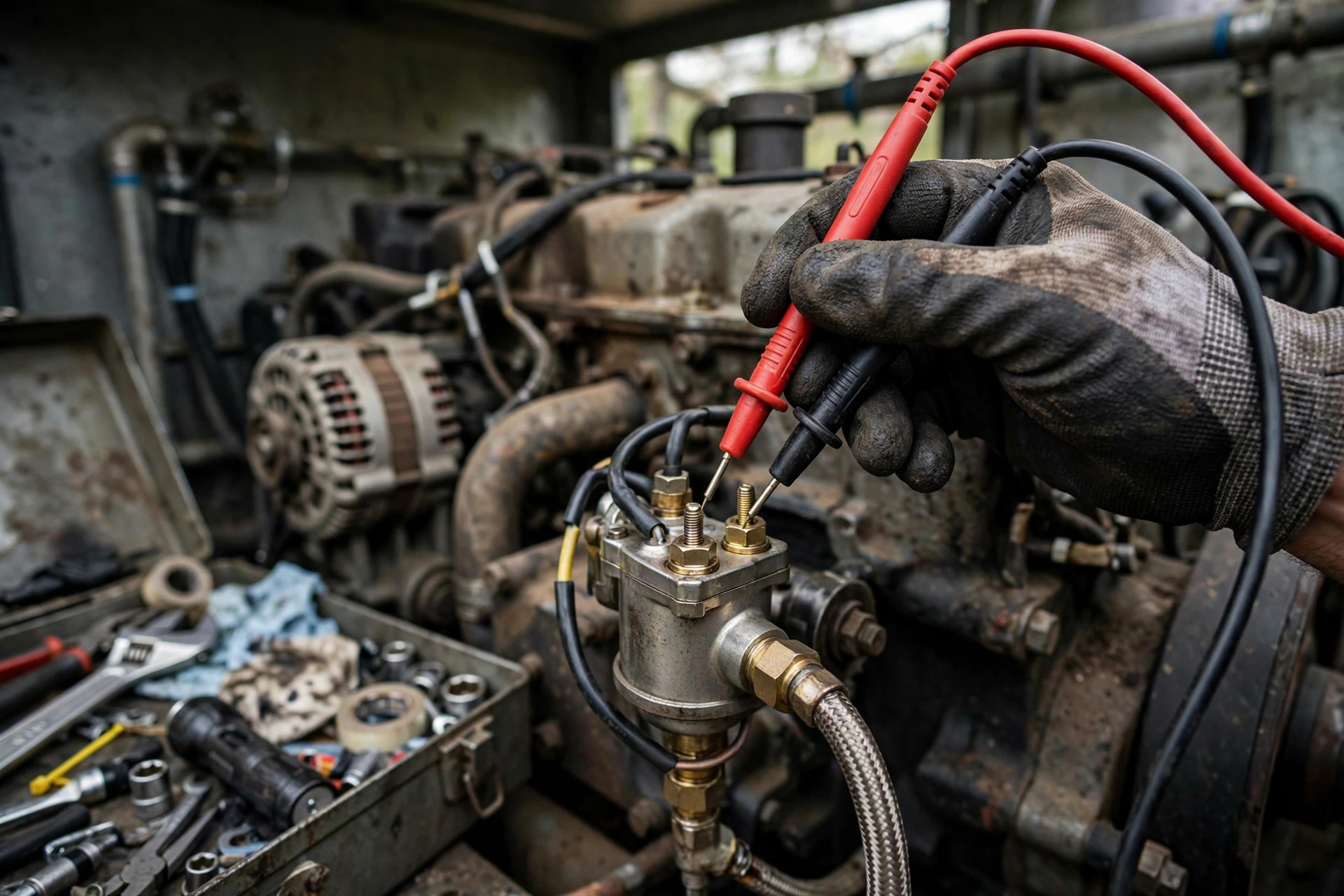

2. Voltage at the coil. Meter across the solenoid terminals while someone holds the key at run (or during crank, depending on your ETS/ETR type). You should see full system voltage — 12 or 24 volts, whatever your bank is. Nine volts and a weak click means a dying battery or a corroded connection, and a starved solenoid will chatter its plunger to death. (Batteries are guilty until proven innocent.)
3. Jumper it direct. Disconnect the harness and touch the coil straight to the battery terminals — brief touch, mind the polarity if it’s a diode-suppressed coil. Loud click, plunger moves: the coil is fine, your problem is upstream in the wiring or the controller output. No click: the coil is dead. Order a new one.
4. Ohm it out. Coil disconnected, meter on resistance. A healthy 12/24V solenoid coil reads somewhere in the single to tens of ohms — check your engine manual for the exact number. Open circuit means a burned coil. Near zero means shorted. Either way, it’s a paperweight now.

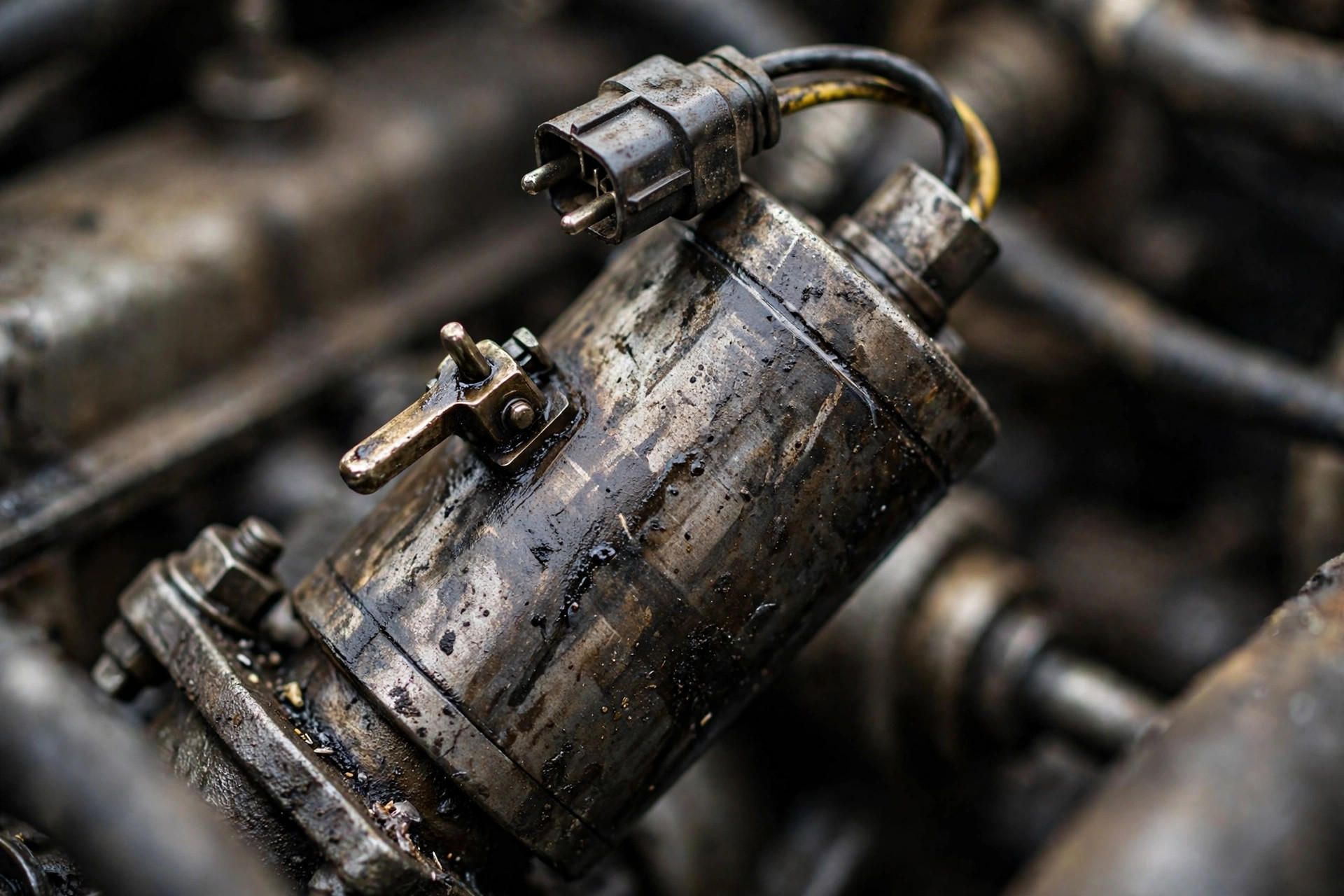

One more field trick: many solenoids have a manual override — a little lever or screw you pull to hold the plunger open mechanically. Great for getting a site through the night. Terrible if you forget it. I know a maintenance crew that left one pulled after a test, and the next week the controller’s shutdown signal did absolutely nothing. Their monthly “test” had been testing a bypassed safety device. Write the lever back to auto on your checklist, or it will bite you.

What kills them

Five things, in my experience. Voltage mismatch — someone swaps a 12V bank for 24V or orders the wrong coil and it burns in a week. Chronic undervoltage — a weak battery makes the plunger hammer instead of seating, and each hammer blow is a tiny dent. Heat — solenoids live bolted to hot iron near the turbo, and coil insulation has a lifespan. Varnish — old fuel gums the plunger, especially on sets that sit for months (diesel goes bad in the tank faster than people think). And the humble chewed wire: I’ve opened junction boxes with mouse nests in them twice in one year. A two-wire start signal is only as reliable as the copper it’s printed on.

None of this is expensive to prevent. The click test takes ten seconds. The voltage check takes five minutes. Add both to whatever maintenance routine you’re already running.

That Thursday morning warehouse? We jumpered the solenoid straight off the battery bank, the plunger snapped open with a click you could hear across the room, and the engine fired on the second crank. The coil itself was fine — a corroded ring terminal on the harness had been starving it. Twenty-cent part. Two hours of warm freezers. The manager still brings it up every time I see him, and honestly, so do I. Cheap lesson, honestly: the engine is never the most complicated thing in the room. It’s the smallest electrical decision that decides whether any of the big iron gets to work.
