The call came on a Tuesday at 9:40 in the morning. A rental 500 kVA was running a concrete batch plant outside town, and it had decided — on its own, with no warning the operator understood — that 300 kW was all the power anyone was getting that day.
The pour couldn’t wait. The controller screen said EGR FAULT, which meant nothing to the site foreman and, honestly, not much more to me the first time I saw it years ago. I drove out there expecting a fuel problem. It wasn’t fuel. It was a valve the size of my fist, choked shut with soot, doing exactly what it was designed to do. Just too well.
EGR stands for exhaust gas recirculation, and the name tells you the whole ugly story. A modern Tier 4 Final or EU Stage V diesel takes a metered slice of its own exhaust — roughly a tenth to a sixth of it, depending on load — cools it, and feeds it back into the intake.
Why would anyone do that? Because exhaust doesn’t burn twice. It displaces fresh air, which drops peak combustion temperatures, which cuts nitrogen oxide formation sharply. NOx is the pollutant the regulators chased hardest, and EGR is how engine makers caught it without hanging twice as much aftertreatment hardware on the stack.
On most generator engines it’s cooled EGR: the recirculated gas passes through a small cooler — basically a mini radiator with engine coolant on one side and exhaust on the other — before it rejoins the intake. A valve meters the flow, and a position sensor tells the controller how far open it is. Three parts. That’s the whole system, and every one of them fails in its own special way.
An old-timer I work with, thirty years turning wrenches, calls it “the engine eating its own vomit.” He’s not wrong about the aesthetics. But here’s the thing I tell customers: the engine doesn’t care about aesthetics. It cares about soot, and soot is where this story goes bad.

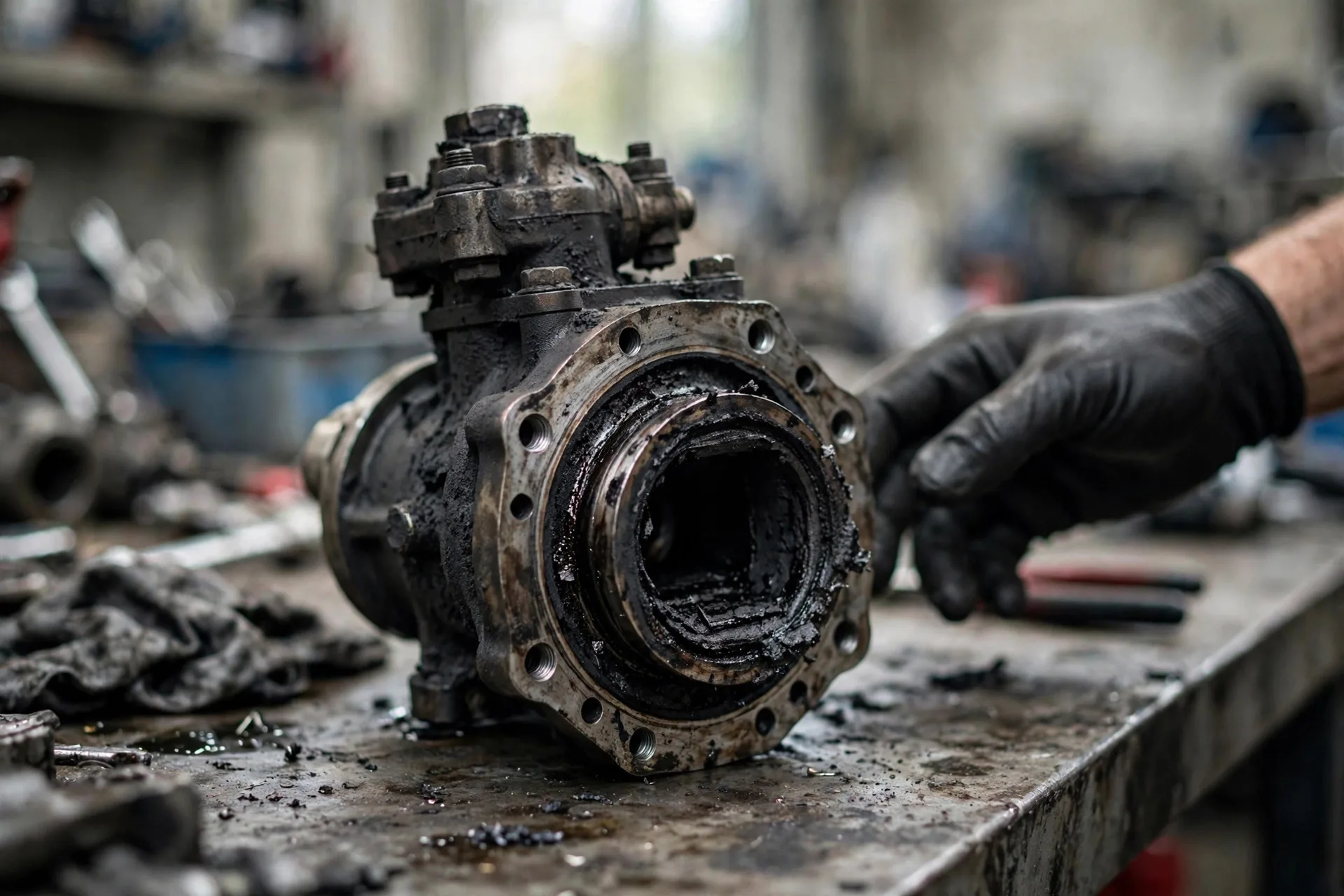

The valve lives in the dirtiest neighborhood on the engine. Soot bakes onto the stem and the seat every hour it runs, and eventually the valve stops moving the way the controller commands. Two failure modes, opposite symptoms.
Stuck open, the engine drowns in its own exhaust at exactly the wrong moment — idle, light load, the easy hours. It runs rough. It blows black smoke when you ask for power. It won’t take load without stumbling. I’ve watched operators chase this for a week, convinced it’s bad fuel, because the symptoms look exactly like fuel starvation. One site burned through two fuel filters and a very expensive fuel sample analysis before anyone looked at the EGR valve. The valve was the problem the whole time.
Stuck shut, or stuck partway, the engine runs fine — until the controller notices the NOx math doesn’t add up. Then you get the fault code, the warning lamp, and the derate. That Tuesday batch plant? The valve was stuck shut. The engine itself would happily have made full power. The controller wouldn’t let it, because running full power with dead EGR means blowing past the emissions limit the engine was certified to. So it capped output at roughly sixty percent and waited for someone who knew what EGR FAULT meant.
And then there’s the third failure, which is the position sensor lying. The valve moves fine; the sensor reports wrong. The controller commands open, reads closed, commands harder, throws a rationality fault. You replace the valve, the code comes back, and now you’re angry at the wrong part. Commanded-versus-actual position on the service tool catches this in about ninety seconds. Skip that check and you’ll learn the expensive way.
Everyone stares at the valve. The cooler is the expensive surprise.
It’s a heat exchanger with exhaust on one side and coolant on the other, and it lives through brutal thermal cycling. Two things kill it. First, soot fouling: the gas passages cake up, heat transfer falls off, intake temperatures climb, and the controller starts trimming power to protect the engine. Second, internal leaks: a crack or a failed joint lets coolant seep into the exhaust stream, or worse, into the intake.

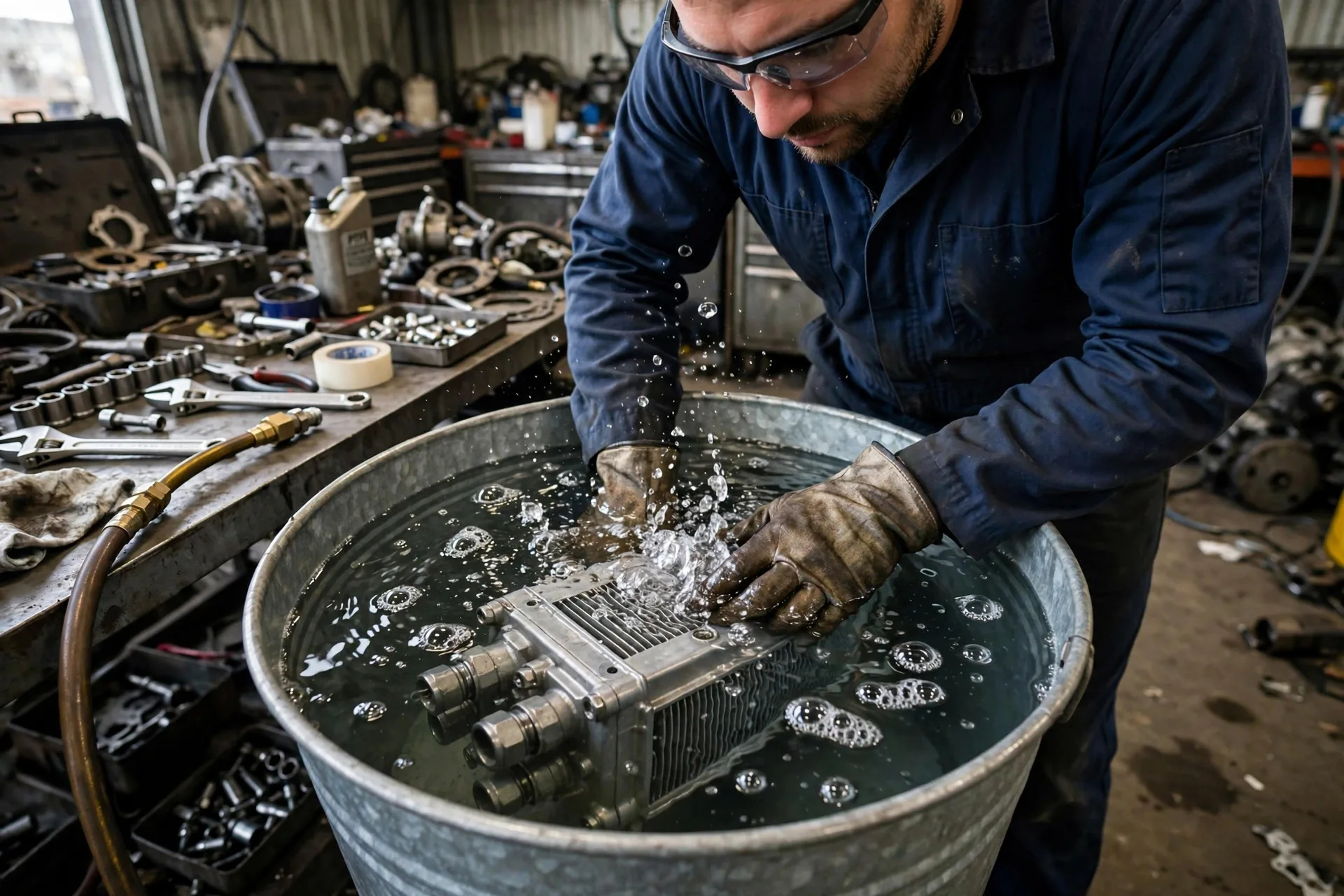

Coolant in the intake looks like a head gasket failure. White smoke. Coolant level dropping with no puddle under the engine. I have seen a crew get the head bolts halfway out before someone — not me, I wish I could claim it — said “pressure-test the EGR cooler first.” Twenty minutes on the bench, bubbles in the water bucket, and the head went back on. That misdiagnosis would have cost the customer a head gasket job, two days of downtime, and the actual problem would still have been there.
So now the rule in my shop: disappearing coolant plus white smoke on a Tier 4 engine means the EGR cooler gets tested before the head comes off. Every time. No exceptions. It’s a cheap test against a very expensive mistake.
This is the part operators hate, and I get it. The engine is mechanically fine. The valve is a side-show part. Why does the controller get to cut your power in half over it?
Because the certification says so, more or less. The engine was certified to meet NOx limits with a working EGR system. Running at full output with the EGR dead isn’t just dirty — in regulated markets it’s non-compliant, and the manufacturer protects itself (and you, indirectly) by derating instead of letting you run dirty. Some controllers do it in steps: warning first, then a soft derate, then a hard cap. Read your engine’s manual once, on a quiet day, and you’ll know which step you’re in when the lamp comes on at 2 a.m.
I’m not defending the design. I’m explaining why yelling at the controller doesn’t help. The derate is doing its job. Your job is to fix the valve.
Diagnosis first, parts second. Before anyone orders a valve:
That routine takes about ninety minutes and it has saved my customers more money than any part I’ve ever sold them. If you don’t have the service tool, this is the point where calling someone who does pays for itself — our engineers see this failure weekly.
Cleaning works — sometimes. A valve coked with soft soot can come back with careful cleaning and a new gasket. A valve with a worn stem, a scored seat, or a tired actuator is a replacement, and no amount of solvent changes that. I’ve seen cleaned valves fail again in three months because the real problem was wear, not dirt. If the valve has several thousand hours on it and it’s already sticking, replace it. The labor to get in there twice costs more than the part.
And then there’s the conversation I have a few times a year: the delete kit. “Can you just take it off?” No. It’s illegal in most markets where these engines are certified, it voids the engine warranty instantly, it tanks resale value, and the controller will fight you with permanent fault codes unless you reflash it — which is its own legal problem. I understand the temptation. I’ve just never seen it end well for the owner.
EGR soot is worst on engines that idle lightly for months — the classic standby set that exercises unloaded every week and never works hard. Light load means cool combustion, cool combustion means more soot, more soot means a coked valve. It’s the same story as wet stacking, wearing a different hat. A yearly loaded run — a real load bank test, not twenty minutes of idling — burns off deposits across the whole system, EGR included.
Fuel quality matters too. Dirty fuel makes dirty combustion, and dirty combustion makes soot everywhere, including in the EGR circuit. The habits are the same ones I’ve preached for years: keep water out of the stored fuel, change filters on schedule, don’t let the tank turn into a science experiment.
That Tuesday batch plant? New valve, new gaskets, cooler pressure-tested while we were in there (it passed), and the set went back to full power before the concrete trucks finished their second round. The foreman asked me what he’d done wrong. Nothing, I told him. The valve did what valves do. You just have to know it’s there before it picks the worst possible Tuesday to remind you.
