A warehouse manager called me on a Tuesday morning last spring. His standby generator — a solid 400 kVA set installed in 2008 — had frozen mid-exercise. The controller screen was dead. Black. And the “official replacement” for that controller module? Discontinued eight years ago.
He asked the question I hear three or four times a year now: “Do we have to replace the whole generator?”
No. We didn’t. We replaced its brain and kept the body. That job — a controller retrofit — is the most cost-effective rescue in the generator business, and the one most owners don’t know exists until they’re standing in front of a dead screen.
Here’s the thing nobody tells you when you buy a genset. The diesel engine is the part built to last. Forty, fifty thousand hours isn’t unusual for a well-kept block. I’ve seen 1990s engines still pulling full load like they were commissioned yesterday.
The controller? That’s a computer. And computers age like milk, not wine.
Capacitors dry out. Backlight tubes die. Touchscreens delaminate. And the manufacturer — whose business is selling new machines, not supporting old ones — stops making your module after a decade or so. They’ll sell you the new one. They will not sell you the old one. This isn’t a conspiracy. It’s just how product lines work.
So you end up with a $60,000 machine held hostage by a $1,500 circuit board that nobody stocks anymore. That’s exactly where the warehouse was.
People picture the controller as a fancy start button. It’s not. It’s the nervous system.
It watches oil pressure, coolant temperature, battery voltage, frequency, all three phases of current. It decides when to crank, when to give up cranking, when to transfer the load, when to shut the engine down to save it from itself. It logs the fault history you need at 2 a.m. when everything’s already gone wrong.

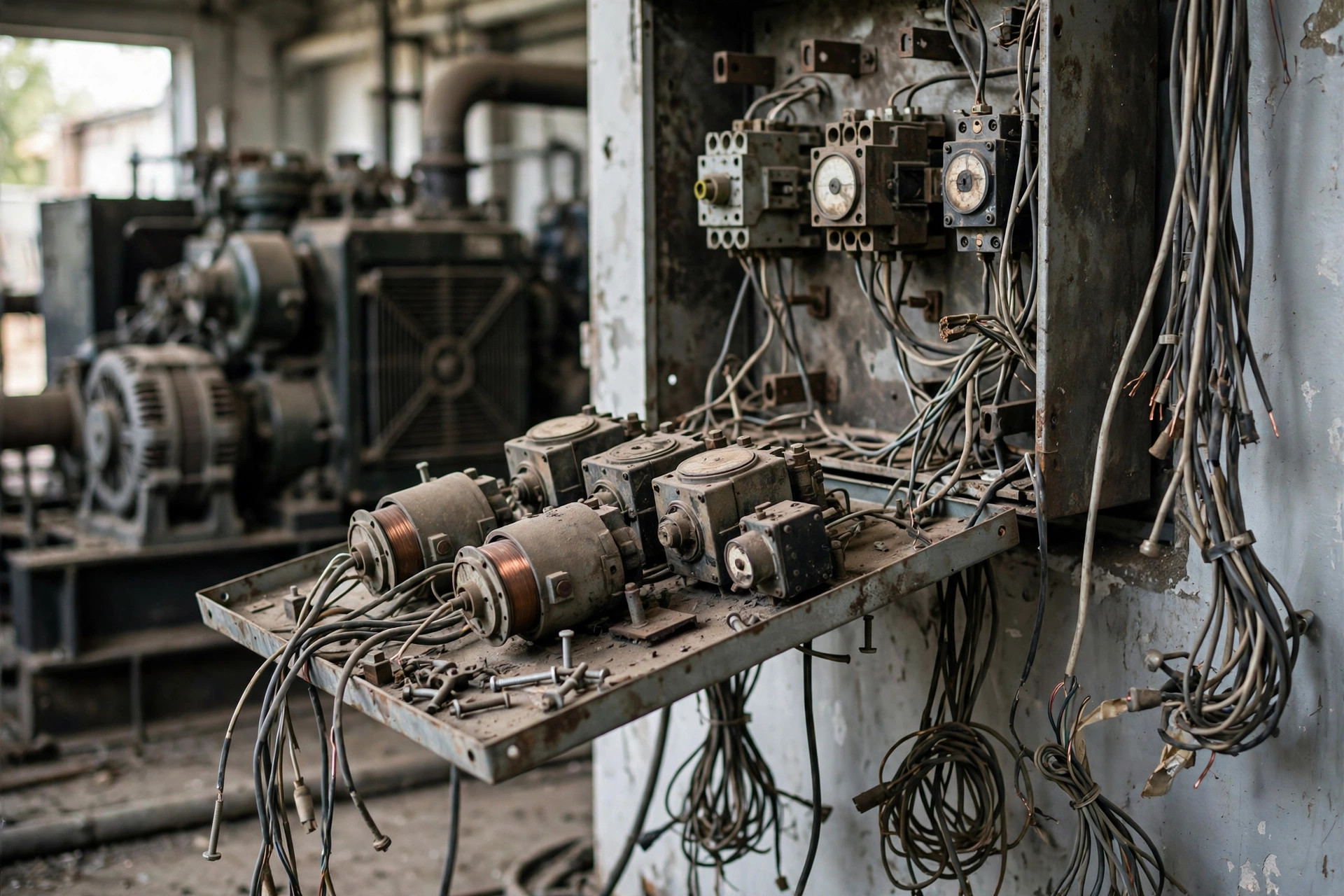

An old relay-logic panel did all this with a pile of timers and contactors. A modern module — a Deep Sea DSE 7310, a ComAp InteliLite, something in that class — does it in software, with a screen that actually tells you what happened instead of one red lamp and your imagination.
Which is why a retrofit isn’t a parts swap. You’re translating the machine’s entire nervous system from one language into another. Every sensor wire, every start signal, every shutdown contact has to be mapped onto the new module’s inputs and outputs, and the software has to be told what this particular engine expects. Get one wire wrong and the controller might crank a dead engine all night — or refuse to start a perfectly healthy one.
I’ve watched both happen. The second one is worse. The customer paid for the upgrade and the generator still doesn’t run. Awkward meeting.
Back to that warehouse. The set was a 2008 unit, engine in good shape, alternator fine, 11,000 hours on the clock — barely middle-aged for that block. The dead module was a controller from a brand that got bought out twice since, and the current owner doesn’t even list it in their legacy downloads.
First thing we did was stop and think before touching a wire. Honestly, this is the step most people skip, and it’s the one that matters most. We pulled the engine’s service history, checked compression readings from the last major service, meggered the alternator windings. Because here’s the cold math: if the engine is tired, a retrofit is lipstick on a pig. You don’t put a new brain in a dying body.
This one passed. Healthy engine, healthy alternator, dead computer. Textbook retrofit candidate.

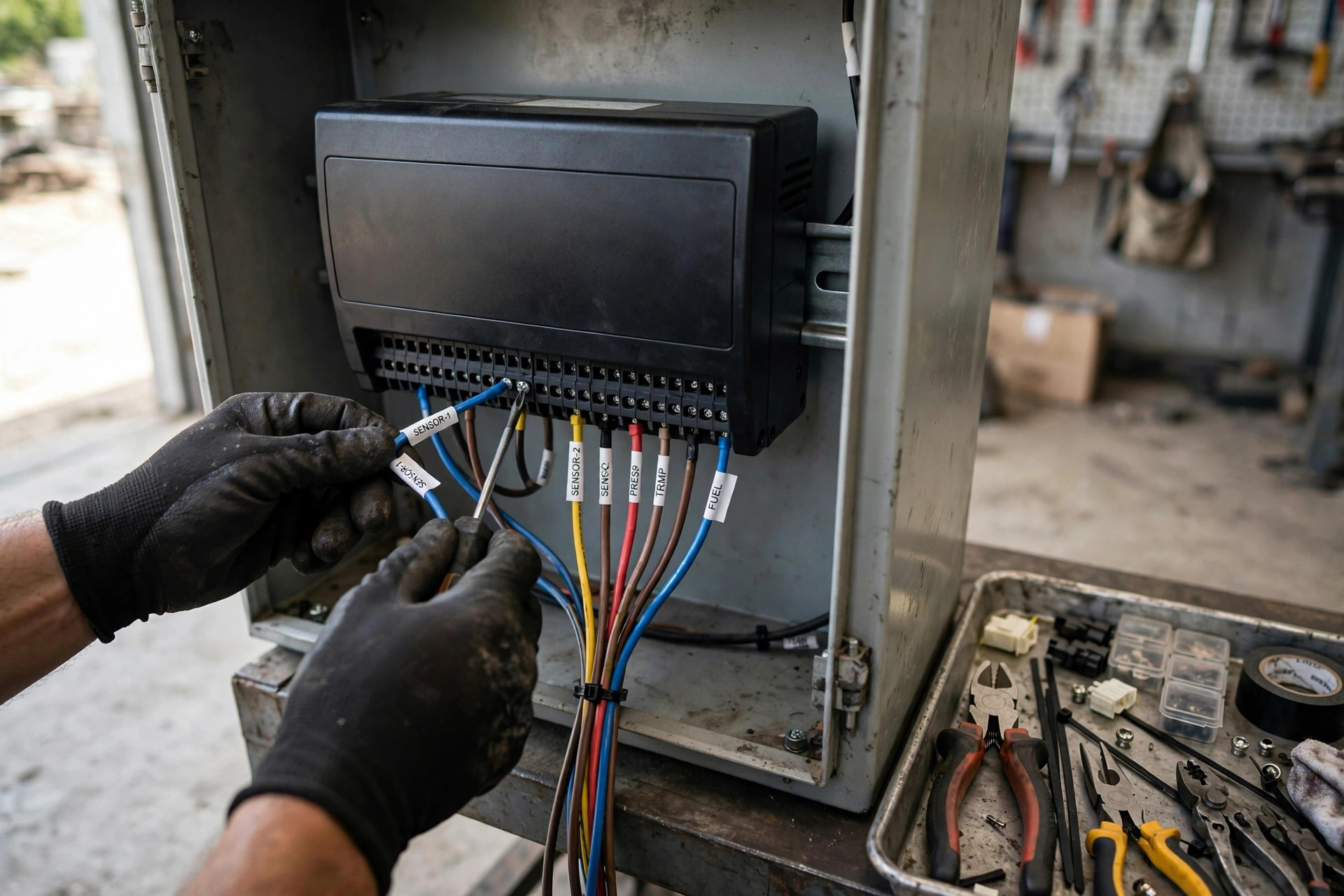

The job itself took two of us most of a day. Label every wire — I mean every wire, with a tag that won’t fall off in six months. Photograph everything before you touch it. Land the old panel’s functions onto the new module’s I/O: crank output, fuel solenoid, the three crank attempts the old panel allowed, the low-oil-pressure shutdown that has to actually work. Then the software side: tell the new controller the engine’s crank disconnect speed, its rated frequency, the under-voltage trip points that match this alternator’s excitation system.
Then — and this is the part people cheap out on — we ran it like a new installation. Not a five-minute no-load start. A real commissioning: full step-load test, protection trips verified one by one, the ATS sequence run end to end. If you’re going to trust this machine with your building, prove it earned the trust.
Cost to the customer: under a tenth of a replacement genset. The warehouse manager still sends me a photo of the green “AUTO” light every time it exercises. I don’t mind.
Now the warning, because I have to give it. On another project I worked — not mine, I was called in after — someone had “saved money” by buying a no-name clone controller online. Looked right. Plugged in. Ran fine for three months.
Then a genuine fault happened: a cooling issue, rising temperature. The clone’s protection logic didn’t behave like the real module’s. It hesitated on the high-temperature shutdown — whether from bad firmware or a slow input scan, nobody could prove it afterward. The engine cooked itself far enough that the alternator’s insulation was compromised. What should have been a $900 part became a rewind job and weeks of downtime.
Look. A controller is the one component whose entire job is protecting everything more expensive than itself. Buying the cheapest possible version of it is like buying the cheapest possible smoke detector for a fireworks factory. The math never works out.
I’m not saying you must buy the original manufacturer’s module — plenty of retrofits use Deep Sea or ComAp modules on engines they were never “meant” for, and they run beautifully. I am saying: buy a real module from a real manufacturer with real firmware support, and buy it through someone who will answer the phone when you need a parameter changed at midnight.
Worth saying: a senior tech I respect thinks differently about all this. His view is that when the controller dies on a 15-plus-year-old set, the machine is telling you something. Patch the brain today, he says, and next year it’ll be the radiator, then the fuel pump seals, then the wiring harness. Death by a thousand repairs.
He’s not wrong — for sets that were already limping. That’s exactly why we did the health check first on the warehouse unit. The retrofit makes sense when the iron is sound and only the electronics died. If the machine has been nickel-and-diming you for years, the dead controller is a sign, not a fluke. Replace the genset.
Knowing which situation you’re in is the whole game. And the test is simple: would you trust this engine for another ten years if the electronics were new? If yes, retrofit. If you hesitated even a second reading that sentence, you already know the answer.
Nobody publishes a price list for this because every old panel is a snowflake. But I’ll give you the shape of it.
The module itself runs from a few hundred dollars for a basic auto-start unit to a couple thousand for a full-featured one with paralleling and remote comms. The labor is the real line item — a day or two of a competent tech who actually understands both the old wiring and the new software. Then the recommissioning, which should include a load test, because a controller you haven’t proven under load is a rumor, not a protection system.
All in, most single-set retrofits I see land well under ten percent of a new genset’s price. On a 400 kVA machine, that’s the difference between a planned maintenance expense and a capital project with a committee.
One more honest note: budget for the surprises. Twenty-year-old wiring harnesses don’t always survive being disturbed. We found two brittle sensor wires on the warehouse job that had to be replaced before they’d have failed on their own — in service, at the worst moment. A good tech finds these during the retrofit. A bad one finds out about them later, from the customer.
The warehouse set has run two real outages since the retrofit. Both times the new controller did exactly what controllers are supposed to do — started the engine, carried the load, and gave the manager a fault log he could actually read afterward instead of a dead screen and a shrug. That’s the whole point. The iron was always fine. It just needed a brain that speaks this decade’s language.
