The Misalignment Nobody Checks Is Eating Your Generator’s Bearings

The call came at 9:40 on a Tuesday night. A food distribution warehouse, a 400 kVA set, and a maintenance manager who sounded tired in a way that had nothing to do with the hour. “It’s shaking like a washing machine full of bricks,” he said. “We already replaced the mounts.”

That one sentence told me almost everything. When someone replaces the mounts and the shaking stays, the mounts were never the problem.

Here is the maintenance nobody does on a diesel generator: checking the alignment between the engine and the alternator. Two machines bolted to one skid, joined by a coupling, expected to spin as one shaft. On paper they do. In the field, half of them don’t — and the vibration that results gets blamed on everything except the actual cause.

Twelve years of chasing generator vibration taught me this: misalignment is the diagnosis I make most often and get argued with about most fiercely. So here are the five alignment mistakes I keep finding, in order of how much money they waste.

Balancing the Rotor Twice Didn’t Fix It

The warehouse set is the perfect example. Before I got there, the previous contractor had balanced the rotor. Twice. Then replaced all four mounts. Six weeks of intermittent shutdowns, a bill with five figures on it, and the vibration still sat around 11 mm/s — roughly four times what I’d accept on that frame size.

I put a dial indicator on the coupling and measured close to a millimeter of parallel offset between the engine shaft and the alternator shaft. The two were never in line. Every fix so far had treated the symptom while the coupling absorbed the punishment, flexing twice per revolution, hammering the bearings on both ends.

Misalignment and imbalance feel the same from three meters away. They are not the same failure, and the treatments are completely different. Balancing a misaligned set is like rotating the tires on a car with a bent axle — the balancer printout looks great and the car still shakes. If your vibration didn’t respond to balancing, stop balancing. Measure the alignment.

One more distinction worth making: this lateral shaking is a different animal from torsional vibration — the twisting kind that lives in the crankshaft. Torsional trouble has its own causes and its own fixes, and confusing the two has cost more than one owner a wrong repair.

The Foot That Wasn’t Touching the Ground

Soft foot. Two words that end more alignment jobs than any broken tool.

A 600 kVA set at a paper mill had me chasing numbers for two days. Every reading contradicted the last one. Turn a wrench a quarter turn and the indicator moved half a millimeter — the machine was spring-loaded, fighting the bolts. One mounting foot had a gap of about a third of a millimeter under it. Somebody had simply cranked the bolt down anyway, bending the frame to meet the foot instead of shimming the foot to meet the frame.

An old-timer on that site watched me loosen everything back off and said, “Iron doesn’t bend, son. Tighten it down.” Iron bends fine. It bends exactly enough to ruin your alignment and not quite enough for you to see it.

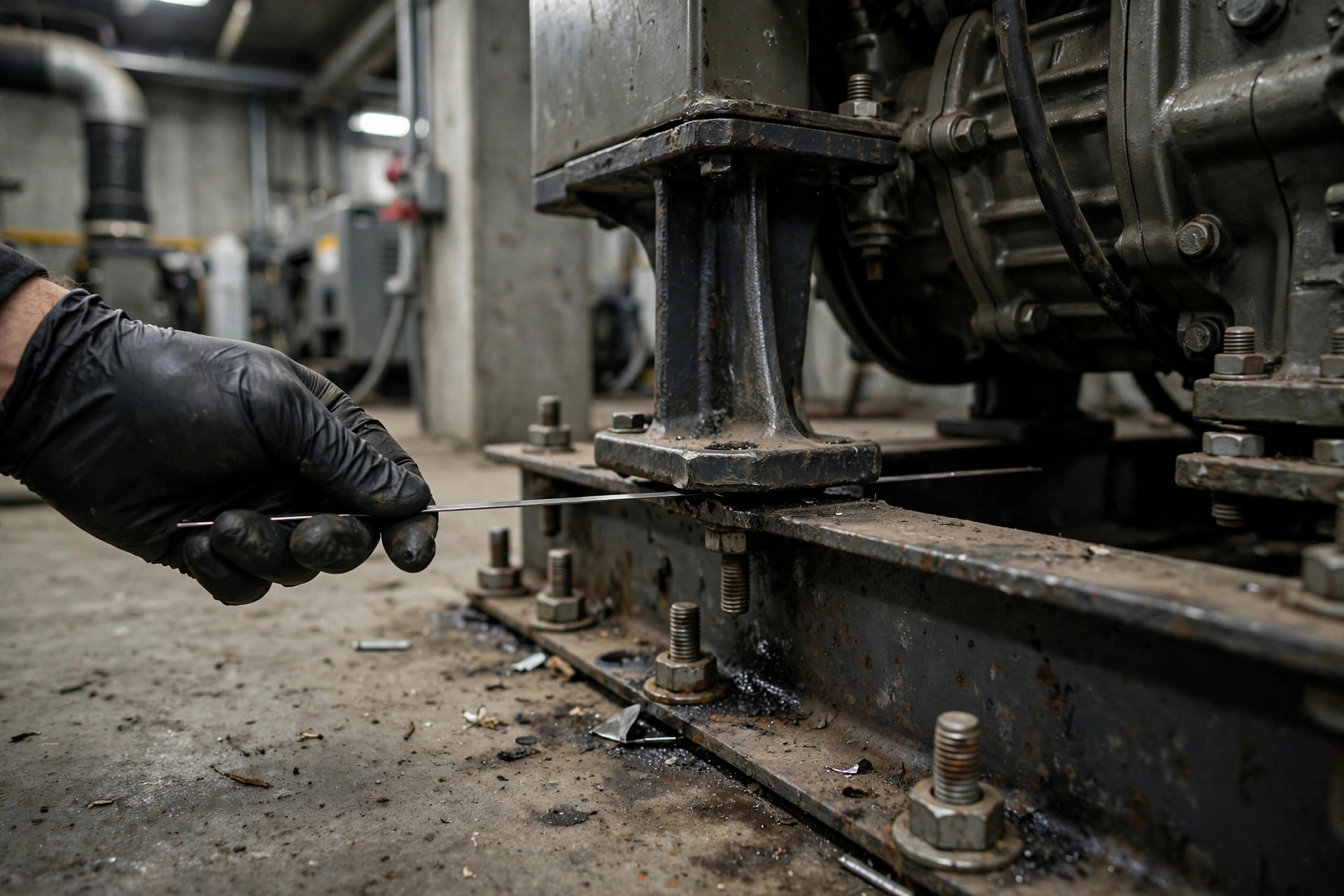

The fix takes ten minutes and a feeler gauge: loosen all the feet, slide the gauge under each one, shim the gaps until every foot sits flat. Do it before you touch the coupling. An alignment performed on top of soft foot is fiction — the moment anything shifts, every number you recorded is garbage.

Aligned Dead Cold, Running Crooked by Noon

This one bit me personally, so I get no satisfaction writing it.

Years back I aligned a 1 MW set on a frosty morning — beautiful numbers, everything inside a tenth of a millimeter, packed up feeling clever. By mid-afternoon at full load, the coupling was running hot and the vibration had crept back up. The exhaust side of the engine had grown with heat. My perfect cold alignment had become a misalignment with a timestamp on it.

Engines grow when they get hot, and they don’t grow evenly. The exhaust side moves more than the intake side, and a big block moves more than a small one. Align a set stone cold and you are aligning a machine that doesn’t exist yet — the running machine is a slightly different shape.

Two honest ways to handle it. Align it warm, after it’s been running under load for a while. Or apply the thermal compensation number — most engine manuals publish one. I write the compensation on the coupling guard with a paint pen so the next person doesn’t have to guess what I did. Future me has thanked past me more than once.

The Drive Discs Nobody Ever Looks At

On a single-bearing set there is no coupling to align in the traditional sense. The alternator hangs off the engine’s flywheel housing on a machined flange, and the drive connection is a pack of thin steel discs — flex plates — that absorb the small movements between the two.

Those discs are the alignment device. And nobody inspects them.

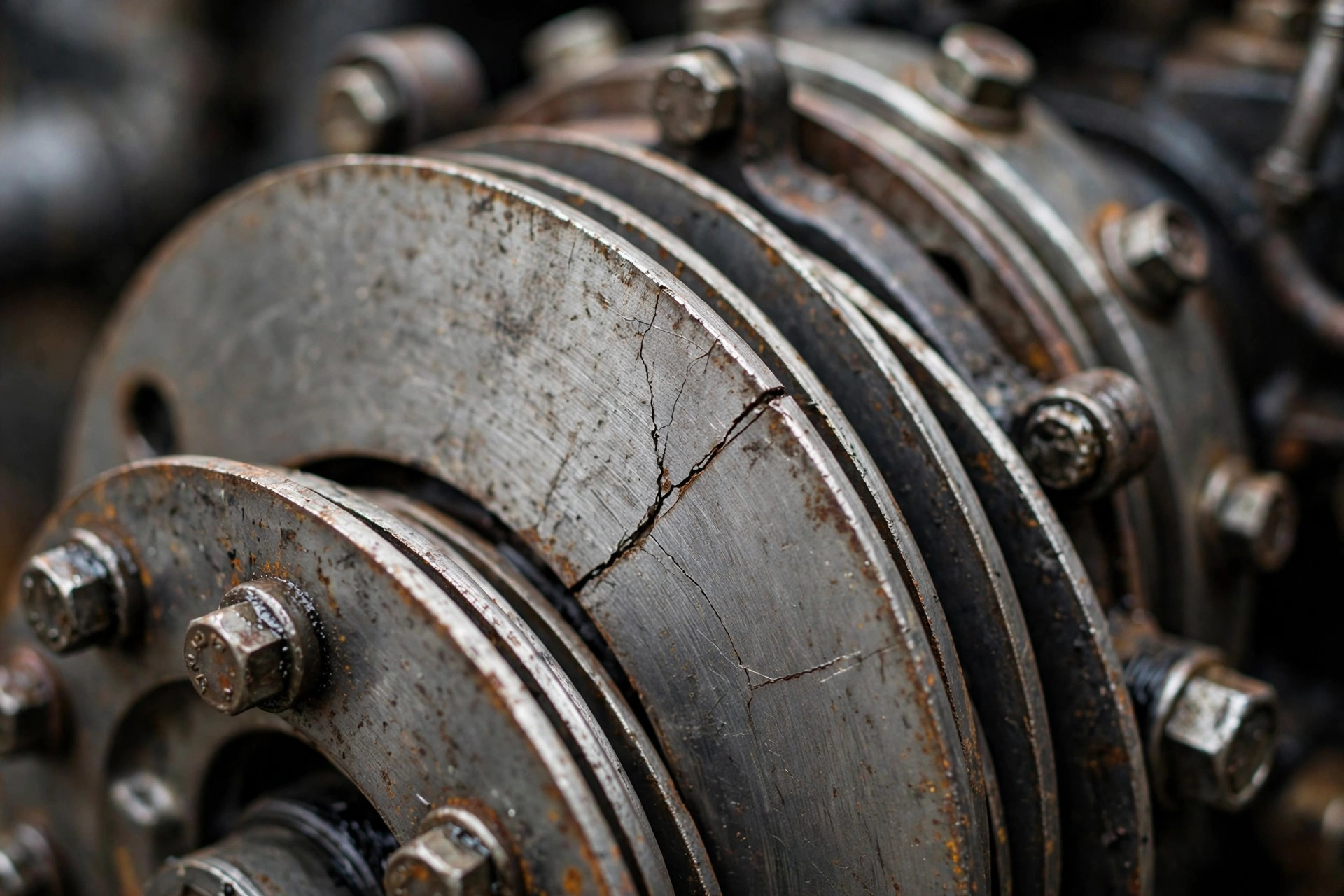

A 250 kVA set at a telecom site was making a noise everyone called a bad bearing. The bearing got replaced. The noise stayed. When I finally pulled the coupling guard — which took longer than it should have, because those guard bolts hadn’t moved in years — one drive disc had a crack running halfway across it, and its bolts had been working loose for months. The “bearing failure” was a drive disc announcing its retirement.

A veteran tech told me once that those discs outlive the engine. They don’t. They’re a fatigue item with a countdown on it, and every start-stop cycle ticks it down. On single-bearing machines, checking the drive discs belongs on the same list as checking the oil — and when you buy replacements, the cheap discs are exactly where the money isn’t saved.

The Coupling Bolts Nobody Re-torqued

Last one, and it’s the most boring, which is why it gets skipped.

An 800 kVA set at a hospital. Twelve years old. The flexible element — the rubber spider between the coupling halves — was the original. The manual said five-year replacement. The element had turned to crumbs, and the coupling bolts had wallowed their holes slightly oval, so every revolution included a tiny impact. The coupling was beating itself to death a fraction of a millimeter at a time, and the vibration trend had been climbing for two years before anyone asked why.

Bolts loosen. Elements age whether they look tired or not. Re-torque the coupling bolts on a schedule and replace the element on age, not on appearance. It’s a twenty-minute job that prevents a failure mode which, left alone, eats bearings, cracks discs, and eventually takes the set down during the one outage that mattered. Slow misalignment is still misalignment — and it’s one of the quiet things that decides how long a set actually lives.

The Two-Minute Check I’d Do on Every Visit

If you take one habit from this article, make it this. On every visit, before touching anything else:

• Look at the coupling guard. Is it hot? Is there rubber dust around it?
• Watch the vibration trend, not the snapshot. A slow climb across visits is misalignment talking.
• Once a year, pull the guard and actually look at the element — or the discs, on a single-bearing set.
• Re-torque the coupling bolts while you’re in there. Twenty minutes.

That’s it. It catches four of the five mistakes above before they turn into money.

Alignment never made it onto the standard maintenance checklist at most sites I visit, which is strange for a measurement that takes an afternoon and saves bearings. Next time a set shakes, put the indicator on the coupling before you order parts. It’s the cheapest diagnostic in the building — and about half the time, it’s the whole answer. If the numbers don’t make sense, talk to someone who aligns sets for a living before the parts cannon comes out.
