Tuesday, 8:40 in the morning. The weekly test was due at nine. I walked past the 400kVA set on my way to the control panel and stopped — there was a green crust on the concrete under the water pump snout, like the engine had been crying antifreeze.
The site guy shrugged. “It’s been doing that for a month. We just top up the coolant.”
A month. A water pump that had been confessing for a month, and nobody had read the confession.
Here’s what he didn’t know: that pump has a tiny hole in its housing, put there on purpose, and it had been talking the whole time. Three questions I get about water pumps, answered the way I’d answer them leaning against a generator frame.
Out the weep hole. Probably.
Every engine-driven coolant pump has one — a small drain hole cast into the housing, sitting between the mechanical seal and the bearing. When the seal starts to wear, coolant seeps past it and drips out that hole instead of washing into the bearing and killing the whole pump in a week. The hole is the pump’s early-warning system. It is the most honest part on the entire cooling system.

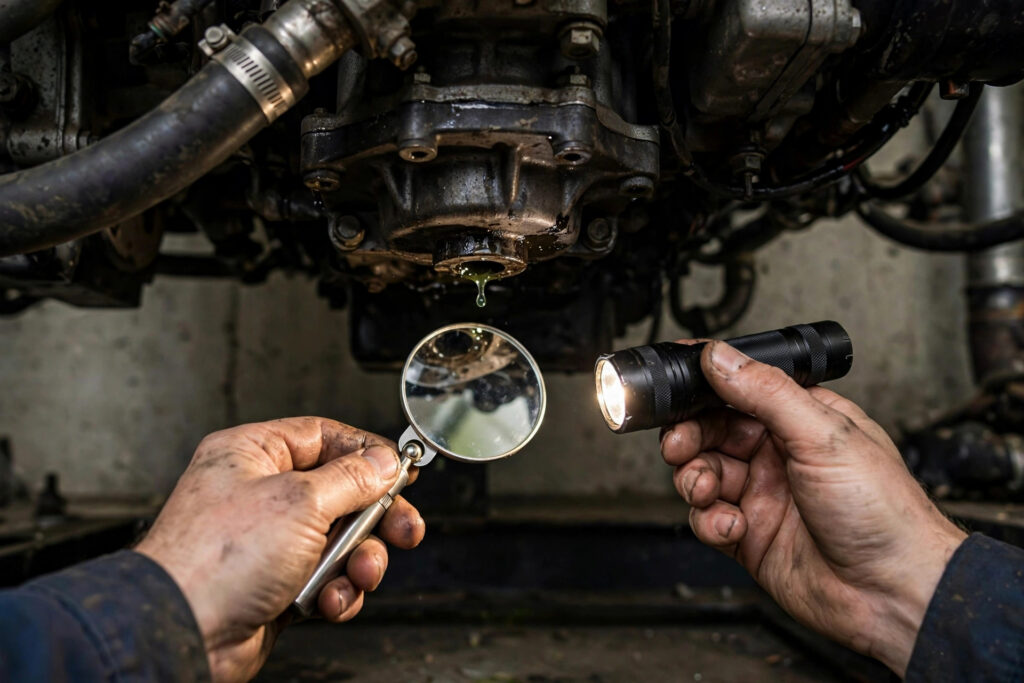

What it looks like in the field: a green or white crust around a hole the size of a pinhead, a damp streak running down the front of the engine, a faint sweet coolant smell after shutdown. Thirty seconds with a flashlight and an inspection mirror, cold engine, and you know.
Two years ago a data center called me about a 500kVA set losing coolant. Their maintenance lead had already replaced the radiator cap — twice — because “caps are always the culprit.” I put a mirror under the pump snout. There was a green stalactite hanging off the weep hole, maybe a centimeter long. New pump, leak gone. The caps were innocent. The pump had been confessing for weeks and the mirror was the first person who listened.
Death one: the seal. Normal aging, or coolant full of rust and scale acting like sandpaper, or the pump ran dry once during a sloppy coolant change. Slow weep-hole drip. Honest symptoms, generous warning time.
Death two: the bearing. The pump bearing lives under side load from the drive belt, and a belt tensioned like a guitar string will murder it in months. The symptom is a howl or growl that climbs with RPM — which everyone misdiagnoses as an alternator bearing or a fan problem. A young tech at a logistics site once told me, proudly, “tight belts don’t slip.” Six months later his pump bearing howled loud enough to hear across the yard, and the site had already priced an alternator rebuild they didn’t need.

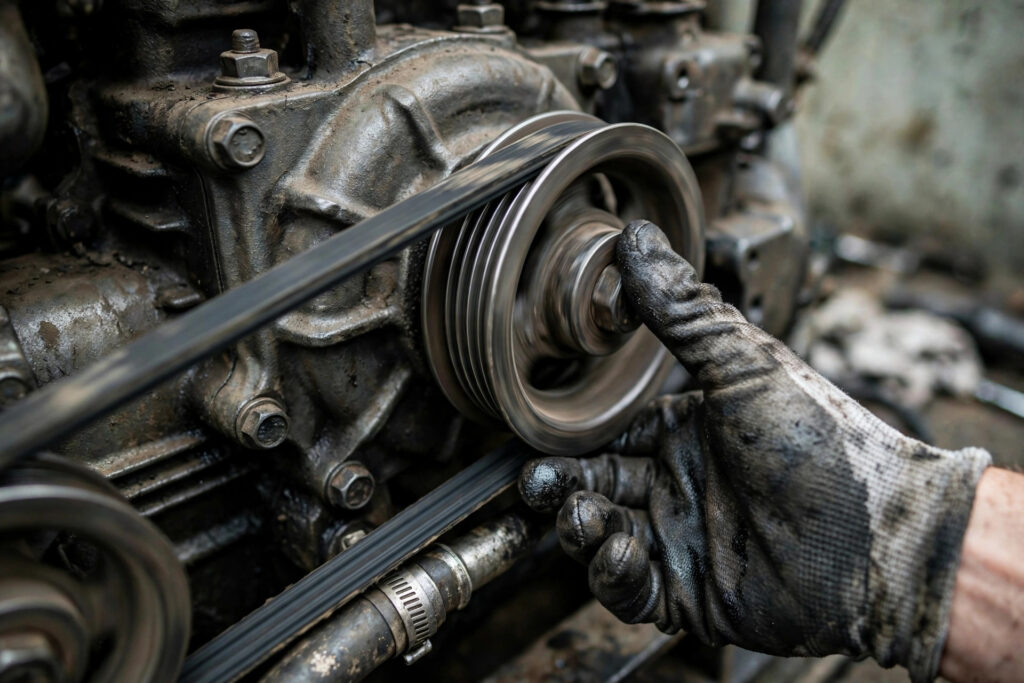

Check it cold: grab the pump pulley and rock it. Any play you can feel is too much play. A healthy pump pulley feels like it’s machined into the block. A dying one wobbles like a loose tooth.
Death three: the impeller. Erosion and cavitation from wrong coolant — years of topping up with plain tap water, no corrosion inhibitor, nobody ever testing what was actually in the system. The pump looks perfect from the outside. Inside, the impeller is chewed down to stubs and flow is a shadow of what the spec sheet promised. Chronic overheating follows, and everyone blames the radiator. I spent three summers watching a farm’s 350kVA set overheat before someone finally pulled the pump: the impeller looked like a cookie somebody took bites out of. New pump, proper coolant with inhibitor, and it never ran hot again. The radiator had been rodded twice for nothing.
My old-timer disagrees with me on all of this. He says water pumps are lifetime parts — “you touch them when they leak, kid.” I say the weep hole IS the leak. Waiting for a puddle means waiting for coolant to reach the bearing and seize the pump on the hottest day of the year. We argue about it every spring. He’s been wrong for nine years, but I still double-check my torque wrench when he’s watching.
Usually one of four sins. Short list, because this is the one place a list earns its keep:
The air-lock one bites people constantly. Fill slowly, run it with the cap off until the thermostat opens, squeeze the hoses, top it up, then check the level again the next morning cold. Skip that and you’ll be back under the hood wondering why a brand-new pump runs hot.
Cold engine, once a month. Flashlight and mirror on the weep hole — crust, dampness, or a fresh drip. Rock the pulley — any wobble fails. Thumb-press the belt — it should deflect a little, not feel like a bowstring and not flap loose. And glance at your coolant log: a level that needs topping every month is a pump writing you letters.
None of this requires parts. It requires bending down and looking, which is exactly why nobody does it until the temperature gauge does the looking for them. If your set has been running hot and you’ve been chasing the radiator, the thermostat, and the cap, here’s the overheating order I actually work through — the pump sits higher on that list than most people put it. Coolant chemistry is the other half of pump life; this is what I tell owners about keeping coolant from eating the system. Fold the five-minute pump check into the monthly routine and it stops being a special task.
Next time you walk past your set, crouch down and look at the snout of the pump. If it’s crying green, believe it. Pumps don’t lie — they just whisper, and the weep hole is where they whisper loudest. Questions about your cooling system, talk to our engineers.
