The call came on a Thursday afternoon. A 500 kVA set at a cold-storage warehouse had shut down on high coolant temperature — twice. The crew had already replaced the radiator: new core, new coolant, new hoses. It overheated again the next day. I drove out expecting a mystery. What I found was a fan that wasn’t doing its job, and nobody had looked at it, because the radiator had been the obvious suspect.
Here’s the thing about cooling fans on diesel generators. They sit right there in the open, spinning in front of you, and somehow they’re the last thing anyone checks. Radiator, thermostat, water pump, coolant — the checklist always starts with those. The fan gets treated like furniture. It shouldn’t be.
Customers ask me about cooling fans more than you’d think. Usually after they’ve already spent money on everything else. These are the three questions I keep answering.
That cold-storage set. Let me tell you how it ended.
The radiator was spotless — it was two weeks old. Coolant was the right mix. The thermostat opened on the bench test. The water pump wasn’t weeping. So I stood there with the set running at half load, watching the gauge creep past 95°C, and I did the thing nobody had done: I watched the fan.
It was turning. That’s the trap. A dead fan is obvious. A dying fan spins.
This one had a viscous fan clutch — the kind filled with silicone fluid that thickens as it heats up, dragging the fan harder when the engine gets hot. When the fluid ages out or seeps past the seals, the clutch slips. The fan turns, but at half speed, or at whatever speed it feels like that day. At idle the set was fine. Under load, the temperature climbed like the fan wasn’t there. Because mostly, it wasn’t.

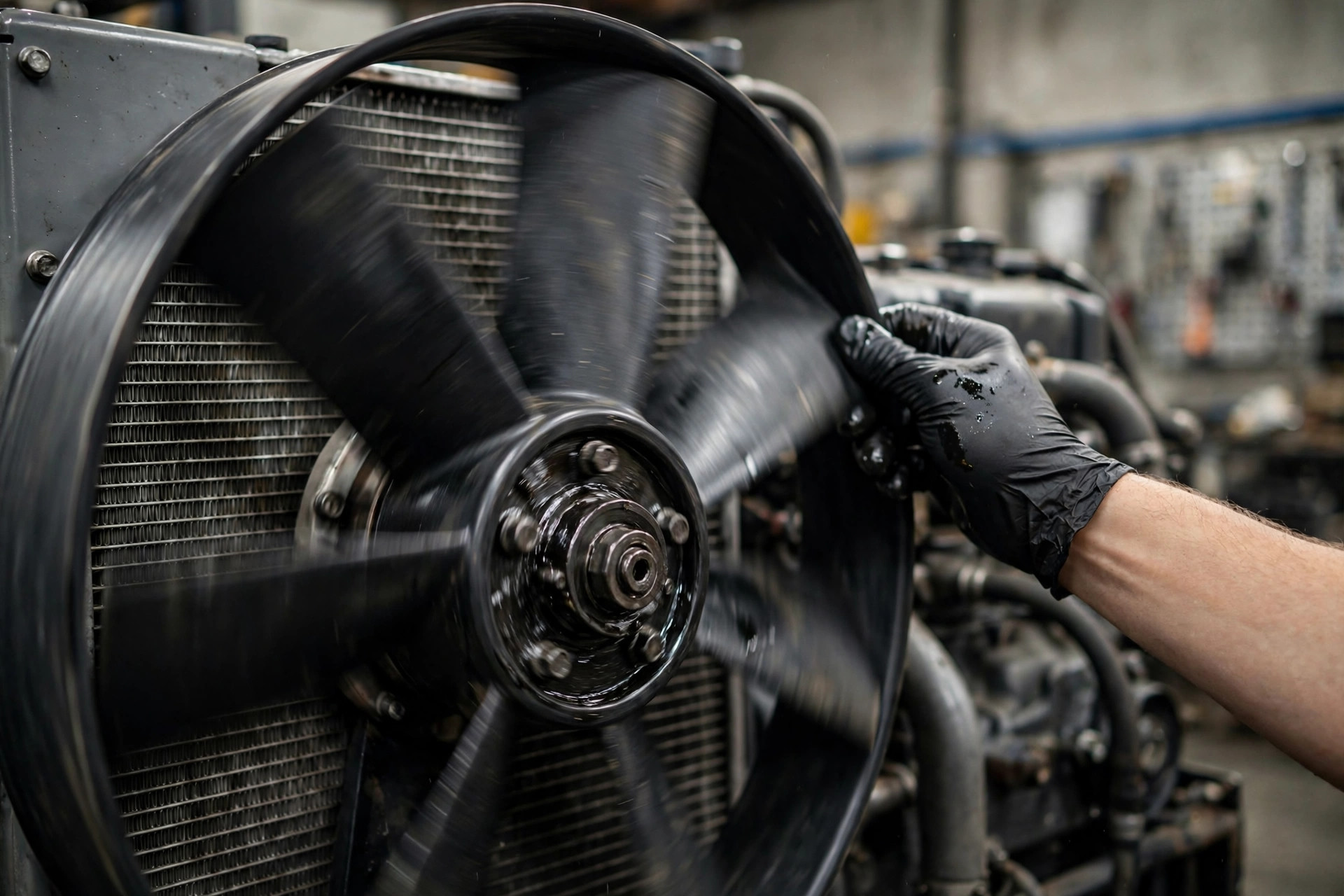

I shut the set down, let it cool, and did the hand test. Spin the fan by hand with the engine off and cold. A healthy clutch puts up some resistance — it shouldn’t freewheel like a bicycle wheel. This one spun like there was nothing inside it. There wasn’t.
New clutch, forty-five minutes of work, and the set ran a full load test at 88°C all afternoon. The eight-thousand-dollar radiator had never been the problem. I’ve seen this same movie three times now, in three different buildings. The radiator gets blamed because it’s the expensive, visible part. The fan clutch costs a fraction of that and nobody puts it on the maintenance list. Treat it like a wear item, because that’s what it is.
Yes. But not for the reason people argue about at the parts counter.
Most diesel engines drive the fan off a belt from the crankshaft. Simple. Fan speed follows engine speed, no controller involved, nothing to program. An old hand I work with — thirty years on these machines, and he disagrees with me about plenty — swears by belt fans for one reason: “When it quits at a quarry at midnight, you fix it with a belt from the truck.” He’s not wrong. A belt, a tensioner, done.
Electric fans show up on some newer sets and on many canopy designs where an engine-driven fan can’t be packaged. They give you control: the controller runs them only when needed, at the speed needed. Less drag on the engine, less noise at light load. Nice on paper.
Here’s where I’ll pick a fight with my own preference. I like electric fans on prime-power sets that run long hours — the fuel savings add up over a year. But for standby sets that sit for months and then have to work perfectly for six hours? I want the dumb-simple belt. An electric fan that hasn’t run in eight months has relays, sensors, and a controller standing between it and the engine. Every one of those is a failure point that a monthly no-load exercise will never test, because the fan barely works at no load.
That’s my honest split. Belt for standby. Electric is fine for prime power with real monitoring. Anyone who tells you one type is always better is selling something.
And whichever type you have, the belt — or the wiring — is what to check. A glazed belt doesn’t snap dramatically. It slips a little more every month, moves a little less air, and the temperature gauge tells the story in slow motion. The crew keeps topping up coolant, the overheating keeps coming back, and the belt looks fine from the top of the engine. You have to get down there and look at it.
It is not just a fan. Let me tell you about a Tuesday night on a construction site.
A 400 kVA set, running tower-crane duty. The night shift called: the set was shaking, the canopy was humming like a drum, and there was a banging noise on every start. When I got there in the morning, the fan shroud had a hole in it the size of my fist, and one fan blade was missing a third of its length.

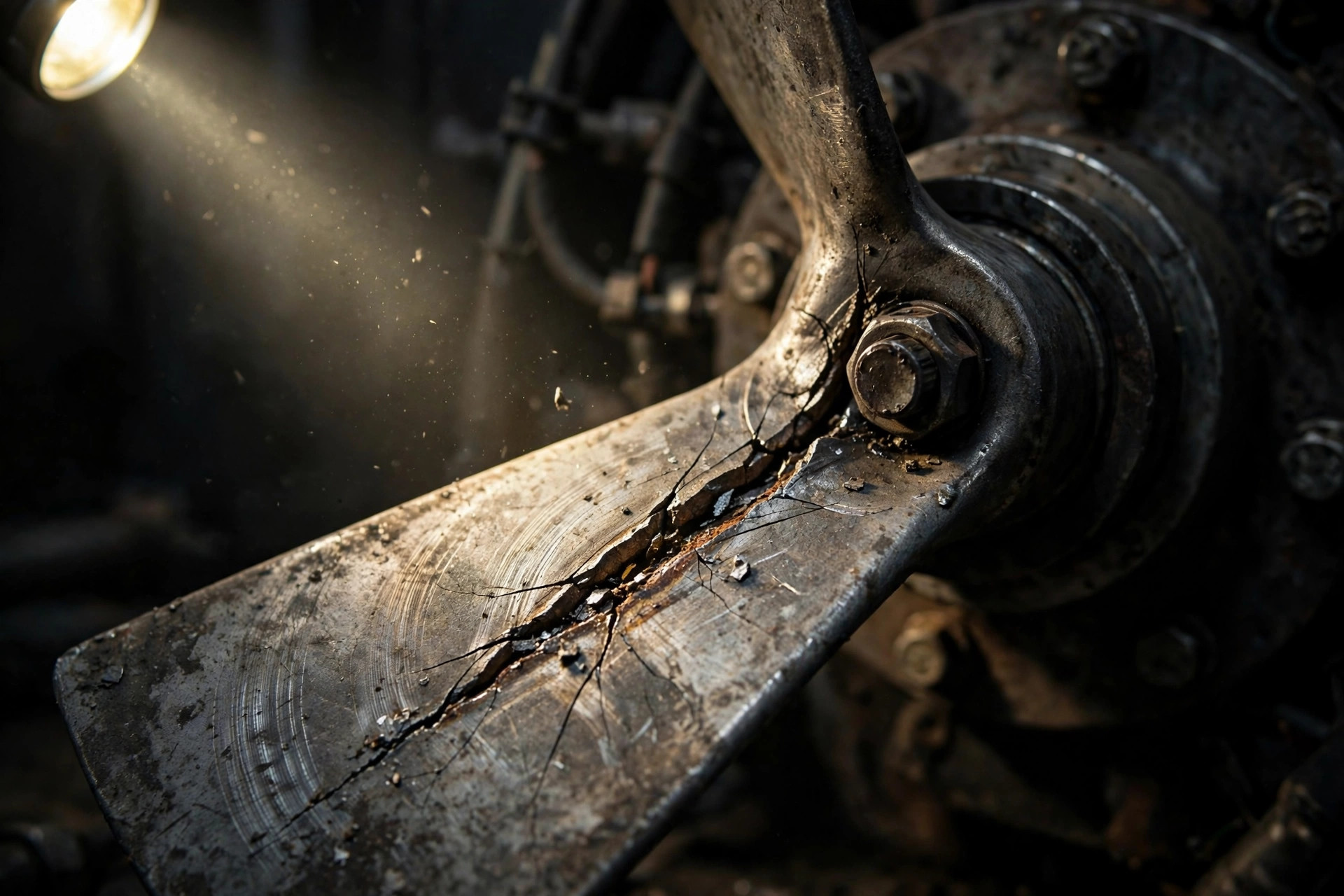

Fan blades crack at the root, where the blade meets the hub. Vibration, heat cycles, ten thousand hours of spinning — the metal gives up. The crack grows quietly. Then one day a chunk lets go at full speed. That piece doesn’t fall down politely. It goes through the shroud, and if you’re unlucky, through the radiator behind it or out through the canopy. I once saw a blade fragment dent a control panel door a good twenty feet away. I don’t want to think about a person standing there.
The crew had noticed the vibration for weeks and filed it under “diesels shake.” They’d been running it like that. We replaced the fan, the shroud, and — because the imbalance had been hammering everything for a month — the hub bolts and half the shroud fasteners.
So yes. A fan can fail dangerously. Look at the blades on your walkaround. Cracks start at the root. A flashlight and thirty seconds. If you see a crack, that fan is done — don’t run the set to “see if it gets worse.” It will, and it’ll pick the worst moment.
Once a quarter, set shut down and locked out: spin the fan by hand and feel for play in the hub bearings — any wobble is a warning. Look at the belt for glazing, cracks, and tension. Check every blade root with a flashlight. Look the shroud over for cracks and loose bolts. Then start the set, warm it up, and watch the fan pull hard under load if it has a clutch. Five minutes. That’s the whole list.
I’ve started writing “fan check” on the same clipboard line as the oil level. It’s that basic. And it keeps finding things — last month it found a seized belt tensioner on a set whose owner was about to order a new radiator.
One more thing people forget: the fan can’t fix bad airflow around the set. If the room recirculates its own hot air, the best fan in the world is just stirring soup. Fix the room and the fan together.
Look, the cooling system is a team: radiator, coolant, thermostat, pump, and the fan moving air through all of it. When the gauge climbs and the radiator is clean, stop replacing expensive parts. Look at the thing spinning right in front of you. It’s been the culprit more times than I can count, and it’s usually the cheapest fix on the whole machine. It’s on the checklist now at every site I touch.
Go spin your fan by hand this week. You might be surprised what it tells you.
