Tuesday, 2:14 in the morning. A mid-size colocation hall lost its utility feed — storm, substation fault, nobody pinned down which. The UPS caught the load instantly, the way it’s supposed to. And then the clock started ticking: the batteries could carry the hall for about eight minutes, and inside the first ninety seconds, two 1.5-megawatt diesel sets had to start, synchronize, and take the whole building onto their shoulders. They did. Nobody in the data hall noticed a thing — except the email at 8 a.m. telling them there’d been an “event.”
That’s the entire job of a data center generator, compressed into a minute and a half. Doesn’t matter how much you spent on the servers. If those ninety seconds go wrong, you own the headline. Data center operators know it, which is why they’re the most paranoid, most demanding, and — honestly — most interesting buyers a generator engineer will ever meet.
There’s a number that rules this world: ten seconds. When utility power fails, the backup source for a critical facility is expected to be up and accepting load within ten seconds — that’s the NFPA 110 discipline for Level 1 emergency systems, and data center designs hold themselves to the same clock. Batteries buy you minutes. The generator has seconds. (Getting the size right in the first place is half this battle — here’s how experienced contractors size generator sets without wasting money on capacity they’ll never use.)

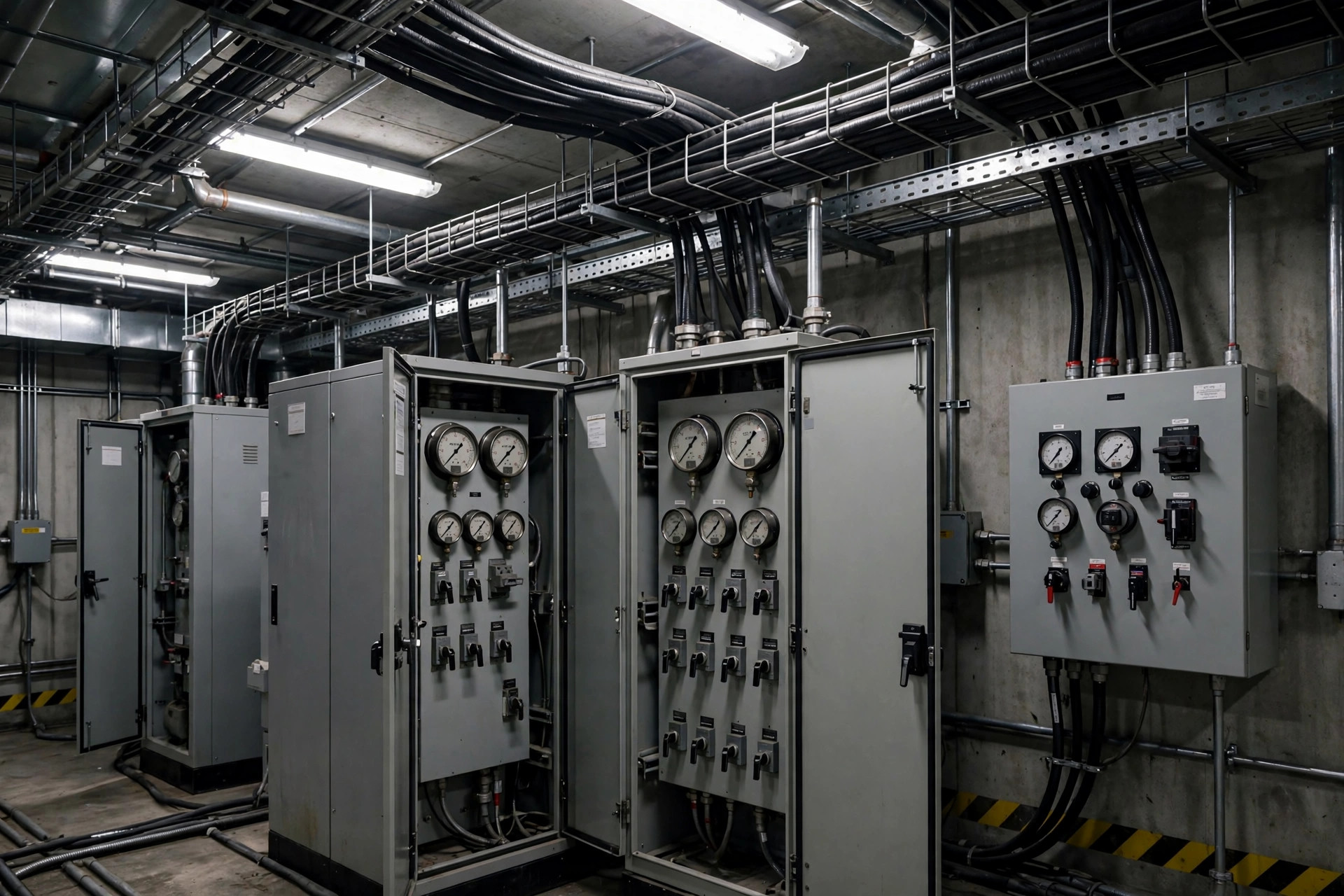

The start itself is the easy part. Any healthy diesel set with a warm block heater and a good battery will crank inside ten seconds — I’ve timed it with a stopwatch more times than I can count, the way a commissioning engineer times everything. The hard part is what comes next: the transfer switch dropping a few megawatts of load onto a machine that’s been sitting cold for three weeks, and the voltage not doing anything stupid while it happens. A data center load is not like a factory load. It comes back in one violent step, and it’s full of harmonics from the UPS rectifiers that the alternator has to swallow without flinching. This is why the serious specs name ISO 8528 G3 performance class — it’s the grade of voltage and frequency behavior you need when the load doesn’t ramp. It just arrives.
Ask an operator how many generators they need and the answer is always “the load, plus one.” A 6-megawatt hall gets four 2-megawatt sets, not three. N+1, they call it — the spare. Bigger facilities go 2N, a full mirror image. Looks wasteful until you think about maintenance. A generator that’s never been opened up for its 10,000-hour overhaul is a hope, not a machine. Operators service one set at a time and keep full coverage through the whole window — including the window, because the utility doesn’t schedule its failures around your maintenance calendar.
I’ve walked into a hall where one of three big sets was in pieces on the shop floor — top end apart, injectors on the bench — and the facility was running a full IT load like nothing was happening. That’s what the spare buys you. The old hands in this business say the spare set is the cheapest insurance in the building. They’re right, and it’s not close. (This is also where rating mistakes surface — running a standby-rated set on prime duty is how good generators die young.)
Here’s the thing nobody argues about: fuel. The number you’ll hear in every data center spec is seventy-two hours of on-site diesel. Not because anyone expects a three-day outage — though it has happened — but because it’s the margin the business can survive. Two full tanks is a design decision. The refueling contract, with a truck that can actually reach you when the roads are flooded, is the other half of it.
And the fuel has to stay good while it waits. Diesel that sits for a year collects water at the bottom of the tank. Water grows microbes. Microbes clog filters at exactly the worst moment. The operators who’ve been burned by this — and I’ve met more than one — polish their fuel and sample it like it’s part of the power system. Because it is.
Here’s a dirty secret: a generator that starts beautifully every month can still fail you inside the ninety seconds. Most weekly or monthly tests run the set unloaded, or at thirty percent if someone’s being careful. It starts, it spins, it looks fine on the panel. Then the real transfer lands at eighty-five percent, exhaust temperature spikes, and you meet the wet stacking — unburned fuel glazing the turbo and exhaust — that months of gentle test runs quietly built up. I’ve watched a set fail its retest this way after a year of “perfect” no-load monthly runs. The operator thought he was being diligent. He was being diligent about the wrong thing.

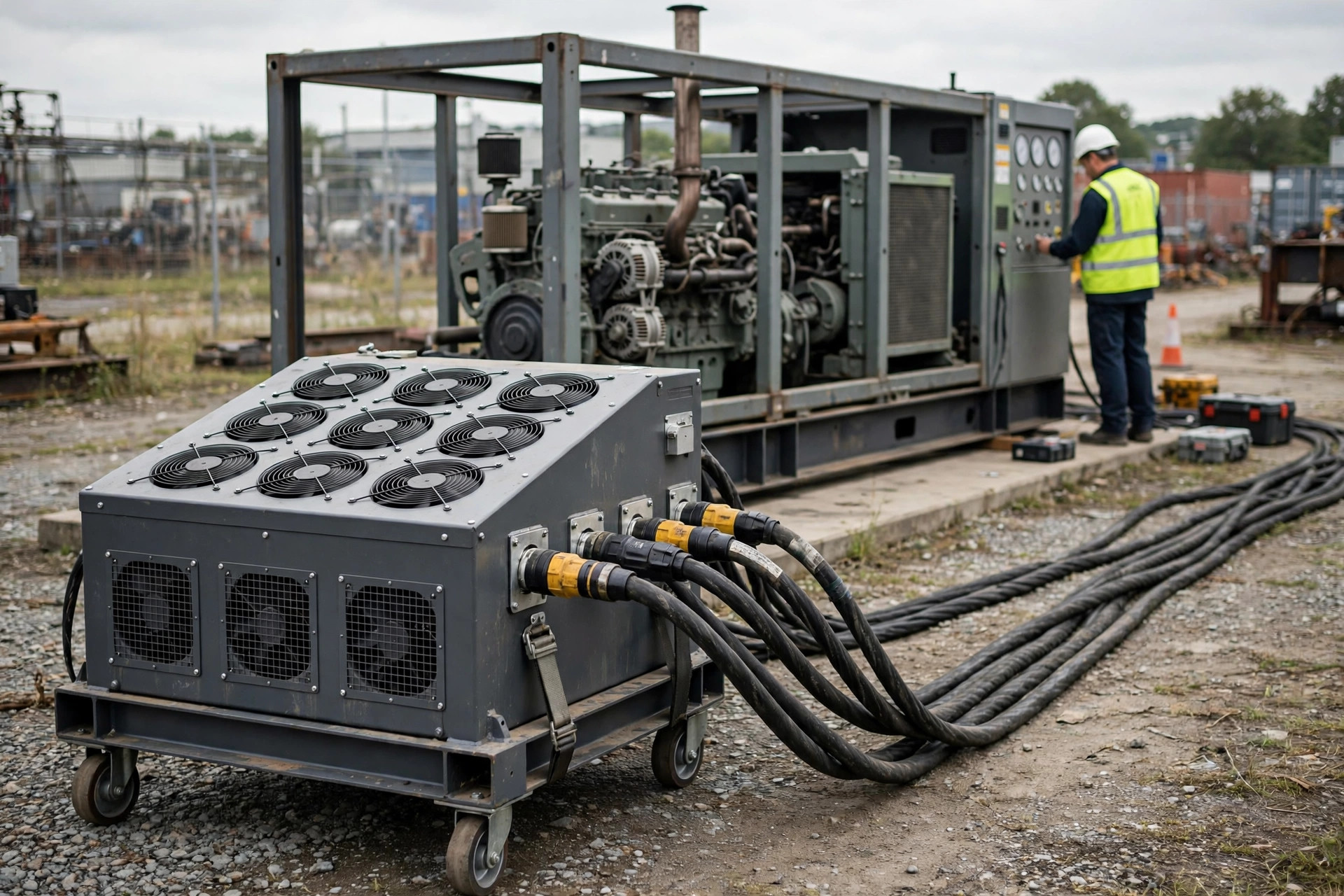

The fix is boring and non-negotiable: exercise the machine the way NFPA 110 asks — monthly runs, under real load — and once a year, test it at the load it will actually see, with a load bank if the facility can’t lend you its own megawatts. Sustained light-load running is exactly what the standard pushes back against; if your monthly exercise is a gentle idle, you owe that engine an annual load-bank session. The load bank day is when you find out whether twelve months of maintenance actually worked.
If you’re speccing generators for a data hall — or auditing someone who is — four questions matter more than the brochure. What is the largest single load step the generator sees on transfer, and what’s the voltage dip? What does the harmonic distortion from the UPS do to the alternator sizing? Can the controls parallel three sets and drop one for maintenance without a blip? And what’s the real fuel-autonomy number with the hall at full load, not the nice number in the proposal?
Get those four answered honestly and the rest is plumbing. Dodge them, and you’ll get the answers at 2:14 on some Tuesday morning, with the batteries counting down. And if you’re speccing a hall and want a second pair of eyes on the generator plan, talk to someone who’s commissioned one before you sign.
A data center generator is never the star of the building. It’s just the reason the star survives. Every hour it’s needed, it earns back its price. Every hour it isn’t, somebody asks why it costs so much to maintain. That tension never goes away — but the operators who’ve lived through the ninety seconds never question it again.
