The Starter Screams. The Engine Never Turns. The Ring Gear Is the Problem.

It was 6:12 on a Tuesday morning and the starter sounded like a coffee grinder full of bolts. The operator at the logistics warehouse had already hit the start button four times before he called me. Four times. Each grind a little worse than the last. By the time I got there, the damage was done — and it had nothing to do with the starter.

Here’s the part nobody tells you. Between the starter motor and the crankshaft sits a toothed steel ring — the flywheel ring gear — and it’s the most misdiagnosed part in the whole starting system. When a generator won’t turn over, everyone blames the battery, the starter, or the solenoid. The ring gear just sits there, quietly missing teeth, while perfectly good parts get replaced around it.

Engines Only Ever Stop in Two Places

A diesel doesn’t coast to a random stop. Compression in the cylinders brakes the crankshaft to a halt at roughly the same two positions, every single time. That means the starter’s little pinion gear — nine or ten teeth — engages the same small arc of the ring gear on almost every start. A flywheel ring gear has well over a hundred teeth. Maybe ten of them do ninety percent of the work.

That’s the whole story, really. Ten teeth get hammered thousands of times. The other hundred-plus barely get touched. When the ring gear fails, it doesn’t fail evenly. It fails in one chewed-up spot, right where the engine always stops. And because the engine always stops there, the starter keeps landing on the same ruined teeth, grinding them a little more each time.

Mistake One: Changing the Starter Three Times

The most expensive habit in this business is replacing the starter without looking at the teeth it engages. I know a site that changed the starter twice in three months. The third starter lasted six weeks. Then somebody finally pulled a starter off and looked through the hole — seven teeth gone in one spot, the neighbors chipped and razor-sharp. Three new starters, and the problem was never the starter.

A new starter cannot fix missing teeth. The pinion still has to land on that same ruined arc. It skips, it grinds, and the customer concludes the new starter is defective too. I’ve watched this loop run three deep. It always ends the same way: somebody looks at the ring gear and goes quiet.

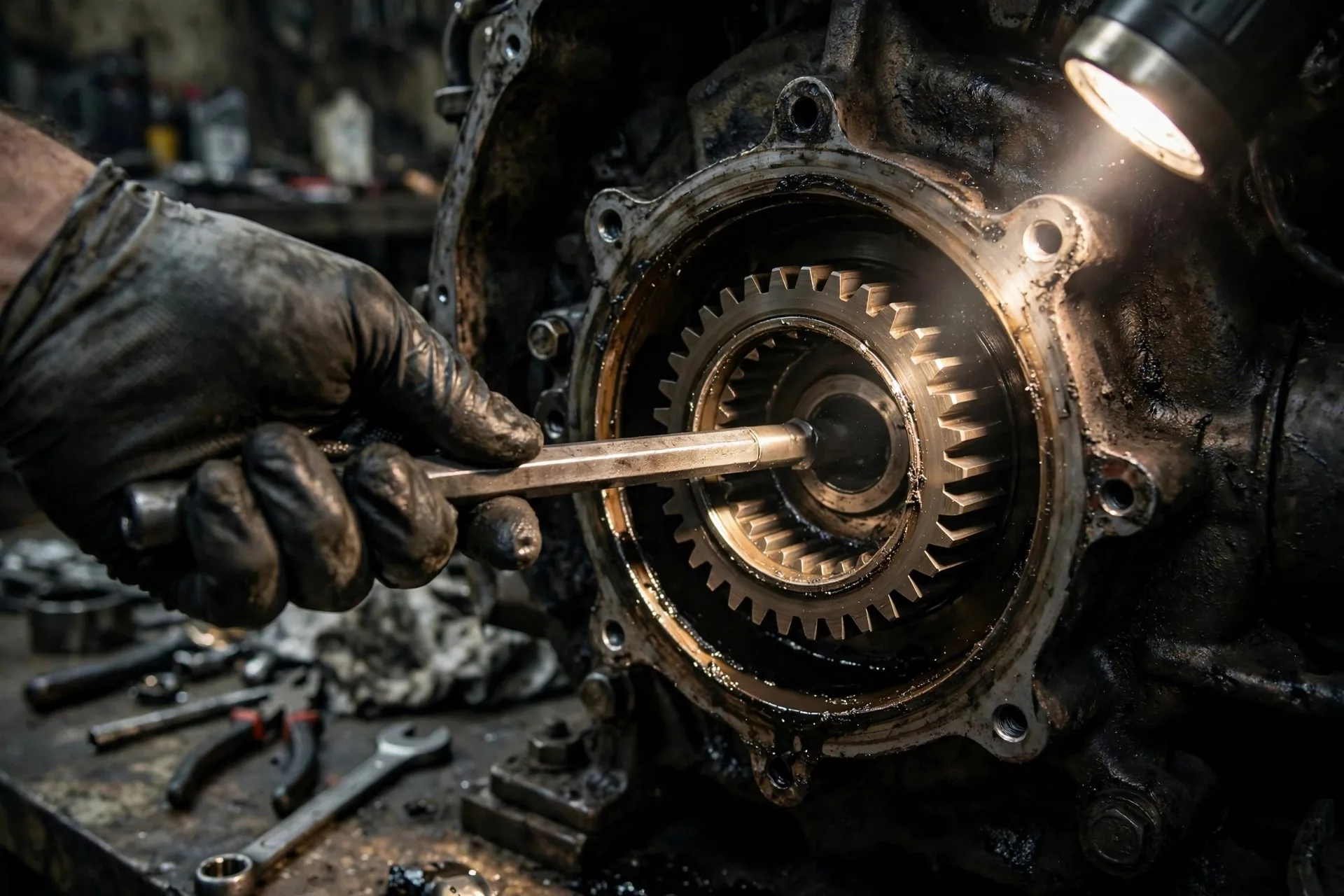

The check costs nothing and takes ten minutes. Pull the starter. Shine a flashlight through the opening. Then bar the engine over by hand — a full revolution, no shortcuts — and watch every tooth go past. You’re looking for the damaged arc, and it will be obvious: flattened tips, teeth snapped off at the root, edges rolled over like a bad haircut. Two adjacent teeth missing is enough to make the pinion skip. You don’t need half the ring gear gone. Two teeth, in the wrong place, and the engine won’t turn.

Mistake Two: Grinding It One More Time

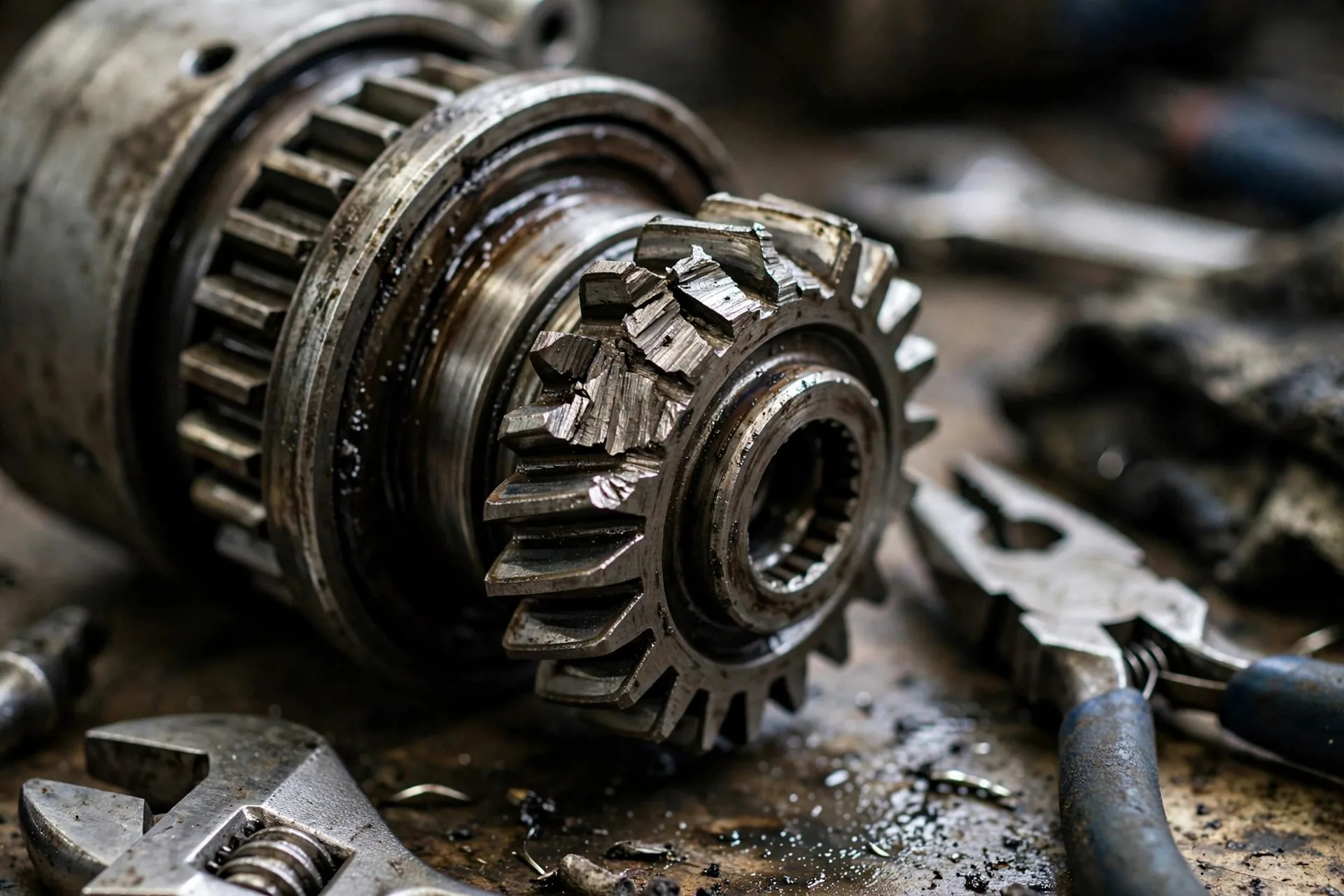

That grinding sound is the sound of money leaving. Every extra crank on damaged teeth does two things: it chews the ring gear’s remaining teeth, and it chews the starter’s pinion. The pinion rides on an overrunning clutch — the old-timers call it a Bendix drive — that lets it spin free once the engine catches. It’s designed for smooth engagement, not for being dragged across broken teeth at speed.

Here’s the math that matters. A pinion and drive assembly costs a fraction of a ring gear job. But grind it long enough and you don’t have one problem anymore, you have two: a ruined ring gear and a ruined starter drive. A ring gear replacement means separating the engine from the driven equipment or pulling the flywheel — real labor, real downtime. One grind is a warning. Four grinds, like my Tuesday morning friend, is how a tooth problem becomes a flywheel-off job.

Learn the two sounds. Grinding — metal on metal, harsh, angry — means the pinion is hitting damaged teeth or failing to seat. The high free-spinning whir, where the starter screams but nothing moves, means the pinion never engaged at all. Different sounds, different failures, and knowing which one you heard saves you from fixing the wrong half of the system. My rule for operators is simple: it grinds once, you stop. You call. You do not “try it again to see.”

Mistake Three: Calling a Spinning Starter a Bad Solenoid

The solenoid does one job: it shoves the pinion into the ring gear and then feeds power to the motor. When the starter spins freely without turning the engine, half the industry reaches for a new solenoid. But think about it — if the solenoid were dead, the pinion wouldn’t move and the motor wouldn’t spin. A spinning starter with a stationary engine means the pinion got thrown out and found nothing to bite on. That’s worn or missing ring gear teeth, or a pinion drive whose overrunning clutch has given up.

The thirty-second distinction is worth memorizing. Click and no spin? That’s the solenoid or the power feeding it — and a weak battery or a corroded cable can fake this perfectly, so check your starter circuit and your battery before you buy parts. Spin and no crank? That’s engagement — teeth, pinion, drive. Two different failures, two different aisles of the parts room. Get this wrong and you’ll replace the solenoid, hear the same whir, and conclude the new solenoid is bad too. I’ve seen that loop run twice on the same machine.

Cold mornings make all of this worse. Thick oil, a tired battery, slow cranking — the pinion hits the teeth lazily instead of snapping in, and marginal teeth that survived summer start chipping in January. If your no-crank complaints cluster in winter, the ring gear was already dying. The cold just scheduled the funeral. That’s also why this check belongs in your cold-weather routine, not just in the failure report.

A New Ring Gear Is a Heat Job, Not a Hammer Job

When the teeth are gone, the ring gear has to come off the flywheel, and this is where the second generation of mistakes begins. The ring gear is a shrink fit — heated to roughly 150 to 200°C so it expands, dropped over the flywheel, and left to grip as it cools. The flywheel stays cold through all of this. Heat the ring, not the wheel.

What you must never do is weld a cracked or chipped ring gear. The teeth are hardened, and a weld on hardened steel cracks — usually right next to the weld, usually within weeks. The old mechanic I learned under swore by welding ring gears. “Saves the customer a flywheel pull,” he’d say. We disagreed on this one for years, right up until a welded gear he was proud of cracked again within a month, threw a tooth into the housing, and cost the customer the flywheel pull plus the housing repair. I don’t weld ring gears. I don’t let anyone weld them on my watch.

While the flywheel is exposed, check what holds it. Loose flywheel bolts let the wheel wobble, and a wobbling flywheel eats ring gear teeth from the side — the wear pattern looks like the teeth were filed at an angle. Torque those bolts to spec with a real wrench, and if the manual calls them single-use, believe it. Then, when the starter goes back on, check the mesh. Too tight and the pinion drags; too loose and it skips. Some starters need shims between the mounting flange and the housing to set the engagement depth. Skip the shims, guess at it, and you’ll be back in that same arc of ruined teeth within a year.

Fold this into the normal maintenance routine and it stops being a crisis. Bar the engine through one revolution once a year, flashlight on the teeth, and the ring gear will tell you years in advance that it’s getting tired. I found two adjacent teeth missing on a routine check last spring — flashlight between my teeth, barring tool in both hands — and the customer scheduled the repair on his terms instead of learning about it at 6 a.m. during an outage. That’s the whole game. Next time it grinds, stop. One grind is a warning. Four grinds is a flywheel-off job. If you want a second set of eyes on what you find, talk to us — we’ve read these teeth before.
