The Fuel Line Cracked. The Turbo Was Right Next to It.

It was a Tuesday, 7:10 in the morning, and the 500 kVA set in the container had been running its weekly exercise for maybe twenty minutes. I caught the smell before I even opened the canopy door — diesel, sweet and sharp. Inside, the return hose where it met the fuel filter was weeping. Not dripping. Weeping. Just enough to leave a dark stain on the fitting and a smell you couldn’t miss.

Fifteen centimeters away sat the turbocharger. Still hot from the run.

Honestly? That scared me more than any fault code I’ve ever seen on a controller screen. A fault code shuts the machine down. A weeping fuel hose next to a hot turbo doesn’t shut anything down. It waits.

Every Diesel Generator Drinks Through Rubber Hoses. Nobody Looks at Them.

Think about what connects your fuel tank to your engine. On most sets — base tank, sub-base tank, day tank, doesn’t matter — the last meter or so is flexible rubber hose. Supply line in. Return line out. Maybe a third line if there’s a transfer pump loop. If you’ve never thought about how the supply and return lines are supposed to be laid out, now’s a good time.

These hoses cost almost nothing. Thirty, forty bucks each. They get installed once, at the factory or by the installing contractor, and then they enter a decade of perfect invisibility. I have walked into generator rooms where the maintenance log showed oil changes, filter swaps, battery tests, load bank reports — a whole paper trail of diligence. And the hoses? Original. Eight years old. Hard as plumbing pipe in some spots, soft as a gummy bear in others.

Here’s the thing. The engine gets all the respect. The hoses get all the risk.

What Actually Kills a Fuel Hose on a Genset

A fuel hose on a generator lives a harder life than the same hose on a truck. A truck runs, then cools. A standby generator sits cold for months, then gets hammered at full load for a test, then sits again. That thermal cycling — cold soak, hot run, cold soak — is brutal on rubber. Every cycle squeezes a little more life out of the polymer. The old-timers I learned from used to say rubber has a memory. It remembers every hot day.

Then there’s vibration. A diesel at 1500 or 1800 rpm shakes. Not a lot, not enough to feel through the floor, but the hoses feel it — especially where they’re clamped to something rigid on one end and bolted to the engine on the other. The engine moves on its mounts. The tank doesn’t. The hose absorbs the difference, a thousand times a minute, for years.

And diesel itself isn’t kind. Modern diesel with its biodiesel blend is a decent solvent. It slowly works on rubber from the inside. Add heat soak after shutdown — you kill the engine and the whole compartment sits there baking for an hour — and you’ve got a hose aging in dog years.

Five years. In my experience, five years is roughly when a rubber fuel hose on a generator starts telling you it’s tired. Some go ten. Some die at four in a hot canopy. There’s no hour meter for rubber. You have to look.

The Three Ways I’ve Watched Fuel Hoses Die

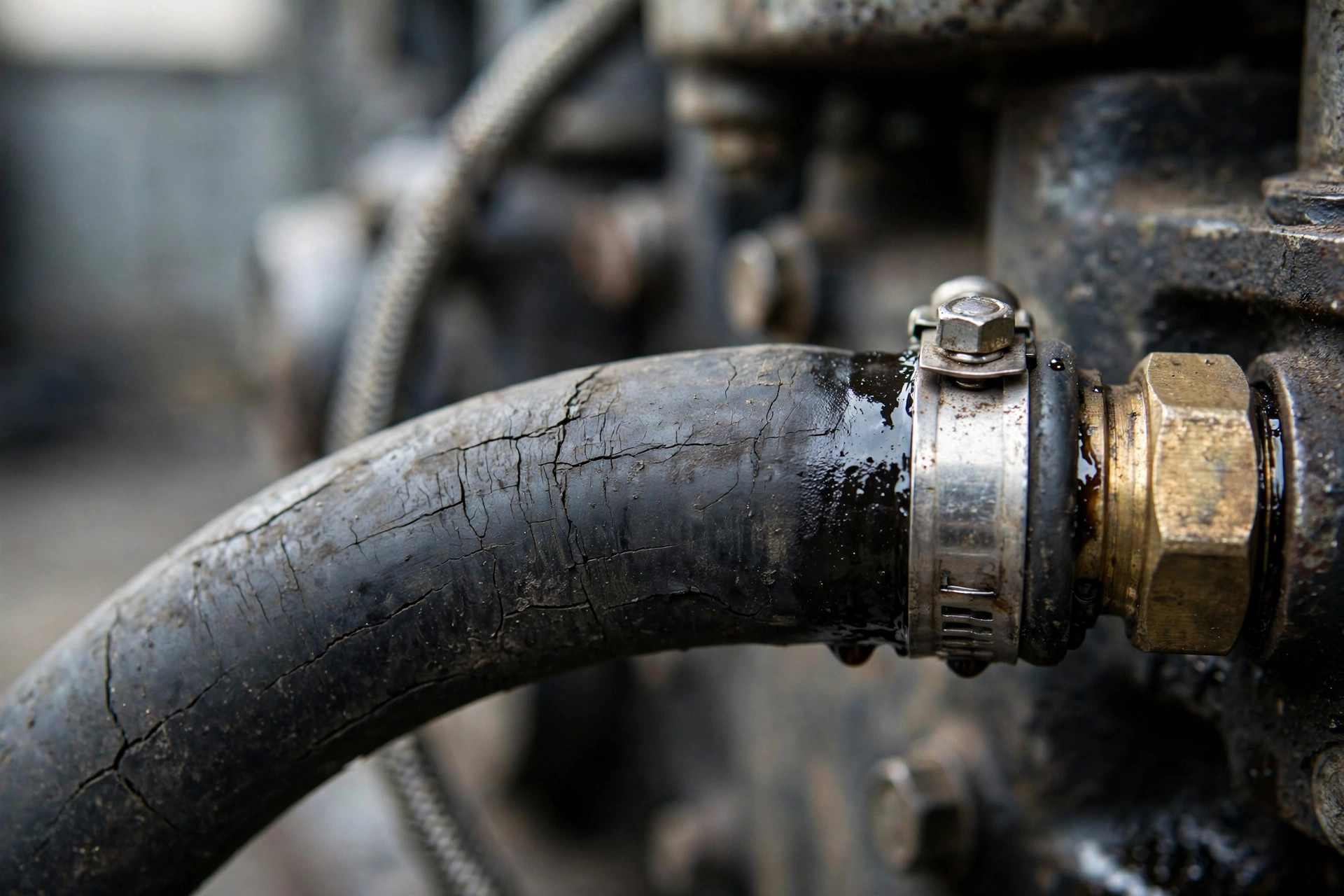

One: the weep. That’s the Tuesday story. The hose doesn’t split. It doesn’t burst. It just starts sweating diesel through micro-cracks in the outer cover, right at the fitting where the clamp has been squeezing it for years. You smell it before you see it. The dangerous part? A weep can go on for months. The drip tray catches it — if there is a drip tray — and everyone assumes the tray is doing its job. Meanwhile the fitting is one hot day away from becoming a spray, and sprays find ignition sources. That’s not my opinion; ask anyone who’s read a generator room fire report.

Two: the chafe. At a data center I service, the facilities guy kept finding diesel in the bunded base and blamed rain getting under the canopy. For months. The actual culprit was a supply hose that had been resting against a steel bracket edge since installation day. Eight years of 60 Hz tremor had sawed through the outer cover. When we finally pulled the hose, the inner braid was showing. Another season and it would have been a straight leak — inside a building full of servers.

Three: the collapse. This one’s my favorite because it fooled everybody. A generator that cranked strong but wouldn’t catch on cold mornings. The battery tested fine. The fuel was fresh. Three different people diagnosed three different expensive problems, and the work order was already leaning toward the injection pump. The actual problem was the old supply hose: the inner liner had gone soft, and under suction the hose walls pinched shut like a drinking straw. Engine warmed up, hose relaxed, generator started. Replaced a forty-dollar hose and the “mystery no-start” vanished. If you’re chasing a generator that won’t start, put your hands on the supply hose before you touch anything expensive.

An old-timer I respect told me once that fuel hoses last as long as the engine, and I believed him for about a year. Then the Tuesday weep happened. Now I replace them on a five-year cycle on anything critical, and he — credit to him — does the same. He just grumbles about it.

Fire-Rated Hose vs. the Hardware-Store Special

When you do replace them, don’t grab whatever fuel hose the auto parts store has on the shelf. Generator fuel hose should be proper fuel-rated hose — SAE J30 is the marking you’ll commonly see — and anywhere near the exhaust or turbo, it should have a fire sleeve or be routed clear with real separation. I once saw an install where the return hose ran two inches from the exhaust flex joint. The contractor had zip-tied it there for neatness. Neatness. I moved it and slept better.

A couple of details that matter more than the hose brand: double clamps on every barbed fitting (one clamp is a wish, two is a seal), clamps snug but not gorilla-tight — over-tightening cuts the hose and causes the weep you’re trying to prevent — and grommets anywhere the hose passes through a bulkhead or bracket. Bare steel edges and rubber are a slow-motion saw, as my data center story shows.

Also: keep a spare set on the shelf. Supply and return, the right lengths, the right fittings. They’re cheap, they don’t go bad sitting in a bag, and the one time you need one at 2 a.m. you’ll feel like a genius.

What My Hose Check Looks Like

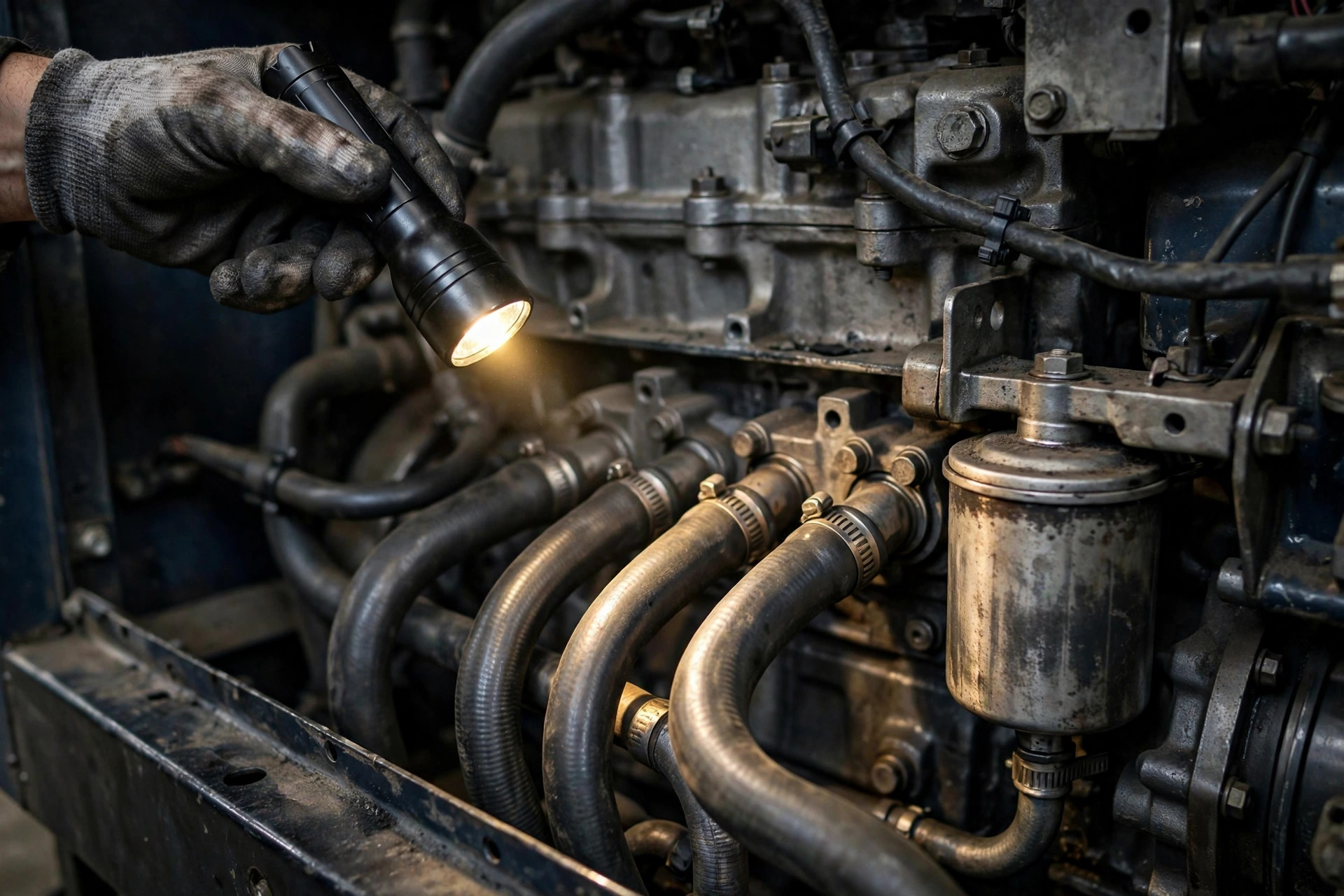

Twice a year, it takes five minutes. I do it with the set shut down and cool:

1. Hands on every hose. Squeeze. It should feel firm and springy. Rock-hard means heat-killed. Mushy means the liner is breaking down. Either way, replace.
2. Flashlight on every fitting. Look for dampness, staining, diesel smell at the clamp. A weep announces itself — if you bother to look.
3. Trace the full run. Anywhere the hose touches steel, push it aside and check for a worn flat spot. Add a clamp, a grommet, or reroute.
4. Check the clamps themselves. Rusty, loose, or biting into the hose — replace the clamp, don’t just tighten it.
5. Glance at the drip tray. Diesel in the tray is a message. Read it.

That’s it. Five minutes, twice a year. I fold it into the same visit as the maintenance checklist walk-around, so it never gets forgotten.

Your generator has a thousand parts engineered to survive decades. The fuel hoses aren’t among them — they’re consumables wearing a disguise. Treat them that way and they’ll never be the reason you smell diesel on a Tuesday morning with the turbo still glowing fifteen centimeters away.
