The phone rang at 6:20 on a Tuesday morning. A 400 kVA standby set at a logistics warehouse, eight years old, had quit at 3 a.m. — not during a storm, not under some freak overload, just a routine weekly exercise run. When I got there the alternator was hanging crooked off the engine, the bell housing cracked like an eggshell, and the rotor had dropped far enough to kiss the stator. The engine was fine. The windings were fine. What killed the machine was a stack of steel discs thinner than a credit card that nobody had looked at in eight years.
Those discs are called drive discs, or flex plates. And they’re the reason I want to talk about the two ways an alternator gets bolted to a diesel engine — because which one you have decides what can go wrong, what it costs to fix, and what you should be checking. Honestly, most owners have never heard either term. Their quote just said “generator.”
A single-bearing alternator has exactly one bearing, sitting at the far end — the non-drive end. The drive end has no bearing at all. Instead the alternator’s frame bolts straight onto the engine’s flywheel housing through a machined SAE flange, and the rotor shaft connects to the engine flywheel through a pack of thin flexible steel discs. The flange sets the alignment. The discs take up the tiny bit of movement and pass the torque through. It’s compact, it’s cheap, and it’s what you’ll find on the great majority of skid-mounted gensets up to roughly a megawatt.
A two-bearing alternator is built like a standalone machine. Bearing at each end, its own feet, its own shaft — and a separate coupling joining it to the engine. Nobody’s flange is doing your alignment for you here; the installer earns their money with dial indicators or a laser. You see this construction on bigger frames, on sets that drive through belts, or wherever the engine doesn’t offer a suitable flywheel housing to hang things off.
Here’s the thing buyers miss: this isn’t a quality tier. A single-bearing machine isn’t the cheap version of a two-bearing one. They’re two answers to the same question, and each one moves the failure somewhere else. The single-bearing set concentrates everything onto those discs. The two-bearing set spreads the risk across a second bearing and a coupling — and hands you alignment as a permanent maintenance item.

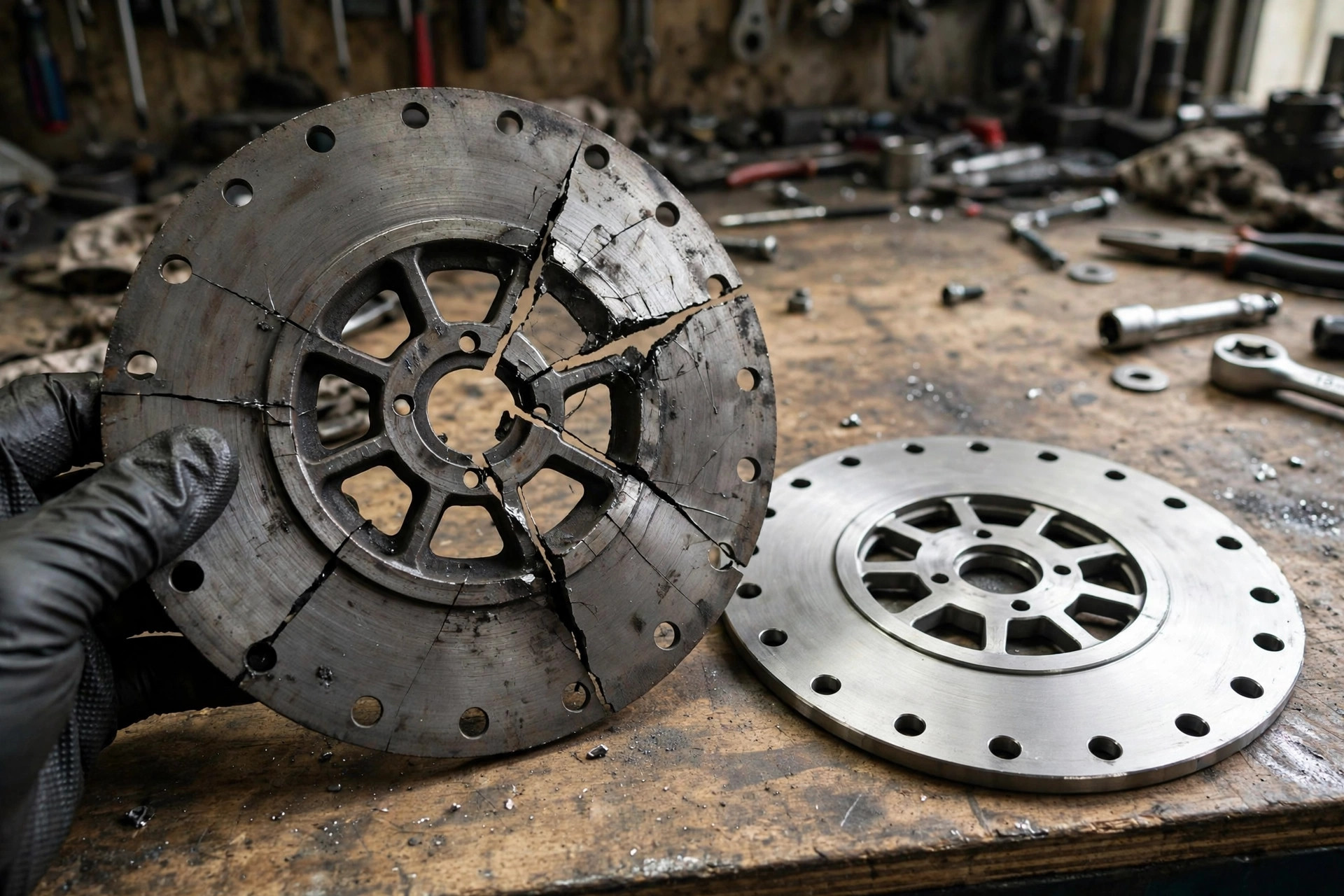

The discs flex. That’s the whole job description. The engine and the alternator are two big castings bolted together, and they don’t move together perfectly — thermal growth, torque pulses from each cylinder firing, the whole frame breathing under load. The disc pack bends a fraction of a millimeter, thousands of times a minute, absorbing the difference so the bolts and the flange don’t have to. Thin is the point. A thick rigid plate would just pass every shock straight into the flange bolts.
But flexing is fatigue, and fatigue is a countdown. Every disc pack has a finite number of bends in it. Heat cycles, a loose bolt that lets one disc carry more than its share, a torque spike from a bad paralleling attempt — all of it spends the budget faster. When the first disc cracks, the rest stop being a team and start being individuals, and individuals fail fast. That warehouse set didn’t die because the discs were a bad design. It died because eight years of nobody looking is a long time to ask thin steel to keep flexing.

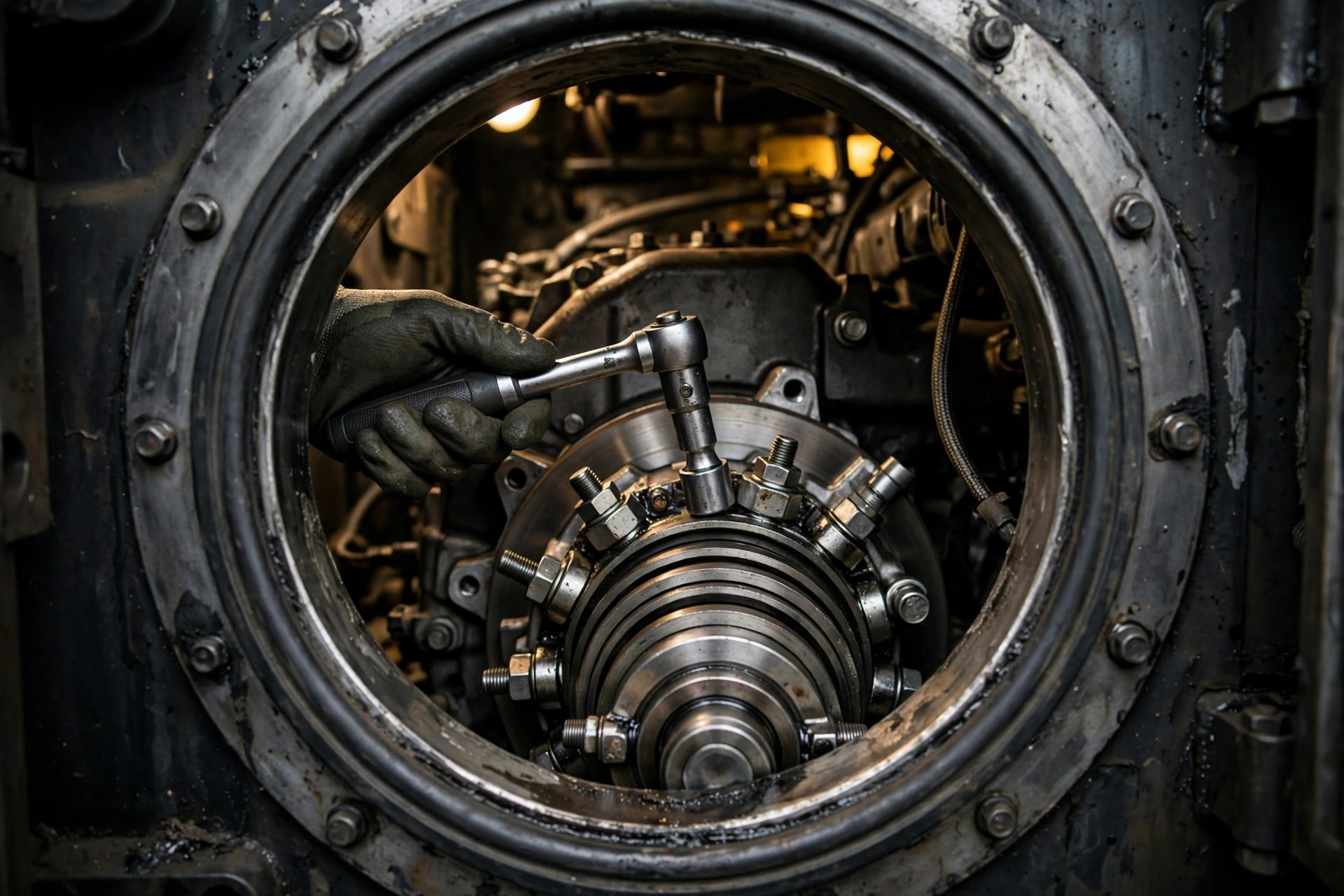

I learned this one the embarrassing way, early in my career. We’d done an engine swap on a 500 kVA set and I let the old disc hardware go back on — bolts looked fine, threads looked fine, why spend the money. Six months later two bolts had backed out and the pack was chewing itself apart. The foreman didn’t yell. He just handed me the torque wrench and the new bolt kit and said the manual lists a torque figure for a reason. He was right, and I’ve replaced the hardware every time since. Cheap lesson, as these things go. The warehouse got the expensive version.
For a standard skid-mounted standby set, single-bearing wins and it isn’t close. Shorter machine, lower cost, no field alignment to lose, and the discs — maintained, which means looked at once a year and hardware replaced whenever disturbed — will outlive most ownership periods. Paying extra for a two-bearing machine on a 200 kVA standby set is buying insurance against a failure mode you were never going to see.
Two-bearing earns its keep in three places: big frames where the rotor is simply too heavy to cantilever off a flange, belt-drive or otherwise odd drivetrains, and prime-power sites where the set runs thousands of hours a year and you want to be able to pull the alternator or change a bearing without splitting the whole machine. If your set runs like a taxi instead of a fire extinguisher, the serviceability argument starts to matter.
An old-timer I work with disagrees with me on this, by the way. He’s spent thirty years on prime-power installations and he insists two-bearing is always the safer buy, because you can fix half the machine without touching the other half. For his world he’s right. For a standby set that runs a couple hundred hours a year, he’s buying peace of mind with someone else’s money. Know which world you’re in.
One honest warning in the other direction: don’t let anyone sell you a single-bearing set and then treat the discs as lifetime parts. They’re a wear item with a long life, not a casting. Ask the supplier what the disc pack replacement costs and how the bell housing opens for inspection — if the answer is a shrug, that tells you something about the next ten years.
I’ve seen the same three causes behind nearly every disc failure that wasn’t just old age:
If you own a single-bearing machine, do the five-minute inspection above and check whether the disc hardware has ever been disturbed without replacement. If someone has had the set apart — engine work, alternator work, a rewind — ask whether the disc bolts were replaced and torqued to the book figure. If the answer is “we reused them, they looked fine,” you’ve just found your highest-risk item, and the fix costs less than a tank of fuel. Source the pack from the alternator maker or a reputable supplier; this is one of those parts where the cheap copy is a genuinely bad bet, because a disc that’s slightly off in temper or hole position starts its fatigue countdown early.
If you own a two-bearing machine, your discs are replaced by a different to-do list: grease the non-drive-end bearing per the plate on the machine — not per habit, per the plate — and check the coupling element for cracking or powdering. And confirm the alignment hasn’t walked. A two-bearing set that has settled on a soft foundation will eat its coupling the way a single-bearing set eats its discs: quietly, then all at once.
Either way, while you’re in there, it’s a good moment to think about the windings too — a rotor that has been shaking around on failing discs or a walking coupling has been stressing more than the steel. A quick insulation check after any coupling trauma is cheap reassurance.
Next time you’re standing in front of your genset, find the seam where the alternator meets the engine. On most sets you own, there’s a stack of steel discs in that gap, each one thin enough to bend thousands of times a minute, taking the punishment the castings can’t. It never appears in the brochure photos. Give it a thought anyway — and five minutes with a flashlight once a year. If anything in that inspection looks off, talk to us before it becomes a 6:20 a.m. phone call.
