Every Oil Drip Gets Blamed on the Rear Main Seal. Almost None of Them Are.

Tuesday morning, 8:10, a quarry outside town. A 500 kVA rental set has a dark puddle in the drip pan and the site foreman is already writing the verdict on his clipboard: rear main seal, engine comes out, three days down. He said it the way people say “the transmission’s gone” — with total confidence and zero evidence. I crouched under the set with a flashlight and found the leak’s source forty minutes later. It was a cracked turbo oil drain hose. The foreman’s clipboard was wrong, and I’ve watched this exact scene play out maybe fifty times.

Here’s the thing about the rear main seal. It’s the most expensive seal on the whole machine to replace. So naturally, it’s the first one everyone blames.

The seal nobody should blame first

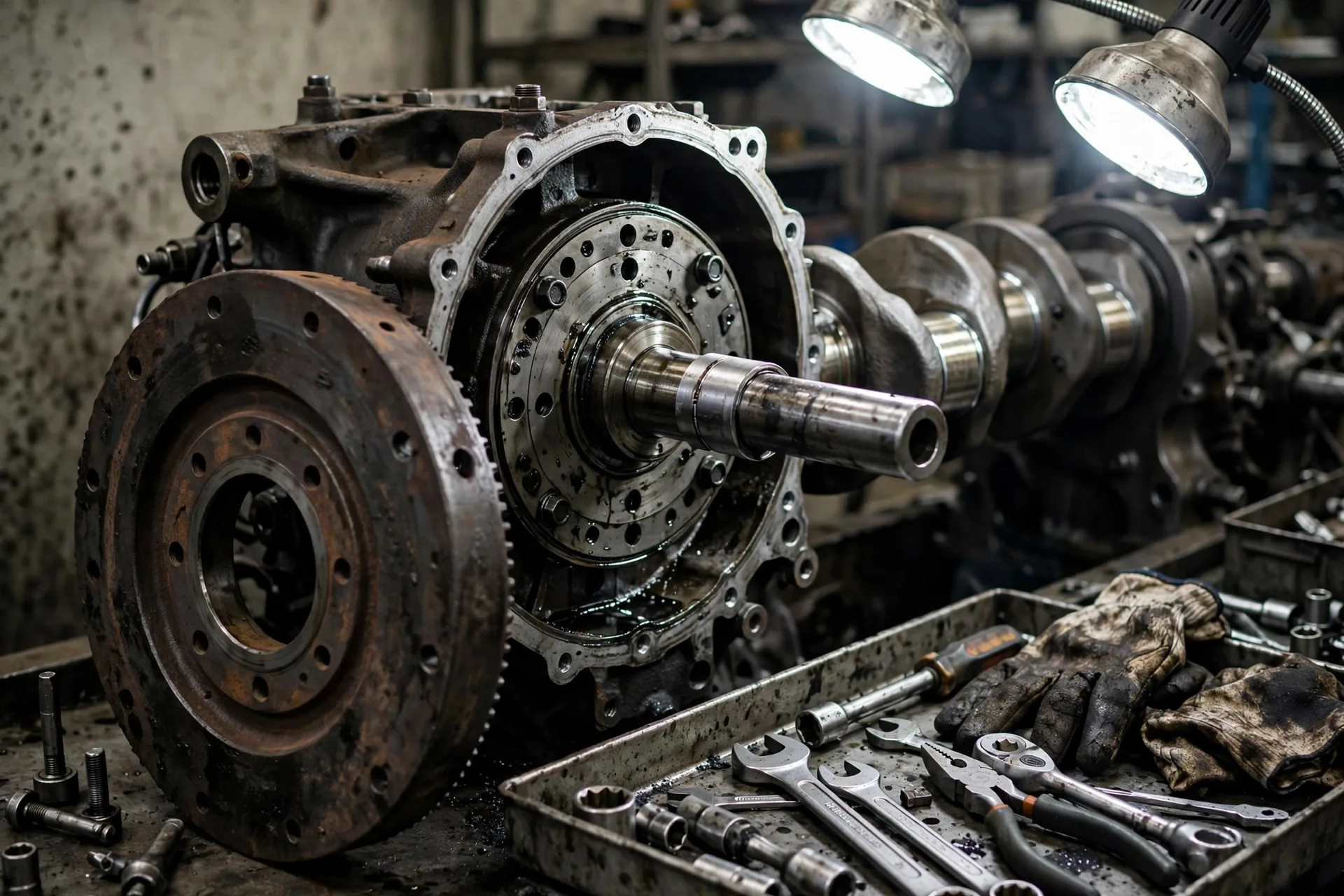

The rear main seal is a lip seal sitting at the back of the crankshaft, inside the bell housing, where the engine marries the generator end. It’s a fifteen-dollar part. Replacing it can cost a week. On a genset you’re not just pulling a transmission — you’re uncoupling the alternator, pulling the flywheel, sometimes craning the engine out of a canopy or a container because there’s no room to swing a wrench. The part is cheap; getting to it is the bill.

That’s exactly why it should be the last suspect, not the first. If I lined up every “rear main seal leak” I’ve been called out to, the seal itself was guilty maybe one time in ten. The other nine were impostors. And the impostors all drip from the same place, which is the whole problem: oil runs downhill, gathers at the lowest seam, and drips off the bell housing like it’s confessing. The drip tells you where gravity ends. It says nothing about where the leak began.

So here are the five usual suspects, ranked by how often I’ve actually found them — and why the expensive one is at the bottom of the list.

Suspect one: the valve cover, leaking from above

Oil starts high and travels. A weeping rocker cover gasket at the back of the engine sends a thin film down the back of the block, straight into the bell housing joint, and out onto the pan. From underneath it looks exactly like a rear main seal. I keep a mental file of these because they’re so easy to misread.

Best one: a data center with an 800 kVA set, maybe six years old, showing a drip every morning. The service company’s tech had already written up an engine-pull and a five-figure quote. The client called me for a second opinion because the number scared him. I wiped the back of the valve cover with my thumb — wet. Wiped the bell housing seam — dry at the top, wet at the bottom. The gasket was weeping at one rear corner, thirty minutes old by the look of the film. Two bolts re-torqued and a new gasket, total cost under an hour of labor. The engine stayed exactly where it was.

The honest comparison here: a seal leak starts at the seam and spreads upward; a cover leak starts high and runs down. Clean the whole area, run the set, and look at which end of the streak gets wet first. Takes ten minutes and settles it.

Suspect two: the turbo drain hose, bleeding onto everything below it

The turbocharger sits up high and drains its oil back to the sump through a rubber or braided hose. That hose lives in brutal heat, and when it cracks, it dumps hot oil directly over the bell housing. Smell is the giveaway — fresh hot oil on a hot manifold smells different from an old weep. It’s sharper. You’ll catch it the moment you open the canopy door.

That’s the hose that saved the quarry job in the opening. Cracked right at the clamp, weeping under pressure, running down over the housing. Forty minutes, one hose, two clamps. The foreman didn’t erase his clipboard note so much as quietly turn the page.

And there’s a reason this one fools people: the turbo drain is under more stress on rental sets and lightly loaded machines, where heat cycles are constant and nobody inspects hoses until something drips. I’ve written about turbocharger service before — the turbo is the most abused part on the set — and the drain hose is the part of it people forget exists.

Suspect three: crankcase pressure pushing past a perfectly good seal

This is the one almost nobody checks, and it’s the reason some “rear main seal replacements” leak again within weeks.

A diesel engine breathes. Blow-by past the rings pressurizes the crankcase, and the breather system vents it. If the breather clogs — slobber, soot, cold-weather condensation gelling up — pressure builds with nowhere to go and starts pushing oil past seals that are completely fine. You can put in a brand-new rear main seal and it’ll leak the same way, because the seal was never the problem. The pressure was.

Rental fleet, 400 kVA, dripping from the bell housing. The shop had already done the seal twice. Twice. Same leak, same drip, back in three weeks both times. I put a manometer on the dipstick tube — crankcase pressure well over spec at full load. Pulled the breather: packed solid with carbon and emulsified gunk. Cleaned the whole CCV path, replaced the element, rechecked pressure. Dry ever since. Two seal jobs, and the fix was a breather service that cost almost nothing.

I covered the blow-by and breather system in detail in the crankcase breather guide. Read that before you authorize any seal work on a machine with real hours on it. Pressure is invisible. That’s why it keeps getting away with it.

Suspect four: the oil pan’s rear corners

The oil pan meets the rear main seal retainer right at the back corners, usually sealed with RTV silicone at the joints. Vibration loosens pan rail bolts over the years, the RTV gives up, and you get a slow weep from the corner that migrates to the bell housing seam. It’s the most boring leak on this list. It’s also probably the most common one.

This is where I learned the lesson personally. Early in my field years I quoted a rear main seal on a standby set at a small factory — confident, clipboard-out, the whole thing. The client approved the big job, we got the set apart, and the seal was bone dry. The leak was RTV at the pan’s rear corner, weeping for probably a year. I ate the labor on that job and never quoted a seal again without a dye test. Embarrassment is a decent teacher. Expensive, but decent.

And finally, the seal itself — the one-in-ten case

When the rear main seal really is the culprit, it’s usually one of three things. A worn groove in the crank surface where the lip has ridden for ten thousand hours — run your fingernail across the journal; if you feel a groove the nail catches on, a new seal on that surface won’t last. A lip hardened and cracked from heat and age, common on standby sets that bake in a hot canopy. Or a retainer sealed wrong at overhaul, too much RTV or the wrong sealant, which shows up within the first hundred hours after a rebuild.

Here’s where an old-timer I worked with and I genuinely disagree. He says a repair sleeve on a grooved crank is a patch — only a new crankshaft is a real fix. I’ve got sleeves I installed eight years ago still dry, on sets that have run thousands of hours since. The sleeve gives the seal lip a fresh, polished surface to ride on, and a fresh PTFE lip seal on a sleeved journal outlives the payment book on most machines. He calls it a compromise. I call it math. We’ve agreed to keep arguing about it.

One more honest note: if the leak started right after an overhaul, suspect the retainer sealant before the seal. I’ve seen more post-rebuild leaks from silicone squeezed into the wrong place than from bad seals.

The one test that settles it

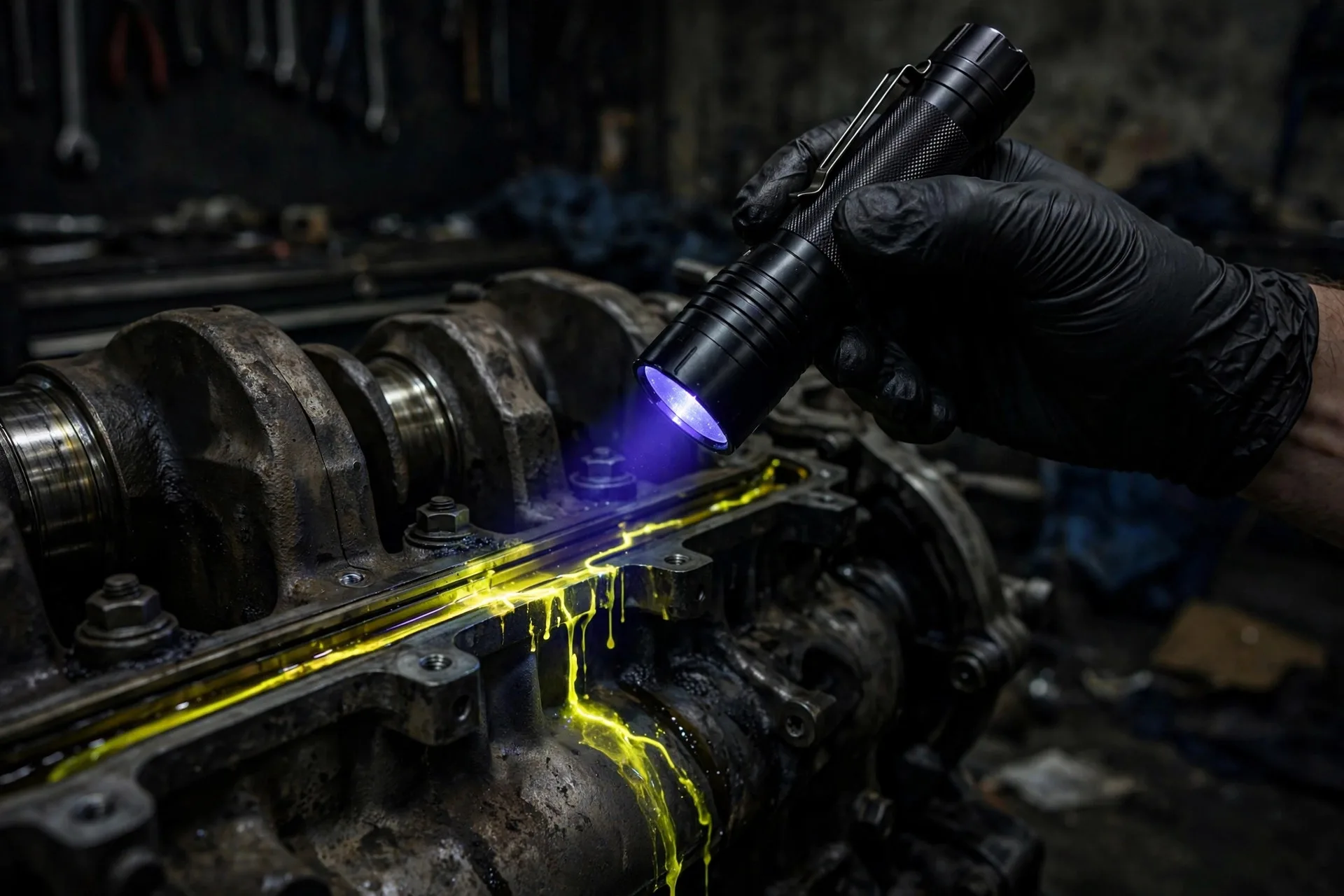

Clean everything. Degrease the whole area until it’s dry and spotless. Add UV dye to the oil, run the set under real load — not idle, load, because some leaks only open up when oil pressure and temperature are up — then go in with a black light and trace the first wet streak to its highest point. The highest glowing point is the truth. Everything below it is just gravity doing paperwork.

Do it in this order: check from the top down. Valve cover, turbo drain, breather and crankcase pressure, pan corners, seal last. Five minutes with a light beats five days with a crane. If you find yourself writing up a rear main seal before the dye test, stop and ask yourself who you’re diagnosing for — the machine, or the invoice.

And keep the oil consumption picture in view too: a set that’s suddenly drinking oil and dripping oil is telling two different stories, and the oil consumption diagnosis guide walks through the burning side of that. Drips and drinking rarely share a cause.

The rear main seal is a good seal. It sits in the worst spot on the engine and takes the blame for every leak that can reach it. Next time someone hands you that clipboard verdict, hand it back and ask what the dye says. Nine times out of ten, the seal is innocent — and the real culprit costs a fraction of the sentence.

Keep the set on its regular maintenance checklist and most of these leaks never get a chance to start. For questions about your Pavo generator set, contact us.
