The generator sounded fine at the monthly test.
Then one Tuesday morning the operator called me, held his phone up to the alternator end, and said, “Hear that?” I didn’t need the phone. I could hear it from the doorway — a dry grinding growl, rising and falling with every revolution, like gravel in a cement mixer. That bearing had maybe a week left in it. It had been dying for two years. Nobody noticed, because nobody ever looks at the bearings.
Here’s the thing nobody tells you when you buy a diesel generator: the engine gets all the attention — oil, filters, coolant, fuel — while the two bearings holding up the alternator rotor sit in the dark, doing the hardest job on the machine, getting greased wrong or not at all. When they fail, they don’t fail politely. A seized drive-end bearing can take the shaft, the end bracket, and the windings with it. I’ve seen a $400 bearing turn into a $30,000 alternator rebuild. Twice.
Quick anatomy, because it matters. Your alternator rotor — a few hundred kilos of copper and steel on a big set — hangs between two bearings: the drive end (DE), coupled to the engine, and the non-drive end (NDE). They spin at 1500 or 1800 rpm, every hour the set runs, in heat, in dust, in rooms nobody cleans.
Some are regreasable: they have a grease nipple on the housing and a relief plug on the other side, so old grease can be pushed out. Some are sealed — “sealed for life,” the brochure says, and we’ll come back to that claim. Either way, the bearing’s whole life depends on a film of grease thinner than a human hair. Get the grease wrong and metal touches metal. After that it’s just a countdown.
Honestly? Bearings almost never die of old age. They die of maintenance. Usually one of five mistakes. I’ve watched all five happen, some of them more than once, usually on machines whose owners swore they maintained them “by the book.”
Mistake number one, and it’s not close: too much grease.

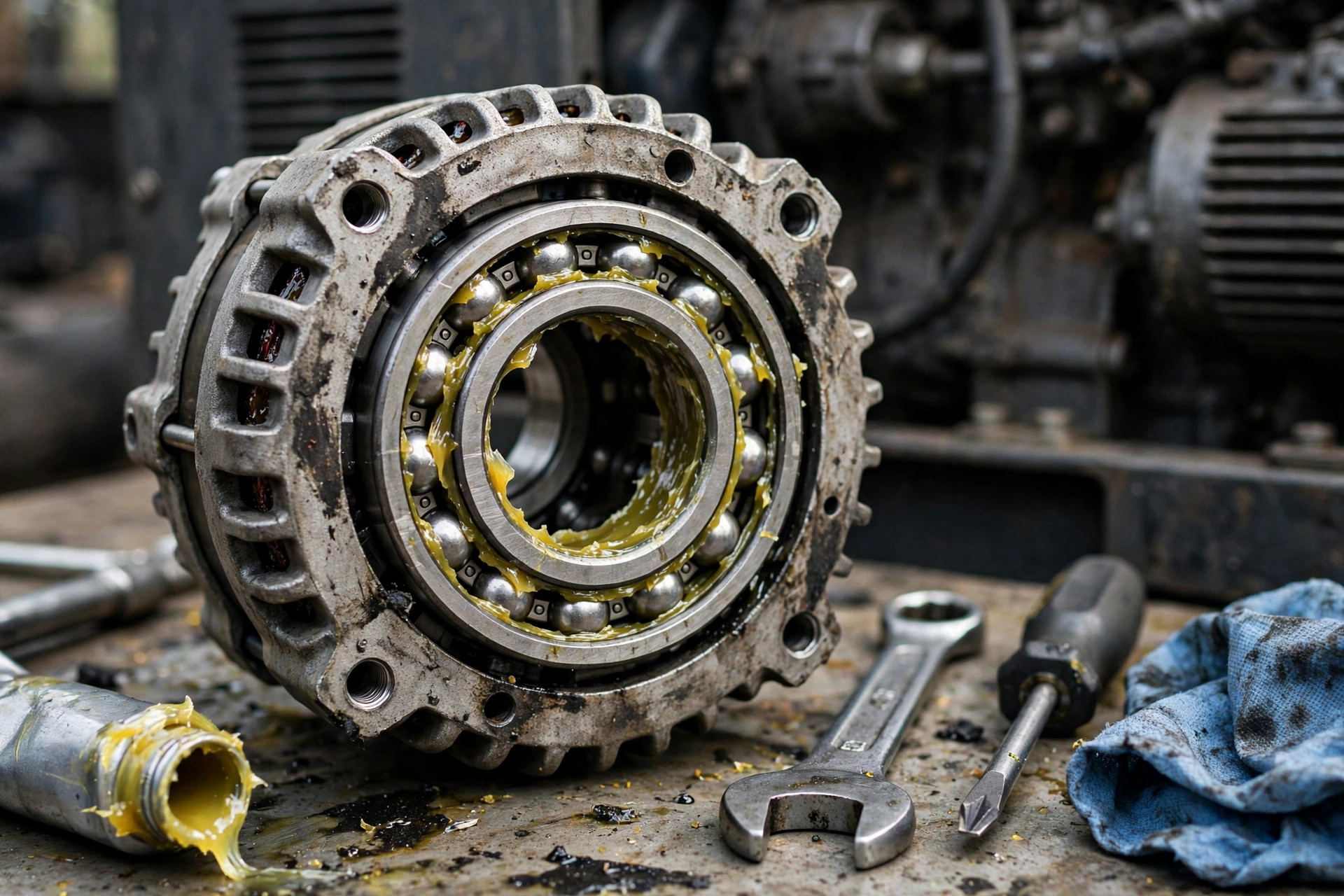

There’s a special kind of confidence that comes with holding a grease gun. Squeeze, squeeze, squeeze — if some is good, more must be better, right? At a site I serviced years back, a well-meaning contractor pumped an entire cartridge into a 250 kVA alternator’s DE bearing. A full cartridge. That bearing wanted about 30 grams. He gave it 400.
Here’s what happens inside. The extra grease has nowhere to go, so it churns. Churning makes heat. Heat thins the grease, the seals give up, and grease migrates where it should never go — past the seal, along the shaft, and onto the windings. Grease on windings is a slow poison: it traps dust, holds heat, and eats insulation. (If you want to know what dying insulation looks like on a meter, that’s a whole other story — the megger doesn’t lie.)
The rule is boring and it works: grease by the gram, not by the squeeze. The alternator manual gives a quantity — usually 20 to 50 grams depending on frame size — and a decent grease gun delivers about a gram per stroke. Count your strokes. Write it down. The bearing doesn’t care about your enthusiasm.
Mistake number two: the wrong grease. Or worse, two right greases mixed together.
Grease isn’t just “grease.” It’s oil held in a thickener, like water in a sponge, and thickener families don’t get along. Polyurea and lithium — the two most common thickeners in motor-bearing greases — are chemically incompatible. Mix them and the structure collapses. The grease softens, bleeds its oil out, and runs away from the bearing. What you’re left with is expensive soup and a dry bearing.
I’ve opened housings where somebody “topped up” with whatever tube was in the truck. The grease inside looked like chocolate milk. That bearing was already dead; it just hadn’t stopped turning yet.
My rule, and I’ll argue about it with anyone: one grease on site. Pick an NLGI #2 polyurea or lithium-complex electric-motor grease with the right base-oil viscosity for your speed and temperature, label the gun with the bearing locations it serves, and never let a general-purpose chassis grease near an alternator bearing. If you inherit a machine and don’t know what’s in it, purge it completely and start over. Mixing unknowns is gambling.
Mistake number three is procedure. Even the right grease, in the right amount, fails if you put it in wrong.
The right way: run the set first. Warm bearings take grease; cold grease sits in a lump on one side of the race. Pull the relief plug — that’s the little plug on the opposite side of the housing from the nipple, the one everyone forgets exists — pump slowly, and watch. Old, dark grease should creep out of the relief hole. When fresh grease appears, stop. Wipe the nipple before you connect the gun, or you’re injecting shop dust straight into the bearing. Cap the nipple when you’re done.
The wrong way, which I see constantly: grease a cold, stopped machine, skip the relief plug, and pump until you feel resistance. Congratulations — you just pressurized the housing. That pressure has to go somewhere, and the lip seal is the weakest exit. One blown seal and you’re back to mistake number one, grease migrating toward the windings.
Mistake number four is trusting the brochure.
“Sealed for life” sounds wonderful. Here’s what “life” means in a bearing catalog: the L10 life — the number of hours at which 10 percent of a bearing population is expected to fail. On a standby generator that runs a few hundred hours a year, the calendar can eat the grease long before the hours eat the bearing. Heat cycles, condensation, dust — the grease ages out while the bearing still looks young.
Some manufacturers quietly admit this: “sealed” bearings on generator ends often have a recommended replacement interval, typically 3 to 5 years in standby service, sometimes less in heat or dust. Check your alternator manual. If it names an interval, the seal is a dust cover with a marketing department.
Mistake number five is the quietest: nobody trends the temperature.

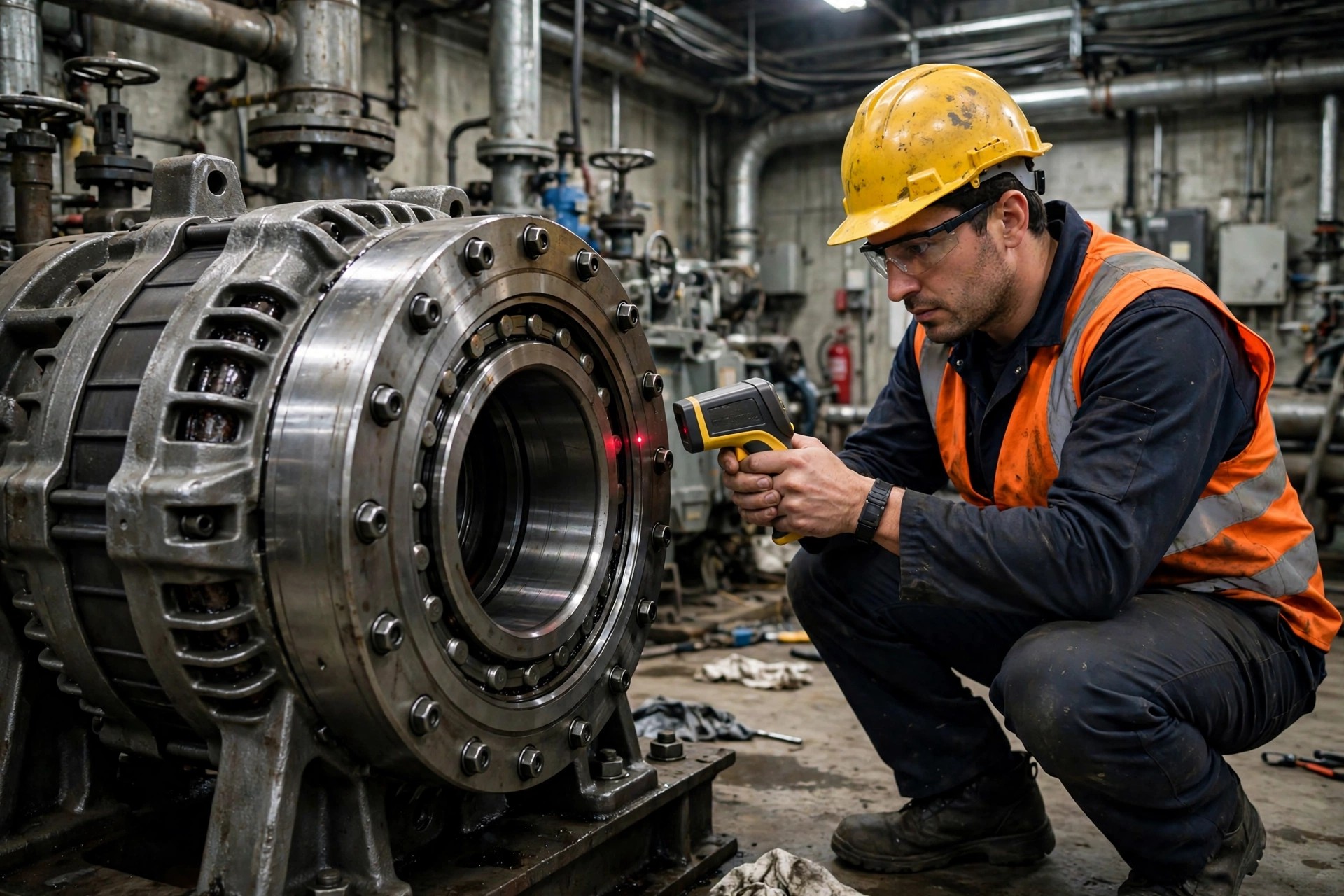

A bearing tells you it’s dying the same way everything mechanical does: it gets hot before it gets loud. An infrared thermometer costs less than the fuel for one test run. Take a reading on each bearing housing once a month, same load, same spot, and write it down. A DE bearing that ran 62°C for three years and now runs 78°C is talking to you. Listen. Trending catches failures months early — long before the grinding starts, long before the winding damage.
(I keep a one-page maintenance checklist for exactly this — temperatures, grease dates, quantities — because memory is the worst CMMS ever built. Steal the format if you like.)
So here’s the whole program. Grease by the gram with one compatible grease. Grease warm, through the nipple, out the relief hole. Replace “sealed” bearings on the calendar, not on hope. And take the temperature every month and write it down. Ten minutes a month. That’s the entire religion.
The operator in my story? His bearing got replaced that week — a $400 part, a day of labor, and the alternator lived. The machine next door, the one that “sounded fine,” seized its DE bearing six months later and took the end bracket with it. The difference wasn’t luck. It was a grease gun used right, and a thermometer used at all.
(Do the bearings at commissioning while you’re at it — a baseline temperature and a first grease date on day one beats guessing later. And if you’d rather have someone else crawl around the alternator end with the grease gun, talk to us.)
