Spring is commissioning season, which means my phone starts ringing with the same call. Different sites, different managers, same script.
“We did the spring test. Generator started right up. Runs beautiful.” A pause. “But there’s no power.”
Last month it was a printing plant in Ningbo — 300 kVA standby set, two winters of sitting untouched in the corner of the loading bay. The engine caught on the first crank and settled into that expensive-sounding idle. The voltmeter sat at zero like it was asleep.
“Everything works,” the plant manager told me, “except the part that makes electricity.”
I get two or three of these calls every March. And honestly, it’s my favorite fault in the business — because it’s the one where a nine-volt battery beats a four-hundred-dollar part.
Inside every self-excited alternator sits a rotor: a chunk of iron with copper wound around it. Buried in that iron is a whisper of leftover magnetism from the last time the set ran. Engineers call it residual magnetism. I think of it as the alternator’s memory of being a generator.
When the engine spins up, that whisper is all the machine has. The AVR senses the tiny voltage the whisper produces, feeds a little current back into the field winding, which strengthens the field, which raises the voltage, which feeds back more current. Round and round — a bootstrap loop — until the set is making full voltage.
Beautiful little chain reaction. One weak link: the first whisper.
Let a set sit long enough — a year, two, through a couple of damp winters — and the whisper fades to nothing. Iron forgets. No whisper means no first voltage. No first voltage means the AVR has nothing to feed on. The bootstrap never starts. The engine runs like a dream and the alternator makes precisely zero volts.
That Ningbo set had sat for two years. The iron had forgotten everything.
When the voltmeter reads zero, every eye in the room lands on the AVR. It’s the most expensive electronic part on the set. It’s got “voltage” in the name. Replacing it feels like doing something decisive.
I’ve watched techs order a $400 AVR, wait three days for the courier, bolt it in with real ceremony — and get the same flat zero. Then the second opinion arrives, usually in the form of someone like me carrying a pocket multimeter and a battery.
In a project I handled last year, a food warehouse did exactly this. New AVR, installed by a very confident contractor, zero change. I got the call on day four. The whole repair took eleven minutes and one nine-volt battery borrowed from the site office. The warehouse manager didn’t know whether to laugh or be furious at the first contractor. He chose furious.
Now, I’m not saying the AVR never fails. My whole piece on AVR troubleshooting is one of the longer things I’ve written. I’m saying a dead AVR and a dead memory produce the exact same symptom, and the industry guesses “AVR” first because guessing “memory” sounds like superstition.
Test the memory first. It’s free.

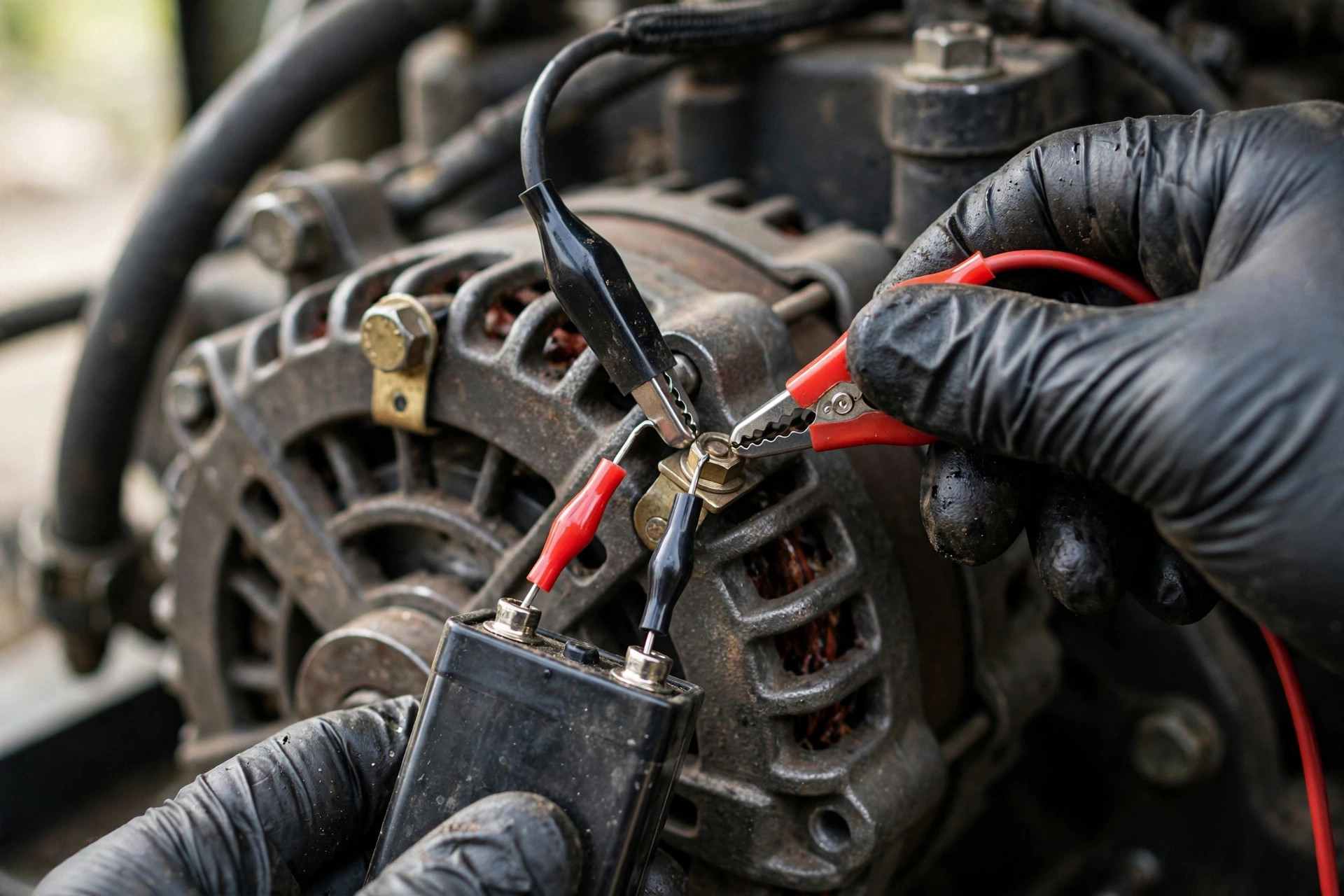

Field flashing is the unglamorous name for restoring the memory: giving the rotor’s iron a fresh whisper of magnetism with a brief touch of DC. Nine volts is plenty. Twelve works. A car battery works.
The procedure is almost embarrassingly simple. With the set stopped, you touch the battery momentarily across the exciter field terminals — usually marked F1 and F2 on the terminal strip — positive to positive, and this matters more than anything else in this article, for a second or two. One quick kiss of current. The iron takes the hint. Start the set, and the bootstrap loop has its whisper back.
Two warnings, and I don’t bend on either.
First: polarity. Touch the battery on backwards and you don’t just fail to fix it — you actively erase whatever whisper was left. I watched a helper do this on a Friday afternoon at a cold-storage site, in a hurry, red lead on the wrong terminal. Monday morning the set was deader than ever, electrically speaking. We re-flashed it with the correct polarity and the voltage came straight back. He has never mixed up a red lead since. Nobody who does that job twice makes the mistake twice.
Second: don’t flash a set that doesn’t need it. If the field already holds healthy magnetism, flashing is a pointless risk. Test first.
Here’s my five-minute order of operations on every zero-volt call:
Only when both checks come back clean do I reach for the battery.
People always ask, like there must be a villain. Usually there isn’t one. Time is the villain. A standby set that hasn’t turned a real load in two years is a set whose iron has been quietly forgetting, one damp winter at a time. This is exactly why the spring test in any honest maintenance checklist should be a loaded run, not just a crank-and-idle.
The one real villain I’ve met: a wrong-polarity flash by the previous guy. It happens more than the industry admits. A rushed service visit, an unlabeled terminal, and the set’s memory gets erased instead of restored. The set ran fine before the visit. After it: zero volts. The technician swears he “didn’t touch anything electrical.” He touched exactly the wrong thing, for about two seconds.
And then there’s the myth. A gray-haired tech I genuinely respect — forty years on engines, hands like leather — once told me to “just let it run twenty minutes, the voltage will come back on its own.” I believed him, because forty years is forty years. We let it run. Twenty minutes. Nothing. It doesn’t come back. Once the whisper is gone, cranking longer only wears out the starter and the starting batteries. I told him so over lunch. He grunted. I think he already knew.
One more distinction worth making, because it saves misdiagnosis: zero volts is a different animal from wandering voltage. If your voltage moves around instead of sitting flat at zero, you’re not looking at a memory problem — you’re looking at governor or AVR hunting, a different fault with a different fix.
One honest footnote, since not every alternator works this way. Sets with a permanent-magnet pilot exciter — PMG machines — don’t lean on residual magnetism at all. Their bootstrap whisper comes from real magnets, and magnets don’t forget. If your site can’t survive a spring morning with zero volts, that’s the machine to spec. It costs more up front. It has never once needed a nine-volt battery to remember its job.
Most standby sets out there, though, are plain self-excited machines. They’ll keep having this exact spring morning for as long as they sit through winters doing nothing.

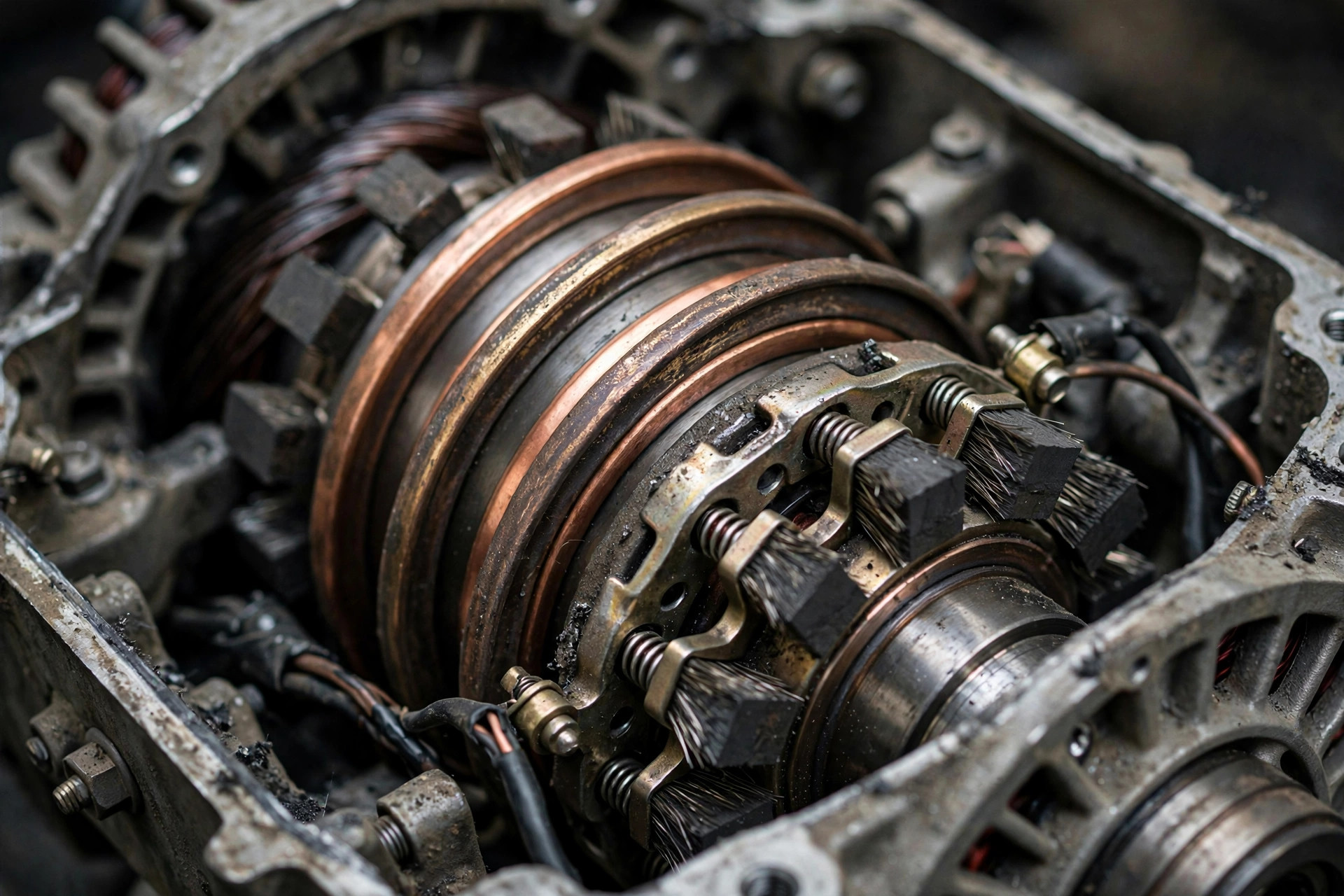

So if your generator cranks, runs, and makes zero volts this spring — don’t order the AVR yet. Check the field voltage. Check the brushes. Then touch a nine-volt battery to the field, mind the polarity, and watch the voltmeter wake up.
Cheapest repair in the generator business. And the most satisfying. If your set is due for its spring test and you’d rather have someone who has done this a hundred times look it over first, that’s what the contact page is for.
