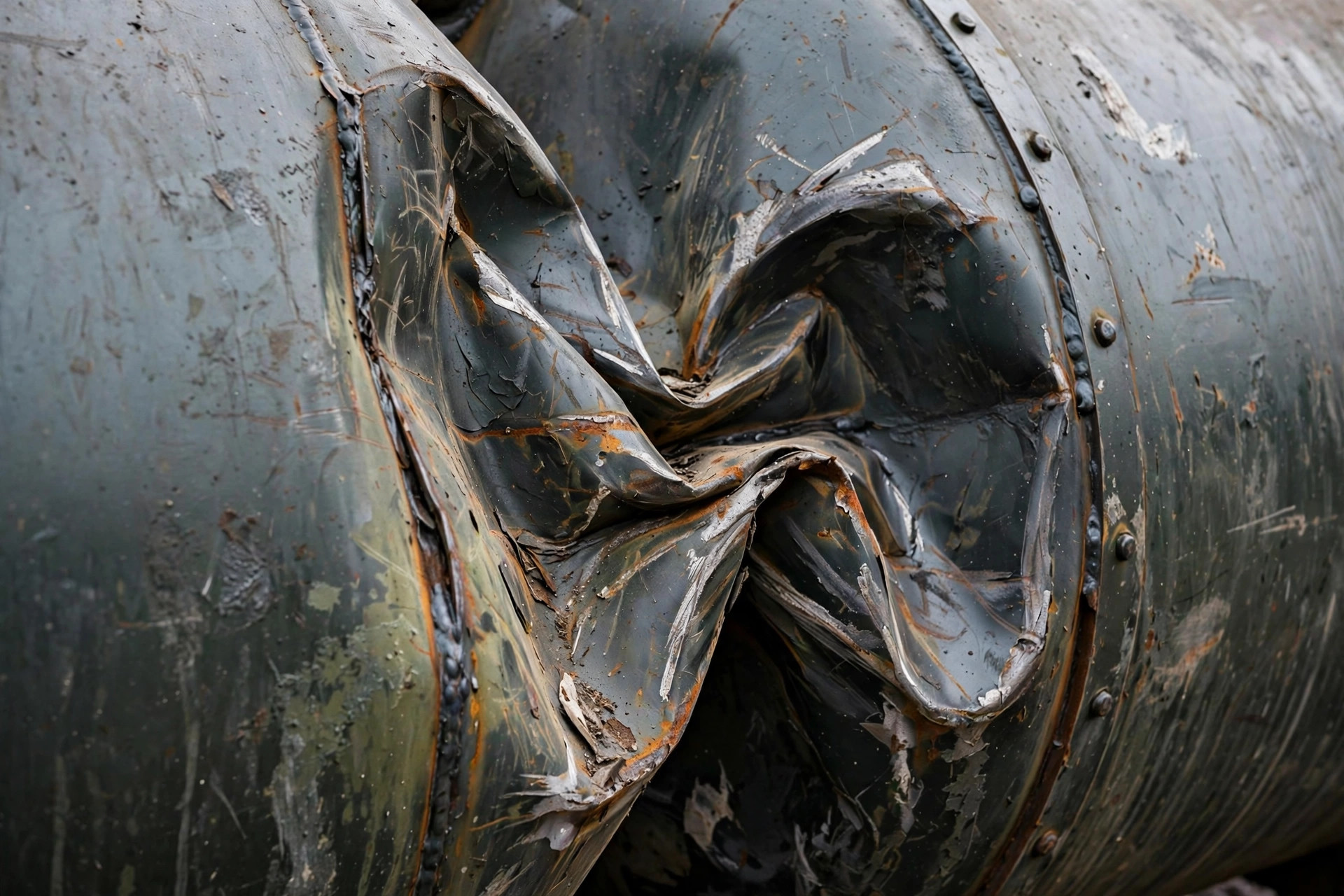

It was just after six in the morning when the foreman called. Their 500 kVA standby set had quit halfway through a concrete pour, and the gauge on the base tank read three-quarters full. When I got to the site, the tank didn’t look like a tank anymore. The whole left side had caved inward, like somebody had taken a giant fist to it. The gauge still said fuel. The engine disagreed.
Twelve years in this business and that morning still sits near the top of my list. Not because the fix was hard — it took me about forty minutes — but because of what caused it. A screen. A little disc of wire mesh, maybe two cents’ worth, sitting inside the tank’s vent cap. Mud daubers had packed it solid sometime over the summer, and a paint crew had sprayed a fresh coat right over the top of it for good measure. The tank couldn’t breathe, so the tank collapsed.
Here’s the thing most people never think about: a fuel tank is a lung. Every liter of diesel the engine burns has to be replaced by a liter of air, or the space above the fuel turns into a vacuum while the lift pump keeps pulling. And the atmosphere is heavy — roughly fourteen and a half pounds pressing on every square inch of that tank, all day, every day. A tank built to hold fuel at a whisper of pressure was never designed to fight that weight from the outside. Block the vent, run the engine long enough, and physics collects its debt.
Two jobs, both boring, both non-negotiable. Job one: let air in as fuel goes out. Job two: let air out when the tank gets filled — or when the afternoon sun heats the tank and everything inside expands. Skip job one and you get vacuum, a starving engine, and eventually a crumpled tank. Skip job two and the fill hose burps diesel back out of the fill neck, usually all over the driver’s boots.
Tanks breathe even when the engine is off, by the way. A tank sitting in the sun warms up, the air inside expands and pushes out through the vent. Night comes, everything cools and contracts, and the tank inhales. Day after day, season after season. The vent is the only thing standing between that steel box and the weather trying to crush it or blow it apart. I tell customers the vent is the cheapest part on the entire fuel system and the only one that can destroy the tank if you ignore it.

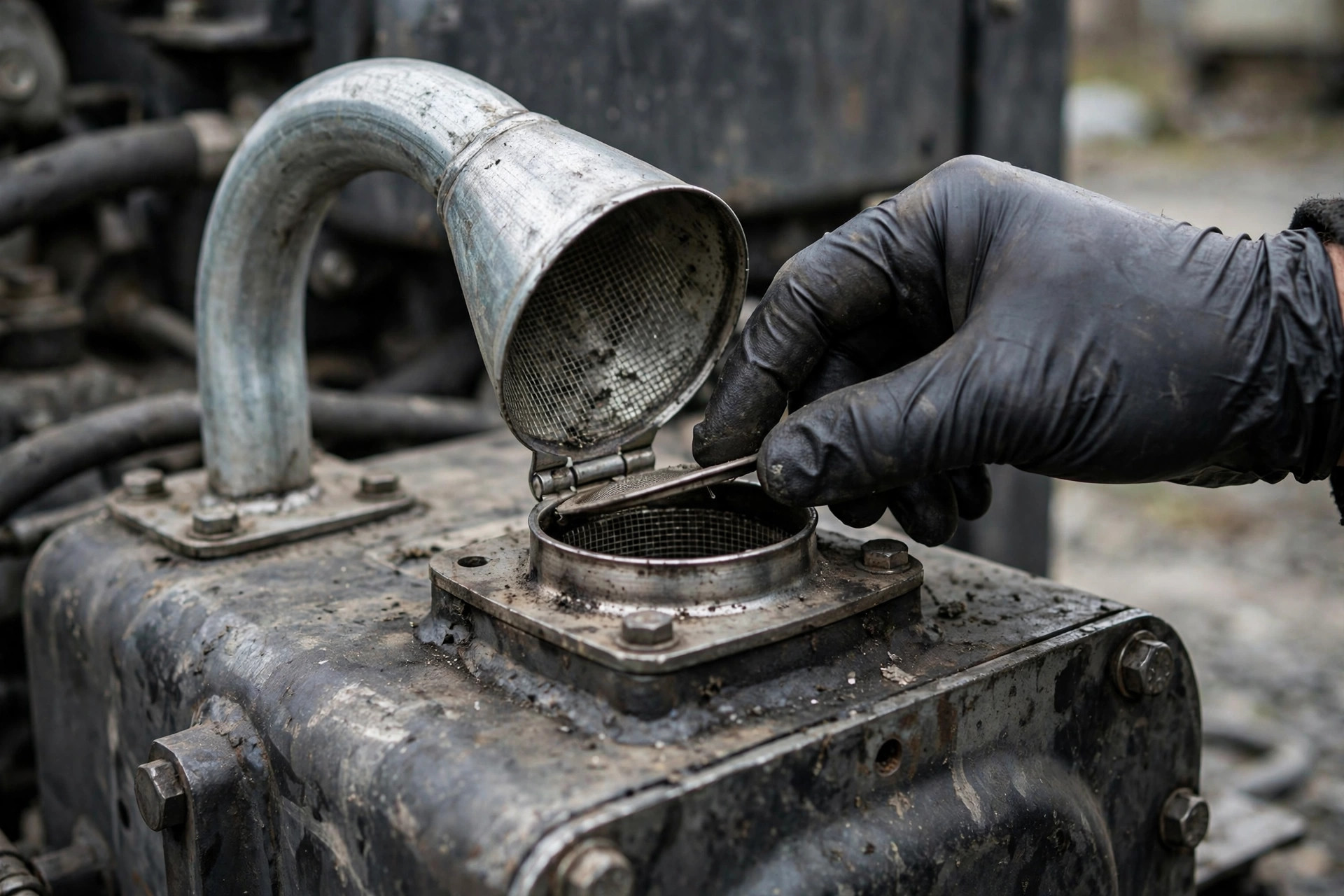

Most small base tanks and day tanks vent through something simple: a gooseneck pipe or a little mushroom cap with a mesh screen inside, sometimes a proper pressure-vacuum valve on bigger tanks, and a flame arrester on the vent if the tank sits indoors. The screen keeps insects and debris out. The bend keeps rain out. That is the entire technology. There is nothing to calibrate, nothing to program, nothing that costs more than lunch. Which is exactly why nobody maintains it.
I only allow myself one list per article, so here it is — the three killers, in the order I actually find them:
The other failure mode is worth its own story, because it goes the other direction. A couple of years back I was commissioning a site with a day tank of about a thousand liters — roughly, the plate said something in that neighborhood — and the fuel truck showed up with a fast pump. The vent on that tank was sized for the engine’s sipping, not for a truck dumping fuel at full speed. About three minutes into the fill, diesel came burping back out of the fill neck like the tank was spitting it out. The driver killed the pump, looked at me, and said the tank must be full. The gauge said a quarter.
It wasn’t full. It was choking. Air couldn’t get out fast enough, so pressure built up and pushed fuel back up the fill pipe. We slowed the fill to a trickle, it took the whole load fine, and the fix afterward was a bigger vent line — cheap pipe, half a day’s work. The driver still tells that story, and he tells it like the tank was possessed. Tanks aren’t possessed. They’re just bad at multitasking when you don’t give them an airway.
That fill-rate mismatch is the part designers get wrong most often, by the way. The vent gets sized for the engine’s fuel burn and nobody checks it against the delivery truck’s pump. If your site takes fuel from a fast commercial pump, the vent needs to breathe at that speed too. Ask the question before the truck arrives, not while diesel is running down the side of the tank.
Here’s the field trick I teach every new tech, and it takes ten seconds. If a generator is surging or starving under load and you suspect the vent, crack the fill cap loose while it’s running. If you hear a hiss of air rushing in, the vent is restricted — the engine has been pulling a vacuum and you just gave it the breath it wanted. If the engine smooths out right after, you’ve found your problem.
I learned that one the embarrassing way. Night market event, a rental set in the 200 kVA class, engine hunting up and down under the light towers. I checked fuel, filters, ran through the whole no-start checklist in my head even though it was running. Twenty minutes of nothing. Then an old-timer on site — not even our crew — walked over, loosened the cap half a turn, and the engine settled like it had been waiting for permission. The vent screen was packed with what looked like a season’s worth of dust and dead flies. He didn’t say a word. He just tapped the vent cap and walked off.
One caution with the hiss test: do it carefully, and don’t leave the cap loose as a “fix.” I know a veteran tech who runs every site with fill caps a quarter-turn loose and swears he’s never had a vent problem. He’s right, and he’s also inviting rainwater and dust straight into his fuel — which is how you get the fuel-going-bad problems I wrote about earlier. We argue about it every time we share a site. Fix the vent. Keep the cap tight.
Two minutes, once a month, folded into whatever rounds you’re already doing — I keep mine on the same clipboard as the maintenance checklist. Look at the vent cap: is the screen there, and can you see daylight through it? Put your hand near it while the set runs — you should feel air moving. After any paint job, check it before the paint dries. After winter, check it before the first long run of spring.
And if you’re speccing a new installation, give the vent the same respect you give the rest of the fuel system: mount it high, point the opening down, keep a real screen in it, and size it for the fastest fill the tank will ever see, not the slowest burn. On bigger bulk tanks, a proper pressure-vacuum vent plus an emergency relief vent is what the fuel codes expect — venting is a fire-safety item in the rulebooks, not a suggestion.
That crumpled tank from my six-a.m. call? We cut the vent cap off, dug out the mud and the paint, and put the screen back with a proper cap. The tank stayed dented — sheet metal doesn’t forgive — but it ran the rest of the pour without a hiccup. Forty minutes of work. Two cents of mesh. A tank that will wear that dent like a scar for the rest of its life.
Tanks are dumb steel boxes. They ask for exactly one thing: let them breathe. Check the vent.
