It was 6:40 on a Tuesday morning, and the generator room was cold enough to see my breath. I hit the start button on a 500 kVA set at a quarry. The engine caught, and for about four seconds it went knock-knock-knock-knock — loud, from deep inside the block — then settled into its normal rumble like nothing had happened.
The site manager shrugged. “It does that,” he said. “Been doing it for a year.”
Six months later that engine came out of the frame with a spun rod bearing and a scored crankshaft.
That knock was the engine filing its resignation. The manager just didn’t read it.
I get three questions about crankshaft bearings more than any others. Here are my honest answers.
No. And “it goes quiet” is the part that fools people.
Your crankshaft never touches its bearings. It floats on a film of pressurized oil inside clearances measured in hundredths of a millimeter. The moment that film is gone, steel meets the soft bearing surface, and you hear it.
Overnight, oil drains back to the sump. On a cold start, the pump needs a few seconds to push oil back up into every bearing. On a healthy engine the clearances are tight enough that a thin residual film survives the night, and you hear nothing.
When bearings wear, the clearance grows. More room means the leftover film can’t bridge the gap. So for three or four seconds, the crankshaft rattles inside bearings that are now too loose — until pressure builds and the film returns. Quiet again. Problem solved? No. Problem hidden.
An old-timer I worked with for years used to wave this off. “Cold knock is normal,” he’d say. “Warms up, goes away, forget it.” He was thinking of gasoline engines, where a little lifter tick on a cold morning is genuinely harmless. A diesel knocking from the bottom end is a different animal. That’s not a lifter. That’s the crankshaft.
What bothers me most: the knock going quiet makes owners patient. They wait. And while they wait, every cold start hammers the bearing a little harder. Clearance grows. The knock lasts five seconds. Then eight. Then one morning it doesn’t go quiet at all — because the bearing shell has spun in its bore, blocked its own oil hole, and the journal is now running dry.
A spun bearing doesn’t give you a warning light. It gives you a repair bill with a crankshaft on it.
Maybe. But probably not, and this is exactly where people waste money.
I had a client change his oil pressure sender twice. Thirty-dollar part, ten minutes to swap. Both times the new sender read exactly what the old one did: strong pressure cold, sagging pressure at hot idle. He was furious at the parts supplier. The senders were fine. All three of them.
Here’s why. Oil pressure is just resistance to flow. Tight clearances resist; loose clearances leak. When the engine is cold, the oil is thick and the clearances are at their smallest — pressure looks heroic. As everything heats up, two things happen at once: the oil thins out, and the metal expands, opening the clearances a fraction more. On a fresh engine, hot-idle pressure dips a little and that’s normal. On an engine with worn main bearings, the pressure falls off a cliff, because oil is escaping through gaps that shouldn’t be there.
So the pattern — fine cold, weak hot — is the signature of worn bearings. A dying sender usually reads erratic or stuck, not beautifully consistent with temperature.

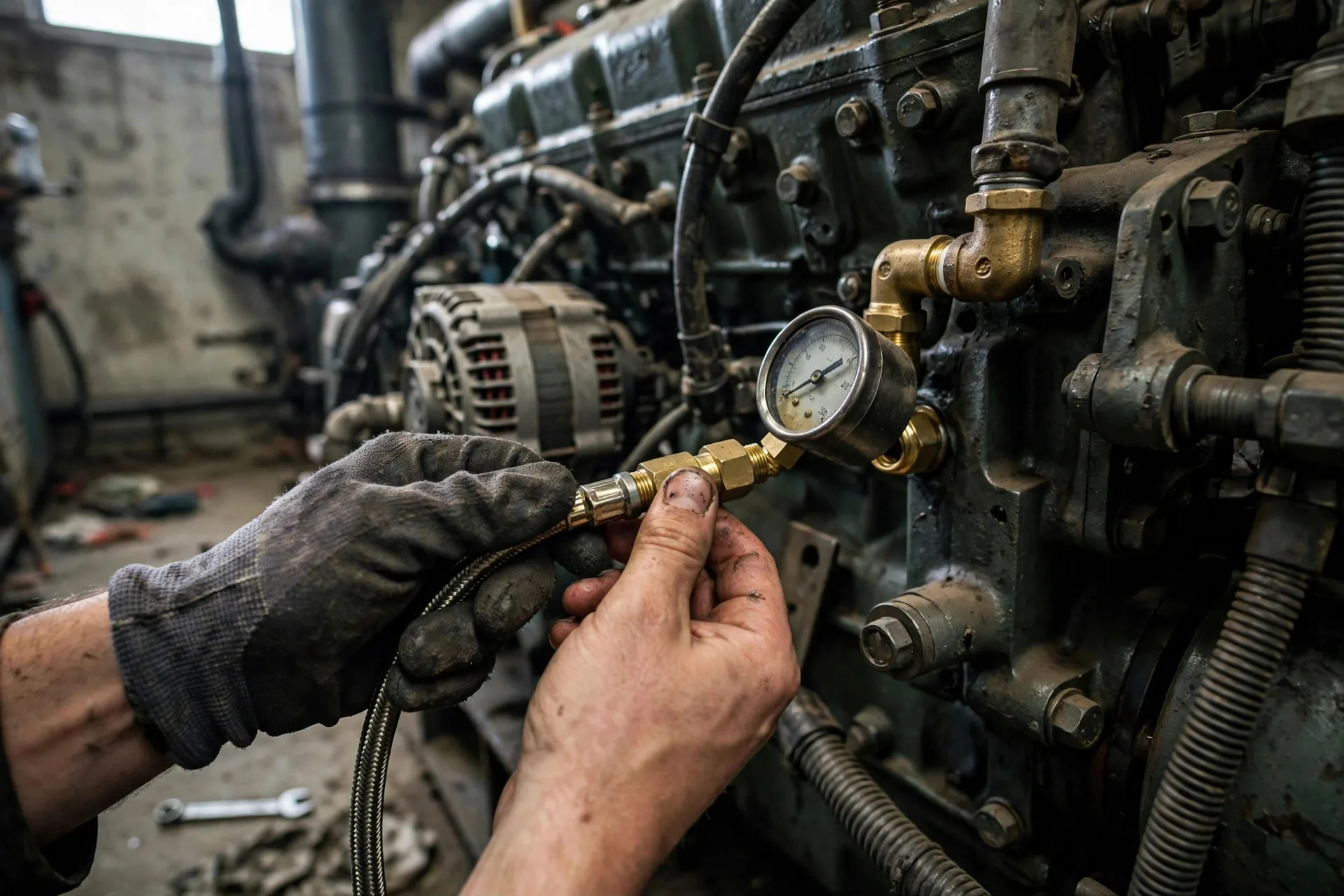

There’s a five-minute test that ends the argument. Tee a mechanical gauge into the sender port and read it yourself: cold start, full operating temperature, hot idle. Write the numbers down. Your engine manual gives the minimum hot-idle spec — if you’re under it, the bearings are telling you something no sender can fix. I keep a mechanical gauge in my toolbox for exactly this. It has settled more arguments than any diagnostic software I own. The full sensor-versus-reality drill is here; the short version is, trust the gauge, not the dashboard.
One sample? That’s gossip. Three samples trending up? That’s a diagnosis.
Here’s what the metals mean. The working surface of a crankshaft bearing — the part that actually meets the oil — is a soft alloy, typically lead-tin or aluminum-tin over a steel back. When that surface wears, lead, tin, copper, and aluminum show up in the oil. Iron comes from the crankshaft journal itself, once the wear goes deep enough to reach steel.
So climbing lead with everything else flat: your bearings are wearing, and the crankshaft is still intact. That’s the good-news version. Climbing lead plus climbing iron: the wear has gone through the soft layer and started on the journal. That’s the version where the clock ticks louder.

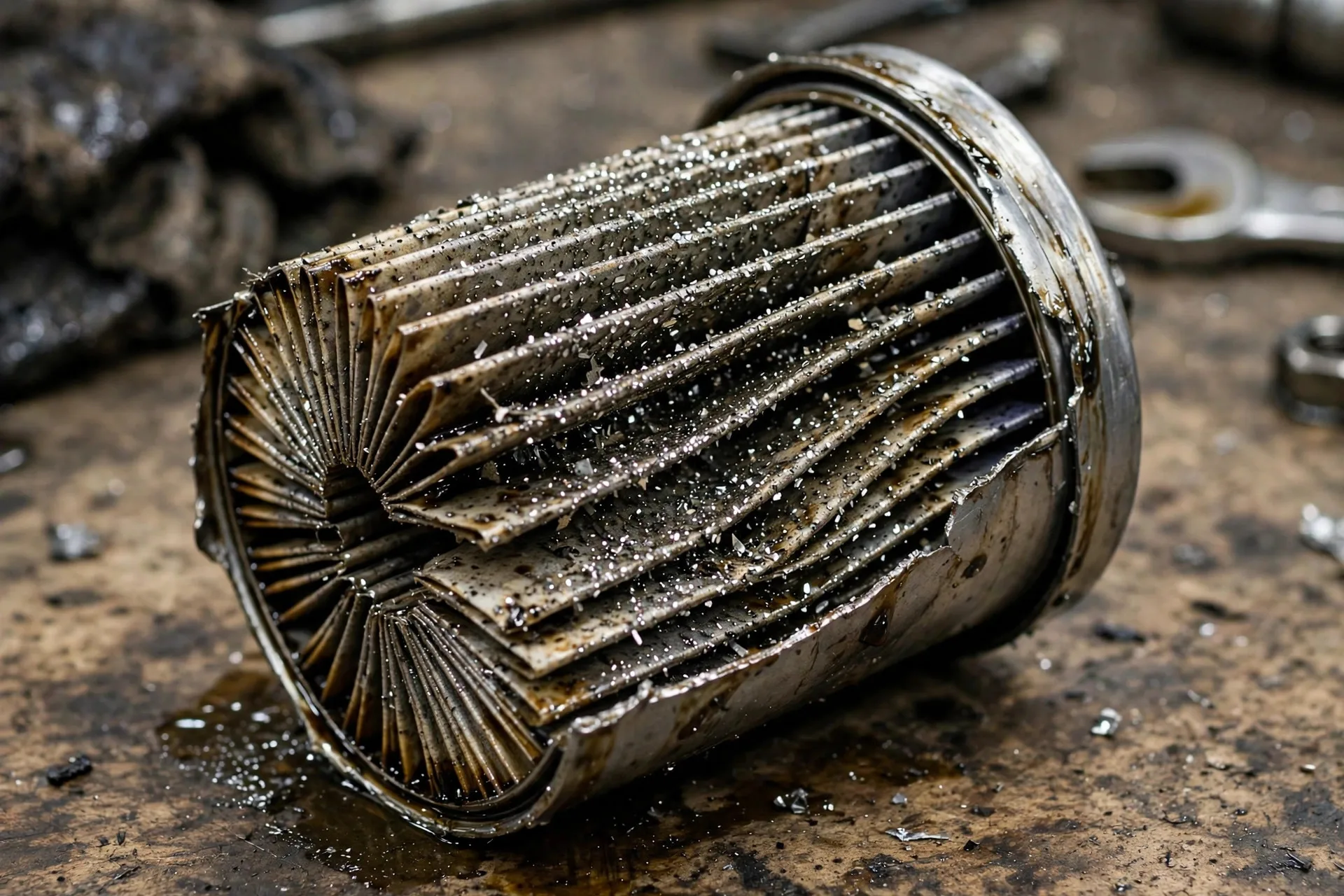

A lab report once saved an engine I look after. Three samples over six months: lead creeping up each time, everything else flat. We cut the oil filter open — ten minutes with a filter cutter — and the pleats glittered with fine metal. Not chunks. Glitter. At the next scheduled outage we pulled the caps and found the number-three main down to copper. New bearings, a polished journal, and that engine is still running today. If we’d waited for the knock, we’d have been shopping for a crankshaft.
Cut your filter open at every oil change. It’s the cheapest bearing inspection ever invented. And oil analysis only earns its keep when you read it as a trend, not a single snapshot.
Bearings don’t die of old age. They die of abuse, and the abuse is almost always in the oil.
Notice what’s not on the list: hours. I’ve seen bearings perfect at 20,000 hours and destroyed at 6,000. It’s never the clock. It’s the oil.
And while you’re watching the bottom end, keep an eye on consumption too — rising oil consumption and bearing wear often travel together, since both start with clearances opening up where they shouldn’t.
So next time your generator knocks for three seconds on a cold morning, don’t file it under “normal.” Check the hot-idle pressure against the manual. Pull a sample and start a trend. Cut the filter. Put all three on the maintenance checklist.
Bearings are cheap. Crankshafts aren’t. The engine tells you which one you’re buying — months in advance, if you’re listening. And if you’d rather have someone listen with you, that’s what we’re here for.
