Second week of January. Minus twelve outside, wind finding every gap in the plant’s cladding. The generator at a small food-processing site cranked, caught for half a second, and died inside a cloud of white smoke that smelled like raw diesel. The maintenance lead was already on the phone ordering fuel treatment. He was sure the diesel had gone waxy over the holidays.
It hadn’t. The fuel was fine. I’d watched this exact scene before — same smoke, same smell, same wrong first guess — and I knew how the morning was going to end before the starter finished its second crank.
Three of the six glow plugs were dead. Nobody had looked at them since the set was commissioned, four years earlier.
A diesel has no spark plugs. It lights its fuel with heat squeezed out of thin air — the piston compresses the intake charge until it’s hot enough to ignite the spray, five hundred degrees and then some. Beautiful in July. In January the cylinder walls are cold heat sinks, the incoming air is dense and freezing, and half the compression heat bleeds into the metal before the fuel even arrives. The injector sprays on schedule. The fuel doesn’t burn. It leaves as white smoke — vaporized, unburned diesel — while the engine cranks itself toward dead batteries.

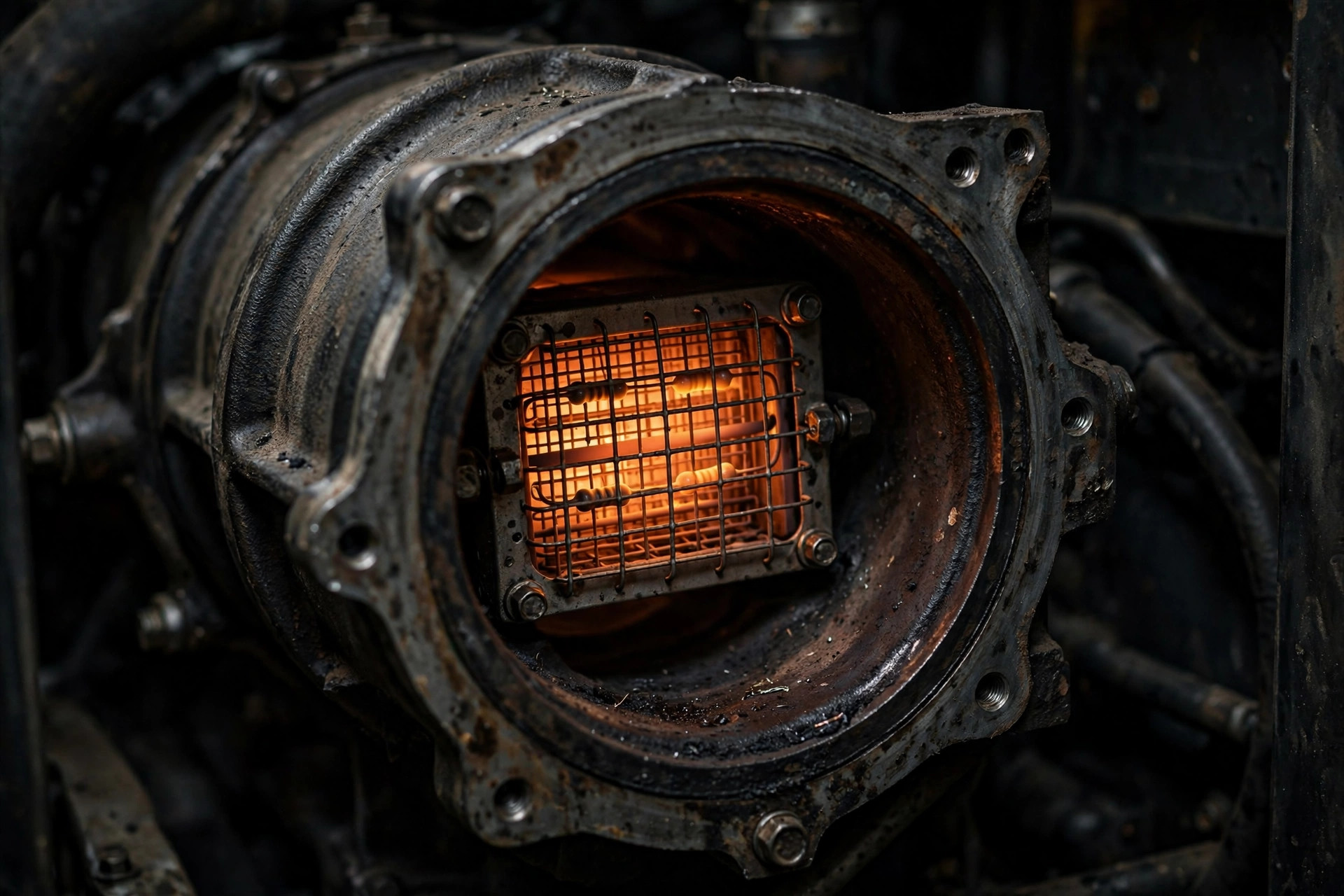

That’s the entire job of the preheat system: lend the engine thirty seconds of heat it can’t make on its own. A glow plug is a pencil-thin element sitting in or beside the combustion chamber, glowing orange before you ever touch the starter. On bigger high-speed sets you’ll usually find a grid heater instead — a resistive mesh in the intake manifold that superheats the incoming air, pulling a hundred amps or more through fat relays. Different hardware, same bargain. Heat now, start now.
On most generating sets the controller runs the whole ritual. Key on, the controller energizes the preheat relay, the little coil-shaped lamp on the panel lights up, and you’re supposed to wait. Supposed to. We’ll come back to that.
I’ve replaced a lot of glow plugs over the years. Most of them didn’t need replacing. Here is the honest list, in roughly the order I keep finding them.
One: cranking through the preheat. The lamp is still on, the plugs are still climbing toward temperature, and somebody twists straight to start because the outage can’t wait thirty seconds. Now the starter is dragging the battery voltage down while the plugs are trying to heat, and the injectors are spraying fuel into cylinders that aren’t ready. You get the white-smoke crank, the engine doesn’t catch, and the second attempt starts with weaker batteries than the first. Wait the thirty seconds. The outage can spare them. The engine can’t.
Two: the ether can. Starting fluid and a glowing intake are a combination with a body count. Years ago I walked into a generator room about ten minutes after somebody gave the air cleaner a good long blast of ether while the grid heater was still cycling. The air cleaner lid was on the floor across the room. Nobody got hurt, which was luck, not engineering — ether flashing on a hot grid can bark back through the intake hard enough to break things and people. And here’s the part nobody wants to hear: if your set needs ether to start in winter, the preheat system is already broken. Ether is a confession, not a fix.

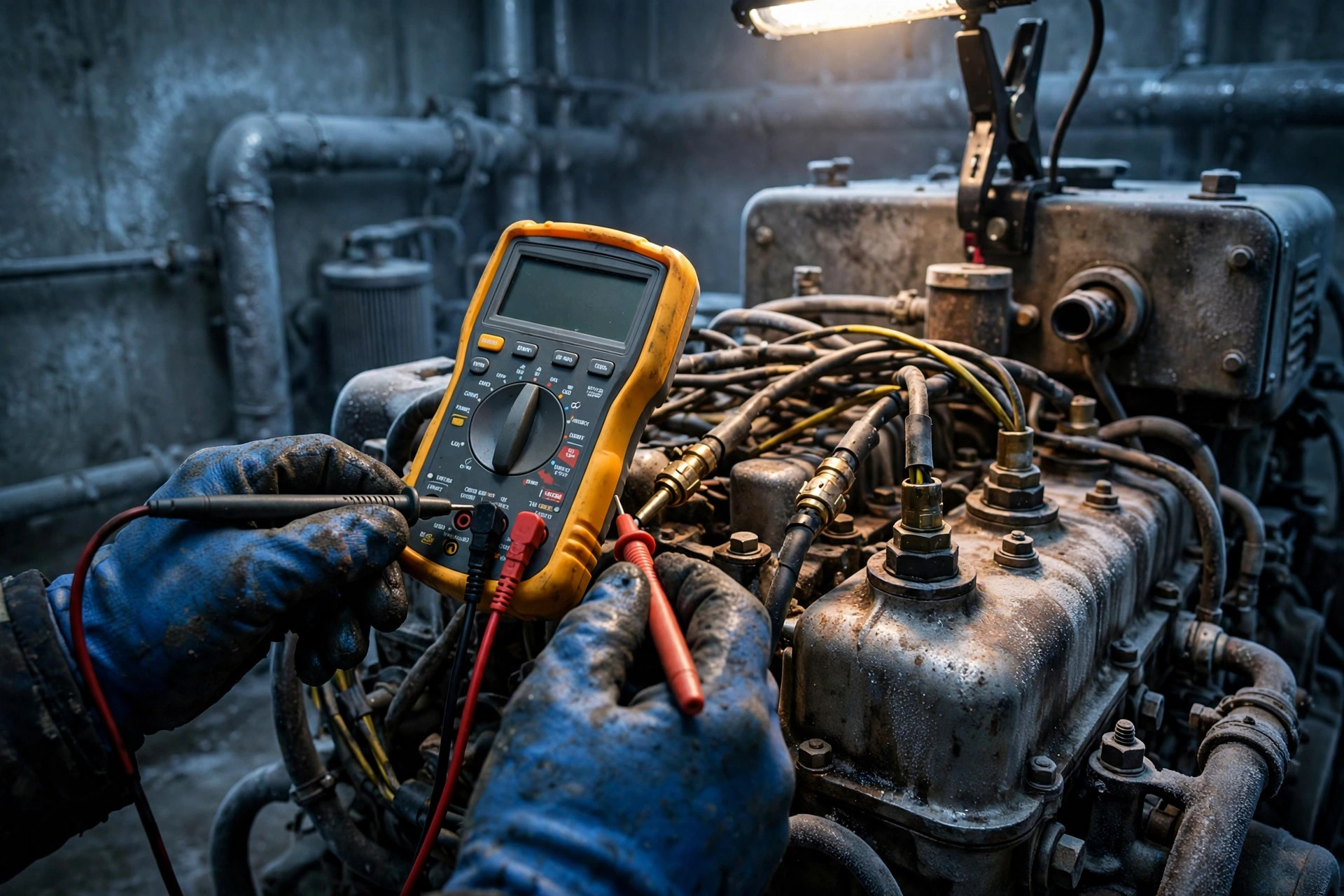

Three: replacing all six plugs when the relay is the corpse. This is the most expensive way to fix nothing. Glow plugs usually hang in parallel off one relay and one fuse. One shorted plug blows the fuse and you get zero preheat with six innocent plugs. Or the relay contacts burn — it clicks, the panel lamp lights, and zero volts reach the bus bar. I watched a contractor quote six new plugs plus half a day’s labor on a 100 kVA set once. I put a voltmeter on the plug bus bar during preheat first. Zero volts. The relay cost less than the diesel I’d burned driving out there. Check for voltage at the plugs before you order parts. Always.
Four: wrong plugs for the engine. Glow plugs look alike the way all small metal parts look alike — right up until you measure them. Wrong reach, wrong heat range, wrong thread pitch. A plug a millimeter too long can kiss the piston. A cheap cross-reference with the wrong resistance profile cooks the relay in a season. Buy by engine model and serial number, not by “it screws in and the parts guy says it’s the same.” It isn’t the same.
Five: the bus bar nobody cleans. The copper bar tying the plugs together lives in heat, vibration, and condensation. It goes green. Resistance climbs. The plugs at the far end get a weak, lazy heat while the relay insists everything is fine. Five minutes with a wire brush, once a year. Nobody does it. Everybody pays for it in January.
There’s a mechanic I work with — thirty years in, hands like sandpaper — who thinks preheat systems are a crutch. “A proper engine fires on compression,” he says. “If it needs glow plugs, something’s worn out.” He’s half right, and the half he’s right about is worth hearing: an engine with tired compression and dribbling injectors leans on its preheat the way a tired man leans on a railing. Fix the engine and the plugs matter less.
But the other half is January. At minus ten, even a fresh engine with perfect compression loses heat to cold metal faster than it can build it. I’ve got a whole folder of white-smoke mornings that says the railing matters. We argue about it every winter. He services his plugs anyway. He’d never admit it’s because of me.
None of this needs a workshop. November, engine cold, thirty minutes:
A block heater and a preheat system aren’t rivals, by the way. The block heater keeps the whole engine warm overnight; the plugs handle the last thirty seconds. They cover each other’s weak spots — which is also why a set with a dead block heater leans twice as hard on its plugs, and why I check both in the same visit. Cold cranking is brutal on batteries too, so the batteries get checked in the same half hour.
If the preheat circuit checks out and the set still won’t catch, you’re out of the electrical corner and into fuel and compression — the no-start walkthrough picks up from there, in the order that wastes the least of your morning. And if you want the full cold-season picture, the winter operations guide covers the fuel and coolant side of the same January.
The preheat system is the cheapest, simplest circuit on the whole generating set — a relay, a fuse, and a handful of little heaters. It’s also the one nobody tests until the morning it matters. January doesn’t care about your maintenance schedule. It just finds the weak part and introduces itself.
Go look at your bus bar. Five minutes. If it ever saves you a 6 a.m. call in the cold, you can buy me a coffee. If you’d like a second pair of eyes on the whole cold-start chain before the season turns, we’re easy to reach.
