The Closed-Transition Transfer Switch That Doesn’t Let the Lights Blink

I was standing in a hospital electrical room at 2:14 in the morning when the utility feeder let go. No warning. Just that deep electrical silence, then the diesel cranking up somewhere outside the wall.

Half a minute later the ATS threw over. The lights blinked. Every UPS in the building screamed at once — and one battery string didn’t survive the handoff. That night cost the hospital a UPS battery cabinet, and it cost me a long conversation with the facility director about a switch I’d talked myself out of specifying a year earlier: closed transition.

Open transition is what nearly everyone buys

A standard ATS does break-before-make. The utility contactor opens, the generator contactor closes, and between those two events the building sits in the dark. I once timed one at a bottling plant: eleven seconds from feeder loss to the generator carrying load. Ten seconds of cranking and warmup, one second of actual switching.

Eleven seconds is a long time in a dark hallway. But the scheme is dead simple, it’s cheap, and the utility couldn’t care less — because the two sources never touch each other. No parallel, no interconnection, no paperwork. The UPS rides through the gap if its batteries are healthy, and everything downstream was designed for exactly this event.

Honestly? For most buildings that’s enough. The blink is honest. You know it happened, your equipment knows it happened, and nothing pretends otherwise.

Closed transition cheats — both sources closed at once

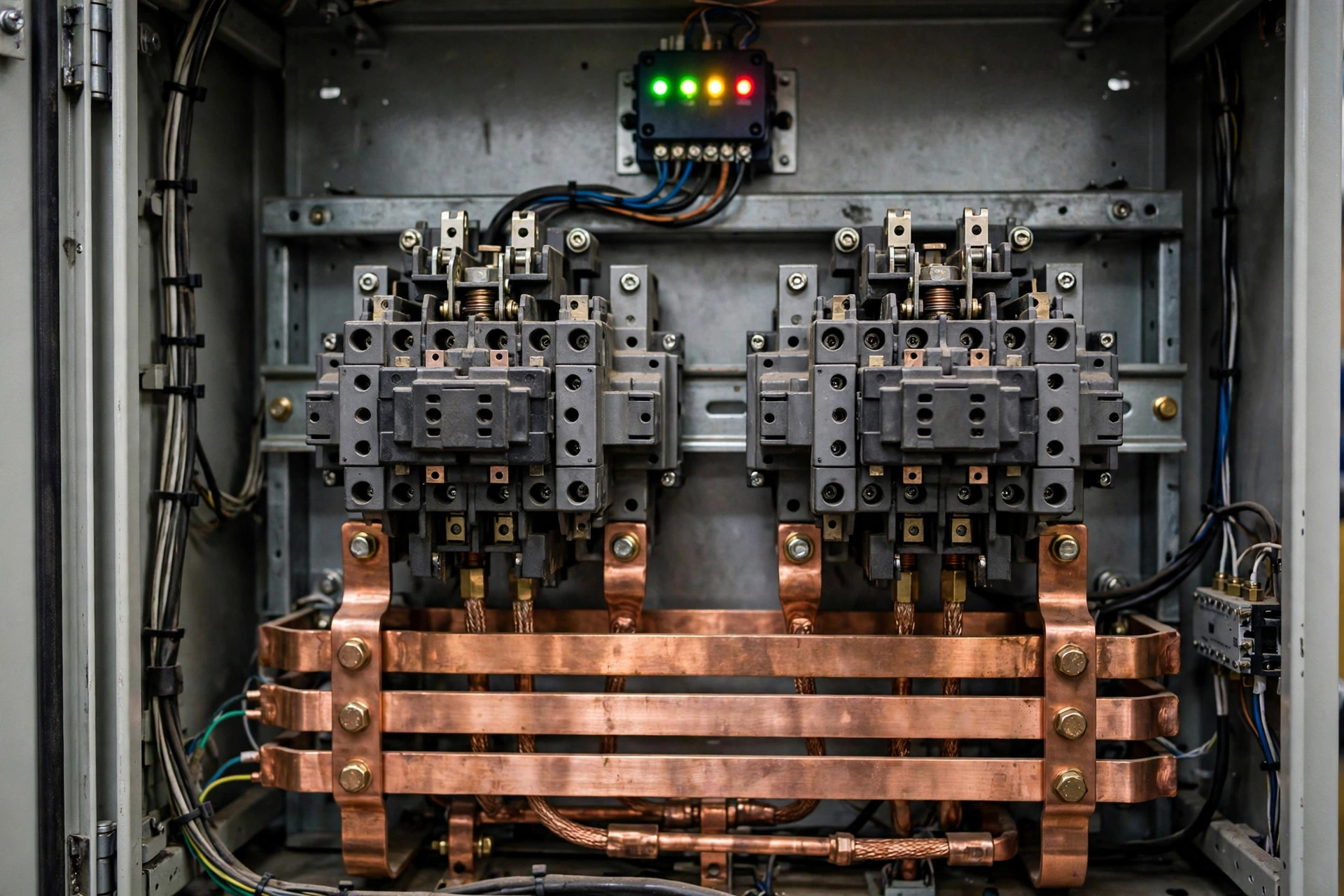

A closed-transition transfer switch does make-before-break. Before it lets go of the utility, it closes onto the generator — so for a fraction of a second, both sources feed the building together. No gap. No blink. The load never sees the handoff at all.

The trick is the in-phase monitor. It watches the generator against the utility — voltage, frequency, phase angle — and only permits the parallel when the two are close enough to touch. Miss that window and you’re slamming two unsynchronized sources together, which is how contactors weld shut and breakers come apart. The parallel typically lasts under a hundred milliseconds: long enough to hand the load across, short enough that the utility doesn’t treat you as a generator on its grid.

Here’s the part people forget: the retransfer blinks too. With a normal ATS, when the utility comes back, the building takes a second hit — another blink, right when everyone thought the emergency was over. Closed transition kills that one as well. On one site I commissioned, the facility manager told me the retransfer blink had been crashing their lab freezers twice a year. The generator transfer wasn’t the problem. Coming home was.

So why does the utility care about a hundred milliseconds?

This is the part nobody puts in the brochure. The moment your generator intentionally parallels with the grid — even for a hundred milliseconds — the utility calls it an interconnection. That means an application, an agreement, and a protective relay package: undervoltage, overvoltage, under/over frequency, a synchronizing check. Some utilities insist on witnessing the timing test themselves.

On one project I was involved in, the utility engineer red-lined our one-line and sent it back. He wanted the relay settings re-verified and a witnessed timing test before he’d sign the interconnection agreement. Six weeks of delay on a switch that was already installed and wired. The hardware was the easy part. The permission was the project.

Some utilities just say no — especially on small standby sets, where the engineering review costs them more than the risk justifies. Their reasons hold up: anti-islanding, for one. Your generator must never keep a dead feeder energized while a lineman is working on it. And fault current — during that brief parallel, your set feeds fault current into their system, and their protection engineers get nervous about anything they didn’t model.

Four ways people get this wrong

• Buying the switch and skipping the paperwork. The parallel happens whether the utility approved it or not. An unpermitted parallel is a liability with a price tag.
• Thinking “closed transition” means continuous parallel. It doesn’t. A hundred milliseconds is not peak shaving and it’s not load sharing — that’s a different machine with a different agreement.
• Putting it on a generator that can’t synchronize. You need an electronic governor holding tight frequency and an AVR holding tight voltage. A tired mechanical-governor set will hunt right through the in-phase window and never get permission to close.

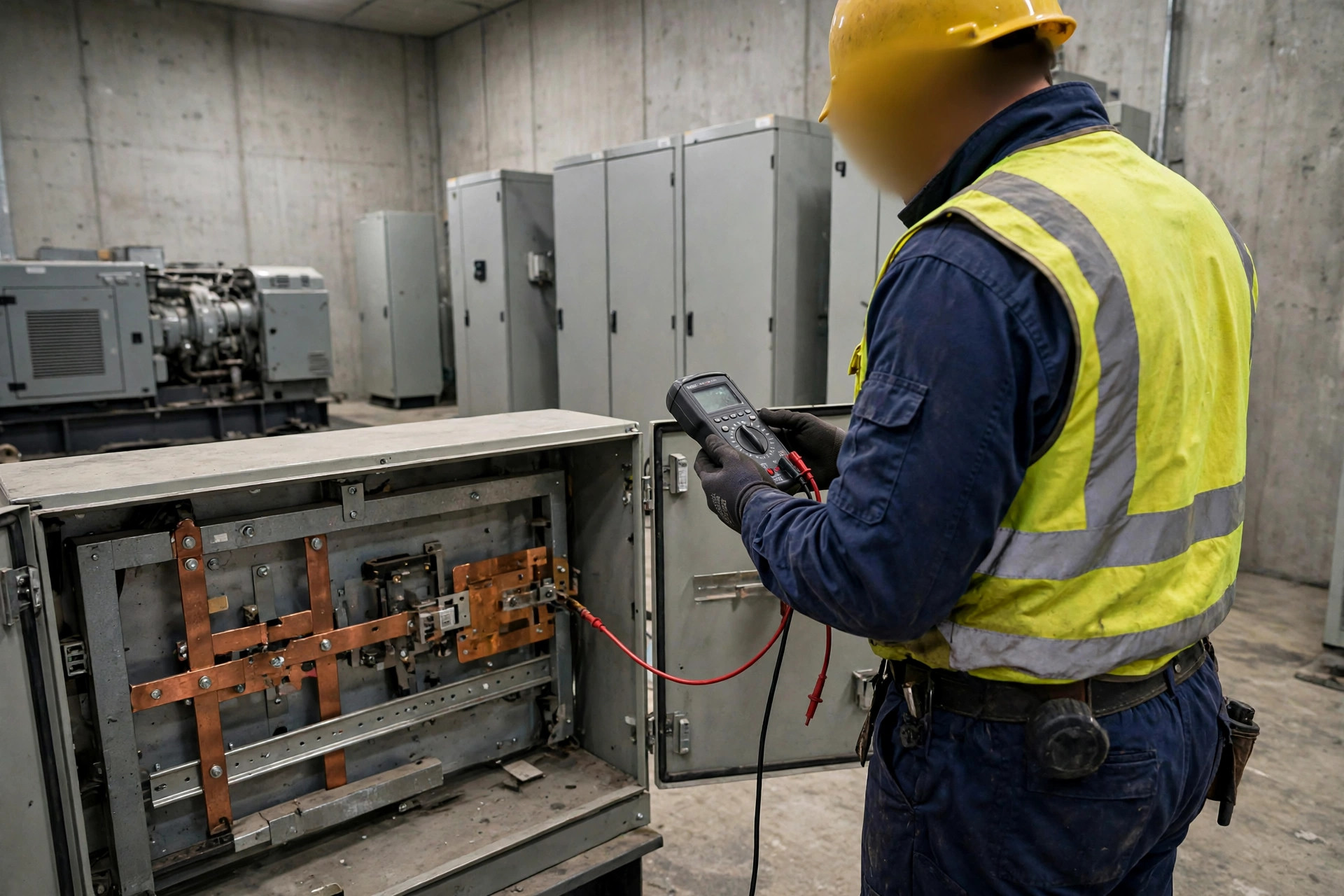

• Never proving the in-phase monitor in the field. The weekly exercise usually runs the generator with no transfer at all — so the monitor guarding your hundred milliseconds of parallel may never have been tested under load.

Would I spend the money?

For a hospital, a data center, a fab, a lab full of freezers — anywhere the blink itself costs real money — yes, every time. The premium over a standard ATS is real, but it’s small next to one ruined product batch or one dead UPS string at 2 a.m. Compare the transfer switch options honestly and the math usually lands here.

For the average office building with a decent UPS? No. Save the money. The blink is honest, the UPS was built for it, and the utility paperwork on a closed-transition install will eat more engineering hours than the switch is worth. My rule: if the building already owns a good UPS, open transition is fine. If the blink is the disaster, closed transition earns its keep.

I once watched a facilities manager get his utility’s sign-off over coffee and a single-line diagram. Eleven days, done. Another client in the same state spent four months and three revised protection studies on the identical switch. The difference wasn’t the hardware. It was who picked up the phone first.

I still specify open transition on most jobs. What keeps me up at night isn’t the blink — it’s the unpermitted parallel, the untested monitor, the battery string nobody checked. File the utility application, test the handoff under load, keep the batteries healthy. The switch is the easy part. Everything around it is the job.
