The Dipstick Tube Started Talking. I Finally Listened.

Thursday morning, 6:50. A quarry outside town, a 500kVA set due for its weekly test. I pulled the dipstick to check the oil, and the tube puffed back at me — a soft rhythmic chuff-chuff-chuff, perfectly in time with the firing order, and a wisp of blue-gray vapor curled out into the cold air. The dipstick itself had ridden up half an inch.

The foreman shrugged. “It does that. It’s old.”

Old. That’s what people say when they’ve stopped reading the signs.

I wiped the stick, pushed it back in, and watched it for thirty seconds. It lifted again. Here’s the thing: an engine’s crankcase is not supposed to breathe through its dipstick tube. The crankcase is the engine’s basement — oil pan, crankshaft, the bottom end. Pressure doesn’t belong down there. When it shows up, it comes from exactly one place: combustion gas slipping past the piston rings. That’s blowby.

Every engine has some. Even brand-new ones. The rings are a seal, not a weld. The question is never “is there blowby” — it’s how much, and which way the number is moving. I learned that the expensive way.

The Two Crank Seals I Replaced for Nothing

Seven years back, a 350kVA set at a concrete plant kept weeping oil from the front crank seal. I replaced it. Six months later, weeping again. Replaced it again — different brand, cursed the installer, who was me. The third time, I finally asked why a seal kept failing instead of how to seat it better.

Crank seals don’t fail that often. Pressure kills them. Oil mist plus crankcase pressure finds the weakest exit in the whole engine, and the weakest exit is usually a seal lip. I measured the blowby that afternoon: crankcase pressure at rated load was roughly four times what the engine manual allowed. The set didn’t have a seal problem. It had a ring problem wearing a seal disguise.

That’s the part most people miss. Blowby doesn’t just cost you oil — it pressurizes everything. It pushes oil past seals and gaskets that would have lasted five more years. It fogs the breather, loads the air filter up with oil mist, and on a turbocharged set it can fight the turbo’s oil drain — backing oil up into the cartridge and making a healthy turbo look sick. I once chased a “bad turbo” on a 400kVA: blue haze at load, oil in the charge-air pipe, new cartridge already quoted. Then somebody measured crankcase pressure. Rings. The turbo was innocent. A two-thousand-dollar cartridge, saved by a forty-dollar gauge.

The Forty-Dollar Gauge That Tells the Truth

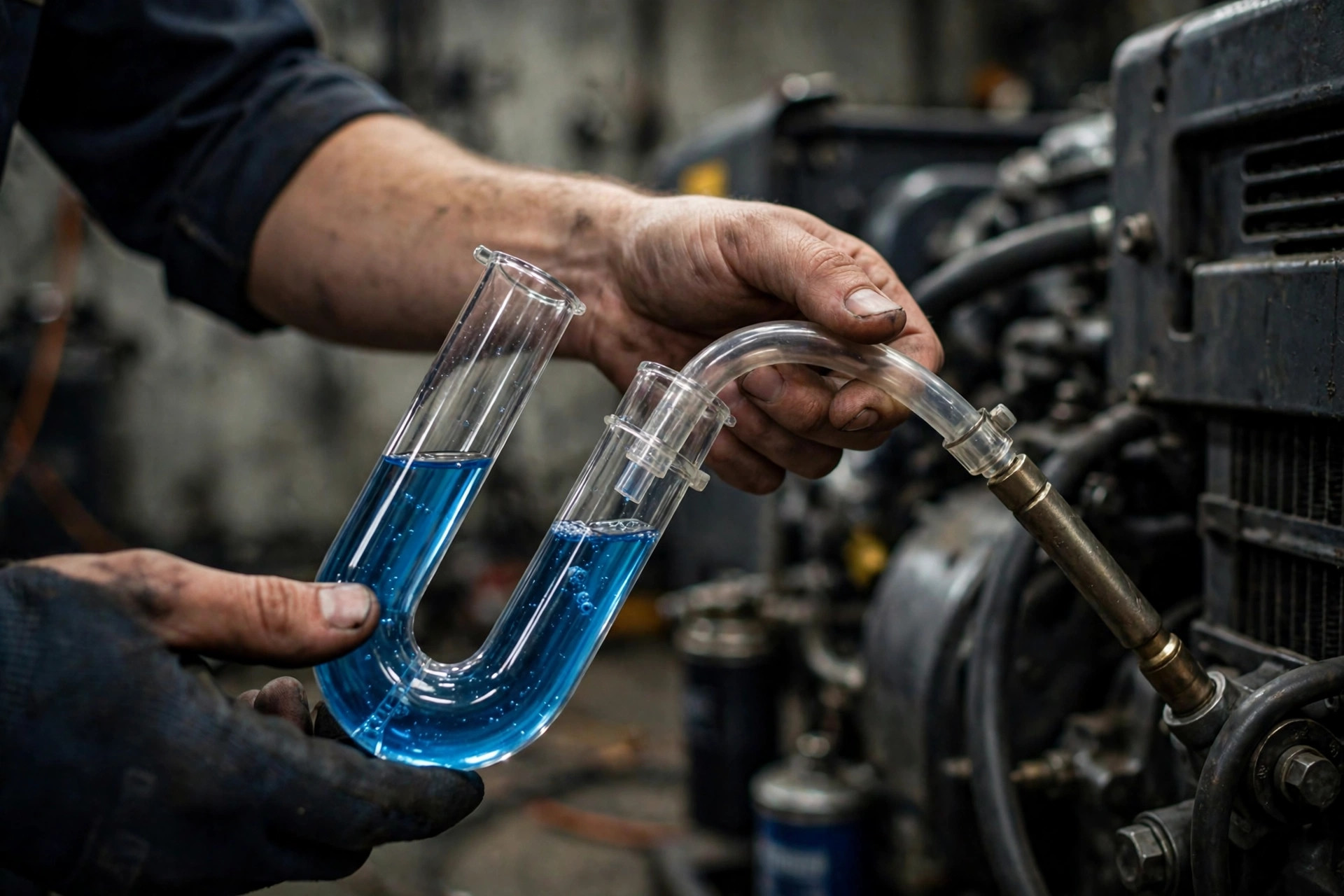

A water manometer. A plastic U-tube, some dyed water, reads in inches of water column. No batteries, no app, nothing to calibrate. You plumb it to the dipstick tube — sealed in with a rubber stopper — or to the oil fill neck, run the set at full load, or as close as you can honestly get, and read the number. Then you look it up in your engine manual. Most industrial diesels want to see a couple of inches of water at rated load, give or take.

What matters more than the exact figure is your own history. Measure it the same way, same load, every year, and write it down. A number that creeps from 1.5 to 3 to 5 over three years is a countdown. A one-time reading is a rumor. A trend is a diagnosis.

I keep a little table for every set I look after. Date, load, inches of water. Two minutes of work.

At a food warehouse — the one with the standby 250kVA that “never runs” — the blowby log showed 2, then 3.5, then nearly 6, over four years. Nobody touched anything. Year five, the weekly test sounded different — a touch rougher, a little more haze. The rings were glazed from a decade of light-load exercise, and the load-bank session we finally did dropped the reading back under 4. Not a cure. A reprieve. The rebuild is now in their budget for next year, planned instead of panicked. That’s what the number buys you: time to plan instead of time to panic.

Three Things Raise the Reading — and Only One Needs a Rebuild

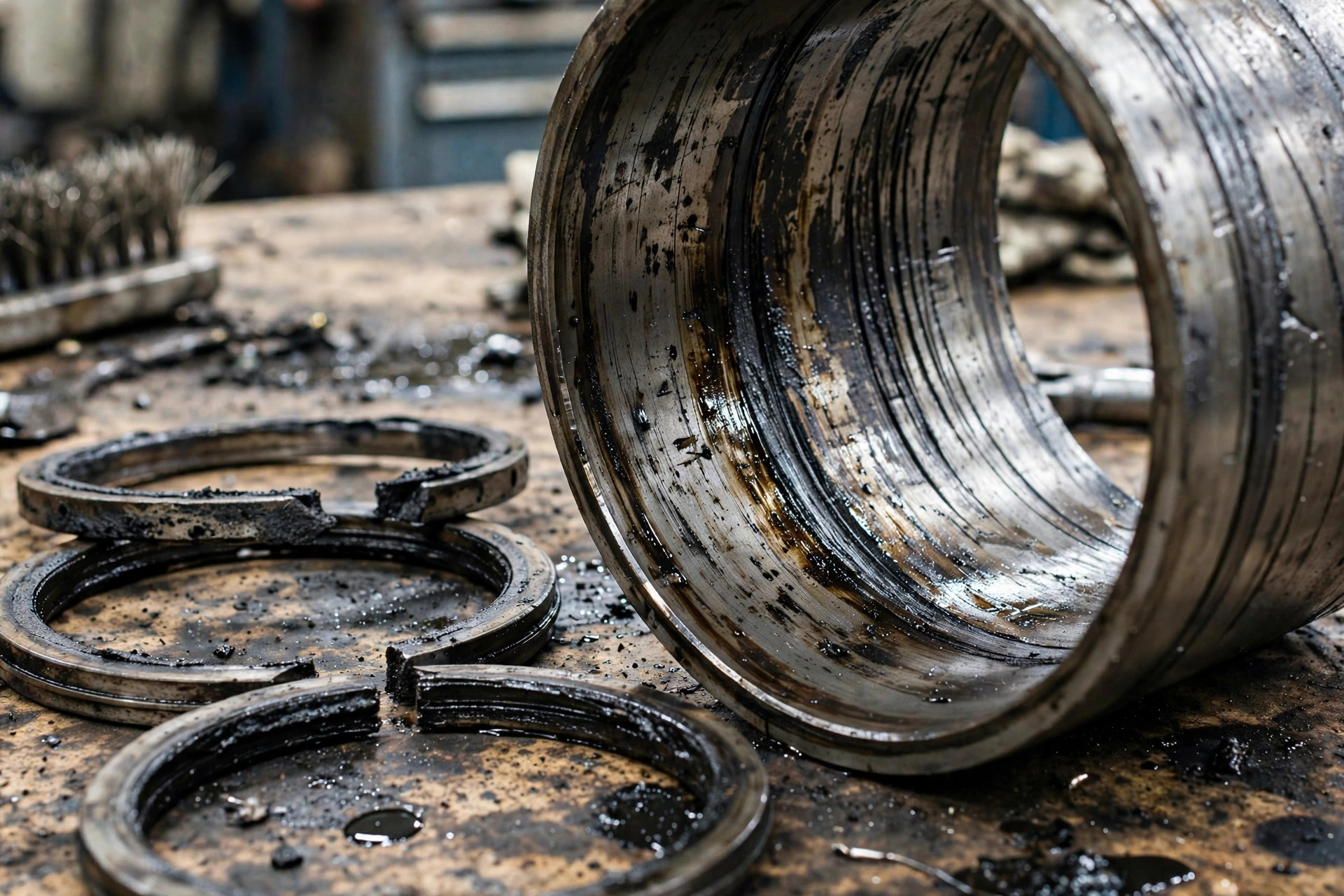

First: worn rings and liners. The honest one. Hours pile up, the ring-liner seal loosens, blowby rises on a gentle slope. No drama, no sudden failure — just the line creeping upward year after year. This is normal aging, and the answer is a top overhaul when the trend says so, not when the engine finally quits.

Second: stuck or carboned rings from chronic light load. Same reading, different disease. An engine that has spent years doing twenty percent load in weekly tests builds carbon in the ring grooves. The rings stick, sealing goes soft, blowby climbs. This one is sometimes reversible — a proper load-bank run, hot and hard, can free the rings and drop the number. I’ve watched a reading fall from 7 to 3 after two hours at full load. The engine just wanted a hard run for once. If your set has lived on light load, rule out wet stacking and carbon buildup first before you condemn the rings — you might be looking at carbon, not wear.

Third: too much oil. Overfill the sump and the crankshaft whips the oil into foam, and foamed oil plus normal breathing reads high and looks scary. Wrong oil does it too — too thin for the climate, or a grade the manual never blessed. This is the cheapest fix in the whole article and the most embarrassing to admit. I once spent a morning pricing a rebuild before noticing the oil level was a full liter over the max mark. The “ring problem” disappeared with a drain pan. My foreman still brings it up.

Check the level first. Always.

My Old-Timer and I Disagree About “They All Breathe”

He says every diesel breathes a little and I’m measuring ghosts. He’s not entirely wrong. Zero crankcase pressure on a running diesel is a fairy tale, and chasing the last half-inch of water is hobby work. But “they all breathe” is what people say right before a seal lets go at 2 a.m. in January.

I told him: fine, it breathes. But I want to know exactly how hard it’s breathing, in numbers, every year. He laughed. Then he asked me to bring the manometer to his site. We’re both a little right, which is the most annoying kind of right.

When the Number Says “Plan,” Not “Panic”

Here’s my rule of thumb, and it’s a thumb, not a spec: when the trend climbs year over year, when oil consumption climbs with it, when the breather starts fogging and the seals start weeping — start budgeting. A top overhaul planned six months out costs a fraction of the one you do at midnight with a rental crane. Blowby and oil consumption move together, so track oil use the same honest way — liters per month, written down, not “about the same.”

Put the blowby reading in the maintenance log next to the oil analysis numbers. The lab shows you the wear metals — iron, chromium, aluminum climbing — and the manometer shows you the pressure. They agree with each other. They always agree with each other. This is how I read an oil sample alongside the pressure trend. Fold the annual reading into the maintenance routine and it stops being a special task.

Next time you pull a dipstick and the tube puffs back at you, don’t wipe it and walk away. Watch it for ten seconds. Count the rhythm. That’s the engine telling you about its rings, in the only language it has. You don’t need a laptop or a service contract to hear it. You need a forty-dollar gauge, a notebook, and the habit of writing the number down. The engines don’t lie. They just whisper through a tube, and most of us are too busy to listen. If your set has been talking and you’d like a second opinion, talk to our engineers.
