The carbon monoxide alarm in the generator room went off at 2:14 in the morning. The building engineer called me convinced the detector was faulty — it was only two years old, and the generator had just passed its monthly test with flying colors. I drove over, walked into the room, and my eyes started watering before I’d taken five steps. The detector wasn’t faulty. The exhaust flex joint had a crack in it you could slide a credit card through.
Nobody thinks about that joint. It’s a short corrugated section of stainless pipe, usually tucked between the turbocharger outlet and the rigid exhaust stack, and most people walk past it for years without a glance. Customers ask me about it more than you’d expect, though — usually right after something goes wrong. Here are the three questions I actually get.
Your engine doesn’t sit still. It lives on vibration isolators, and at full load it shakes — not dramatically, but constantly, thousands of tiny movements a minute. The exhaust stack, meanwhile, is bolted rigidly to the building. Something has to absorb the difference between a shaking engine and a stack that doesn’t move. That something is the flex joint, also called an expansion bellows.
It does two jobs, not one. First, vibration isolation: the corrugated stainless section flexes with every engine movement so the turbocharger housing and the exhaust manifold don’t have to. Second, thermal growth: a ten-foot run of steel exhaust pipe grows roughly half an inch going from a cold start to full operating temperature. Without a bellows to swallow that growth, the pipe pushes and pulls on whatever it’s bolted to, twice a day, every day, until something gives.
And here’s the part that gets people’s attention: when there’s no flex joint — or when it’s installed wrong, which I’ll get to — the thing that gives is usually the turbocharger housing or the manifold flange. That’s a two-thousand-dollar-plus repair, plus downtime. The bellows itself costs around $180 for a mid-size set. It’s the cheapest insurance policy in the entire exhaust run. I wrote about the full exhaust system design here, and the flex joint is the one component in that system I’d never delete to save money.

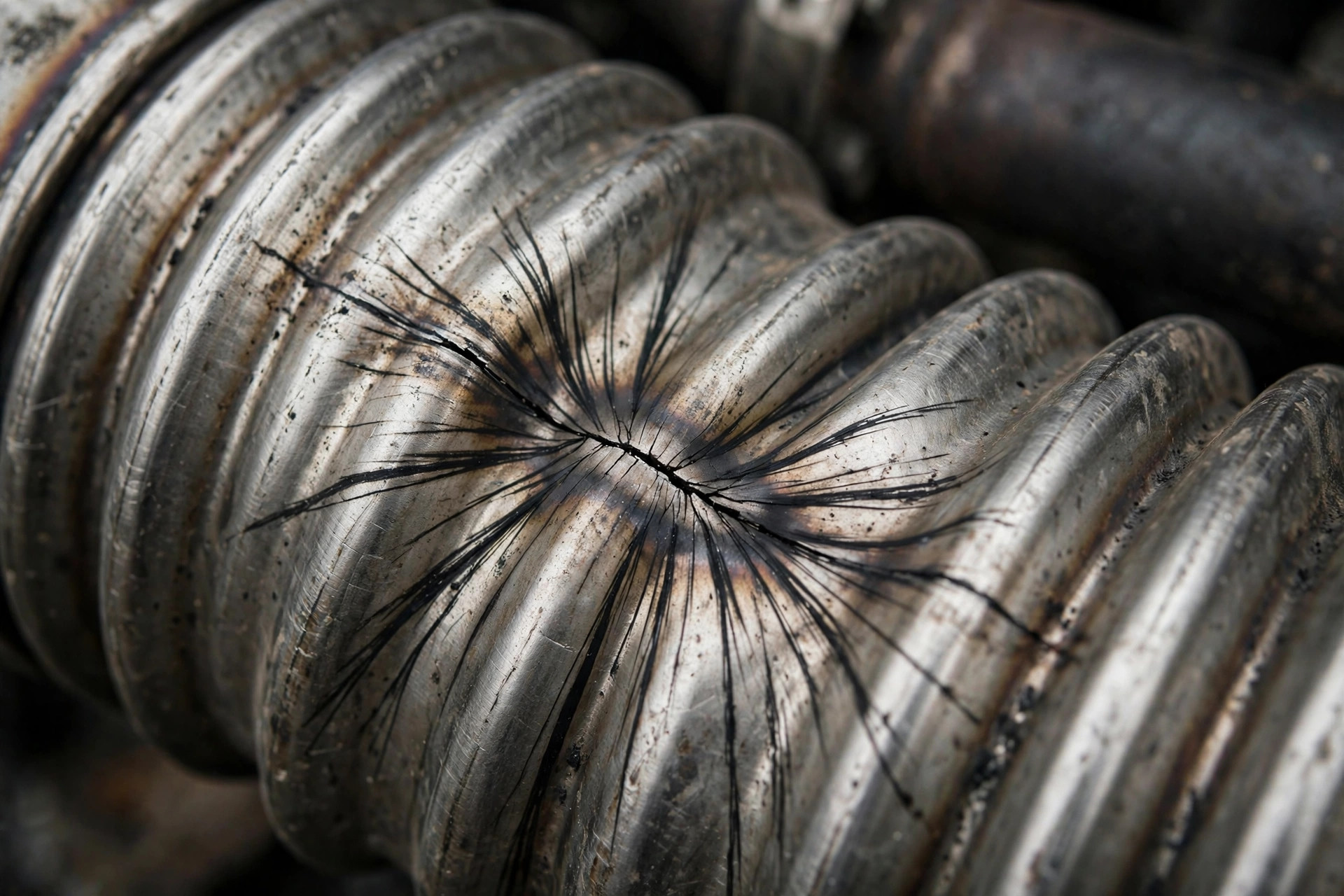

The first death is plain fatigue. Every vibration cycle flexes those corrugations a tiny amount. Stainless steel work-hardens — flex it enough times and it stops bending and starts cracking. The cracks almost always start in the valleys of the corrugations, right where the bellows is welded to the end flange. You can’t see them from across the room. The first sign is usually a faint black soot streak radiating outward from one valley, like a dirty fingerprint. Exhaust leaves a signature. If you know what soot patterns mean — I covered smoke reading here — a streak on the bellows is the exhaust system telling you exactly where it’s leaking.
The second death is installation murder, and honestly, this one kills more bellows than fatigue does. A flex joint is rated for axial movement — a little compression, a little extension, along the pipe’s axis. It is not a universal joint. But I’ve walked into new installations where the contractor used the bellows to fix misaligned flanges: pulled it sideways two inches with the flange bolts to make a crooked pipe reach. One site had a set dead in three months. The installing contractor had cut the stack pipe short and stretched the bellows to bridge the gap, so it started life already at full extension with zero travel left. First heat cycle, first real vibration — cracked at the weld. The installing company blamed the bellows manufacturer. The manufacturer sent a rep, took one look, and blamed the installer. The customer paid for the lesson.
The third death is slower and sneakier: condensate and the internal liner. Most bellows have a flow sleeve — an inner liner that keeps exhaust gas from hammering directly into the corrugations. Install it backwards and the sleeve scoops exhaust into the convolutions instead of shielding them. Meanwhile, on standby sets that run short tests, acidic condensate pools in the bottom corrugations and never gets hot enough to boil off. Stainless resists a lot, but standing acid water in a crevice will eventually eat through anything. An old-timer I work with insists bellows are consumables and should be replaced every three years whether they look bad or not. I tell him that’s wasteful — inspect them, replace on condition. He tells me I’m right in theory and he’s right in practice, because nobody inspects them. On sites nobody visits, I’ll admit, his rule has saved more engines than my rule.

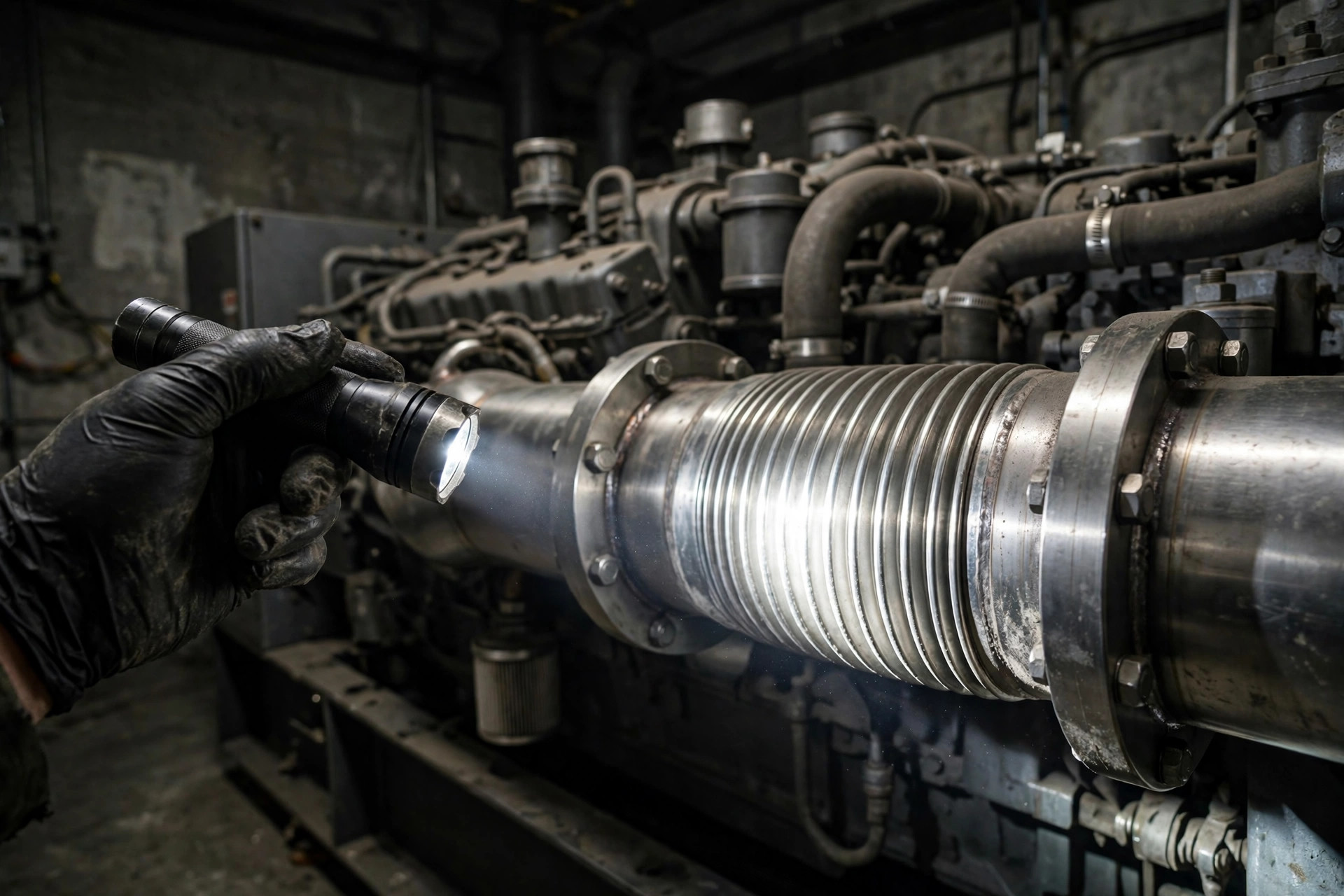

The check takes two minutes and needs nothing but a flashlight. Shine it along the corrugations, slowly, all the way around — use a small mirror for the back side you can’t see directly. You’re looking for soot streaks, discoloration, or any valley that looks darker than its neighbors. At idle, hold the back of your hand near the joint — near, not on, because the pipe is hot enough to burn you — and feel for pulsing air. A leak you can feel is already a big leak. If you have an infrared thermometer, sweep it along the bellows: a leak shows up as a hot streak where escaping gas heats the surrounding metal unevenly.
I caught one this way during a routine service visit last spring. Faint streak, one valley, no alarm, no smell yet. The customer thought I was being dramatic when I flagged it. Six weeks later he called to say the streak had grown into a visible crack and the room smelled of exhaust on test days. He replaced a $180 joint on a scheduled visit instead of dealing with a CO alarm at 2 a.m. That’s the whole game with this part: it’s cheap when you catch it early and terrifying when you don’t. A leaking bellows doesn’t just waste exhaust — it dumps carbon monoxide into an enclosed room, which is why generator room ventilation design matters as much as the exhaust routing itself.
A good install follows four rules. One: align the flanges first, then fit the bellows — never use the bellows to pull crooked pipework into line. Two: install it at its neutral, free length. Not stretched, not compressed. If the pipe doesn’t reach, fix the pipe. Three: support the exhaust pipe on both sides of the joint so the bellows isn’t carrying the stack’s weight. Four: never paint the bellows. Paint fills the corrugation valleys and hides exactly the cracks you’re trying to find. I put this check on every maintenance checklist I write now — flashlight, mirror, thirty seconds, twice a year. And recheck after the first full heat cycle on any new install, because that’s when installation sins show up.
Next time you’re in the generator room, shine a flashlight along that flex joint. Thirty seconds. It’s the cheapest part in the whole exhaust run, and it’s the one that decides whether the exhaust goes up the stack or into the room you’re standing in.
