The owner had topped up the coolant three times that month. No puddle under the set. No steam. No wet hoses. The radiator cap held pressure, the water pump wasn’t weeping, and the floor of the generator room was bone dry. So where was two gallons of coolant going? I pulled the dipstick, and my stomach dropped. The oil looked like a chocolate milkshake.
That’s the head gasket’s signature move: it doesn’t leak where you can see it. It leaks inside the engine, where coolant and oil and combustion gas are only ever separated by a thin sandwich of steel and composite — and once that sandwich fails, the fluids start visiting each other. Customers almost always misread it. “Must be a hose I can’t see,” they say, and they keep pouring in coolant. Every gallon they add is another gallon diluting the oil that’s supposed to keep the bearings alive.
A head gasket sits between the cylinder head and the engine block, and it has exactly one job: keep three things apart — combustion gas in the cylinders, coolant in its passages, oil in its galleries. The gasket has holes and passages for all three, routed within millimeters of each other. When the seal between any two fails, you get one of three crossings.
Crossing one: coolant into the combustion chamber. It burns into white steam — not the thin puff on a cold morning, but a thick sweet-smelling cloud that doesn’t clear as the engine warms. I’ve written about reading exhaust smoke color here, and coolant steam is the one people argue about most, because a little white smoke on startup is normal and a lot of it is not. The difference is persistence. Normal condensation clears in minutes. A breached gasket steams for the whole run.
Crossing two: combustion gas into the cooling system. Exhaust pressure is far higher than cooling system pressure, so exhaust pumps into the coolant. You’ll see bubbles rising in the radiator filler neck or the expansion tank at idle — steady, rhythmic bubbles, not random fizz. The trapped gas forms a pocket, the pocket insulates the thermostat from hot coolant, and suddenly the temperature gauge swings for no reason. Half the “mystery overheating” cases I’ve been called to were this. The cooling system was fine. The engine was exhaling into it. If your set has been running hot and nobody can explain why, my overheating guide covers the usual suspects — but bubbles in the coolant mean the usual suspects are innocent.

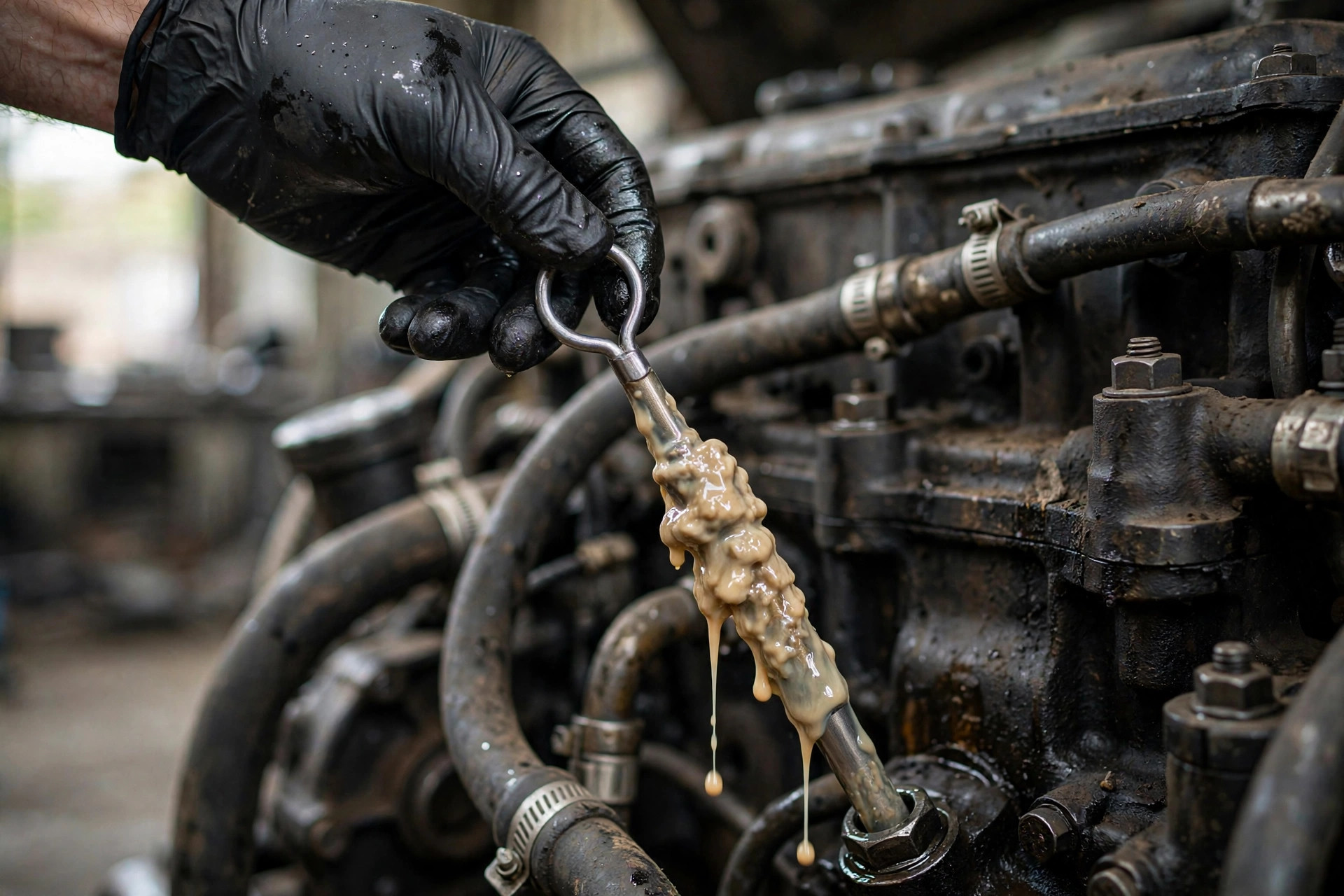

Crossing three: coolant into the oil, or oil into the coolant. Coolant in the oil gives you the milkshake on the dipstick — brown, frothy, unmistakable once you’ve seen it. Oil in the coolant gives you a black film floating in the radiator neck and coolant that looks like weak coffee. Either way, the oil is no longer oil. It’s a coolant-oil emulsion with a fraction of the lubricating film strength, and it’s mildly acidic. Bearings die in weeks, not years, on that stuff. An oil analysis will flag it instantly — sodium and potassium from the coolant additives show up like a flare — but honestly, the dipstick usually tells you first.
Suspicion is cheap. Proof takes ten minutes and three tests, and I run them in this order.

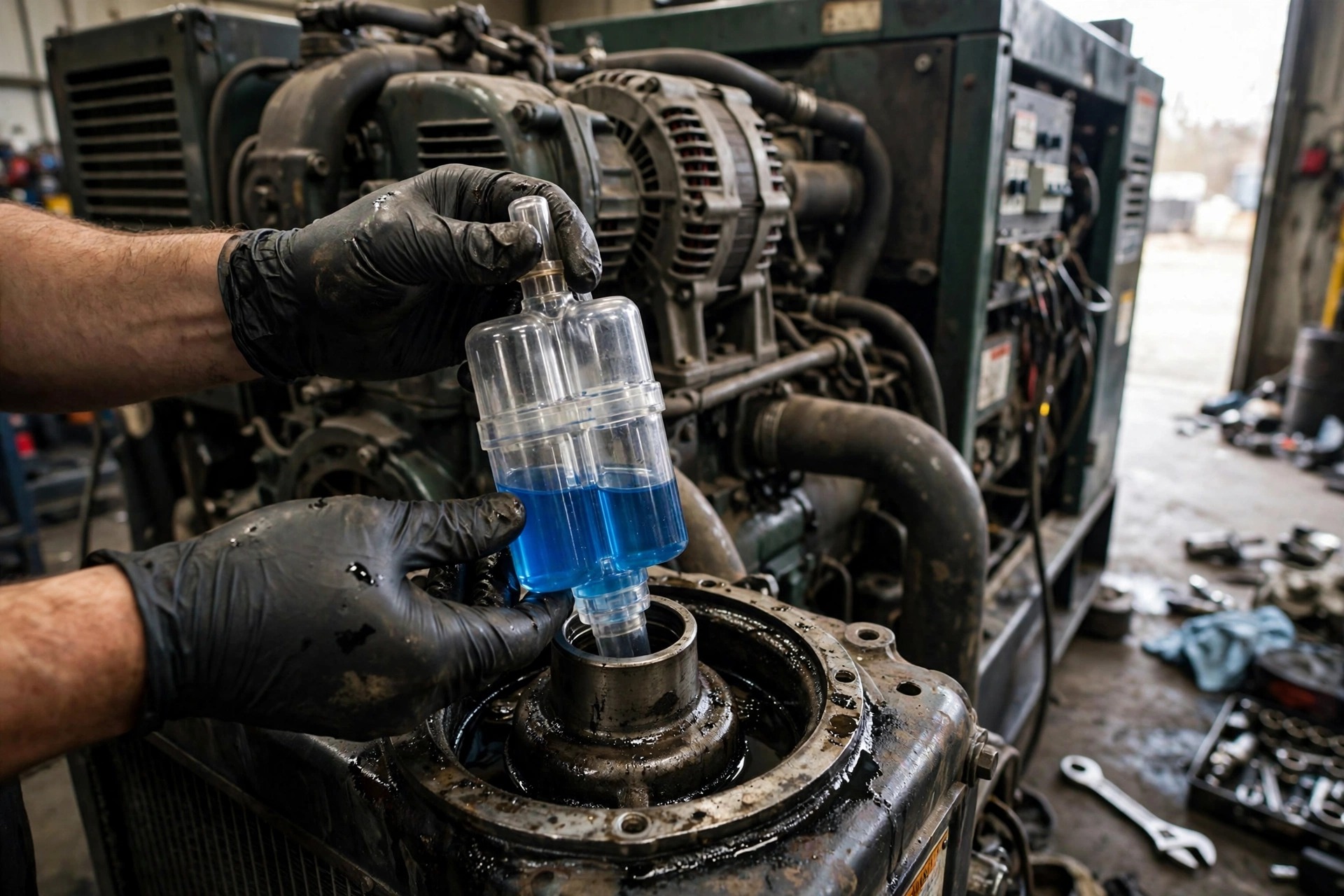

First, the combustion-gas test — the block tester. It’s a little tube with blue fluid that you hold over the radiator filler neck while the engine runs. If combustion gas is present in the coolant, the fluid turns yellow. I borrowed one from a truck shop years ago for a set that had everyone stumped, and the fluid went yellow in about forty seconds. The owner’s face did something similar. That test ended a month of guessing. You can buy the kit for the price of a tank of fuel, and if you maintain more than one generator, it’s the best money you’ll spend.
Second, the cooling-system pressure test. Pump the system up to its rated pressure with the engine cold and off, then watch the gauge. If it holds, your hoses, radiator, and water pump are innocent — the leak is internal. If it drops with no external drip, pull the injectors or glow plugs and look into the cylinders with a borescope. Coolant sitting on top of a piston is a confession. On one set, the pressure dropped two psi in ten minutes and cylinder four’s piston top was wet and steam-cleaned — suspiciously clean compared to its carbon-caked neighbors. That clean piston told the whole story.
Third, the oil check — but do it right. A little milky residue under the oil filler cap alone can just be condensation from short test runs that never get hot. Real coolant intrusion shows on the dipstick itself: the oil level rising over weeks (oil doesn’t multiply on its own), and the milkshake color through the full depth of the oil, not just a film on the cap. When the level rises and the color changes together, stop running the engine. Every additional hour is bearing life you’re spending.
Gaskets rarely fail for no reason. The number one killer is a previous overheat. Aluminum cylinder heads warp when they get hot enough — it doesn’t take much, one bad overheat event — and a warped head will never seal evenly again, no matter how carefully you torque the new gasket. I keep a machinist’s straightedge in the truck for exactly this. Lay it across the head surface, try to slide a feeler gauge underneath. Anything over a couple thousandths of an inch and the head needs to go to the machine shop for resurfacing. Skip that step and the new gasket fails in the same spot, usually within a year.
An old-timer I work with disagrees with me on this, or half-disagrees. His position: on an old workhorse engine, “just put a gasket on it and get it running, it’s a generator not a race car.” My position: a gasket without a flatness check is a temporary patch with extra steps. We settled it the expensive way once — his way, on a 300 kVA set, gasket only. Eleven months later it was back with the same milkshake, and this time the head had to come off twice. He still grumbles that machine-shop time costs money. I still point out that doing it twice costs more.
The other classic causes: head bolts torqued in the wrong sequence or to the wrong value, old torque-to-yield bolts reused after they’ve already stretched (they’re designed to stretch once — the second use is a gamble), and a deck surface on the block that’s pitted from corrosion. A proper gasket job is a procedure, not a part swap: clean both surfaces to bare metal, check flatness on both sides, new bolts if they’re the stretch type, torque in the specified spiral pattern, in stages. The gasket itself is the cheapest part of the job. The labor is the job.
A head gasket kit for a mid-size diesel set costs a couple hundred dollars. The labor to do it right — head off, surfaced, new bolts, reassembled and torqued properly — is real money, a few thousand. That’s the number people choke on, so they keep topping up the coolant instead.
Here’s the other number: coolant in the oil washes the lubricating film off the main and rod bearings. Acidic coolant attacks the bearing material directly. The engine doesn’t complain for a while — oil pressure stays up, it still starts, it still carries load — and then one day there’s a knock. A spun bearing. A scored crankshaft. Now you’re not doing a gasket job, you’re doing an in-frame overhaul or a full rebuild, and the invoice has an extra zero on it. I watched a site nurse a milkshake engine for two months because “it was still running fine.” It was running fine right up until the rod knock. The rebuild cost twenty times what the gasket job would have.
Coolant maintenance matters here too, by the way. Neglected coolant — depleted corrosion inhibitors, wrong mixture — pits the sealing surfaces the gasket is trying to seal against. I covered coolant system maintenance in detail, and the short version is: the gasket can only seal what the surfaces give it to seal. Rotten surfaces, rotten seal.
So next time the coolant’s low and the floor is dry, don’t just top it up. Pull the dipstick. Look at the radiator neck for bubbles. Ask where the coolant went — because inside that engine, “nowhere” is never the answer, and the longer it takes you to find the somewhere, the more expensive the somewhere gets.
If your set’s been drinking coolant and you want a second opinion before it becomes a rebuild, talk to us — we’ve seen enough milkshakes to diagnose one from across the room.
