It was 1:47 in the morning when my phone rang, and the site manager at a cold-storage warehouse was not calling to chat. The utility had been down for forty minutes. The 800 kVA set out back was running beautifully — I could hear it through the phone, steady as a metronome. And the entire building was dark.
“The generator’s running,” he said. “Why is nothing on?”
I already knew. The generator was fine. The thing that moves the power from the generator to the building — the automatic transfer switch — had sat in the same position for six years and simply refused to move. We got the lights on forty minutes later with the manual handle, which, by the way, was leaning against a mop bucket in the corner. It could have been a lot worse. It usually is.
Honestly, the ATS is the most neglected piece of iron in the whole backup-power chain. People baby their engines — oil samples, coolant tests, the works — and treat the transfer switch like it’s a piece of furniture. It’s not. It’s a mechanical switch with moving parts, springs, coils, and contacts, and its whole job is to sit perfectly still for years and then move in about ten seconds. Everything that goes wrong with it traces back to five mistakes. I’ve watched every one of them happen in person.
This is the big one, so let me say it plainly. That weekly exercise your generator runs? The one where the controller reports “test passed” every Monday at 10 a.m.? It almost certainly never moves the transfer switch.
Here’s why. Most exercise cycles run the generator without dropping the utility feed. The set cranks, runs for twenty minutes, and shuts down — all while the building stays on grid power. The ATS sits on the utility side the whole time, smug and motionless. The logbook says the system is healthy. The switch hasn’t moved since the commissioning engineer left.
I’ve walked into facilities with three years of perfect exercise logs and a transfer switch that was functionally seized. The mechanism moved freely when new; after thirty-six months of heat cycles and dust, the pivot points were stiff enough that the transfer coil — a solenoid built for a ten-second job — couldn’t throw it. When the real outage came, the coil buzzed, the handle twitched about half an inch, and nothing happened.
A real test transfers the load. Kill the utility feed (with the building’s permission, on a schedule, with someone standing at the switch), let the ATS do its whole job — sense the loss, start the set, transfer, retransfer, cool down — and watch it happen with your eyes, not through a controller’s green lights. Once a year minimum. The old-timer I learned from disagrees with me on a lot of things, but on this one he’s blunt: “A switch you never throw is a switch you don’t have.”
Open an ATS that has transferred under load a few dozen times and look at the main contacts. If nobody ever has, bring a flashlight and lower your expectations.

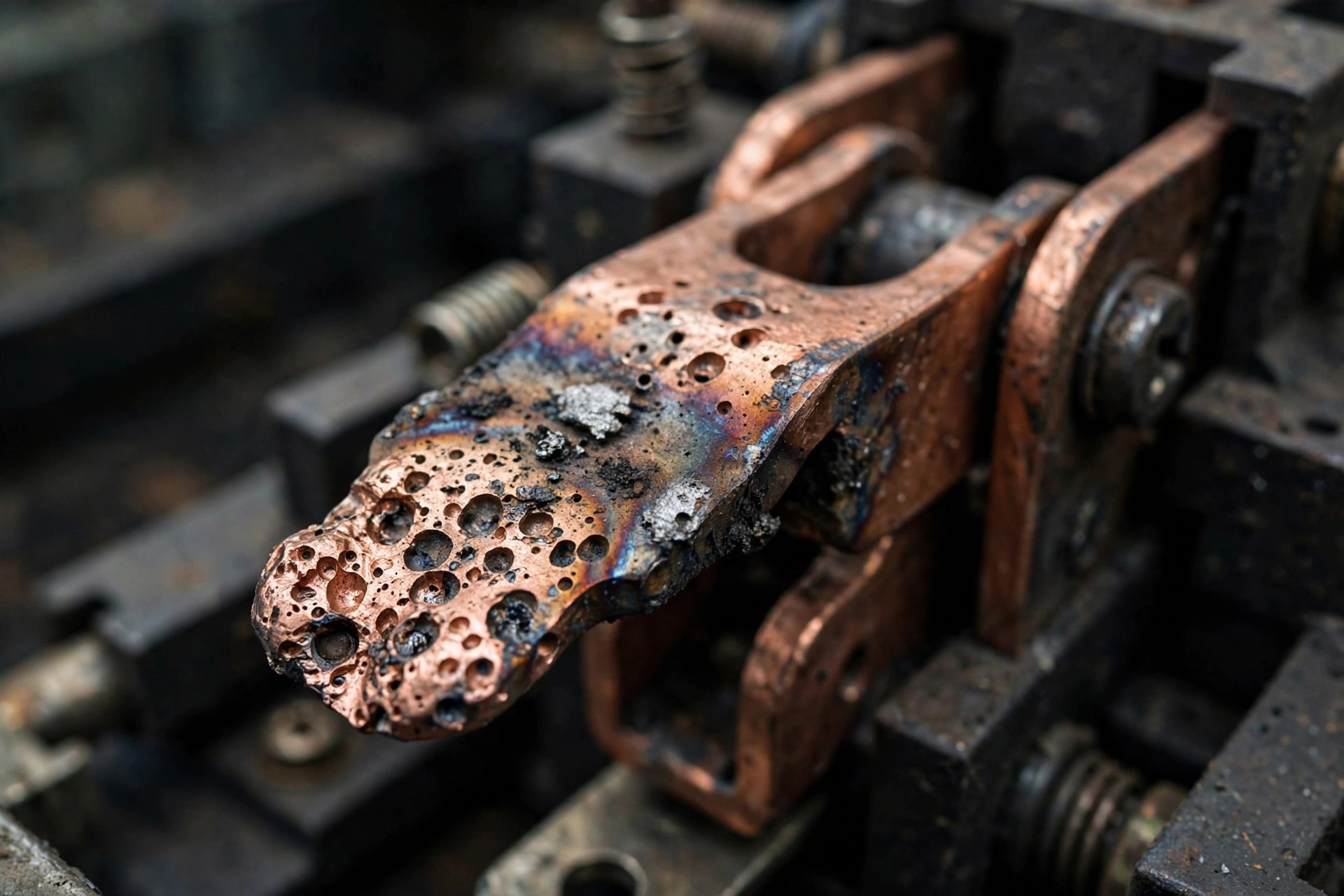

Every time that switch moves with current flowing — and real outages always have current flowing — the contacts draw a small arc as they separate and close. Over the years this pits the contact faces: tiny craters, rough spots, discoloration. A little of this is normal wear. A lot of it is a hot spot waiting to happen, because pitted contacts don’t mate flat anymore, and the current squeezes through a smaller patch of copper and gets hot.
I found one at a shopping mall that had been switching a 1200-amp load for nine years without a single contact inspection. Two phases showed the normal silver-gray wear pattern. The third phase was black-blue, and the infrared camera read 40°C hotter than its neighbors at half load. That contact was months away from welding itself shut — at which point the switch becomes a very expensive paperweight that cannot transfer to anything.
The fix is unglamorous: open the cabinet on a planned shutdown, look at the contacts with your eyes, feel for looseness, and put an infrared camera on them under load once a year. Compare the phases against each other — that’s the trick, because “hot” means nothing without a reference. And if a contact face looks like the surface of the moon, order replacements before the outage orders them for you.
The transfer mechanism — the linkages, pivots, and cams that actually throw the contacts — left the factory with lubricant on it. That was then. I’ve opened switches where the original grease had dried into something closer to varnish, and the mechanism needed two hands and a grunt to move manually.

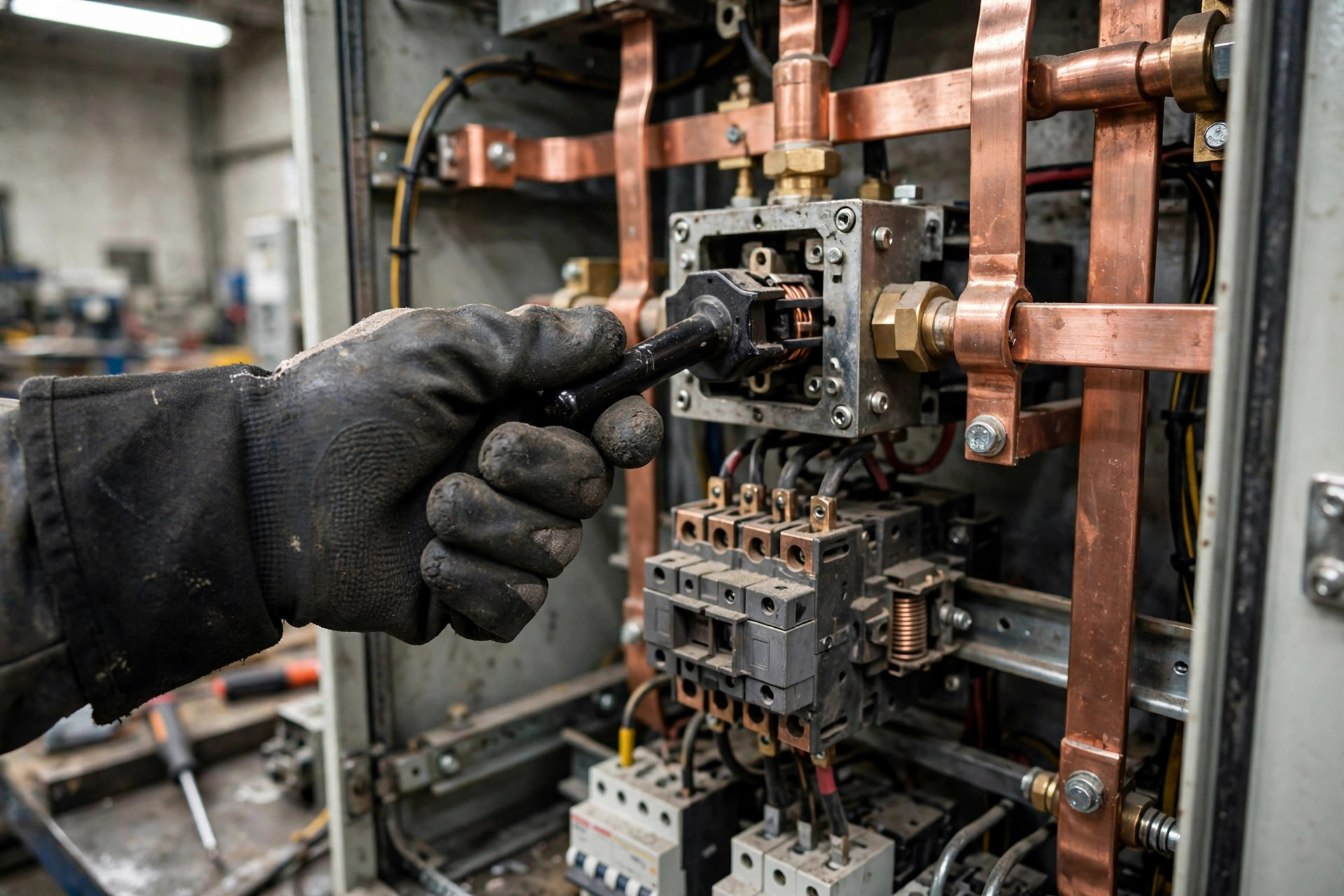

People forget the ATS has a manual operator for a reason. That handle isn’t decoration; it’s your diagnostic tool. Once a year, with everything de-energized and locked out, throw the switch by hand. It should move with firm, smooth resistance — like a good bolt-action. If it binds, catches, or needs real muscle, the mechanism wants cleaning and fresh lubricant, the kind the manufacturer actually specifies, not whatever tube of grease was closest.
An old-timer at a hospital I service told me, years ago, that opening the ATS cabinet was asking for trouble: “Sealed from the factory, leave it alone.” I respect him, and I do it anyway, because I have personally freed up three seized mechanisms with a rag, a brush, and the right grease. Sealed doesn’t mean maintained. It means forgotten.
Remember the mop bucket from the opening story? That handle belonged in a labeled bracket on the inside of the cabinet door. Instead it had migrated across the electrical room over six years, and the night-shift manager who found it had never operated the switch by hand in his life. He got lucky — the mechanism moved, and he figured out the motion by feel in the dark with a flashlight in his teeth.
Two things need to be true, and in my experience they rarely both are. First: the manual operating handle lives in its bracket, in the cabinet, labeled, every day. Second: at least two people at the site have actually thrown the switch by hand during a drill and know the motion, the force, and the sequence — including the part where you verify with a meter that the load actually transferred and isn’t sitting dead on both sides.
Manual transfer isn’t a party trick. It’s the backup plan for the backup plan: the transfer coil fails, the controller loses its mind, and the building needs power in the next five minutes. If the only person who knows how the handle works is a contractor who visits twice a year, you don’t have a backup plan. You have a hope.
Transfer switches have time delays for good reasons: a few seconds to confirm the outage is real before starting the engine, a cool-down period before shutting down, sometimes a delay to let the generator stabilize before the load hits. These are set at commissioning for the site. Then, over the years, people fiddle.
I’ve seen the engine-start delay cranked down to nearly zero because a manager was impatient during a drill — which meant the generator started on every two-second utility blink, racking up start cycles and wear for nothing. I’ve seen the retransfer delay set so long that the building sat on generator power for an hour after the grid came back, burning diesel for no reason. And once, memorably, I found the transfer delay bypassed entirely with a jumper wire, installed by persons unknown, because “it was transferring too slow.”
Write the timer settings down. Tape them inside the cabinet door if you have to. And check them against the commissioning sheet once a year, because the ATS doesn’t tell you when its settings drift — it just behaves a little differently, and everyone assumes that’s normal until the outage shows it isn’t.
None of this is exotic work. An annual ATS service — real load-transfer test, contact inspection, mechanism exercise and lubrication, handle and training check, timer verification — takes a competent tech about two hours. Compare that with the cold-storage warehouse at 1:47 in the morning, or the shopping mall one hot contact away from a welded switch.
The generator gets all the attention because it’s loud and expensive and has an engine. The transfer switch is quiet right up until the moment it isn’t, and by then the generator is running perfectly in a dark building. Ask me how I know. Actually, don’t — the site manager at that warehouse still brings it up every time I visit, and the mop bucket story has become something of a legend among his crew. The handle is in its bracket now, though. Labeled. I checked last month.
If you’re setting up that annual check, start with a plain explanation of what the ATS actually does for anyone on the team who hasn’t had it spelled out, and if you’re weighing automatic against manual transfer, remember that the manual option only works if someone practices with it. Fold the ATS into your regular generator maintenance routine rather than treating it as a separate mystery box — and if your set has trouble starting at all, sort that out first, because the world’s best-maintained transfer switch can’t move power the generator never makes. Questions about any of this, talk to us — we’ve opened more of these cabinets than we can count.
