The Red Button on Your Generator Has Never Been Pressed

The first time I pressed a diesel generator’s emergency stop on purpose, I was alone in a generator room at six in the morning and my heart was in my throat. The set was on its weekly no-load exercise, humming along. I twisted the red mushroom button and pushed it in.

Nothing happened. For one second — the longest second of my service career — the engine kept running. Then it died, with a shudder that rattled the fuel lines.

That one second of panic taught me more about E-stop circuits than any manual ever did. And here’s the uncomfortable truth I’ve carried ever since: almost nobody tests the red button. It sits there for years, unpressed, untested, and everybody just assumes it works.

Honestly? In my experience, assumptions about E-stops are wrong often enough to scare me.

The button that does nothing is doing its job

Quick piece of wiring logic, because it explains everything that follows. On nearly every diesel generator I’ve touched, the emergency stop loop is a normally-closed series circuit. A small sense current flows through it all the time. Press the button and you break the loop — the controller sees the break, drops the fuel shutoff solenoid, and the engine starves. Twist to release, reset the controller alarm, and the loop is whole again.

“Normally closed” is the key phrase. It means a broken wire looks exactly like a pressed button. It means the most common E-stop failure isn’t “won’t stop.” It’s “won’t start.” Remember that. It’ll matter in a minute.

Three ways the red button quietly dies

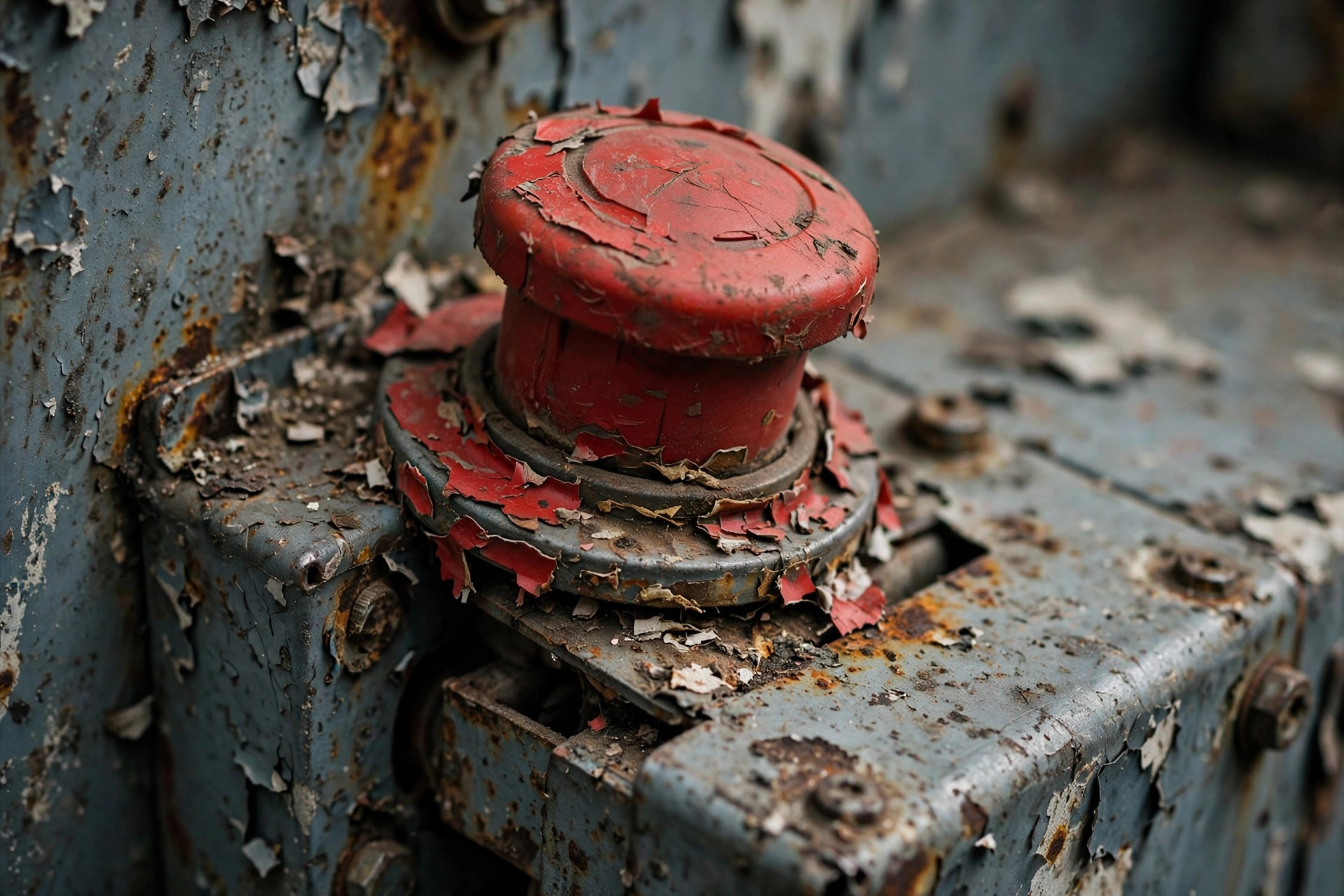

First death: paint. I am not joking. Generators get repainted — sometimes a factory touch-up, sometimes an overenthusiastic facilities crew. Paint seeps under the mushroom head and into the latching mechanism. The button still clicks. It still latches down with that satisfying thunk. But the contacts inside never break, because the whole mechanism is glued half a millimeter from its real travel. You could press it on the day of a runaway and nothing would happen. (If your facility has a can of spray paint and a generator, go check. I’ll wait.)

Second death: the jumper wire. Somewhere in the life of an older set, the E-stop loop started “causing problems” — usually an intermittent open somewhere in the remote wiring — and instead of finding the break, somebody jumpered across the E-stop terminals in the controller and called it fixed. I’ve found these little copper bridges on three different sites, each time tucked behind a panel with no label, no note, nothing. The button on the panel still clicks. It does absolutely nothing. This one makes me genuinely angry, because somebody deliberately disabled a safety device and left the shell in place to lie about it.

Third death: the nicked wire. The remote E-stop at the building entrance — the one the codes want outside the generator room so you can kill the set without walking into a burning room — runs through conduit that every other trade on the planet also uses. Electricians, sprinkler guys, the low-voltage crew. Somebody’s fish tape nicks the E-stop loop wire. Now the loop is open, the controller sits in emergency-stop lockout, and the generator will not start. No alarm anybody recognizes, just a cryptic “emergency stop active” line in an event log nobody reads.

The painter’s ladder story

Commissioning day, a 400 kVA set for a logistics warehouse. Brand-new batteries, full day tank, fresh filters. We hit start and got — nothing. Not a crank. Just the controller glaring at us.

We spent half the morning doing textbook no-start troubleshooting: battery voltage (fine), starter (fine), fuel (fine), fuses (fine). I was halfway through pulling the starter motor when the site foreman walked past the building entrance and said, “Oh, the painter knocked that red button yesterday. His ladder hit it.”

The remote E-stop. Bumped by a ladder, latched down, and we’d walked past it four times that morning without looking at it. Thirty seconds of twisting and resetting, and the set fired up like nothing had happened.

I don’t tell this story because it’s funny, although it is. I tell it because it’s the most common E-stop failure mode of all: not a dead button, but a button doing exactly what it was designed to do while everyone diagnoses everything else. If your generator won’t start and the batteries are fine, look at the red buttons before you touch the starter. Every button. Including the ones in other rooms.

An old hand disagrees with me

There’s a technician I worked with for years — thirty years on generators, hands like sandpaper, could diagnose a bad injector by ear. He thinks testing E-stops is pointless. His line: “If the loop’s good, you find out when it breaks. If it’s bad, you find out when it doesn’t. Either way you find out.” He’d rather not touch the thing at all, on the theory that pressing it is the fastest way to introduce the very failure you’re looking for.

Look, I respect the man. But he’s wrong on this one, and I’ll say it to his face.

The failures I’m worried about — the paint, the jumper wire, the nicked conductor — are all silent. None of them announce themselves. The loop can be dead for three years and the generator will run perfectly every weekly exercise, because the weekly exercise never presses the button. The only way to find out is to press it. Deliberately. On your terms, at six in the morning, not during a runaway at 2 a.m.

The 30-second test that costs nothing

Here’s the test. The set is stopped — not on exercise, not loaded, stopped.

1. Press the E-stop. It should latch.
2. Try to start. The controller should refuse, or crank and die immediately, depending on the make. Either way: no sustained run, and you should see an emergency-stop indication.

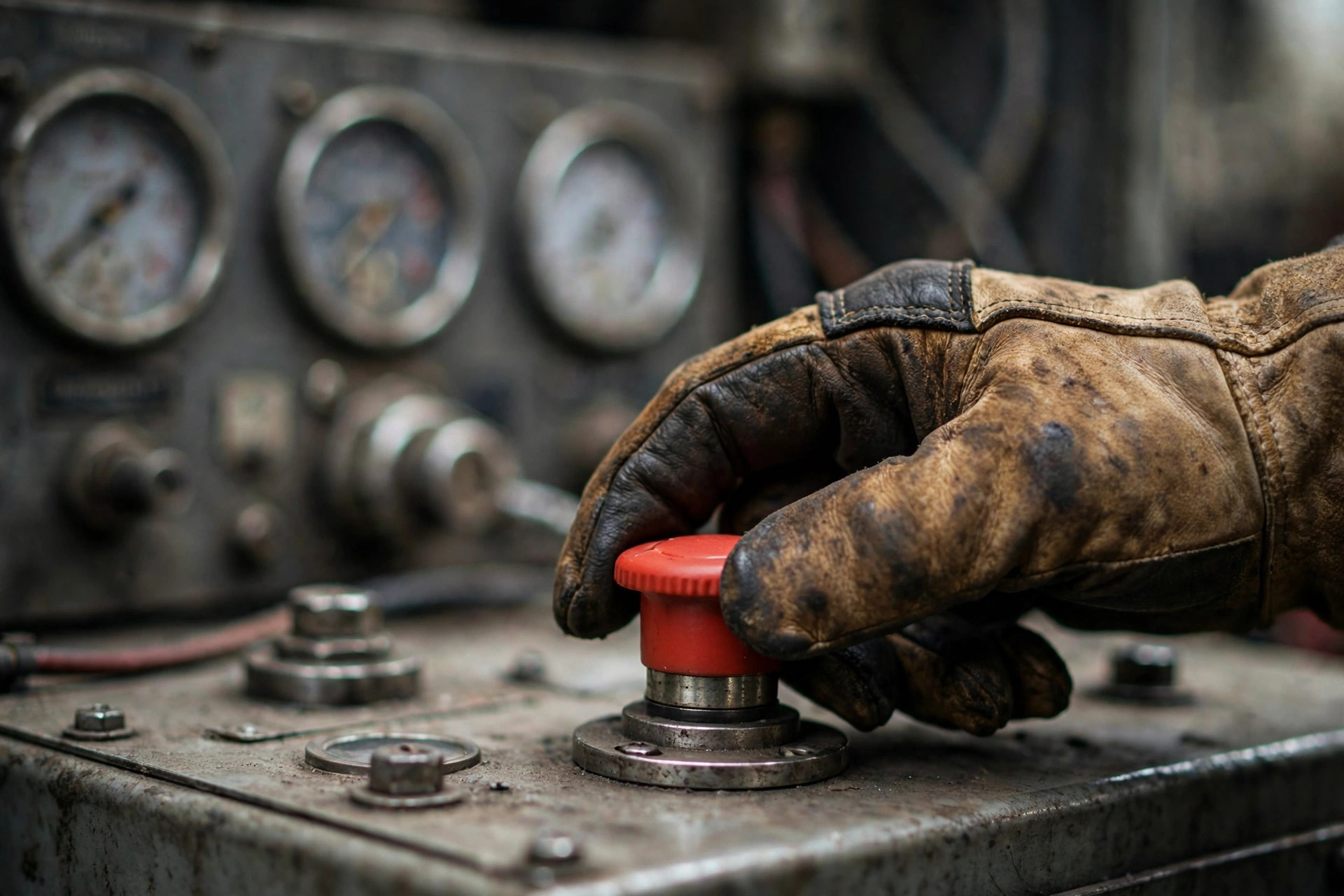

3. Twist to release. Reset the controller alarm.
4. Start normally. Verify it runs.

Thirty seconds. No tools. Do it monthly, right after the weekly exercise, and write it on the same sheet you log the exercise on. Once a year, do the same test while the set is running on no-load exercise — press it, confirm the stop, note how long the shutdown takes. That shutdown time is your baseline. If it ever takes noticeably longer, something changed in the fuel shutdown chain, and you want to know before it matters.

One thing you don’t do: test it under load casually. Dropping full load with an E-stop is what the device is for in a real emergency, but as a routine test it’s rough on the engine and the alternator, and it tells you nothing the no-load test doesn’t. Save the drama for when it counts.

What I’d put in your maintenance contract

If you’re writing a maintenance scope for a service company — or checking the one you already have — make sure the E-stop test is a line item, not an assumption. “Verify emergency stop operation” takes a technician thirty seconds and costs you nothing extra. If it’s not written down, it isn’t happening. And ask the tech one question on their next visit: “When was the last time this button was pressed?” Watch their face. You’ll learn a lot.

Also: label your remote E-stops. A red mushroom on a gray wall in a corridor looks like a fire alarm pull to anyone who isn’t a generator person, and I have seen the wrong button pressed during a drill. A small engraved plate — “GENERATOR EMERGENCY STOP, DO NOT PRESS WITHOUT NOTICE” — costs less than the pizza you’ll order while you wait for the reset.

Next time you’re in your generator room, walk over to the red button and look at it. Really look. Is there paint on it? Is the little guard cage still on? Is there dust in the bezel that suggests nobody’s touched it since installation?

You don’t have to press it today. But put it on the list for the next exercise. Thirty seconds, no tools, and you’ll sleep better. I know I do.
