The phone went off at 6:40 on a Saturday. Food distribution warehouse, edge of town. Utility had been down since 3 a.m., and the night manager was already three hours into a bad morning.
“The generator’s running,” he said. “Sounds fine. But the board shows zero volts.”
Zero. Not low. Not flickering. Zero. The engine was turning over like it had somewhere to be, and the alternator was producing absolutely nothing. That’s a special kind of wrong — a machine doing all the work and delivering none of the product.
When I got there, the site’s old-timer had already decided what was wrong. He’d pulled a brand-new AVR out of the stores room and set it on the workbench like a surgeon laying out instruments. “It’s always the AVR,” he said. He’s said that to me for years. He said it during the sensing-fuse job too, and he was wrong then.
He was wrong this time too. But I didn’t know that yet, and swapping an AVR is a twenty-minute job, so we swapped it. Same zero volts. The new AVR went back in its box. Three hundred dollars of spare part, innocent.
Here’s the thing about no-voltage faults: everybody interrogates the AVR first. It’s the visible brain, the part with the blinking lights, the part the manual points at. I’ve written before about chasing no-voltage faults and about the sensing circuit that lies to the AVR. This one was neither. This one was hiding in the one place nobody looks — six little diodes bolted to a plate, spinning at 1,500 rpm in the dark.
A generator doesn’t make voltage by magic. It makes it in a chain, and the AVR is only one link.
The AVR feeds DC into the exciter stator — the stationary winding at the back of the alternator. That builds a magnetic field. The exciter armature, spinning on the shaft, cuts through that field and makes AC. Then the rotating rectifier — six diodes on a plate bolted to the shaft — turns that AC back into DC and feeds the main rotating field. The main field spins inside the stator windings. Voltage comes out the terminals. Break any link, get nothing.
So I worked the chain backwards. AVR output to the exciter field: present, about 40 volts DC, steady. Exciter stator resistance: matched the book. Which meant the fault was downstream of everything the control panel could see — on the rotating side, where no meter in the cabinet can reach.
Which meant pulling the rear cover.

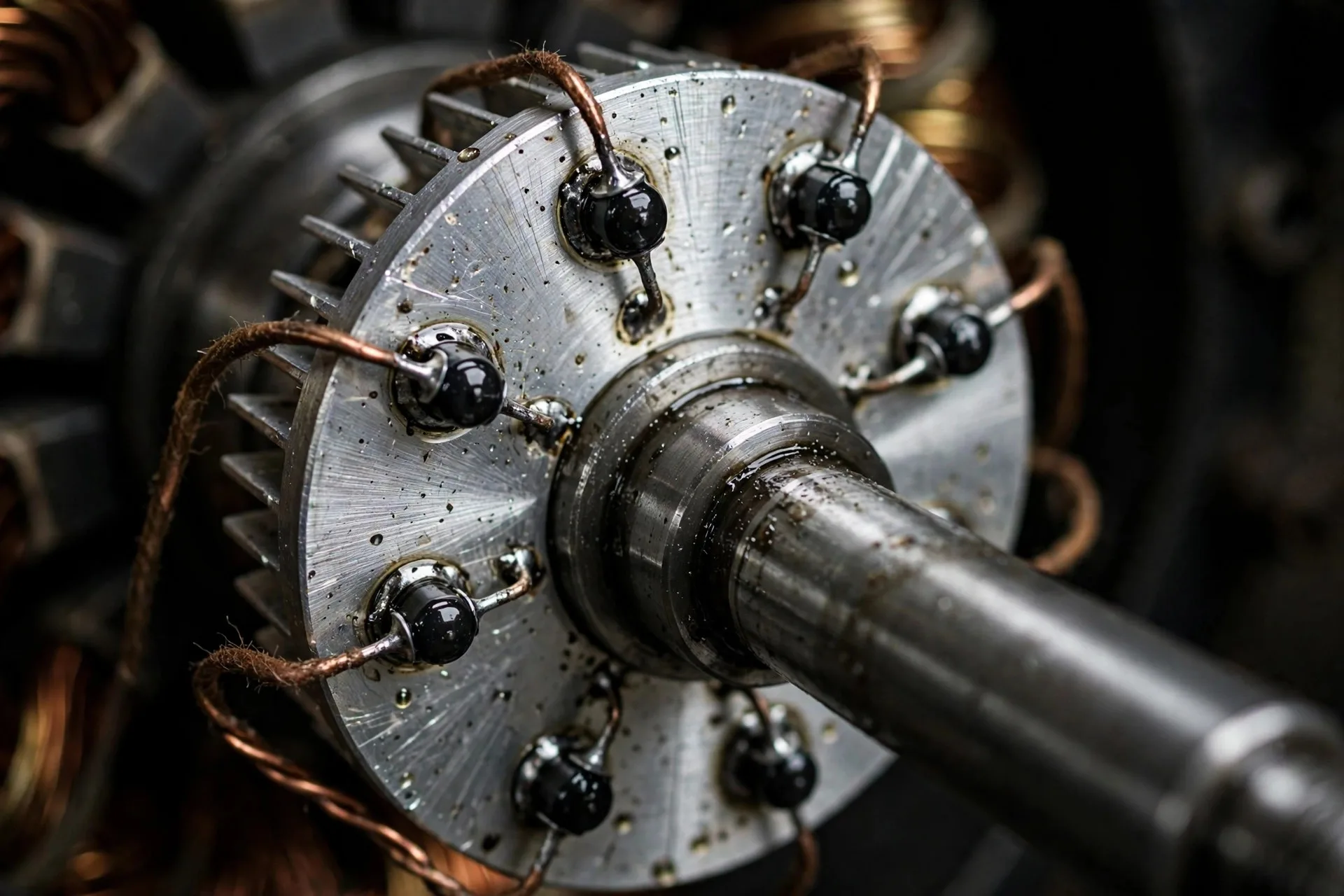

If you’ve never seen a rotating rectifier, picture this: a round aluminum plate bolted to the end of the shaft, six black diodes arranged in a circle like numbers on a clock, wired as a three-phase full-wave bridge. It spins with the rotor. No slip rings, no brushes — that’s the whole point of a brushless machine. The diodes spend their entire life in the dark, at speed, in heat, soaked in vibration.
And here’s what happens when one dies shorted. A shorted diode — reads zero ohms both directions — shorts the main field along with it. The bridge collapses. Output: zero volts. Exactly what we had.

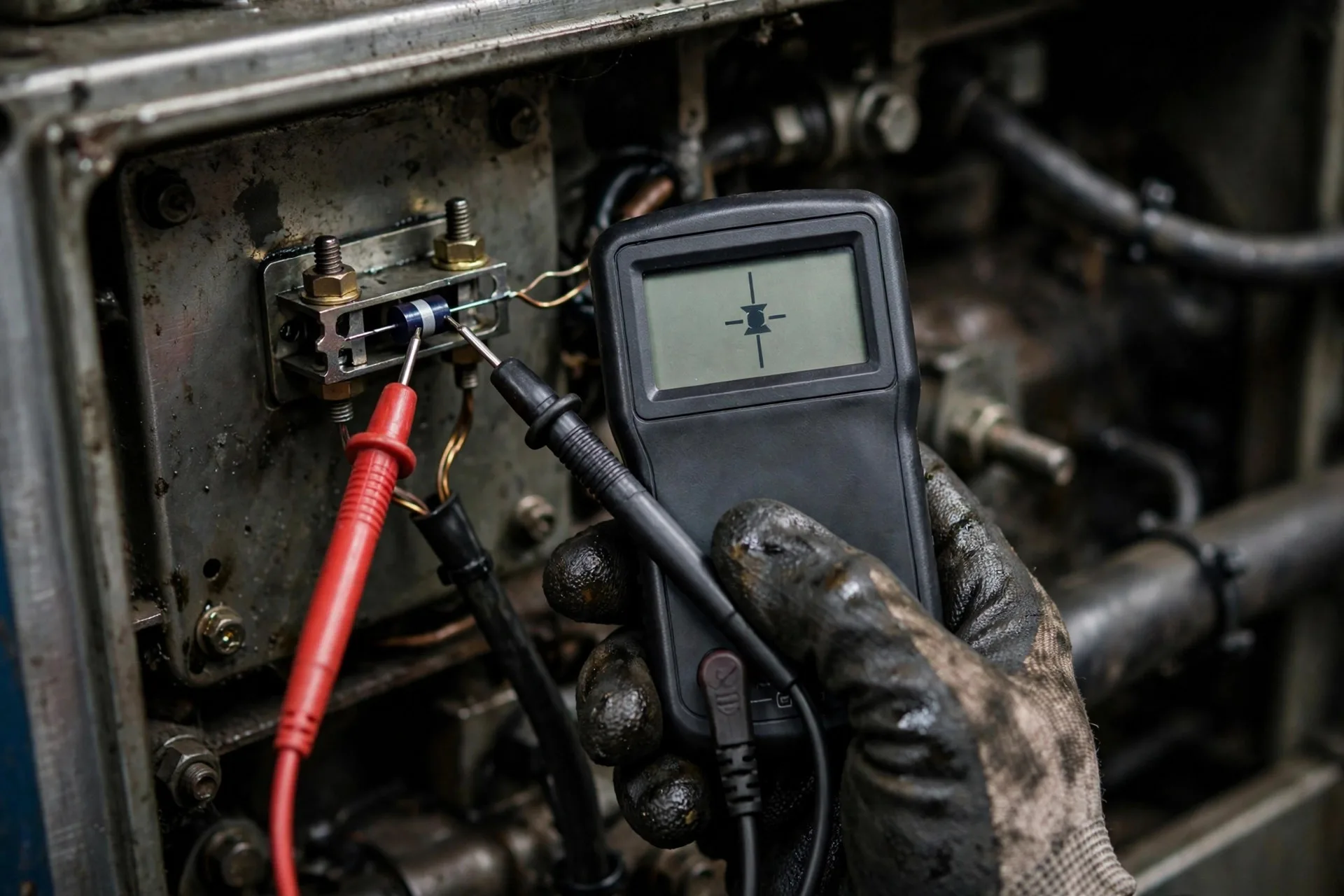

I put the meter on diode mode and worked my way around the plate. Five diodes read about 0.5 volts forward, open in reverse. Normal. The sixth read 0.00 both ways. Dead short. A component the size of my thumb had silenced a 400 kVA machine.
The old-timer watched me find it and shook his head. “Twelve years I’ve been changing AVRs for this,” he said. I didn’t have the heart to tell him how many of those AVRs were probably innocent.
A shorted diode gives you zero volts and a mystery. An open diode gives you something sneakier.
About a year before the warehouse job, I got called to a printing plant. Their 500 kVA set tested fine every month — 400 volts, steady as a rock, no load. Then one night the utility actually failed, the transfer switch moved, the building loaded the generator — and voltage sagged to 340 and wobbled. The presses’ drives tripped. The plant went dark on generator power, which is the one thing a generator is never supposed to do.
The maintenance contractor had already worked through the usual suspects. Fuel filters changed. Governor checked. Somebody even suggested the engine was “tired.” It wasn’t tired. It was running beautifully and making garbage voltage, which is an electrical problem wearing an engine costume.
One diode open. Five diodes still working, so the bridge limps along on partial rectification — enough DC for the main field at no load, not enough when field current has to rise to hold voltage under load. No-load voltage looks perfect. Loaded voltage falls on its face. And if you only ever test your generator unloaded — most monthly tests are — you’ll never see it coming.
That’s the failure that actually scares me. Zero volts is honest. It tells you something’s broken. A generator that passes every test and fails the real event is lying to you, one unloaded test at a time.
Before you order a single part on a no-voltage or weak-voltage fault, do this. Five minutes and a ten-dollar meter:
This is where I’ll spend somebody’s money for them: buy the matched set. All six diodes, same batch, same forward voltage.
Diodes share the bridge current. Replace one dead diode with whatever was in the drawer, and the odd one out carries a different share, runs hotter, and dies younger — sometimes taking a neighbor with it. I’ve seen a “repaired” bridge come back in eleven months with two dead diodes instead of one. The full set costs little more than a single, and it buys the one thing a generator is supposed to provide: boring reliability.
Same goes for the cheap kits. A diode is a diode the way a tire is a tire — technically true, practically a lie. Undersized diodes on a plate that sees real heat and constant vibration don’t save money. They schedule your next Saturday callout.
And torque the nuts to spec when you reassemble. A loose diode connection arcs, heats, and fails — and then you’re back under the rear cover wondering why the new diodes died. The spec sheet exists because somebody learned this the expensive way.
One more thing: don’t “flash the field” over and over trying to coax voltage back. Flashing rebuilds residual magnetism when the field circuit is intact. With a diode shorted, all the flashing in the world just pushes current through the short. Find the fault first. Flashing is a test, not a repair.
That warehouse? Six new diodes, torqued and marked, cover back on — and voltage came up like it had never left. The night manager asked what the part cost. When I told him, he laughed — then went quiet, doing the math on the AVR they’d almost bought. The new AVR is still sitting in its box on their shelf, last I heard. Most expensive paperweight in the building.
If your generator’s voltage story doesn’t add up, read the excitation system piece for the full chain, and keep the maintenance checklist honest — the rear cover comes off maybe once a year, and five minutes with a meter beats a Saturday morning every time. And if you’d rather not crawl under the rear cover yourself, talk to someone who’s done it in the dark before.
