A quarry foreman called me on a Tuesday morning about his 400 kVA set. The oil pressure gauge had been sliding for weeks, he said, and now it sat at the bottom of the green arc with the warning light flickering every time the engine dropped to idle. He’d already priced a replacement oil pump and wanted to know if I could fit it on Thursday.
I asked him to hold off for one day. Not because I doubted the gauge — I doubted the diagnosis.
We changed nothing except the order of the checks. Mechanical gauge on the gallery port, engine hot, rated speed, then idle. The numbers told a different story than the panel, and the pump — the part he’d already paid for — turned out to be the one thing in the whole lubrication system that was fine. The actual culprit cost less than a tank of diesel to fix. He still mentions it every time I see him, usually while pointing at some other part he’s about to replace on a hunch.
I’ve watched this exact scene play out a dozen times in twelve years. Oil pressure drops, and the pump takes the blame. It’s almost never the pump. Here are the mistakes I keep finding, roughly in the order people make them.
An engine oil pump is embarrassingly simple. Two gears in a housing, driven off the crankshaft, pushing a fixed volume of oil with every revolution. No electronics. No adjustments. Nothing to wear except the gears and the housing, and they wear slower than nearly everything else they serve.
That foreman’s set got its new pump anyway — he’d ordered it before calling me, and pride is a real thing. We fitted it on Thursday as planned. Friday morning the gauge read exactly what it had read on Tuesday. Same needle, same flicker, same light. The old pump went on my bench, and I measured it out of curiosity: clearances still inside spec at eleven thousand hours. It had never been the problem. It was never going to be the problem.
Here’s the mental model that keeps you out of this trap. The pump moves volume. Pressure is what happens when that volume meets resistance — bearings, galleries, the relief valve. Low pressure with a healthy pump means the resistance went away somewhere, or the oil got thin enough to slip through, or the gauge is lying. The pump is the last suspect, not the first. Treat it like one.
Before you touch a single bolt, screw a mechanical gauge into the gallery port and get a real number. This is a ten-minute job and it settles half of all oil-pressure scares on the spot.
Electric senders fail. They drift, they stick, they read low when their diaphragm gets tired. Wires chafe through where they cross the block. Connectors corrode in damp generator rooms and add resistance the controller reads as low pressure. I’ve seen a sender read a full bar low because somebody pressure-washed the engine bay and water sat in the connector for a month.
A hospital basement set taught me to never skip this step. Panel said 1 bar at idle, alarm history full of low-pressure warnings, the maintenance log full of worried notes. Mechanical gauge said 4.2 bar at rated speed, 2.1 at hot idle — textbook numbers for that engine. New sender, thirty dollars, problem gone. The previous contractor had quoted a pump replacement and two days of downtime. Trust the brass gauge. It’s dumber than the sender, which is exactly why it tells the truth.

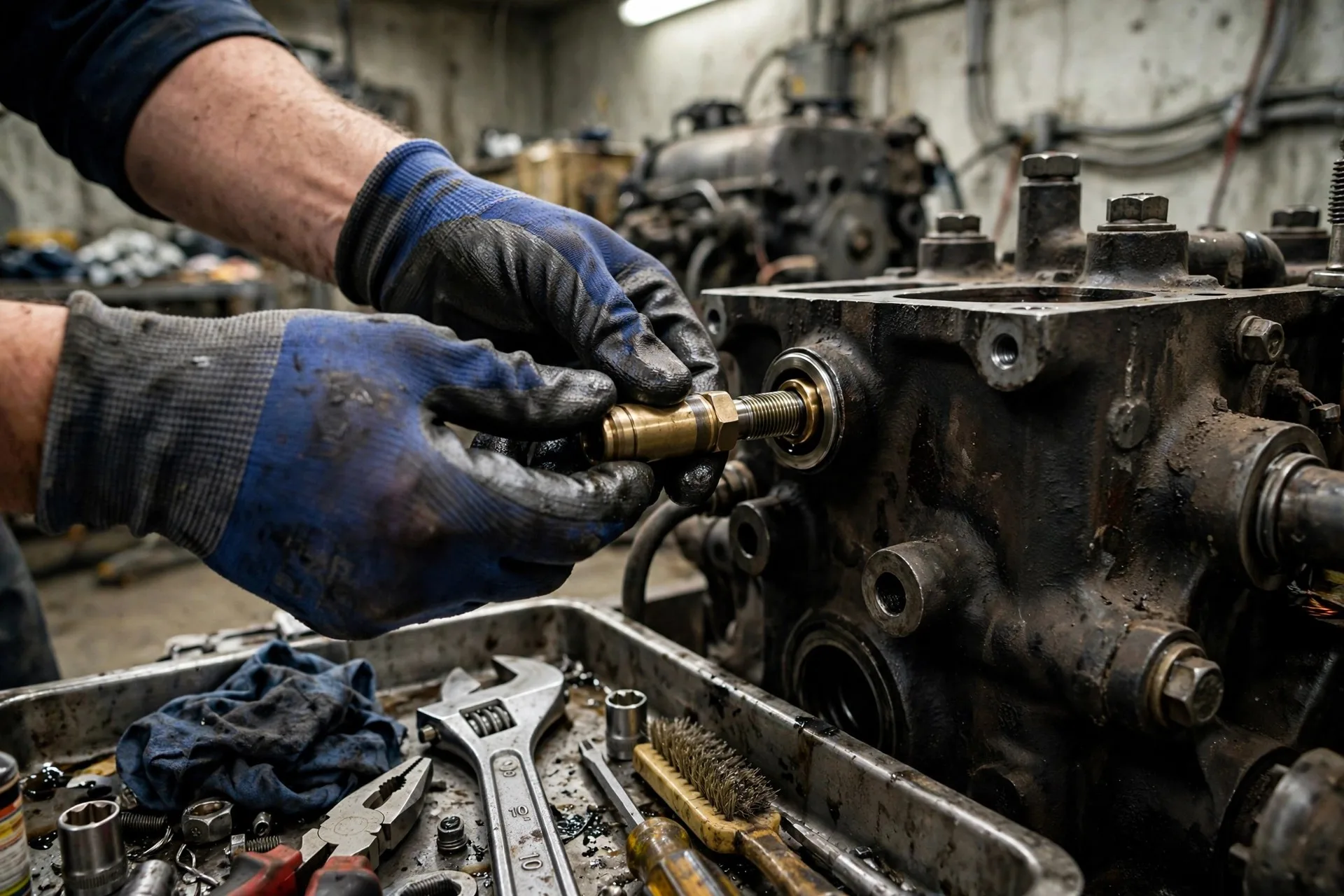

The pressure relief valve is a spring, a plunger, and a seat — usually threaded into the block or the pump housing — and its whole job is bleeding off excess pressure back to the sump. When it sticks open, it bleeds off all of it. Pressure drops at every rpm, hot and cold, and the pump can do nothing about it because the oil has a shortcut home.
They stick for boring reasons. Varnish from oil that’s gone too long between changes. A flake of debris. A spring that’s lost tension after a decade of heat cycles. Pulling one takes fifteen minutes on most engines: unthread it, look at the plunger face, check the spring against a new one, clean the bore. I’ve pulled three stuck relief valves in twelve years. Each one had a pump on order when I arrived.
An old hand I work with — thirty years turning wrenches, and he’ll remind you — says relief valves never stick and I’m chasing ghosts. He’s wrong on this one, but I understand why he believes it: on the engines he grew up with, the valve lived inside the pump and you replaced both together. Modern sets split them apart. The habit didn’t update. Check the valve before you condemn the pump. It’s the cheapest possible answer, which is why nobody looks there first.
Sometimes the lubrication system is fine and the oil isn’t. Fuel dilution is the classic: short runs and light loads let unburned fuel wash past the rings into the sump, and fuel has the viscosity of water and none of its manners. The gauge sags, the dipstick level creeps up instead of down, and the oil smells like a filling station. A used oil analysis catches dilution long before the gauge does — fuel percentage, viscosity drop, the whole story in numbers.
Wrong grade does the same thing honestly. Somebody tops up with whatever’s on the shelf, or the last service used a lighter grade than the manual calls for, and hot pressure reads a bar lower than it should. Multigrades shear down with age too — a 15W-40 with eight hundred hard hours on it isn’t a 40-weight anymore. Coolant in the oil, from a weeping liner seal or a tired cooler, turns the whole sump into gray sludge the pump can barely move. Each of these reads as “low oil pressure” on the panel. None of them is a pump problem.
Read the pressure hot, at idle, with the right oil at the right level. Cold pressure flatters everything — thick oil makes great numbers out of a worn engine. Hot idle is the only reading that can’t lie to you, because heat thins the oil to its working viscosity and idle gives the pump its least help. If the manual gives a hot-idle minimum, that’s the number that matters. Everything else is commentary.
This is the mistake I dislike most, because it feels like a fix. Pressure’s low, so pour in a heavier grade. The needle climbs. Everybody relaxes. The engine keeps dying, just quieter.
A rental fleet ran this playbook on a 350 kVA set for two seasons. 20W-50 in an engine spec’d for 15W-40, gauge back in the green, problem “solved.” What they’d actually done was mask worn main bearings. The clearances had grown, the oil escaped faster than the pump could replace it, and the heavier grade just slowed the leak enough to move the needle. Then a bearing spun on a hot afternoon under full load, and the “cheap fix” became a crankshaft, a set of bearings, and three weeks of a rental customer asking questions nobody wanted to answer.
Positive-displacement pumps don’t make pressure. Resistance makes pressure. When hot-idle pressure falls with the correct oil at the correct level, and the gauge is telling the truth, and the relief valve is clean — believe the reading. It’s the bearings talking. Worn bearings drink oil too, which is why falling pressure and rising oil consumption so often arrive together. And remember what else lives on that same oil pressure: your turbocharger’s bearings, and the little piston cooling jets that only open when pressure tells them to. Starve the system and the pistons cook while the gauge still looks almost okay. Plan the overhaul on your schedule instead of the engine’s. Engines are punctual about the second kind.
Since I’ve spent this whole article telling you what not to replace, here’s the actual procedure, short:
That quarry foreman’s set? Relief valve, stuck open with varnish, cleaned in a parts washer in twenty minutes. Pressure back where the manual said it should be. The new pump went back in its box and sat on his shelf for two years as a very expensive paperweight. He still points at it when other owners visit. “That’s the pump I didn’t need,” he says. “Ask me how I know.”
Low oil pressure deserves respect — it’s the one warning that can go from a sagging needle to scrap metal in a single shift if the bearings are truly gone. But respect means diagnosing, not replacing parts by superstition. The pump is the last suspect. The sender is the first. The valve is the one nobody checks. Keep the oil fresh, keep it the right grade, get it analyzed once in a while so it can tell you what’s happening inside before the needle moves. Put the sender check on your maintenance checklist next to the oil service. And the next time that needle sags, you’ll know exactly where to look. It won’t be the pump. It almost never is. If your set is already talking to you in low numbers, talk to us before it finishes the sentence.
