It was 2:40 on a Saturday afternoon. Not even an emergency call — a scheduled load bank test, the boring kind, 500 kVA set at a logistics warehouse. We had the load dialed to 80 percent and everything looked beautiful for the first forty minutes. Then somebody yelled.
I turned around in time to see the steam. A geyser of it, actually, coming off the front of the engine like the set was trying to signal passing aircraft. The upper radiator hose — a piece of rubber hose that probably cost forty dollars the day it was installed, whenever that was — had split along six inches of its underside. The engine dumped its coolant in about ninety seconds. The controller did its job and shut the set down on high coolant temperature. But the test was over, the warehouse had no backup power proof that day, and I got to spend my Saturday afternoon explaining to a very unhappy facility manager why a forty-dollar part had just beaten a four-hundred-thousand-dollar machine.
He asked me the question I always get after a hose failure. “It looked fine last month.” Did it? Had anyone actually touched it in the last month, or had they just looked at it from three feet away while walking past? Because here’s the thing nobody tells you about radiator hoses on a diesel generator: they die from the inside. The outside can look perfectly respectable right up until the moment it lets go.
This is the dramatic one, the Saturday-afternoon geyser. It happens at full load, always. Never at idle, never during a gentle test — because a hose doesn’t burst from age alone. It bursts from pressure plus heat plus age, and all three peak together when the engine is working hard.
Inside that hose is a fabric reinforcement layer, usually a braided or knitted mesh molded between two layers of rubber. Over years of heat cycles — hot under load, cool after shutdown, hot again — the rubber hardens and the bond between the rubber and the fabric lets go. The inner liner develops tiny cracks. Coolant starts working its way between the layers. Then, under full-load pressure (a cooling system runs around 15 psi when it’s hot, which doesn’t sound like much until you multiply it across every square inch of a four-inch hose), the weakened spot gives up.
The cruel part: the underside. Hoses almost always fail on the bottom, where you can’t see the bulge forming. The top looks fine. The bottom is quietly ballooning every time the engine gets hot.
This one is sneakier, and it happens when the engine is off, not on.
When a hot engine shuts down and cools, the coolant contracts. The system pulls a slight vacuum, and the radiator cap’s vacuum valve is supposed to open and let air (or coolant from the recovery bottle) in to make up the volume. If the cap’s vacuum valve sticks shut — and I wrote a whole piece on radiator cap failure because it deserves one — the vacuum has nowhere to go. So it goes for the softest thing in the system. The lower radiator hose.
A lower hose on a good installation has a spring inside it, a coil of stiff wire that holds the hose open against exactly this suction. A lot of replacement hoses don’t come with the spring. A lot of mechanics don’t move the old spring into the new hose, because wrestling a spring into a floppy hose is nobody’s idea of fun. So the hose sits there, unsupported, and one cool night it gets sucked flat. It looks like someone stepped on it.
Next start, the water pump is trying to pull coolant through a flattened straw. Flow drops. The engine runs hot — not screaming hot, just ten degrees hotter than it should, the kind of overheat that gets blamed on everything else. I spent half a day at a telecom site once chasing an “intermittent overheat” on a 250 kVA set — new thermostat, flushed radiator, checked the fan clutch — before I opened the hood at 6 a.m. and found the lower hose flat as a ribbon. The cap was the original, eleven years old. The vacuum valve was seized solid. Two cheap parts, one expensive morning.
If you see a collapsed lower hose, check the cap before you order a hose. A new hose without a working cap will just collapse again.
The slow one. The one that gets misdiagnosed as a head gasket.
A pinhole weep at a hose end — usually right where the clamp bites — loses a cup of coolant a week. Maybe less. Not enough to leave a puddle, because it evaporates off the hot engine before it drips. The expansion tank level just creeps down, month after month. The owner tops it up. Nobody asks where it went.
Then one day the level is suddenly much lower, and the first suspect is always the expensive one: head gasket, cracked head, liner seals. I’ve seen engines torn down for weeps. I’m not proud of how long it took me to learn this, but here’s the check that costs nothing: run the engine to full temperature, shut it down, and go look at every hose end with a flashlight while it’s still hot and pressurized. The weep shows up as a damp ring, sometimes with a faint green or pink crust where the coolant dried. Cold engine, dry hose. Hot engine, tell-tale ring. That’s your diagnosis. Twenty minutes, zero dollars.
So how do you catch all three deaths before they happen? With your hand. Once a year. Maybe twice if the set lives somewhere brutal.

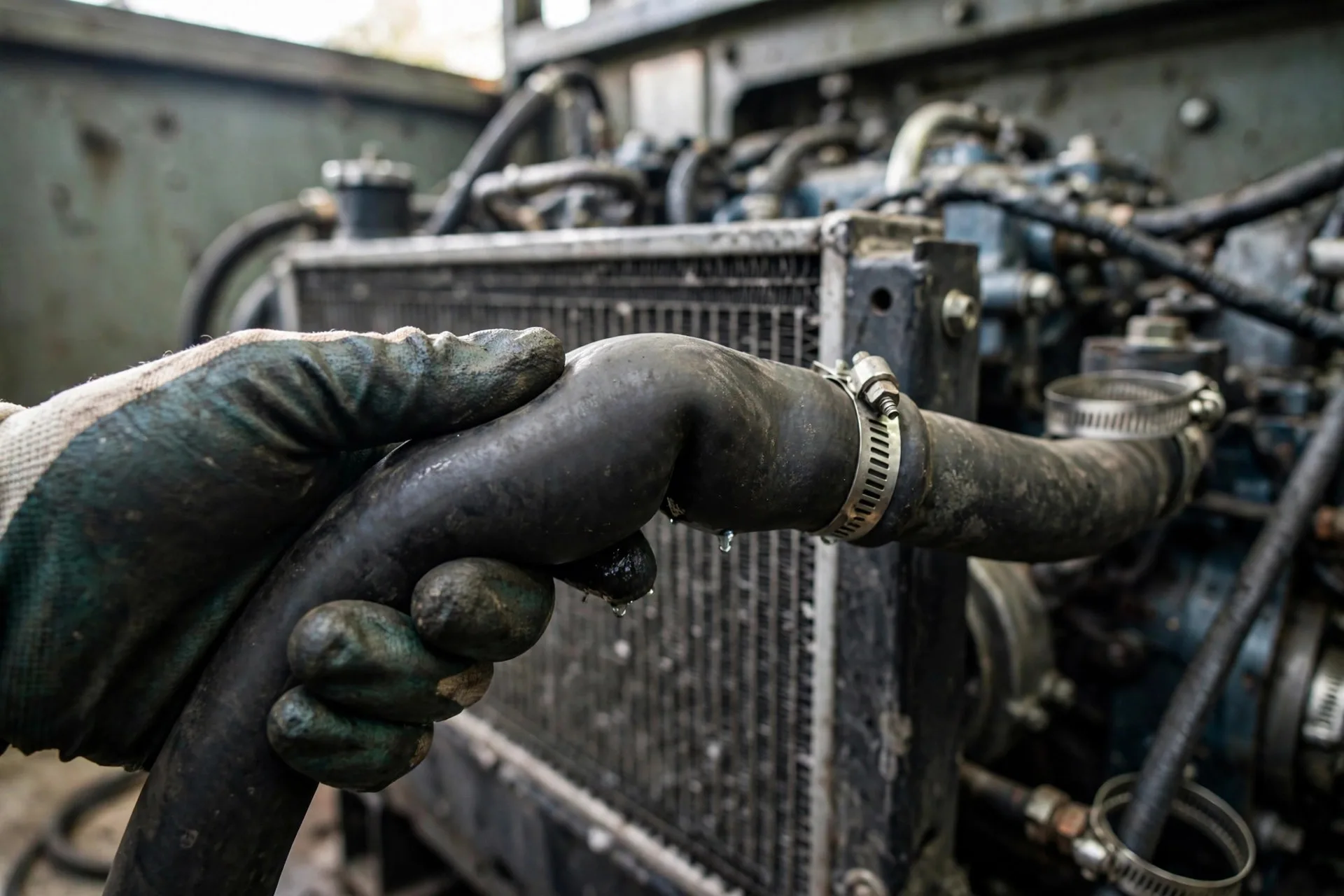

With the engine cold — stone cold, not “shut down twenty minutes ago” — squeeze the hoses. All of them, end to end, especially the undersides and the last two inches near each clamp. You’re feeling for three things.
First, crunchiness. A good hose feels like a thick rubber band: firm, but it gives. A dead hose feels like squeezing a stale baguette. If it crackles, the rubber is cooked. Replace it.
Second, soft spots. If one section of the hose feels noticeably softer or spongier than the rest — especially a bulge on the underside — the reinforcement has separated. That’s a burst waiting for a hot day.
Third, the ends. Where the clamp sits, the hose should be uniformly firm. If it’s swollen or mushy right at the clamp line, coolant has been creeping under the liner there. And while you’re at it, look at the clamps themselves. A clamp tightened by a strong man with a big screwdriver cuts into the hose. You want the clamp snug — firm enough that the hose doesn’t rotate on the neck — and no more. I’ve seen more hoses killed by overtightened clamps than by age.
Takes five minutes. Costs nothing. Finds the forty-dollar problem before it becomes a four-hundred-thousand-dollar problem.
I mentioned the lower-hose spring above, and I’m giving it its own section because it is the single most-forgotten five-dollar part in the generator business.
The suction-side hose — the lower hose, between the radiator outlet and the water pump inlet — lives under negative pressure whenever the pump is pulling hard. The spring inside it is the only thing keeping it round. When you replace that hose, the spring has to come out of the old one and go into the new one. The new hose probably didn’t ship with one. Check before you throw the old hose away.
And here’s the disagreement with an old-timer I respect enormously: he says hoses on a standby generator last the life of the engine, because standby sets barely run. Twenty hours a year, what’s there to wear out? He’s right about the running hours. He’s wrong about the chemistry. Rubber doesn’t age in operating hours. It ages in calendar years — ozone, heat cycles from monthly test runs, oil mist from a weeping valve cover gasket landing on the hose and softening it from the outside. A ten-year-old hose with 300 hours on it is a ten-year-old hose. I replace hoses on standby sets at eight to ten years, running hours be damned. On prime-power sets that run every day, five to six years. The hose doesn’t know how hard you worked it. It knows how long it’s been rubber.

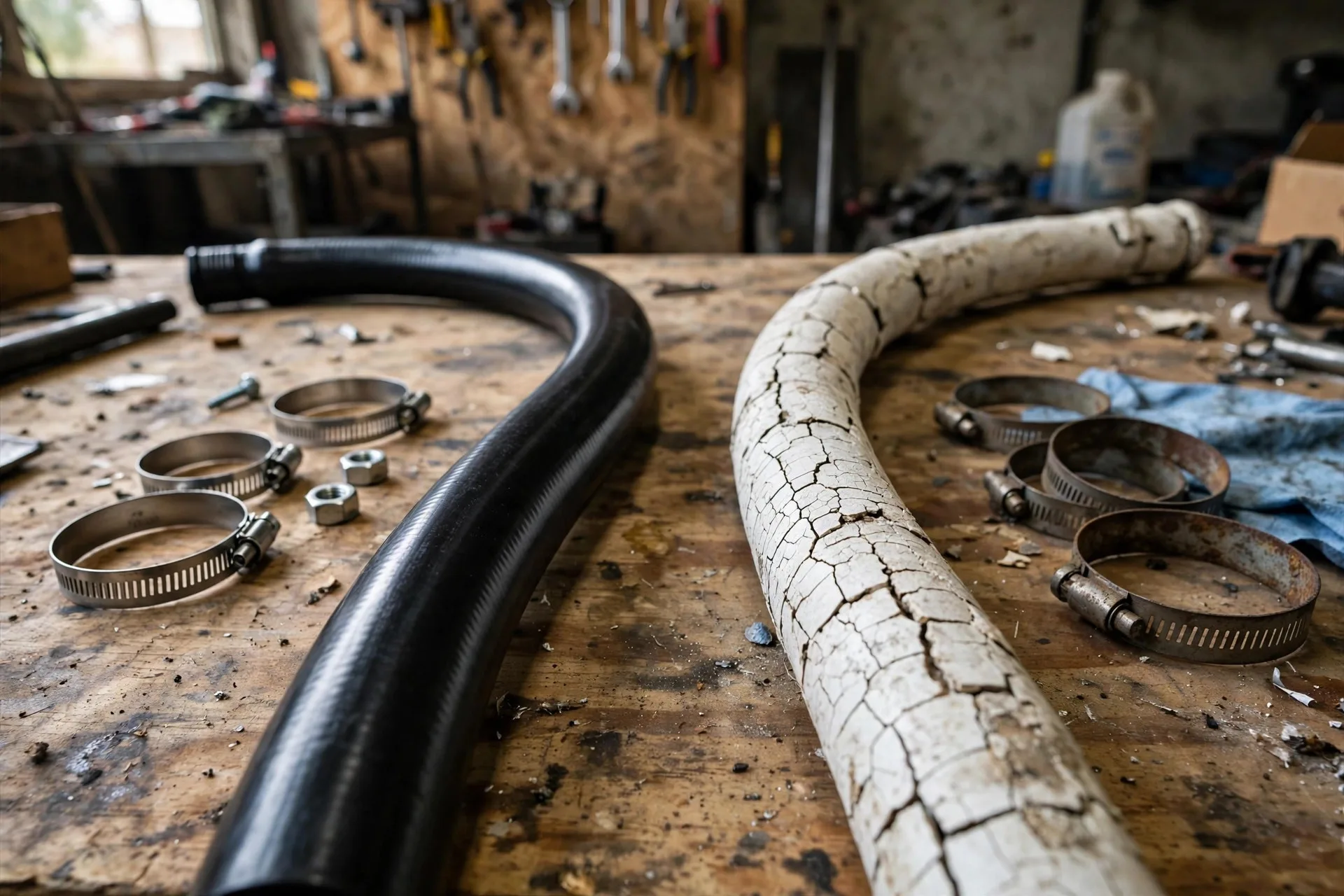

When one hose goes, do them all. They were all installed on the same day, they’ve all lived the same life, and the labor to get to the second hose is the same labor you already paid for the first. This is not the place to save eighty dollars.
And do it when you change the coolant. You’re draining the system anyway. New coolant, new hoses, new clamps, new thermostat while you’re in there if it’s more than a few years old — because every one of those parts fails on the same calendar, and every one of them is cheap compared to what they protect. A full cooling-system refresh on a mid-size set is a morning’s work and a few hundred dollars in parts. An overheated engine is a rebuild. The math is not close.
One more thing, and it’s free: after you put new hoses on, retighten the clamps after the first full heat cycle. Rubber compresses when it gets hot the first time, and a clamp that was perfect on a cold hose will be a quarter-turn loose after the first run. Check it, snug it, and then leave it alone. Don’t keep cranking on it every visit. That way lies the cut hose.
That Saturday warehouse? We replaced both radiator hoses, the clamps, the thermostat, and the coolant — the whole morning’s refresh, because I wasn’t going to explain a second geyser to the same manager. The set passed its load bank test the following weekend. Total parts bill was under three hundred dollars. The manager still brings it up every time I see him, the way people bring up the cheap thing that embarrassed them. Honestly, I bring it up too. It’s the best story I have about why the boring maintenance matters.
Go squeeze your hoses this week. Cold engine. Five minutes. You’ll either find a problem or find peace of mind, and both are worth more than the walk past.
If your cooling system is due for a look — or if the temperature gauge has been creeping and nobody can say why — talk to us. We’ve chased this one before.
