The Timing Mark Lied. The Damper Slipped.

The strobe light was lying. That was the only explanation I had left.

We were commissioning a 500 kVA standby set — nothing exotic, a straightforward unit for a logistics warehouse — and I was verifying injection timing the old way: strobe on the crankshaft pulley, watching the TDC mark line up against the pointer. Except it wouldn’t sit still. One flash, the mark sat a degree early. Next flash, two degrees late. I swapped the strobe. Same dance. Three hours in, starting to doubt the engine itself, when the veteran standing behind me said the thing that made my stomach drop: “Check the damper. Bet the outer ring moved.”

He was right. The rubber ring bonding the pulley’s outer ring to its hub had let go, and the outer ring — the part carrying the timing marks — had crept around the hub by a few degrees. Every timing reading I’d taken that morning was fiction.

The Pulley at the Front Isn’t Just a Pulley

Here’s the thing most people never get told. That big pulley bolted to the nose of the crankshaft has a second job, and it’s the important one. Every time a cylinder fires, the crankshaft twists a little — winds up like a spring and snaps back. A diesel at full song does this thousands of times a minute. Those torsional pulses travel down the crank, and at certain speeds they pile up into a resonance that can snap a crankshaft clean in two.

The harmonic balancer — some shops call it the crankshaft damper — exists to eat that energy. Hub, outer ring, and a layer of rubber bonded between them. The rubber shears with each pulse and turns the energy into heat. Simple and clever. It’s also a wear part. And unlike belts and filters, nobody puts it on the maintenance list.

Rubber Has a Countdown Nobody Writes Down

That rubber layer lives the worst life of any part on the engine. It soaks heat off the block, breathes ozone, gets splashed with oil from every weeping seal above it, and flexes with every firing pulse — millions of cycles a month. Rubber doesn’t survive that forever. It hardens. Then it cracks. Then the bond between rubber and steel lets go.

I’ve started treating the damper the way I treat timing belts: replace on age, not on failure. On a standby set that means calendar years, not hours. Ten years of heat cycling will kill that rubber whether the engine ran 500 hours or 5,000. Honestly, the standby units are the worst cases — the machine sits, the rubber bakes in a hot room, and nobody looks at it until something else breaks.

The old hands and I disagree on this one. The veterans I learned from treat the front pulley as a hunk of iron that outlives the engine. They grew up on solid pulleys and under-stressed engines, back when nobody worried about torsional resonance. Modern engines run harder, and that rubber ring is doing real work. Iron doesn’t age. Rubber does.

When the Outer Ring Slips, Your Timing Marks Lie

This is the failure that cost me that commissioning day. The outer ring carries the timing marks — TDC, sometimes degree graduations. The hub stays put, keyed to the crank. When the bond slips, the marks drift, and every measurement taken off them goes with it.

Think about what gets timed off that pulley. Injection timing on mechanical engines. Valve timing checks. Even strobe verification of electronic timing on some sets. Set injection timing two or three degrees off because the mark moved, and you get a machine that starts fine, runs hot, smokes under load, and slowly cooks its exhaust valves — while every gauge says the timing is “correct.” I know a shop that chased high exhaust temperatures for a month — new injectors, new thermostat, the works — before someone thought to check whether the timing mark itself had moved.

Quick test, costs nothing. Paint a straight line across the hub and the outer ring. White paint pen, ten seconds, done during any service. If that line ever breaks into two offset lines, the ring has slipped. The damper is done.

The Wobble That Eats Belts

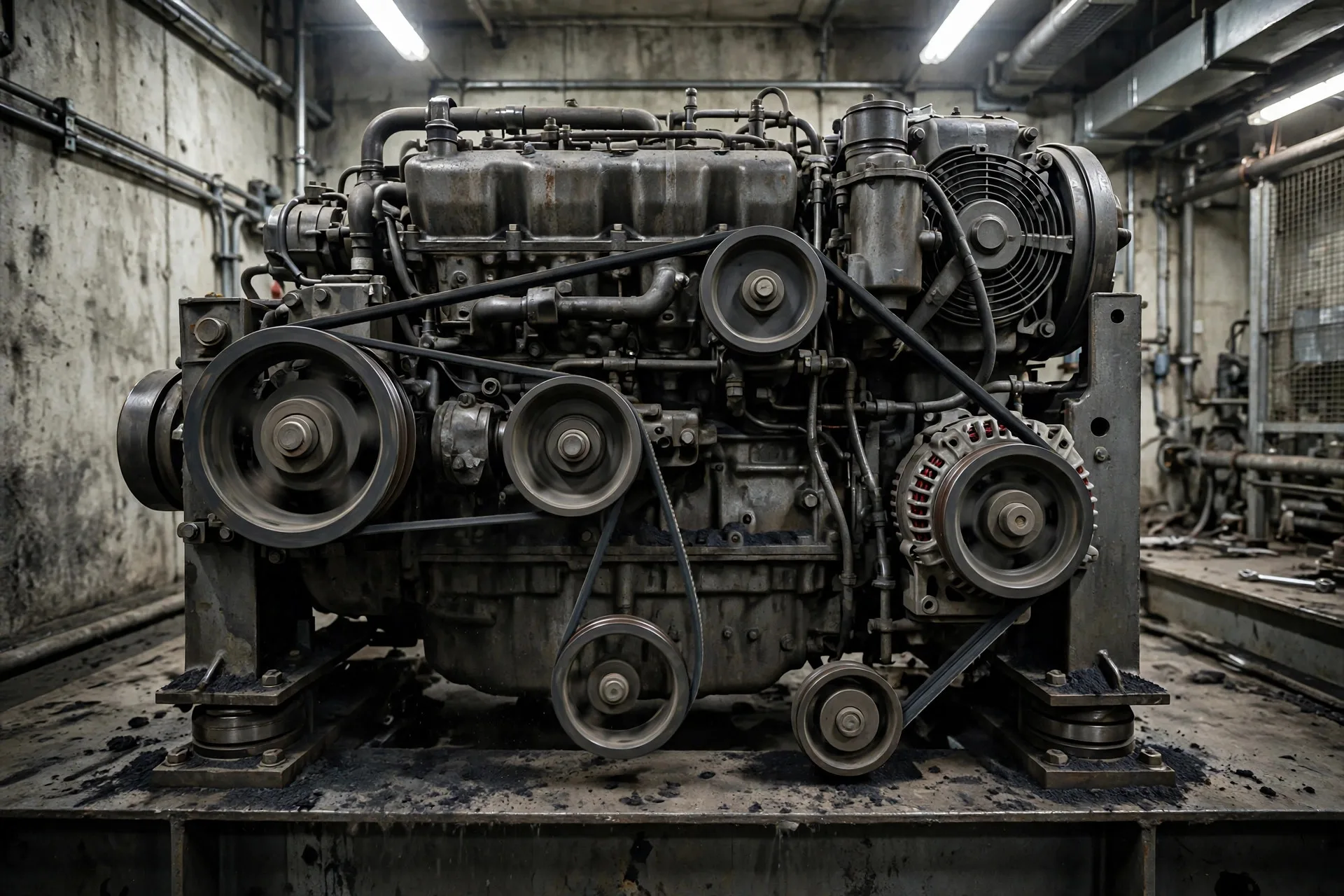

The other failure mode is uglier. When the rubber degrades unevenly, the outer ring stops running true. A millimeter or two of wobble at the pulley face, and the belts start walking, chirping, and shedding black dust all over the enclosure floor.

That dust is the sign everyone misreads. The standard response: replace the belt. Then blame the belt brand. Then replace it again with a more expensive one. I watched a site burn through three belts in a year on a 400 kVA set — same side wearing every time, same chirp at idle. The belts were fine. The pulley was wobbling, sawing sideways into everything it touched. One new damper, and the problem ended that day.

The side loads don’t stop at belts, either. A wobbling pulley hammers the water pump bearing and every belt-driven accessory it drives. When a water pump dies young on an otherwise healthy engine, people blame the pump. Sometimes the pump was innocent — it was being shaken to death by a pulley nobody looked at.

Two Minutes With a Flashlight

The whole maintenance program for the damper takes two minutes. Engine off, flashlight in hand, look at the front pulley.

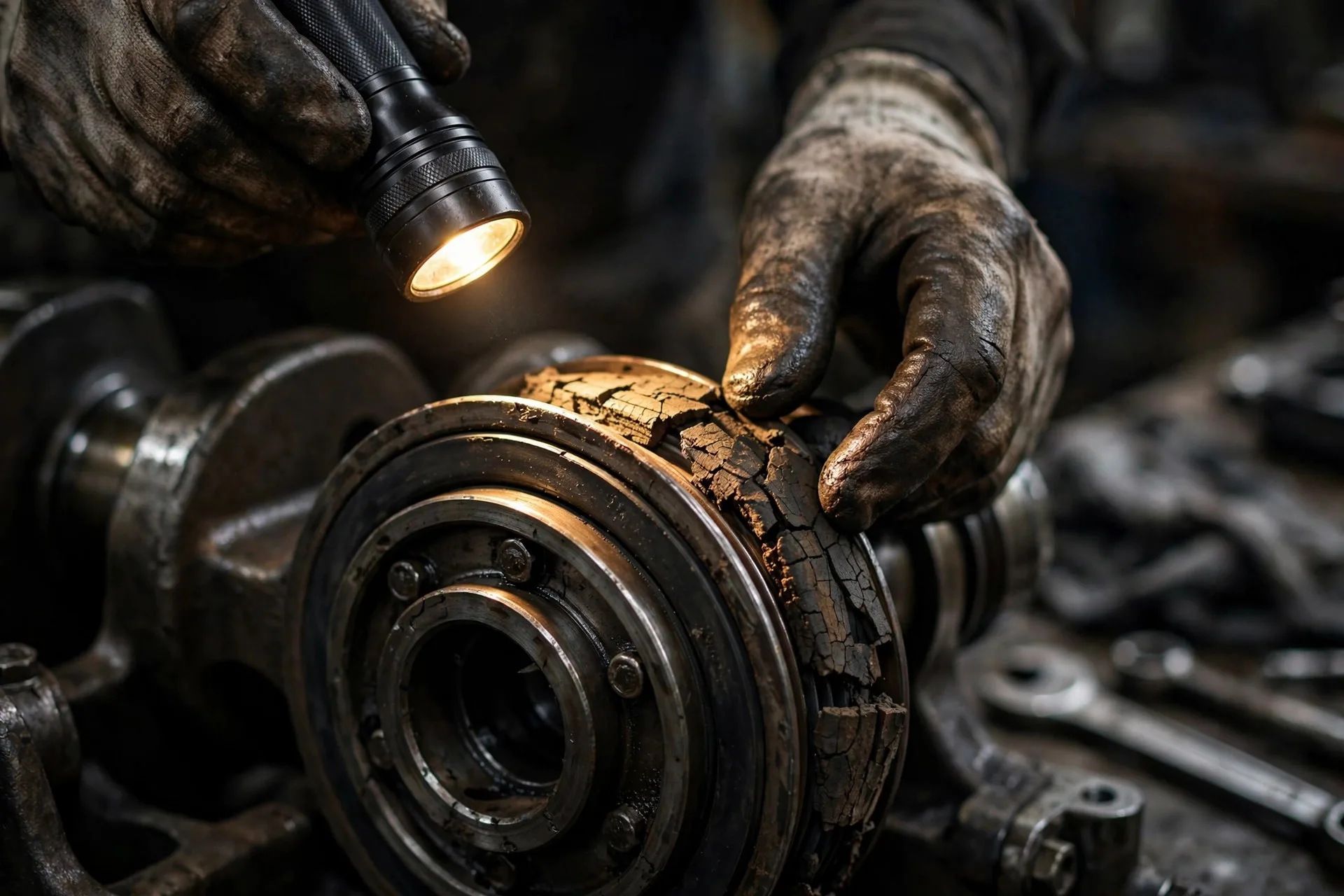

Check the rubber first: cracks, missing chunks, rubber bulging out of the gap between hub and ring. Oil-soaked rubber goes soft and shiny — if the front crank seal is weeping onto the damper, the seal isn’t your only problem anymore. Then the wobble: bar the engine over slowly and watch the pulley face against a fixed pointer. Any visible wobble means the bond is failing. Then the paint line. Do all three during a normal service visit and you’ll wonder why nobody does it twice.

One more symptom, and it’s the scary one. A deep knock that appears at certain RPM and vanishes at others. A delaminating damper can sound exactly like a failing bottom end — I nearly authorized a pan drop on a 750 kVA set because of it. The knock was the outer ring slapping the hub at resonance. Two minutes with a flashlight would have saved a week of worry.

Replace It on Age, Not on Failure

Here’s my honest position: budget a damper replacement around the ten-year mark on a standby set, sooner if the rubber looks tired. The part costs a fraction of a crankshaft. A failed damper doesn’t just strand you — bad resonance can crack the crank nose or shear the pulley bolts, and then you’re not replacing a damper. You’re replacing an engine. Run the numbers against a machine’s expected life and it’s not even close.

Two hard-won details. Torque the pulley bolts to spec with a real torque wrench, and replace them if the manual calls them single-use stretch bolts — I’ve seen a damper walk off a crank because someone reused the bolts and guessed. And don’t buy the cheapest no-name damper on the shelf. The rubber compound is the whole part. A bad compound hardens in three years. OEM or a reputable aftermarket brand, same rule as injectors and filters. Some corners aren’t worth cutting.

Walk out to your generator this week. Ten seconds with a paint pen, two minutes with a flashlight. That pulley has been lying to people for years. If you want a second opinion on what you find, talk to us — we’ve seen this one before.
