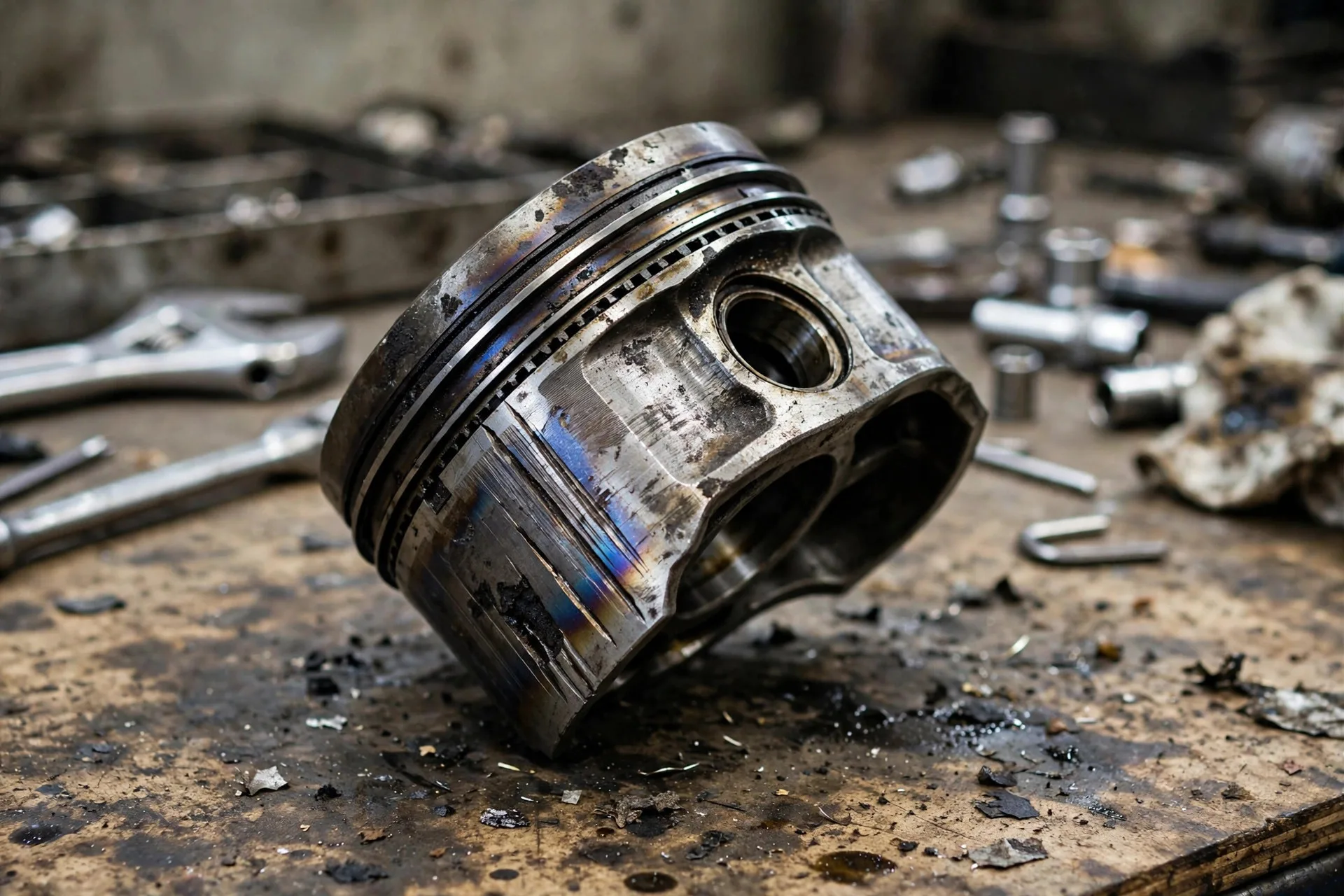

The piston came out of cylinder four with the skirt scuffed down to bare metal on one side and the crown washed almost white. The mechanic next to me said “bad fuel” before I’d even set it down on the bench. He’d already decided.

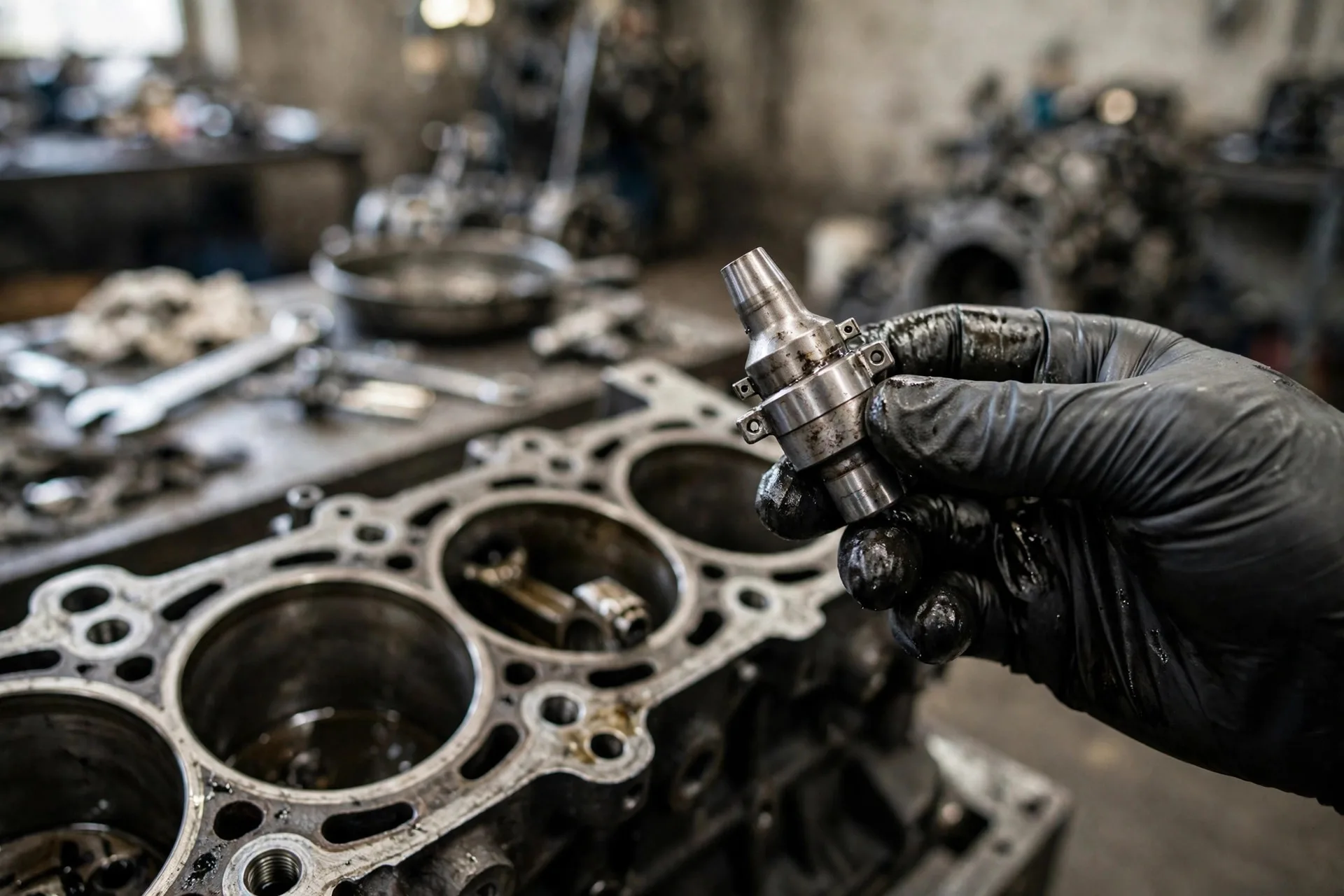

I’d seen this exact pattern two years earlier on a quarry set. Same one-sided scuffing. Same pale crown. That time the fuel tested perfect and we chased our tails for a week. This time I went straight for the little nozzle bolted into the block under the bore — the piston cooling jet. It was packed solid with black coke. No oil had reached that piston’s underside in a very long time, judging by the varnish.
That nozzle costs about twenty dollars. The piston it killed cost forty times that, plus the liner, plus a week of downtime. Here’s the thing: almost nobody checks these jets. Not at oil changes. Not at the annual service. Some engines run their whole lives with a half-clogged jet and get away with it — right up until the one hot day at full load when they don’t.
Customers ask me about piston cooling jets maybe three times a year. The questions are always the same three. So let’s do them properly.
It sprays engine oil at the underside of the piston — the undercrown — every revolution. That’s it. That’s the whole job.
But the job matters more than it sounds. On a modern turbocharged diesel, the piston crown takes a beating. At full load, roughly half the heat the crown absorbs has to leave through the oil sprayed underneath it. The rest escapes through the rings into the liner and the coolant. Take the spray away and crown temperatures climb — hundreds of degrees on some designs — until the aluminum softens, the ring grooves deform, and the piston starts grabbing the liner.
Honestly, the jet does two jobs at once. It cools the crown, yes. But it also throws oil at the wrist pin and the small end of the connecting rod, places you’d never reach otherwise. One nozzle, two beneficiaries. Twenty dollars.
Engines didn’t always need them. The old naturally aspirated sets ran cool enough that splash oil and the rings handled it. Then came turbocharging, higher BMEP — brake mean effective pressure, basically how hard each power stroke squeezes the piston — and tighter emissions. More squeeze, more heat, same aluminum piston. The jet became mandatory. Nobody told the maintenance schedule.
Three ways. I’ve seen all three, and two of them happened right after somebody “fixed” the engine.
Way one: it clogs. The jet lives in hot oil mist its whole life. Oil that’s been run too long — stretched drains, chronic light loading where the oil never gets hot enough to boil off contaminants, bargain oil that cokes early — leaves varnish inside that tiny orifice. The stream gets weaker year by year. There’s no gauge for it. No alarm. The piston just runs a little hotter every season, until one full-load run on the hottest day of the year finishes it.
A rental-fleet 350 kVA set taught me this one. The owner stretched his oil drains to save money — “oil is oil,” he told me. Cylinder three seized during a heat wave at maybe 90% load. When we tore it down, three of the six jets were dribbling instead of spraying. Those pistons had been running hot for years. There was nothing to know — until there was.
Way two: it gets bent. This is the one that stings, because it happens during a rebuild, done by careful people. You’re fitting liners, the block’s on its side, somebody’s in a hurry, and a cooling jet takes a knock. It doesn’t break. It just aims a few degrees off. The stream still sprays — it simply misses the crown and hits the skirt, or the liner wall, or nothing useful at all.
Quarry job, 400 kVA, fresh top overhaul. Six months later, one piston scuffed on the thrust side. We pulled the pan, and there it was: the jet under that cylinder bent maybe fifteen degrees off aim, close enough that you’d walk right past it if you weren’t looking for it. The rebuilder swore he never touched it. He probably didn’t, directly. A liner slipped during fitting and kissed the jet on the way in. That’s all it takes.
Way three: it falls off. Vibration cracks the little tube at the braze joint, or the retaining bolt backs out, and the jet ends up in the sump. The engine runs perfectly — right up until it doesn’t. I found one sitting in the bottom of a sump during a routine oil pan gasket job on a standby set. The customer had no idea. That piston had been running uncooled through who knows how many test runs. We got lucky: standby sets barely work, so the piston survived. On a prime-power set, that story ends with a teardown.
An old hand I argue with about this — thirty years turning wrenches — says cooling jets are lifetime parts. “Never touched one in thirty years,” he says. He’s not lying. He’s just never looked. These failures never announce themselves as jet failures. They show up as “bad fuel,” “hot day,” “cheap pistons.” The jet gets off scot-free every time.
I’ll be straight with you: mostly no. And that’s exactly why they kill engines.
There’s no sensor on a cooling jet. Oil pressure won’t tell you — a clogged jet actually nudges gallery pressure up slightly, which looks like good news on the gauge. Oil temperature won’t tell you until the piston is already dying. The controller has no idea. Your monthly test run proves nothing about the jets. It’s the perfect blind spot: a critical part with zero instrumentation.
But “mostly no” isn’t “completely no.” There are two windows, and you should use both.
Window one: any time the oil pan is off, for any reason. Gasket job, bearing inspection, whatever. Look up. Every bore should have a jet. Each one should be present, tight, aimed squarely at the center of its piston, and dry at the joint — a weep at the braze or the bolt means it’s cracked or loose. Thirty seconds with a flashlight. I started doing this on every pan-off job a few years back, and I find something wrong about one time in five. Bent, loose, weeping, or just… gone. One in five.
Window two: every top overhaul. Pull the jets. Soak them in solvent. Then test the spray pattern — shop air at low pressure through the jet, aimed at a piece of cardboard. You want a solid, straight, centered stream. A crooked fan, a dribble, a split stream — replace it. They’re twenty dollars. And here’s the rule the old hand hates: if you bent one straight during the rebuild, don’t reuse it. Replace it. A straightened tube has a memory and a weak spot, and it’ll be misaimed again within a year. I learned that one the expensive way on the quarry set’s sister engine. Don’t ask.
One more thing people get wrong: they assume new jets from the parts counter are automatically good. Test those too. I once got a batch where two out of six had drilling burrs half-blocking the orifice. Five minutes with the cardboard test saved a rebuild. Trust, but verify — especially the cheap parts.
So that’s the whole maintenance program for the part that keeps your pistons alive: look up when the pan’s off, pull and test at every overhaul, replace the bent ones instead of straightening them. Maybe an hour of labor across the engine’s entire life. If you want a place to write it down, put it on the maintenance checklist next to the oil change — stretched drains and coked oil are what starve these jets in the first place, and the same neglect shows up as rising oil consumption long before anything seizes. A used oil analysis won’t catch a clogged jet directly, but it will catch the varnish-forming neglect that causes it. And remember what that extra heat does downstream: the turbocharger is already living on a film of oil at insane speed, and an engine running hot for any reason — jets included — is how overheating failures start. If any of this sounds like your site, talk to us before the hot season does the talking.
The alternative is what I keep seeing: a scuffed piston, a week of downtime, and somebody standing over the parts washer saying “bad fuel” with total confidence. The fuel was fine. It was a twenty-dollar nozzle, and nobody checked it. Don’t be that shop.
