The call came at 6:40 on a Tuesday morning, from a site manager who sounded like he hadn’t slept. His voice had that tight, held-breath quality people get when the building is full of product and nothing is moving.
“The pump’s running,” he said. “The pressure gauge reads zero. And the chiller’s making a noise I’ve never heard before.”
We’d commissioned the standby generator there four days earlier. A 500 kVA set, new, tested, signed off. The generator itself was perfect. Voltage right, frequency right, load test clean. And yet half the building’s motors were now spinning in the wrong direction.
That morning taught me something no textbook ever bothered to say plainly: three-phase motors don’t read voltage. They read direction. Get the direction wrong and the machine will happily destroy itself at full nameplate voltage.
Single-phase power is simple. Two wires, one waveform, nothing to argue about. Three-phase power is three waveforms arriving in a sequence — A then B then C, or C then B then A — and the order is everything.
A three-phase motor builds a rotating magnetic field from that sequence. Flip the sequence and the field rotates the other way. The motor doesn’t complain. It doesn’t draw extra current at first, it doesn’t throw a fault, it just turns backwards, confidently, at full speed.
Most people in this business know this in theory. Almost nobody checks it in practice. Because here’s the part that bites: the utility grid has its own phase sequence, and your generator has its own, and there is absolutely no law of physics that says they match. Two different sources. Two different wiring crews, possibly years apart. Why would the sequence be the same?
Honestly, I’d guess nine out of ten standby installations I walk into have never had the generator’s rotation compared against the utility’s. The owners just got lucky.
Not every motor cares. A resistive heater doesn’t care. Most fans will blow the wrong way and nobody notices for a week. But some loads care a great deal, and they tend to be the expensive ones.

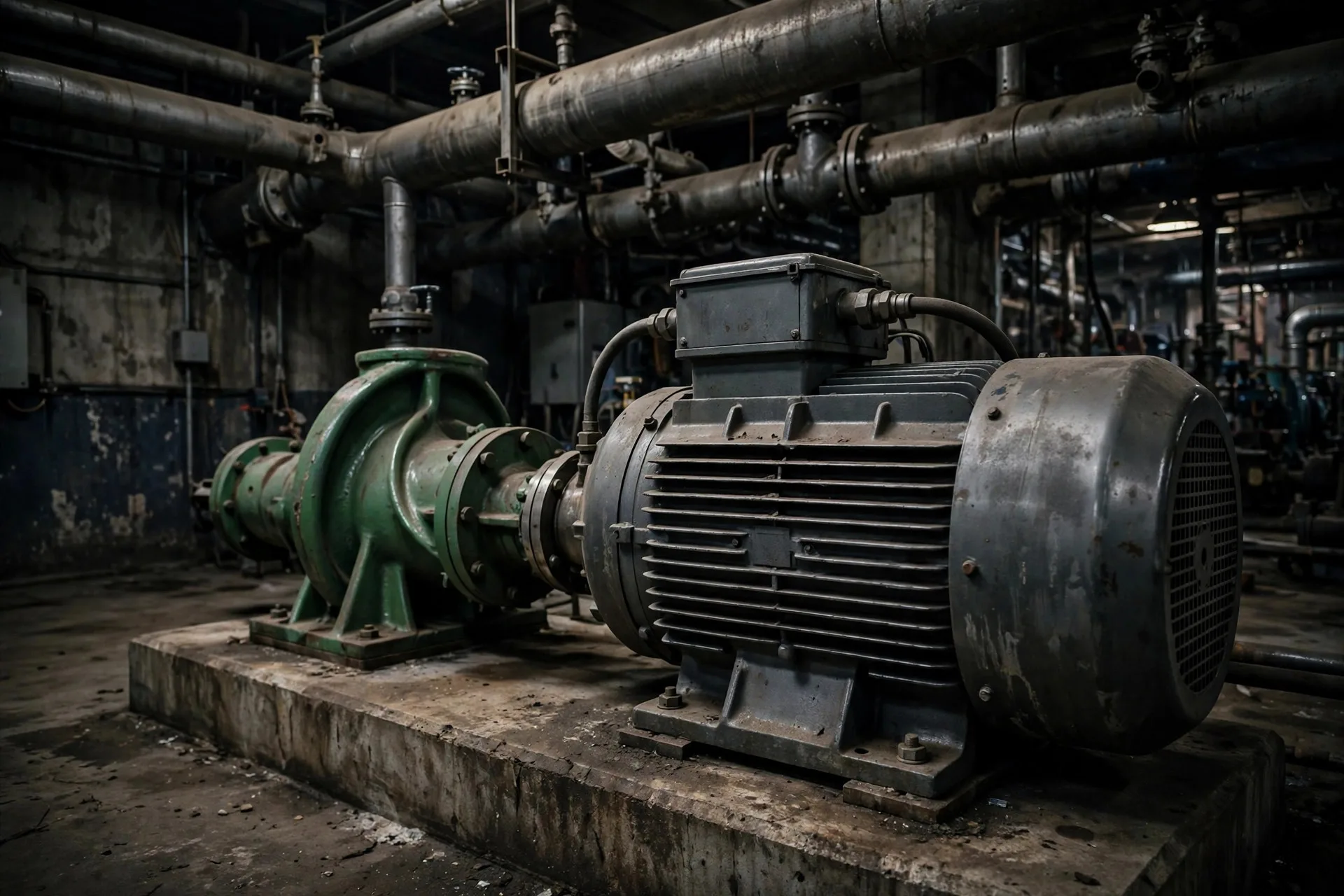

Centrifugal pumps are the classic victim. Run one backwards and it moves almost no water. The pressure gauge sits at zero while the motor runs at full current and full temperature. The pump doesn’t know it’s doing nothing. Your process does.
Screw compressors are worse. Many of them tolerate reverse rotation for about as long as it takes you to realize what’s happening — and the realization usually arrives as a very expensive silence. Refrigeration compressors, air compressors, the chiller that morning: they have oil pumps and lubrication paths designed for one direction. Backwards, they’re running dry while they look perfectly normal.
Elevators, escalators, conveyor systems: direction is the entire point of the machine. I once watched a loading dock conveyor run backwards for twenty minutes during a generator test because nobody stood there to look at it. Boxes went the wrong way into a wall. Nobody got hurt. That was luck, not engineering.
Back to that Tuesday. We drove out, meter in hand, and the story wrote itself in about ten minutes. The generator set was wired A-B-C at its output breaker. The building’s main service, wired by whoever built the place fifteen years ago, was A-C-B. The automatic transfer switch did exactly what it was designed to do: it moved the building from one source to the other without a flicker. Nobody had ever compared the two sequences, because the generator had never actually carried the building before that week.
Here’s what I remember most clearly about that morning. The site manager kept apologizing, like it was his fault. It wasn’t. The installing electrician had done clean work — tight lugs, correct torque, proper labeling. The commissioning engineer before me had run the set, measured voltage and frequency, done the load steps, and written “satisfactory” in the report. Every individual piece of work was fine — except the one measurement nobody took, which turned out to be the one that mattered.
That chiller never fully recovered, by the way. Three months later the service tech found scored bearings and traced them straight back to that Tuesday morning: a five-minute check, skipped, and a compressor quietly shortened.
Here’s where the old hands and I part ways. The traditional fix is simple: motor running backwards on generator power? Swap two phases at the generator breaker and move on. Takes ten minutes. Problem solved.
Except it isn’t, quite. Because now the generator matches the building — but what happens the next time someone works on the utility side? Or the next time a different generator gets wheeled in for a rental? Then your ten-minute fix becomes somebody else’s mystery fault at 2 a.m. — you fixed a mismatch by memorizing which lie the system is telling. The next person who touches it inherits that lie without any of the context.
My rule, and I’ve argued this over coffee with guys who have thirty years on me: fix the record, not the wires. Mark the generator’s rotation at the breaker with a label that says what it is — “Generator output: A-B-C clockwise” or whatever your meter reads. Put the same reading on the utility side in the transfer switch cabinet. Then anybody with a ten-dollar… well, a real phase rotation meter, can verify the match in five minutes, years from now, without knowing the history.
That said, the old-timers have a point I respect. On a Friday afternoon with a building down, you swap the wires first and write the labels second. Theory is for Monday morning. But the labels still have to get written.
This is the whole procedure. It belongs in every standby commissioning, and I’d put money on most of them skipping it:

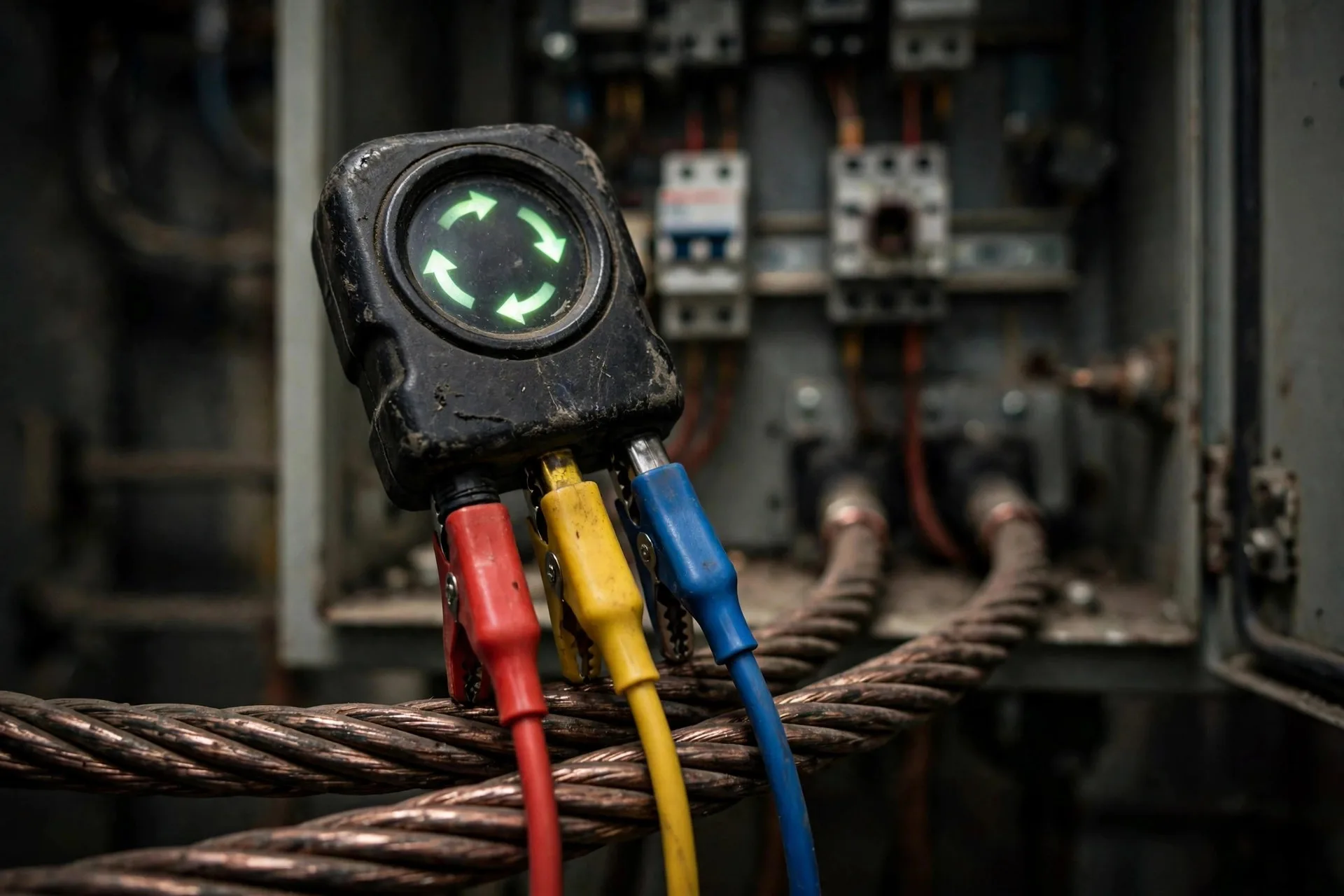

A proper phase rotation meter costs less than the fuel for one service visit. Mine lives in my bag next to the tape measure now, and honestly it’s ended more arguments than any other tool I own.
For buildings that can’t afford the lesson I learned that Tuesday, there’s a device for this: a phase monitoring relay, sometimes called a phase failure or sequence relay. It sits on the generator output and watches the sequence continuously. If the phases arrive in the wrong order — or a phase goes missing entirely — it blocks the transfer or trips the breaker before the motors ever see it.
They’re cheap. A decent one costs less than a single service call, and it never gets tired, never forgets, never assumes the last electrician kept the sequence straight. I spec them now on every standby job with motor loads that would be damaged by reverse rotation: pumps, compressors, elevators, anything with a gearbox that only likes one direction.
Look, nobody buys a generator to protect their chiller’s bearings. They buy it to keep the lights on — and the lights are the easy part. The motors are where the money quietly dies: a backwards pump that looks like it’s running, a compressor eating itself while the gauges read normal.
The generator was doing its job that Tuesday morning, spinning exactly the way it was wired to spin. The building just never asked which way that was.
Five minutes with a meter. That’s the whole story. I’ve never skipped it since.
