The call came in at 1:40 on a Tuesday morning. A food distribution warehouse, 400 kVA set, and the panel gauge sitting pretty at 84°C — while the controller had just shut the engine down on high coolant temperature.
The night manager was furious. Kept jabbing his finger at the gauge. “It says eighty-four!” he said. “Eighty-four is fine!”
He was right. Eighty-four is fine. The gauge was the problem. It was lying.
I put my infrared gun on the thermostat housing. 103°C. The engine wasn’t at 84. It was cooking. And that gauge had been telling everyone a bedtime story for — who knows how long.
Here’s the thing nobody tells you about temperature gauges on diesel generators: they don’t measure temperature. They measure resistance, and then they guess.
Most coolant temperature senders are NTC thermistors. Negative temperature coefficient. Fancy words for a simple deal: as the coolant gets hotter, the resistance inside the sensor drops. The controller reads that resistance, runs it through a curve, and paints a number on your panel.
Three links in that chain. Sensor. Wiring. Curve.
Any one of them can lie. And they do, constantly, in ways that look exactly like other problems.
The sensor itself drifts with age. Heat cycles, thousands of them, slowly shift the resistance curve. A sender that read true at 2,000 hours can read 10 or 15 degrees off by 8,000. Nobody notices, because the drift is slow. The number on the panel creeps. You get used to the new normal. “Oh, she always runs a bit warm.” No. She doesn’t. Your sensor is just old.
Then there’s the wiring. This is where it gets nasty.
A corroded connector adds resistance in series with the sensor. Remember the deal: lower resistance means hotter. So added resistance means the controller sees higher resistance than the sensor is actually giving it — and paints a lower temperature on the panel.
Read that again. Corrosion makes the gauge read cold.
That’s the dangerous direction. A gauge that reads too hot causes panic and wasted money. A gauge that reads too cold causes silence — while the engine melts itself.

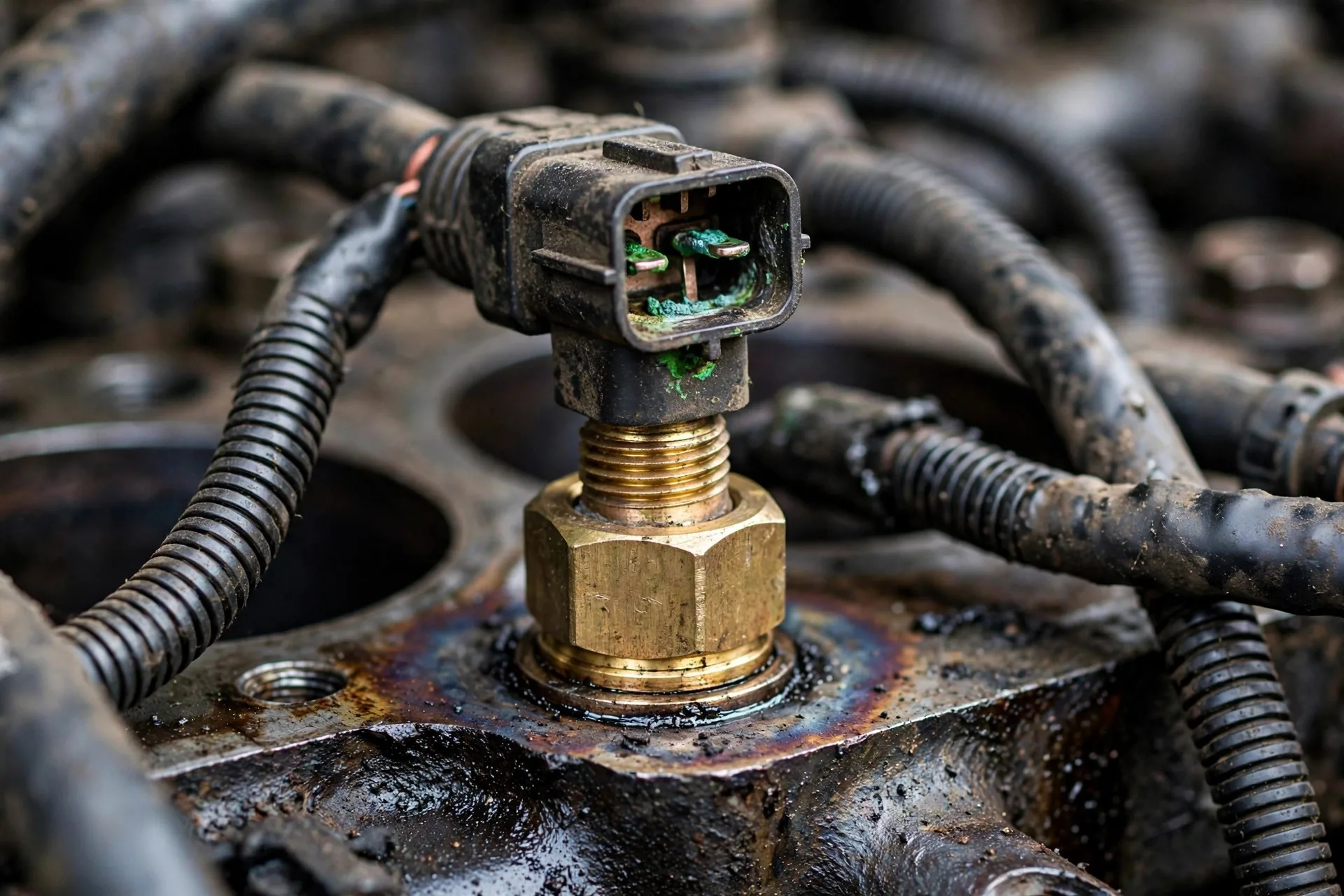

The warehouse set that called me at 1:40 in the morning? I pulled the sender connector and found green crust on the pins. Looked like a tiny copper mine. That crust had been adding resistance for months, maybe years, quietly subtracting twenty degrees from every reading. The real temperature had been climbing toward the shutdown point while the panel smiled at everyone.
The mechanical high-temperature switch — a separate, dumb, honest device on that older set — is the only reason the engine survived. It doesn’t read resistance curves. It just trips.
Not every set has one. On plenty of modern machines, the same lying sender feeds the gauge and the protection logic. Think about that for a second.
Senders drift hot, too. And a gauge that reads hot when the engine is fine will cost you money in the most embarrassing way possible.
A hotel called me about their 600 kVA house set. Panel showing 108°C at full load, alarm screaming, chief engineer already pricing a new radiator. Eight grand, roughly, installed.
I put the infrared gun on the thermostat housing outlet: 89°C. Screwed a mechanical test gauge into the spare port on the housing: 90°C. The engine was fine. The sender had drifted hot with age — reading roughly 18 degrees high — and the panel was reporting fiction.
Thirty-dollar sender. Ten minutes. The radiator quote went in the bin.
I’ve seen the same false alarm from two dumber causes, and both are worth knowing. First: the wrong sender. Somebody replaces a failed sensor with whatever the parts house had on the shelf, and the new one has a different resistance curve than the controller expects. It reads fine at 20°C and lies worse the hotter it gets. Always match the part number. “Close enough” is a lie that grows with temperature.
Second: thread sealant on a single-wire sender. One-wire sensors ground through their threads into the housing. Wrap those threads in PTFE tape and you’ve insulated the ground path — erratic readings, usually high, sometimes jumping around like the gauge is nervous. I’ve found this one three times. Three times too many. The old-timer I apprenticed under used to say gauges are for nervous people. Honestly, after the third PTFE-tape sender, I started to see his point.
That said, he also refused to own an infrared gun. That’s where we disagreed.
“Just shoot it with the IR gun” is good advice with a footnote nobody reads.
Infrared guns don’t measure temperature either. They measure infrared radiation and guess, using a little number called emissivity. Shiny aluminum has low emissivity — it looks colder to the gun than it is. A black rubber hose reads closer to true. Shoot the shiny thermostat housing from a bad angle on a bright day and you can be 10 degrees off without knowing it.

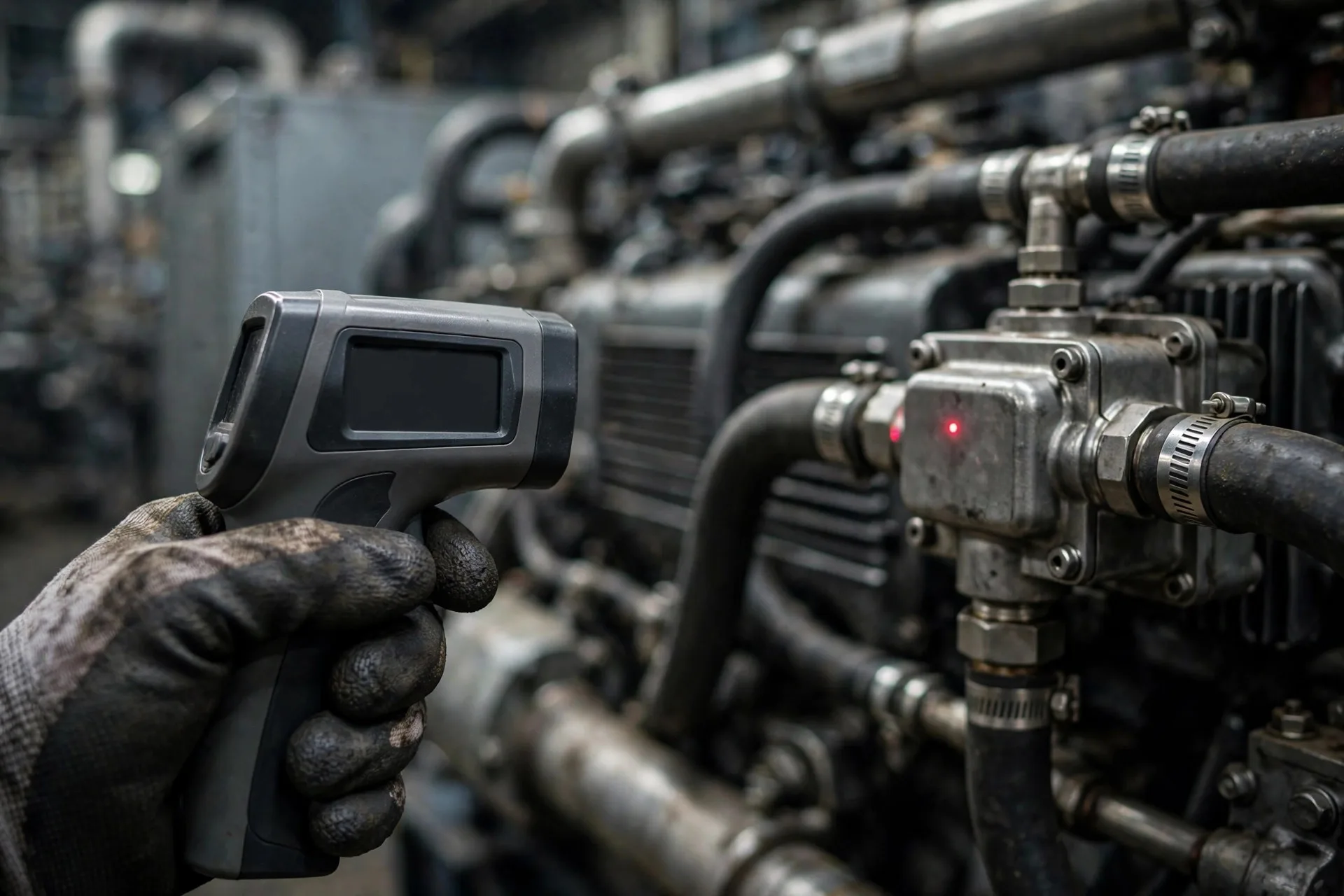

Aim at the coolant outlet neck of the thermostat housing, the dullest, blackest spot you can find, as close to perpendicular as you can get. And compare like with like: panel reading vs. gun reading, same moment, engine at full load, warmed up for at least twenty minutes. One reading means nothing. The gap between the two readings means everything.
Write the gap down. Date it. That’s your baseline. Do it again every service. When the gap starts walking — panel says 84, gun says 97, and last quarter it was 84 vs. 88 — the sender is drifting. Replace it before it matters.
When the panel and the gun disagree and money is on the line, there’s a referee: a mechanical test gauge screwed into a spare port. Most thermostat housings have a plugged port — usually 1/8-inch pipe thread — sitting there doing nothing. A fifteen-dollar mechanical gauge, a bit of sealant on the gauge threads (that one’s fine, it’s not an electrical ground), and you’ve got the truth.
I carry one in the truck. It has settled more arguments than any tool I own except maybe the torque wrench.
Here’s where it stops being a gauge problem and starts being a protection problem.
A sender drifting hot will trip high-temperature warnings and shutdowns on a healthy engine. You’ll chase it as a cooling problem — new thermostat, flushed radiator, maybe a water pump — and every part you throw at it will be innocent. I watched a site burn through a full cooling system overhaul before somebody thought to question the thirty-dollar sensor. Their nuisance-shutdown file was thick enough to read on a plane.
The reverse is worse. A sender reading cold — corrosion, remember — tells the controller everything is fine while the engine cooks. If that same sender feeds the protection logic, there is no alarm. No shutdown. Just a slow, expensive death by overheating that the panel watched happen at a cheerful 84 degrees.
Real overheating still happens, of course, for all the usual mechanical reasons. But before you condemn the cooling system, spend two minutes checking whether the temperature you’re reacting to is even real.
My rule, stolen from a commissioning engineer who’d seen too much: every time the thermostat comes out, the temperature sender comes out with it. They’re the same age. They lived the same heat cycles. If one is done, the other is lying about not being done.
While you’re in there: dielectric grease on the connector pins, never on a single-wire sender’s threads. Check the harness for chafing where it crosses the valve cover. Fold the check into the regular coolant service. And at commissioning — day one, brand new set — log the panel-vs-gun gap at full load. That number is the only honest baseline you’ll ever get, because everything after that is drift.
The warehouse manager called me back a week later. New sender, cleaned connector, and — this is my favorite part — he now keeps a little notebook by the panel. Panel reading, gun reading, date. Takes him two minutes during the monthly run.
“Eighty-six and eighty-eight,” he told me, sounding proud. “They match.”
They will. Until they don’t. And now he’ll know. If your panel and your gun have started disagreeing, that’s worth sorting out before it becomes a failure — talk to someone who has seen the lie before.
