The call came in at 2:40 on a Tuesday afternoon, during the hottest week of the summer. A 500 kVA set at a quarry had shut itself down on high coolant temperature. Twice.
The site foreman was already angry at the machine. “Radiator’s clean,” he told me over the phone. “We wash it every month.”
I drove out there anyway. The radiator did look clean. From the front. I walked around to the engine side, clicked on my flashlight, and held it flat against the core.
No light came through.
Here’s the thing most people get backwards. The coolant doesn’t cool the engine. The coolant just carries the heat to the radiator. It’s the air moving through the fins that actually throws the heat away.
No airflow, no cooling. Your coolant can be fresh, your water pump brand new, your thermostat working perfectly — and the set will still cook itself if the fins are packed with dust. I’ve seen it more times than I can count. The cooling system gets blamed, parts get replaced, and the real problem sits there in plain sight, invisible from the walkway.
A radiator fin is a thin piece of aluminum, roughly the thickness of a business card. Its whole job is surface area — giving the air as much hot metal to touch as possible. Pack those gaps with quarry dust, cottonwood fluff, or oily grime, and you’ve turned a precision heat exchanger into a blanket.
The dirt is always on the side you can’t see. Always.

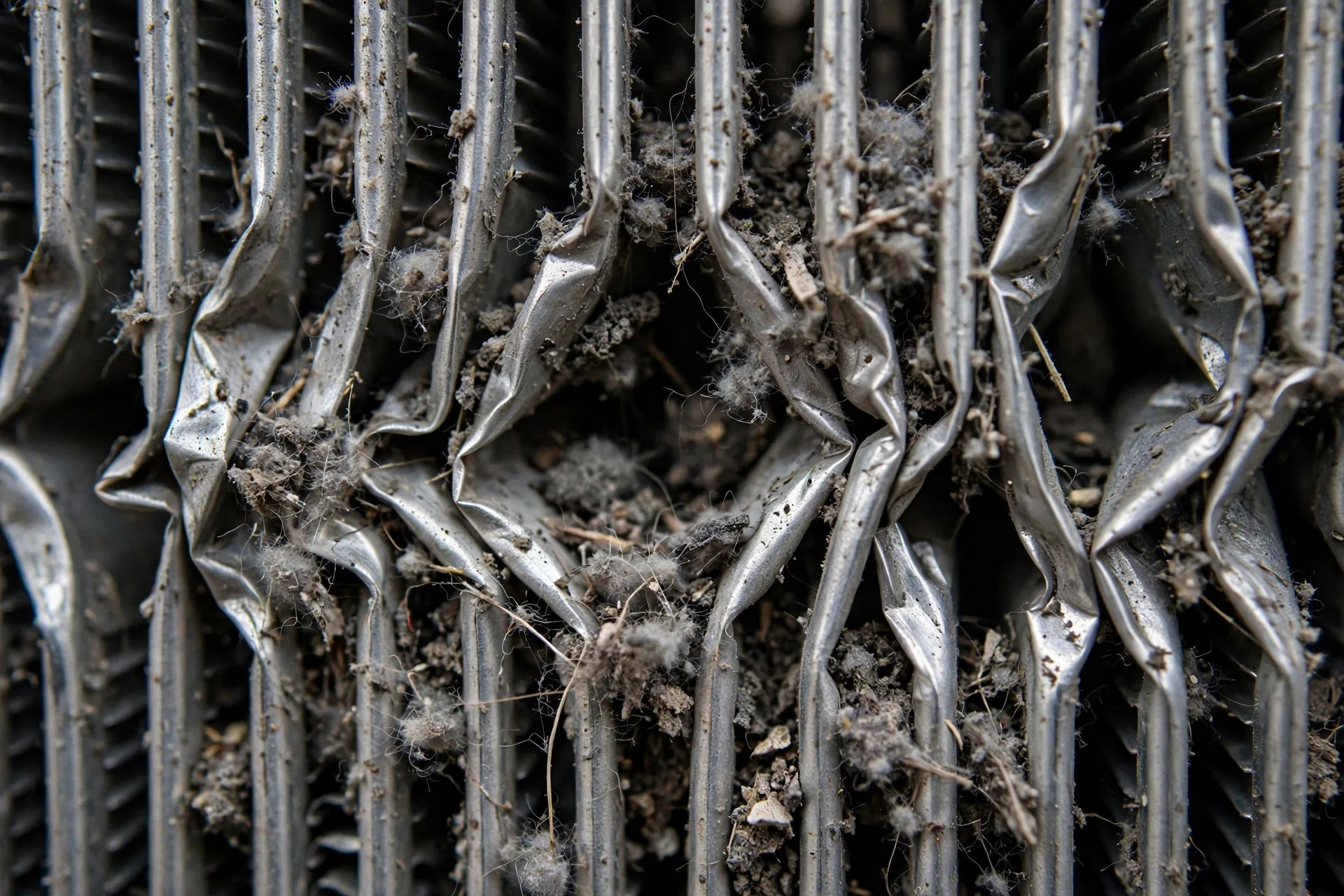

On most generator sets the fan pulls air through the radiator, which means debris collects on the air-entry face — usually the side facing away from the walkway, buried behind the engine, the shroud, and half the plumbing. From the front, where everyone looks, the core can look almost new. I’ve watched experienced maintenance guys shine a light on the pretty side, nod, and walk away. The ugly side never gets a glance.
That quarry set? Monthly washing, like the foreman said. They washed the front face with a hose every single month. The engine side hadn’t been looked at in what I estimated was two years. The dust layer was thick enough to write your name in.
This one hurts me, because the intention is good.
A pressure washer at car-wash pressure — roughly 1,500 psi and up — will fold aluminum radiator fins flat. Not sometimes. Every time, if you hold the nozzle close. What you get is a core that looks clean and shiny from three feet away, and up close the fin passages are pinched shut like a closed book. Air can’t get through folded fins any better than it gets through dust.
Worse, the blast drives the fine dust deeper into the core instead of out of it. The surface looks clean. The middle of the core is now packed tighter than before you started.
I once took over a site where the crew pressure-washed the radiator religiously, every month, from about a foot away. When I held my flashlight up to it, maybe ten percent of the core passed light. The rest was a wall of folded aluminum. That radiator wasn’t dirty. It was destroyed — by cleaning.
An old-timer I know disagrees with me on this. He’s been washing radiators with a pressure washer for thirty years and says I’m being precious. “Water cleans, air just moves dust around,” he tells me. Look — he’s a good mechanic, and on a bulldozer with a heavy-duty copper-brass core he might have a point. On a modern aluminum generator radiator with fins you can dent with a thumbnail? I’ll take the air hose. We’ve agreed to disagree, but I notice he doesn’t let anyone near his own standby set with a pressure washer.
I’ve seen this too. Someone fires up the set, or leaves it running, and blows compressed air through the radiator while the fan is pulling.
All that does is pick the dust up and feed it straight back into the core. The fan is stronger than your blow gun. You’re just rearranging the dirt.
And honestly, working around a spinning fan with an air nozzle is asking for trouble. Shut the set down. Lock it out. Then clean. The five minutes you “save” by cleaning hot and running aren’t worth it.
Many generator radiators aren’t alone in that frame. There’s often a charge-air cooler or an oil cooler stacked in front of or behind the main core, with a gap of an inch or two between them.
That gap is a debris trap. Leaves, dust, and oily lint pack into the space between the cores where no hose and no blow gun can reach from outside. Coolant temperature looks fine at idle and light load. Put a real load on, and the temperature climbs, because under load the set needs the full face of every core and it’s only getting half.
I found this one at a logistics warehouse a few years back. The set overheated only when the load passed about seventy percent. Everything tested fine — pump, thermostat, cap, coolant chemistry. Then I pulled the top shroud panel and looked down between the cores with a flashlight. There was a mat of debris in there thick enough to peel off in sheets. An hour of careful work with a long air nozzle, and the “mystery overheat” never came back.
While you’re in there, check the shroud itself. A cracked or gap-toothed fan shroud lets air sneak around the radiator instead of through it. Air is lazy. It takes the easy path every time. A two-inch gap in the shroud can steal a surprising amount of your cooling.
Nobody checks the radiator until the high-temperature alarm goes off. By then you’re already in trouble — the set has derated or shut down, the load is on someone else’s shoulders, and you’re cleaning in a panic.
The flashlight test takes five minutes, and it tells you everything:
If less than about half the core passes light, it’s cleaning time. Write the date and what you found in the logbook. Do it monthly in dusty season, quarterly otherwise. Trends beat surprises — a core that goes from eighty percent open to fifty in three months is telling you something about the site, not just the radiator.

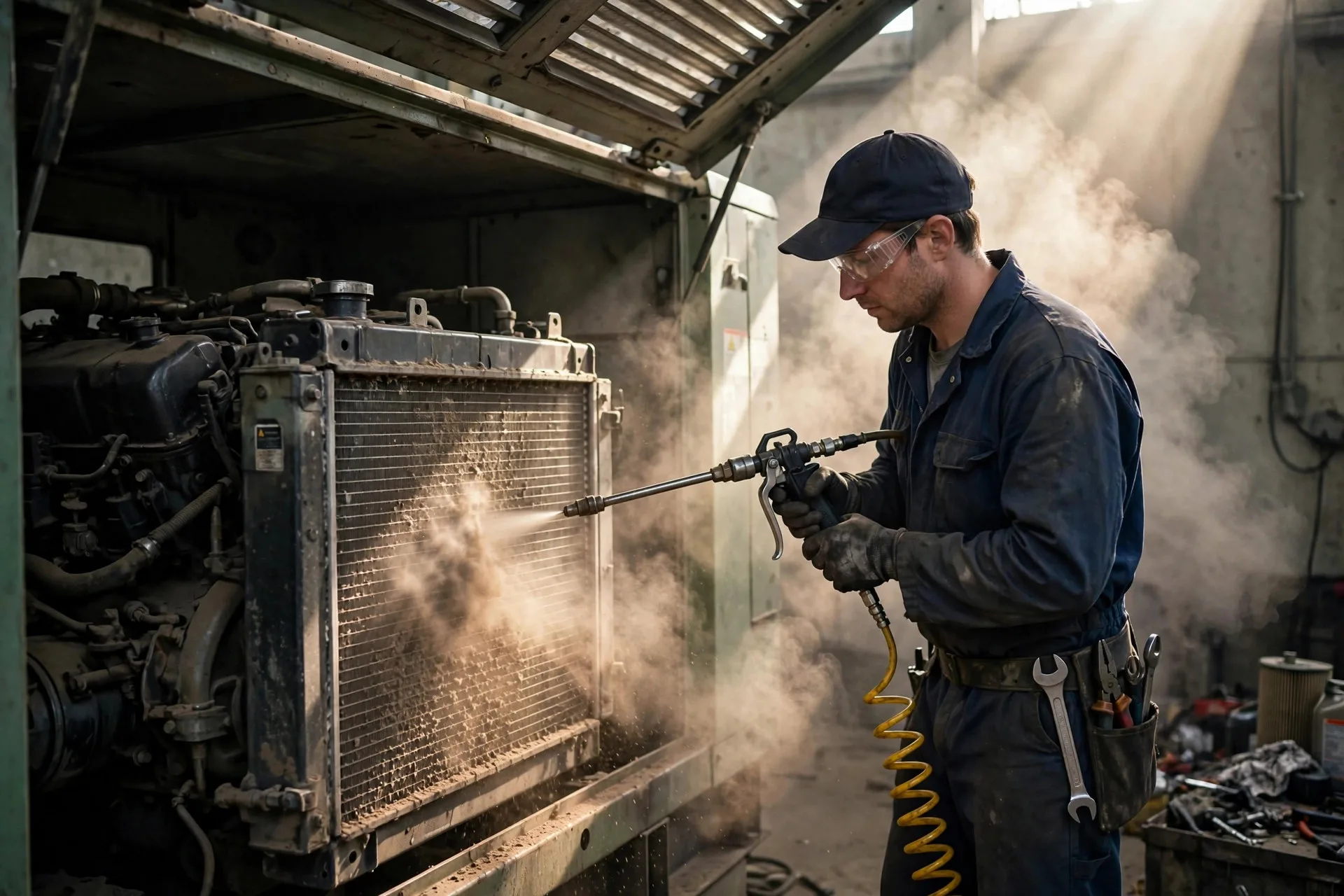

Dry first, wet second, gentle always. Blow the dust out with compressed air from the clean side toward the dirty side — the reverse of normal airflow, so you’re pushing debris back out the way it came in. Keep the nozzle a foot or so back and work top to bottom. Then, if there’s oily grime the air won’t move, use low-pressure water — garden hose pressure, not a pressure washer — from the same direction, and let it drain.
Straighten any bent fins with a fin comb. They’re cheap, and a few minutes of combing can reopen a surprising amount of airflow. Check the shroud for gaps while you’re there.
That’s it. Twenty minutes, a flashlight, an air hose, and a logbook entry. The quarry set I started with? We blew the core out properly that afternoon, combed the worst of the folded fins, and it ran the rest of the summer without a single high-temperature warning. The foreman still calls me every spring, before dust season, to ask when he should schedule the cleaning. I tell him the same thing every year: when the flashlight says so.
For the full cooling-system picture — coolant chemistry, the pressure cap, and the fan that moves all that air — my guides on overheating causes, coolant maintenance, and cooling fan systems fill in the rest. And if your set lives in a tight room, room ventilation matters as much as the radiator itself. Fold all of it into your regular maintenance routine, and the radiator stops being a surprise. Questions about your own setup? Talk to us — we’ve seen dusty.
