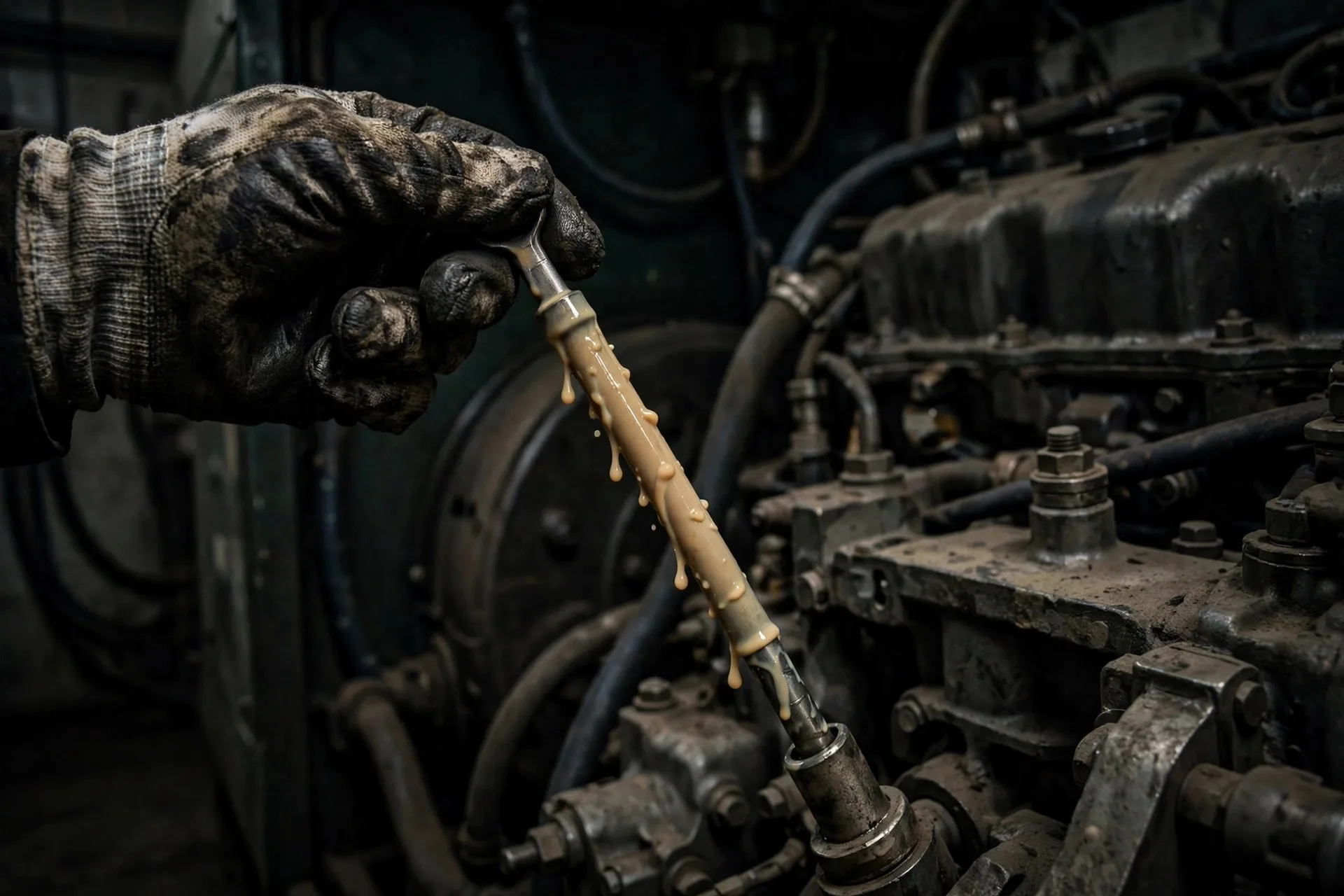

Tuesday, 7:10 in the morning. A logistics warehouse outside the city — 500 kVA standby set, and the maintenance guy meets me at the door holding a dipstick like it’s a courtroom exhibit. The oil on it looks like coffee with too much milk in it. “Head gasket,” he says, before I even get my boots off. He’s already got a quote for the job. I told him to hold the phone call.
It wasn’t the head gasket. It was a part he’d never heard of — the engine oil cooler. About three hundred dollars, three hours of labor, and the set was back on the pad. The head gasket quote was four figures and a week of downtime. That morning is why I wrote this: milky oil scares people into ordering the most expensive repair on the list, and half the time the real culprit is a thin wall of metal plates nobody ever thinks about.
Here’s what the oil cooler does, in one paragraph. Engine oil picks up heat from the pistons, the bearings, the turbo — it leaves the engine hot, roughly a hundred degrees Celsius under load, give or take. Before it goes back to work, it passes through the cooler: a stack of thin plates (plate-type, on most genset engines) or a bundle of tubes (shell-and-tube, on the big ones), with engine coolant flowing on the other side of the metal. One thin wall separates your oil from your coolant. That wall is the whole story of this article.
When the wall holds, nobody thinks about the cooler. When it doesn’t, oil and coolant start trading places — and the direction they trade tells you everything. Most people get that part backwards. So here are the five mistakes I keep finding, in the order they cost people money.
This is the expensive one. Milky oil on the dipstick, and the first words out of everyone’s mouth are “blown head gasket.” Sometimes they’re right — I’ve written about head gasket diagnosis separately, and it deserves its own article. But an oil cooler with a cracked plate or a failed O-ring makes the exact same milkshake, and it does it more quietly than a head gasket ever could.
A head gasket failure usually announces itself. Combustion gas punches into the cooling system — you’ll see bubbles churning in the expansion tank while the engine runs, the system builds pressure too fast, sometimes it pushes coolant out the overflow. An oil cooler failure does none of that. There’s no combustion involved. It’s just two fluids finding a hole between them.
Here’s the diagnostic detail that sorts them out. When the engine is running, oil pressure is higher than coolant pressure — so oil pushes into the coolant. You’ll find an oily film or brown sludge floating in the expansion tank, the coolant looks dirty, and the engine still runs fine. Shut the engine down and the tables turn: the cooling system stays pressurized under the radiator cap while oil pressure drops to zero. Now coolant pushes into the oil. Leave the set parked overnight and the dipstick comes out milky in the morning. A set that “develops” milky oil while sitting still is practically pointing at the cooler.

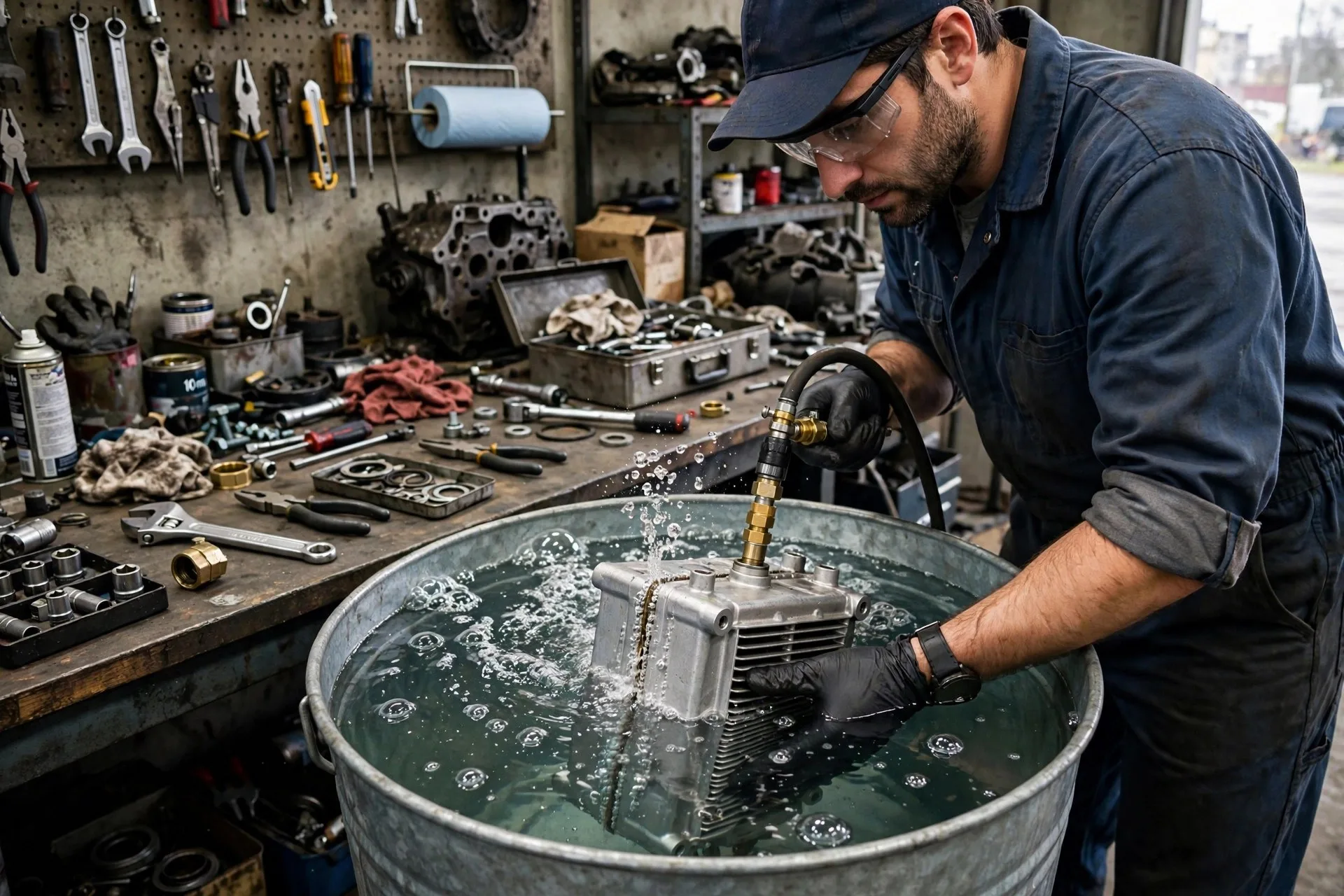

Back to that warehouse Tuesday. I didn’t order a gasket kit. I pulled the oil cooler — four bolts and two hoses on that engine, maybe forty minutes — capped the ports, put about two bar of shop air on the oil side, and dunked the whole thing in a bucket of water. Bubbles came streaming out of a plate seam. Fifteen-minute test, three-hundred-dollar part. The maintenance guy cancelled the head gasket quote standing right there in the generator room. He’d been one bucket of water away from a five-figure mistake.
A thirty-year veteran I work with sometimes still argues with me about this. His rule: milky oil means head gasket, full stop, don’t overthink it. I like the man, but he’s wrong, and that bucket of water is my evidence. Don’t overthink it — test it.
The cooler is the one part in this whole story you can test off the engine in fifteen minutes, and almost nobody does it. People will pressure-test the cooling system. They’ll run a block test for combustion gases. They’ll send an oil sample to the lab. All good tests, all worth doing — and then they’ll condemn the head gasket without ever looking at the cooler bolted to the side of the block.
Pull it. Cap the ports with whatever fittings you have in the truck. Put regulated shop air on one side — two to three bar is plenty. You’re not trying to burst it, you’re trying to find a pinhole. Dunk it in water and watch. Bubbles don’t lie. You can also test it on the engine by isolating the coolant lines and pressurizing the coolant side while watching for oil weeping, but honestly, pulling it is faster and the result is definitive. I have never seen a cooler pass the bucket test and still turn out to be the problem.
Every genset has an oil temperature reading somewhere — on the controller, on a gauge, in the telemetry nobody opens. Almost nobody watches it trend. Coolant temperature gets all the attention; oil temperature is the quiet one in the corner. That’s a shame, because a cooler that’s slowly fouling on the inside announces itself in oil temperature months before it fails.
Scale builds up on the coolant side of the plates. Sludge varnishes the oil side. Both insulate. Heat transfer drops, and the oil comes back hotter every month — a degree here, a degree there. On a rental-fleet 400 kVA set I used to look after, oil temperature crept from roughly 95 degrees to roughly 110 over one summer. Nobody logged it. Nobody asked why. At the annual service we found the main bearings showing copper — the oil had been running thin for months, and thin oil doesn’t hold a bearing film. The cooler wasn’t leaking yet. It was just tired. A descale and a flush would have cost a tenth of the bearing work.
Hot oil is thin oil, and thin oil is how bearings die slowly instead of suddenly. If your controller logs oil temperature — most Deep Sea and ComAp units do — pull the trend once a quarter. A slow climb is the cooler asking for help. (Cooling-system neglect shows up the same way on the coolant side; I’ve covered coolant maintenance and overheating diagnosis separately.)
Ask a generator owner when the oil cooler was last replaced and watch the blank stare. Filters get changed. Oil gets changed. Coolant gets changed. The cooler just sits there, year after year, assumed immortal. It isn’t.
Two things age it. First, the seals: O-rings and gaskets between the cooler and the block harden with heat cycles until they weep, then leak. Second, the plates themselves: every start from cold to full load is a thermal shock, and standby sets live the worst version of it — months of sitting, then a blackout or a test slams them from ambient to full temperature in minutes. Do that for eight or ten years and the plates crack, usually at a seam or a braze joint.
My rule of thumb on standby sets: at the ten-year mark, the cooler goes on the replacement list. Not because it’s failed — because a three-hundred-dollar part is cheap insurance against the kind of failure that fills the sump with coolant. On prime-power sets running every day, watch the oil temperature trend and check the seals at every major service instead. Either way, it belongs on a schedule. “Never” is not a maintenance interval.
This one only applies if your set is cooled by raw water through a heat exchanger — coastal sites, marine installations, some industrial setups. If it applies to you, it applies hard. Those coolers have pencil zinc anodes screwed into the water side, and their entire job is to corrode so the cooler tubes don’t.
I serviced a heat-exchanger-cooled set at a fish-processing plant on the coast. The zincs hadn’t been changed in — well, ever. They were nubs. And with nothing left to sacrifice, the seawater had started eating the cooler tubes themselves. Four years, pinholes straight through. The owner thought salt water eating metal was just “how it is” down there. It isn’t. A five-dollar zinc every six months is how it is. Check them when you check the thermostat — same wrench, same day, make it a habit.
One honest complication before the cost math: not every milky-looking oil is a failure. There’s a difference between a little mayonnaise under the oil filler cap and a dipstick that comes out looking like a latte, and it matters.
When you’re not sure, an oil sample settles it. Sodium and potassium in the oil mean coolant is getting in — antifreeze leaves that fingerprint. Fuel dilution or soot with clean coolant chemistry points elsewhere. One sample is a rumor; two samples a month apart showing rising sodium is a diagnosis. And if the oil has been contaminated for a while, change it after the repair — coolant in the bearings is not an “it’ll burn off” situation. Ask me how I know. Actually, don’t.
A cooler that’s just fouled — scaled on the coolant side, varnished on the oil side — can often be chemically descaled and flushed back to life. Cheapest fix, and it works, if the plates are intact. A cooler with cracked plates or pinholes is done. No chemical fixes a crack. Replace it.
On the replacement, here’s my honest take: the OEM cooler is the safe buy, but a quality aftermarket unit from a known heat-exchanger maker is fine for most standby sets. This is a stack of metal plates, not a controller. What I wouldn’t do is buy the cheapest no-name unit on the internet and trust its pressure rating — a cooler that bursts under oil pressure empties your sump in minutes, and then you’re buying an engine, not a cooler. Spend the middle money.
Change the oil and filter after any cooler failure, even a small one. Coolant residue in the oil attacks bearings quietly, and the right oil can’t protect against glycol. Cheap insurance, again. Fold the cooler into the regular maintenance routine — temperature trend quarterly, seals at major services, replacement on a ten-year rhythm — and it stops being a surprise.
So next time you pull the dipstick and see milk, do me a favor: don’t order the head gasket kit yet. Pull the cooler first. It’s a two-hour job and a cheap part, and half the “blown head gaskets” I’ve been called out to look at over the years turned out to be this stack of thin plates giving up quietly. Your engine will thank you. Your wallet definitely will. And if the bucket test leaves you unsure, talk to us — we’ve seen this movie before.
