The inspector carried a tape measure, not a clipboard. That should have been my first clue.
He walked straight past the 500 kVA set — didn’t glance at the engine, the controller, any of it — crouched beside the skid, and measured the gap between a seismic snubber and the frame. Then he stood up and told us the room failed.
The generator ran perfectly. It had passed its load bank test the week before with room to spare. Here’s the thing nobody on that job had considered: nobody had ever tested the floor.
Say “seismic-rated generator” on most job sites and people picture bigger anchor bolts. Thicker steel. More concrete. That’s maybe ten percent of it.
The real question seismic codes ask is different: after the design earthquake, does this machine stay where you put it — and does it still run? Staying put is anchorage. Still running is a whole second problem, because a generator that hasn’t moved an inch can still be dead if its exhaust pipe tore off the wall or its fuel line snapped at a fitting.
In the US, this lives in IBC Chapter 13 — nonstructural components. Generators serving life-safety loads get an importance factor, Ip, of 1.5, which basically tells the engineer to design like the earthquake will be worse than the map says. That covers hospitals and fire pumps, the places where backup power isn’t optional.
And there’s a fork in the road most buyers never see: equipment is either certified for seismic duty, or it isn’t. Certified means it survived a shake table, or a licensed engineer stamped an analysis saying it will. In California, hospitals go a step further — OSHPD pre-approval, which is the state’s way of saying prove it before it ships, not after it’s bolted down. When a customer asks for the seismic certification paperwork on a Pavo set, we pull the submittal before it leaves the factory. Arguing with an inspector after installation is a losing game.
I’ve watched a project lose two weeks because the genset was perfect and the certification paperwork didn’t exist. The inspector didn’t care how well the engine ran. No paper, no pass.
Here’s where most installations go wrong, and it’s an honest mistake, because the two parts look like cousins.

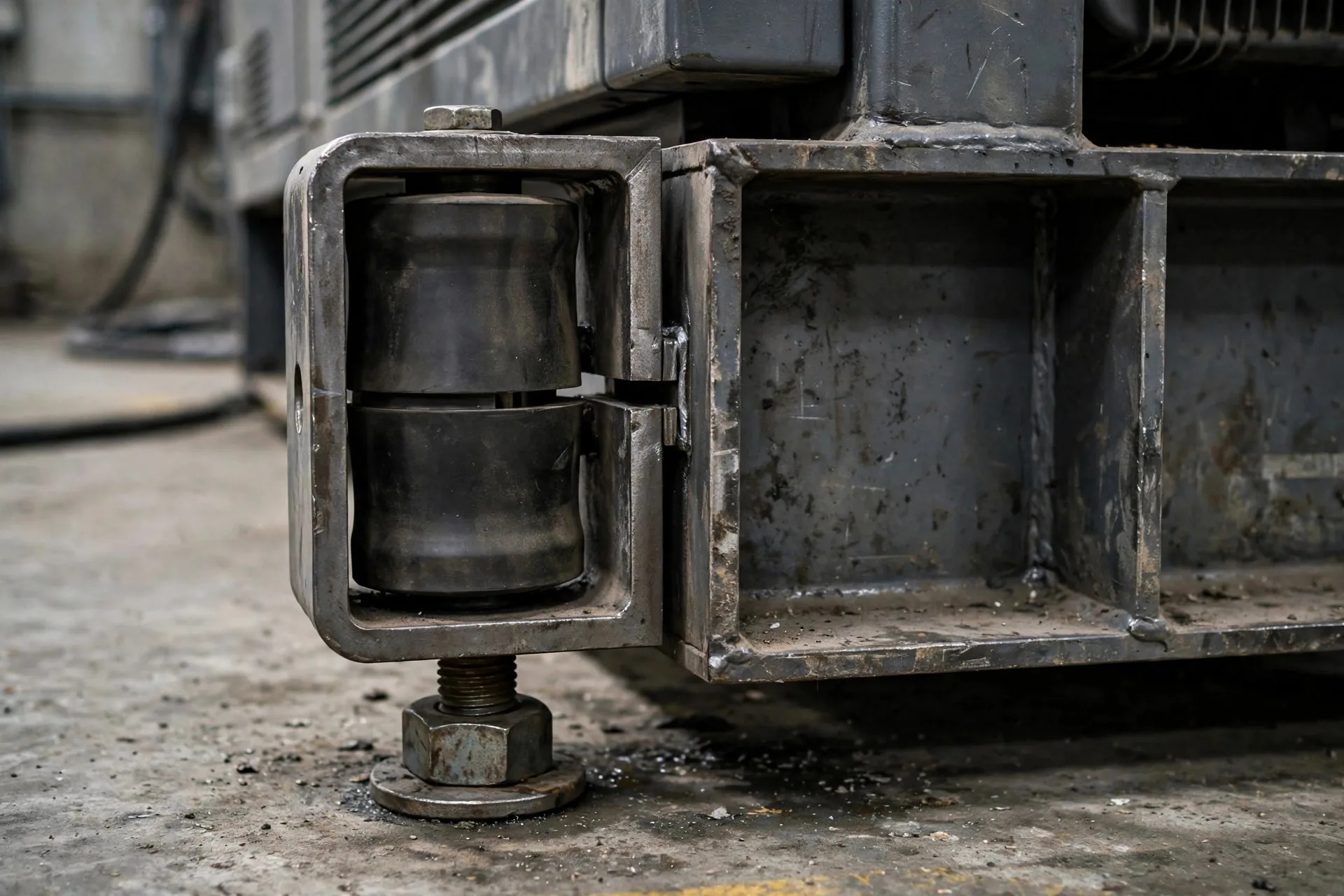

A spring isolator exists to stop vibration from getting into the building. It sits under the skid, soft, doing its quiet job every second the set runs. A seismic snubber exists to stop the set from walking across the room during an earthquake. It stands beside the skid with an air gap — normally touching nothing, doing absolutely nothing, until the one day it matters.
Two failure modes. Both common. Both dumb.
One: the snubber gets installed touching the skid, or some well-meaning technician “snugs it up” during maintenance because a loose-looking part offends him. Now it’s a rigid mount. Engine vibration goes straight into the concrete, the room hums, and — this took me a while to connect — the exhaust bellows starts cracking from vibration it was never supposed to see. I found this exact chain on a 500 kVA set at a logistics warehouse: the bellows cracked twice in one year, and the snubbers were torqued down solid. We re-gapped them to a quarter inch, and the bellows problem simply stopped.
Two: the gap is too big, or the snubbers were never installed at all because “we’ll add them later.” In a real shake, the set walks. I’ve never personally watched one walk — thankfully — but the math on a two-ton skid with a high center of gravity isn’t hard to picture.
The rule of thumb is about a quarter inch of air gap all around. Honestly? The number matters less than the habit. Check the gaps every year. Buildings settle. Somebody leans on things. Gaps close.
This is the part the bolt-focused crowd misses. The skid moves — inches, maybe — and everything bolted rigidly to both the skid and the building becomes a lever trying to tear itself apart.

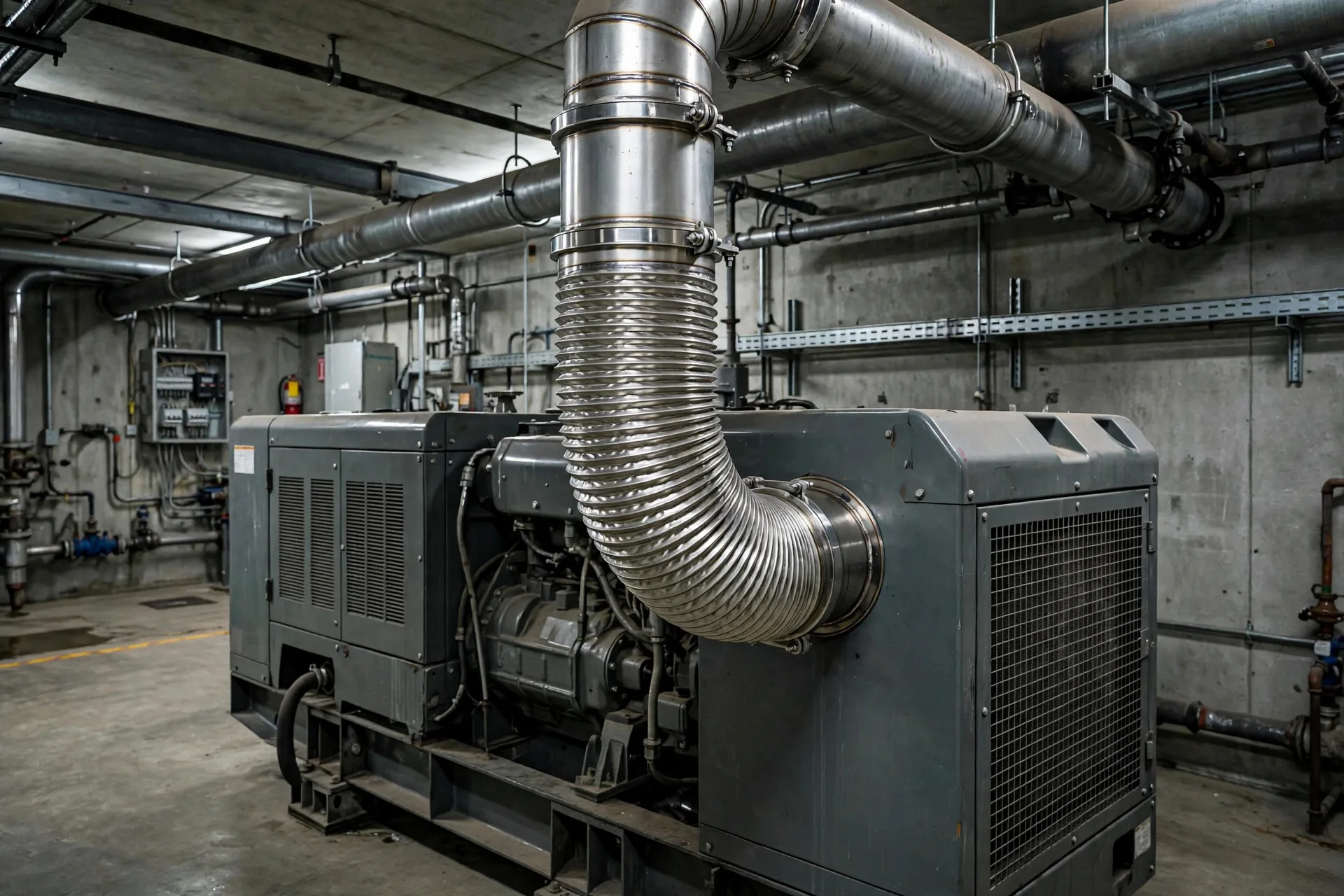

Exhaust first. The stack runs from the turbo up through the roof, and the building sways a different direction than the skid. Without a flexible joint in that run, something gives, and it’s usually the expensive something. Get the exhaust routing right and the flex joint becomes the cheapest insurance on the job.
Fuel second. Rigid piping between a day tank on the wall and a shifting skid is a crack waiting for an earthquake to find it. Flexible fuel hoses at the connection points aren’t a nice-to-have. They’re the joint that lets both ends move independently.
Electrical third. Conduit needs flex sections too, especially control wiring. A sheared control cable gives you a generator that survived the earthquake and still won’t start, which is a special kind of insult.
Anchorage is where the structural engineers earn their fee, and it’s the least photogenic part of the job. Cast-in-place anchors, set before the pour, are the gold standard — but most generator pads get drilled years later, which means post-installed anchors designed for cracked concrete, with real edge distances and real embedment depths. Not “that looks deep enough.”
The housekeeping pad matters more than it looks. A raised pad, doweled into the slab, keeps the set out of wash water and gives the anchors something to bite. I’ve seen beautiful gensets bolted to cracked, spalled pads where the anchors were holding onto hope. The foundation is part of the seismic system, whether the drawings say so or not.
Back to the tape measure. After a few of these jobs, I started keeping a mental list of what inspectors reach for first:
That’s the only list in this article, and it’s short on purpose. Everything on it is cheap to get right during installation and expensive to fix after the inspector leaves.
A thirty-year veteran I know says seismic anchorage is paperwork for a problem that barely exists. “I’ve bolted generators to floors for three decades,” he told me, “and not one has ever walked away.” He’s not wrong about his experience. He’s wrong about what changed: buildings got taller, equipment got heavier, and the code stopped trusting luck. The Northridge quake rewrote a lot of assumptions — plenty of equipment survived the shaking and failed at its connections. That’s not a story about bad luck. That’s the whole lesson in one sentence.
So here’s my observation after a dozen years of watching this industry: we test engines obsessively and treat the installation as an afterthought. Load bank reports get framed. Anchor calculations get filed. But the earthquake doesn’t read the load bank report. It reads the bolts, the gaps, the flexible joints — the boring parts nobody photographs for the brochure.
Next time you walk through a generator room, look down. The engine gets all the attention. The floor does the surviving. And if you’re speccing a set for a seismic zone, talk to us before the concrete is poured — that’s when these decisions are still cheap.
