Last Tuesday, 6:40 in the morning. The charger light on the wall was green. The batteries were barely two years old. The 400 kVA set at the logistics park cranked twice — slow, then slower — and quit.
The site manager looked at me like I’d sold him a lemon. I hadn’t. His charger had been lying to him for a year. It just didn’t know it.
Here’s the thing about 24-volt starting systems. Almost every diesel set above a couple hundred kVA runs two 12-volt batteries wired in series. One float charger keeps the pair topped up. And that charger has exactly one pair of eyes — it watches the total voltage across the string, holds it at its setpoint, and calls it a day. It cannot see the two batteries inside.
So picture this. One battery sits at 12.4 volts. The other sits at 15.2. Add them up: 27.6. The charger is happy. The green light stays green. Meanwhile one battery is quietly boiling itself dry while the other slowly sulfates to death. Nobody knows. Until a cold Tuesday morning.
No two batteries leave the factory identical. A little more self-discharge here, a little less capacity there — small differences, but they never go away. Then real life piles on. On most sets, one battery sits closer to the engine or the exhaust side and runs a few degrees hotter, year after year. Heat speeds up every chemical reaction inside a battery, including the ones that age it.
The drift is slow. Tenths of a volt per month. You would never catch it glancing at the charger. I learned this the expensive way at a quarry, years back. Same set, three battery pairs in four years, and it was always the battery on the exhaust side that died first. I blamed bad batches. I blamed the heat. Both true, both beside the point. The point was that the pair was never really a pair — it was two strangers forced to share one charger, drifting apart from day one.
Honestly, once you see it, you can’t unsee it. Every 24-volt bank you’ve ever walked past is two batteries having a quiet argument, and the charger is the referee who only watches the total score.
The signs are all there if you know where to look. One battery case feels warm while the other is cool to the touch. On flooded batteries, one battery drinks water and the other doesn’t — you find yourself topping up the same battery every visit and telling yourself that’s normal. It isn’t.
The set cranks a little slower than you remember. Not dead — just tired. The charger light stays green through all of it, because the total voltage never leaves the happy zone. That’s the cruel part. Every gauge you own says the batteries are fine, right up until the morning they aren’t.
A drifting pair rarely makes it past two years. A healthy, balanced pair should give you four or five. These days, when I see a site replacing batteries every eighteen months like clockwork, I don’t start with the usual battery checks. I check the split. And when a set cranks slow, I rule out the cables and the starter before I condemn the batteries — bad cables fake a dead battery better than a dead battery does.
So what do you actually do about it? Three options, and I’ll tell you which one gets my own money.
Option one: matched-pair discipline. Always replace both batteries together. Same brand, same date code, bought as a pair. This is the cheapest fix and it works — for a while. You’re resetting the clock, not stopping it. The two batteries start drifting again the day you install them. On a small set with a two-hundred-dollar battery pair parked next to the workshop, this is probably all you need. Don’t overthink it.

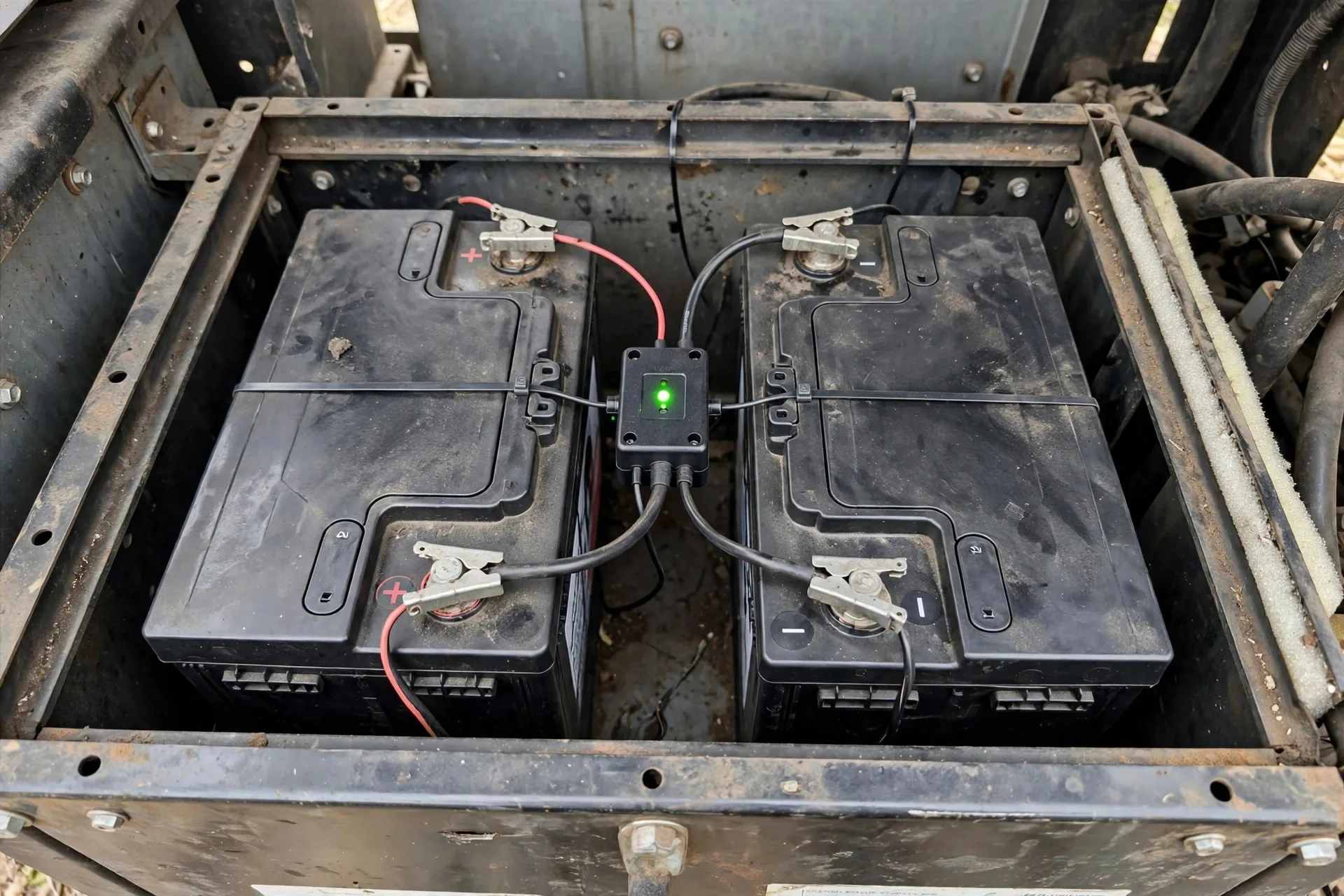

Option two: a battery equalizer. A small device, palm-sized, fifty to a hundred-odd bucks, wired across the midpoint of the series string. It does one job: shuffles a little current from the higher battery to the lower one, holding the two at roughly equal voltage. It doesn’t charge anything. It just keeps the peace.
Does it work? Yes — within its limits. It can’t resurrect a battery that’s already sulfated into a brick. What it does is slow the drift enough that the pair ages together instead of one murdering the other. The catch: it’s another device that can fail silently, and it must be wired to the midpoint tap. Wire it across the whole 24 volts and you’ve bought an expensive paperweight. I’ve seen that exact mistake twice, both times installed by people who skipped the one-page manual.
Option three: a dual-output charger. Instead of one 24-volt output, the charger gives each 12-volt battery its own regulated output, each battery getting exactly what it needs. This is the engineering-correct answer. It’s also the most expensive — new charger, more wiring, more commissioning. For a critical site, worth every cent. For a backup set behind a warehouse, it’s overkill.
Here’s my honest verdict. A 500 kVA set with a six-hundred-dollar battery pair at a site an hour’s drive away? The equalizer pays for itself the first time it prevents one dead-pair callout at dawn. A 60 kVA unit parked next to the maintenance shop with cheap batteries? Buy matched pairs, replace them together, and spend the equalizer money on coffee. Gadgets don’t fix discipline problems, and discipline doesn’t fix physics. Pick the fix that matches the site.
My old mentor — thirty years on generators, hands like sandpaper — thinks the equalizer is a toy. “Batteries are consumables,” he says. “Three years, swap the pair, stop inventing problems.” He’s not wrong, exactly. On his sites, which he visits monthly and knows by smell, matched-pair replacement works fine.
Where we disagree is the sites nobody visits. The unmanned shelter. The pump station two hours down a dirt road. Out there, a hundred-dollar device that keeps a six-hundred-dollar pair alive for five years instead of two isn’t a toy. It’s the cheapest insurance on the site. He’ll come around. He always does — about five years after I do.

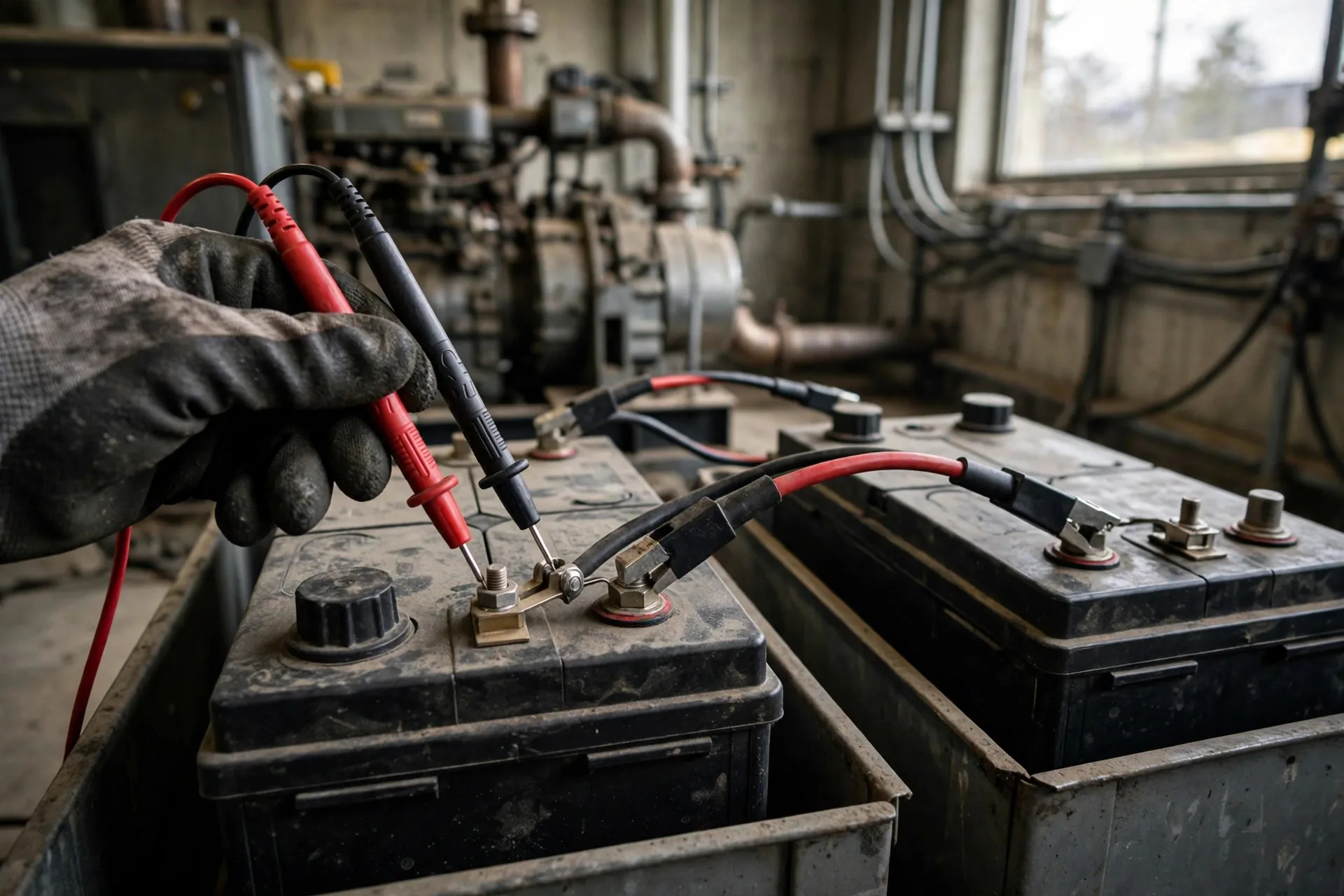

You don’t need any new hardware to catch this early. You need a multimeter and five minutes:
Do that twice a year and you’ll never live my Tuesday morning. Skip it, and the charger will keep smiling at you right up until the morning it doesn’t matter.
I put an equalizer on that logistics-park set three years ago. Same batteries still in the box, still splitting within a tenth of a volt. The site manager still thinks I sold him magic. I didn’t. I just gave his charger a pair of eyes. Not sure your site’s batteries are actually balanced? Talk to us — tell us the split across your pair and we’ll tell you what it’s saying.
