The phone rang at 1:40 in the morning. A quarry outside town, a 500 kVA set, and an operator who sounded like he’d been arguing with the machine for an hour. “It shut down on high coolant temp,” he said. “We restarted it. It shut down again.” I told him not to touch the start button a third time. He did anyway.
When I got there at dawn, the belt was lying in the bottom of the canopy like a dead snake. The water pump hadn’t turned in hours. Two overheat trips in a row. And the operator’s big question — the one I still hear every year — was this: “But the belt looked fine yesterday.”
Here’s the thing about drive belts on a diesel generator. On most small and mid-size sets, one or two rubber belts drive the engine cooling fan, the water pump, and the battery-charging alternator. They cost less than a tank of diesel. And when one lets go, you lose cooling and charging at the same time, usually at 2 a.m., usually under load. I’ve watched a thirty-dollar part do more damage than any fault I’ve seen on a controller.
Belts don’t get respect because they don’t look technical. Nobody brags about their belt maintenance program. So let me give you the five belt mistakes I keep finding in generator rooms. I’ve made two of them myself.
Stand in front of a generator and look at the belt. Looks fine, right? Smooth black rubber, no drama. That view tells you almost nothing.

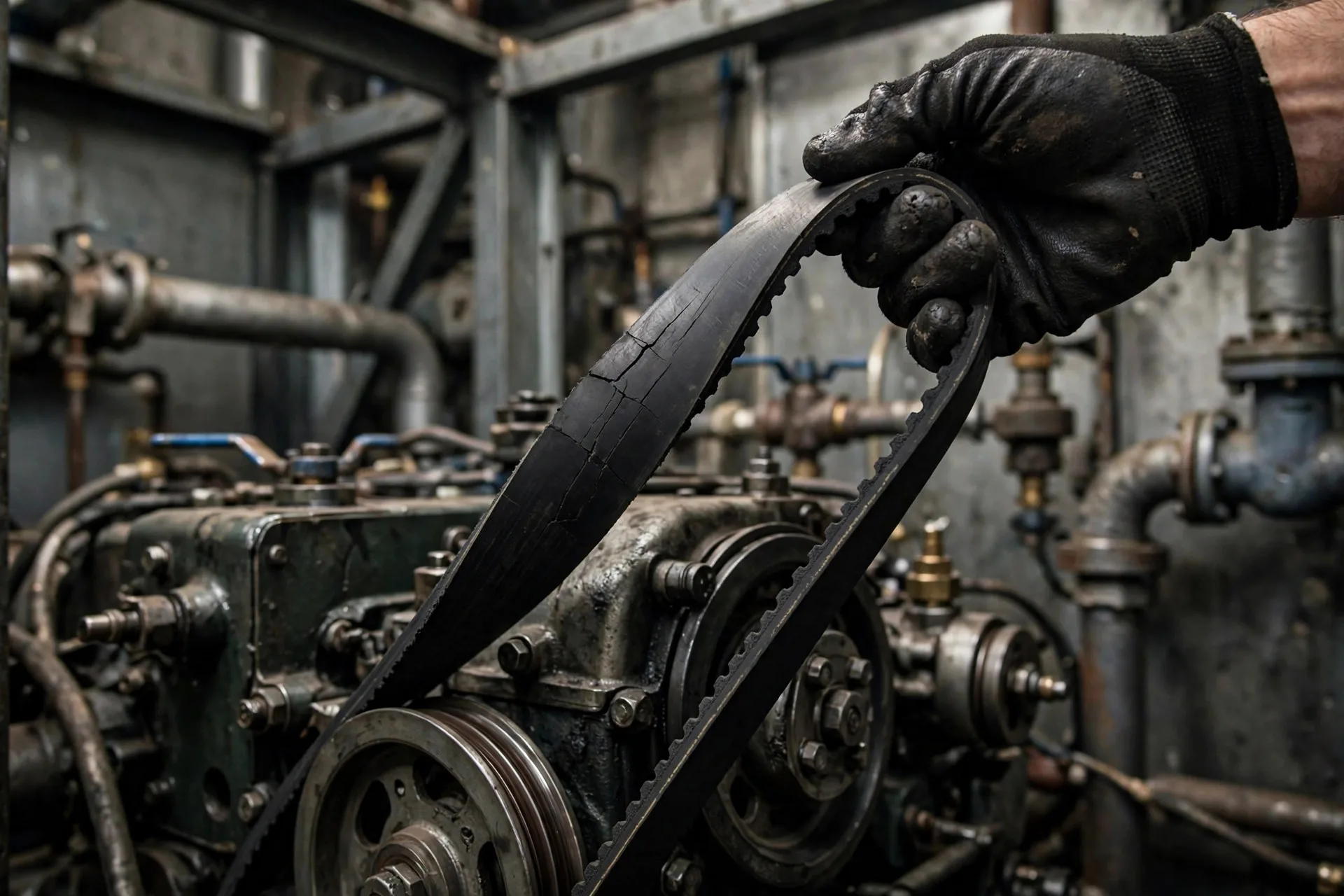

Belts die from the inside. The cracks start on the ribbed inner surface — the side you can’t see while it’s sitting in the pulley. Glazing, the shiny hardened surface that makes a belt slip instead of grip, forms on the contact faces. Frayed cords hide under the outer cover. The correct inspection takes thirty seconds and nobody does it: engine off, locked out, then twist the belt a quarter turn with your hand and look at the inner ribs in good light. Cracks across the ribs, chunks missing, a shiny varnished look — that’s a belt telling you its remaining life in weeks, not years.
Years ago I signed off on a belt that “looked fine” during a routine visit to a food warehouse. Three months later it threw itself off at full load and took the fan shroud with it. The inner ribs were cracked like a dry riverbed. I just never twisted it to look.
Ask five technicians how tight a belt should be and you’ll get five different answers, all delivered with total confidence. “Tight as a drum,” says one old-timer I know. He genuinely believes it. We’ve argued about it for a decade.
He’s wrong, and I can prove it with a dead water pump. A belt that’s too tight side-loads the water pump bearing and the charging alternator bearing far beyond what they were designed for. I pulled a water pump off a 400 kVA set at barely 900 hours — bearing shot, seal weeping — and the belt on it could have been used as a guitar string. The owner had “adjusted” it himself the month before.
Too loose is just as bad. A loose belt slips, and a slipping belt polishes itself into a glazed, hardened band that slips even more. You get the squeal on startup, the slow charging, the creeping coolant temperature that nobody connects to a belt. Then one day it walks off the pulley entirely.
The right answer is boring: check deflection or tension against the engine maker’s spec, with a gauge if you want to be exact, and re-check a new belt after its first day or two of running. New belts seat into the pulley grooves and stretch slightly. The belt you tensioned perfectly on Monday is loose by Friday. Skip the re-tension and you’ve installed a failure on a timer.
A lot of industrial engines run two or three V-belts side by side on the same drive. They were manufactured as a matched set — same length, within a tiny tolerance. When one breaks, the temptation is to replace just that one. Half the price, half the work.
Don’t. A new belt is slightly longer than the two old, stretched ones next to it, so it sits higher in its groove and carries most of the load. It works harder, runs hotter, and dies young. Then the load shifts to the old ones and they go too. I learned this on a rental fleet unit where we replaced a single belt to save a service call. Six weeks later the new one snapped, the customer lost a weekend, and we paid for the callback, the tow, and the embarrassment. Now it’s a rule on every truck I run: matched drives get replaced as a set, no exceptions.
People treat the belt as the whole system. It isn’t. The belt is half of a friction partnership, and the other half — the pulleys — wears out too.
Run your finger along a pulley groove. If it feels polished smooth and mirror-shiny, the groove is worn. A worn groove lets the belt ride too low, so it wedges and pinches instead of gripping the sidewalls. The belt overheats, dusts, and fails early, and the new belt you fit will die the same way. Pulley gauges exist for exactly this check and cost less than one service call.
Alignment matters just as much. Pulleys that aren’t in the same plane chew one edge of the belt. A straightedge across the pulley faces takes a minute; a laser tool takes less. I find misaligned drives most often after someone has replaced a water pump or an alternator and bolted the new one down “close enough.” Close enough eats belts. If you’re chasing repeated belt failures on the same engine, stop blaming the belt and check the pulleys.
Belt dressing spray promises to stop squeal. What it actually does on a modern EPDM belt is soften the rubber and attract dust, which makes the slip worse once the spray wears off. It’s makeup on a symptom. Fix the tension or the alignment instead.
And then there’s the “equivalent” belt. A V-belt from the auto parts store might look identical and cost a third of the genuine one. But belt profiles, lengths, and cord constructions differ in ways your eyes can’t catch. A belt that’s slightly too narrow bottoms out in the groove and burns up. One that’s slightly too long can’t be tensioned properly. I’ve seen a cheap substitute last eleven days. Buy the belt the engine maker specifies, from a source you trust. This is not where you save money.

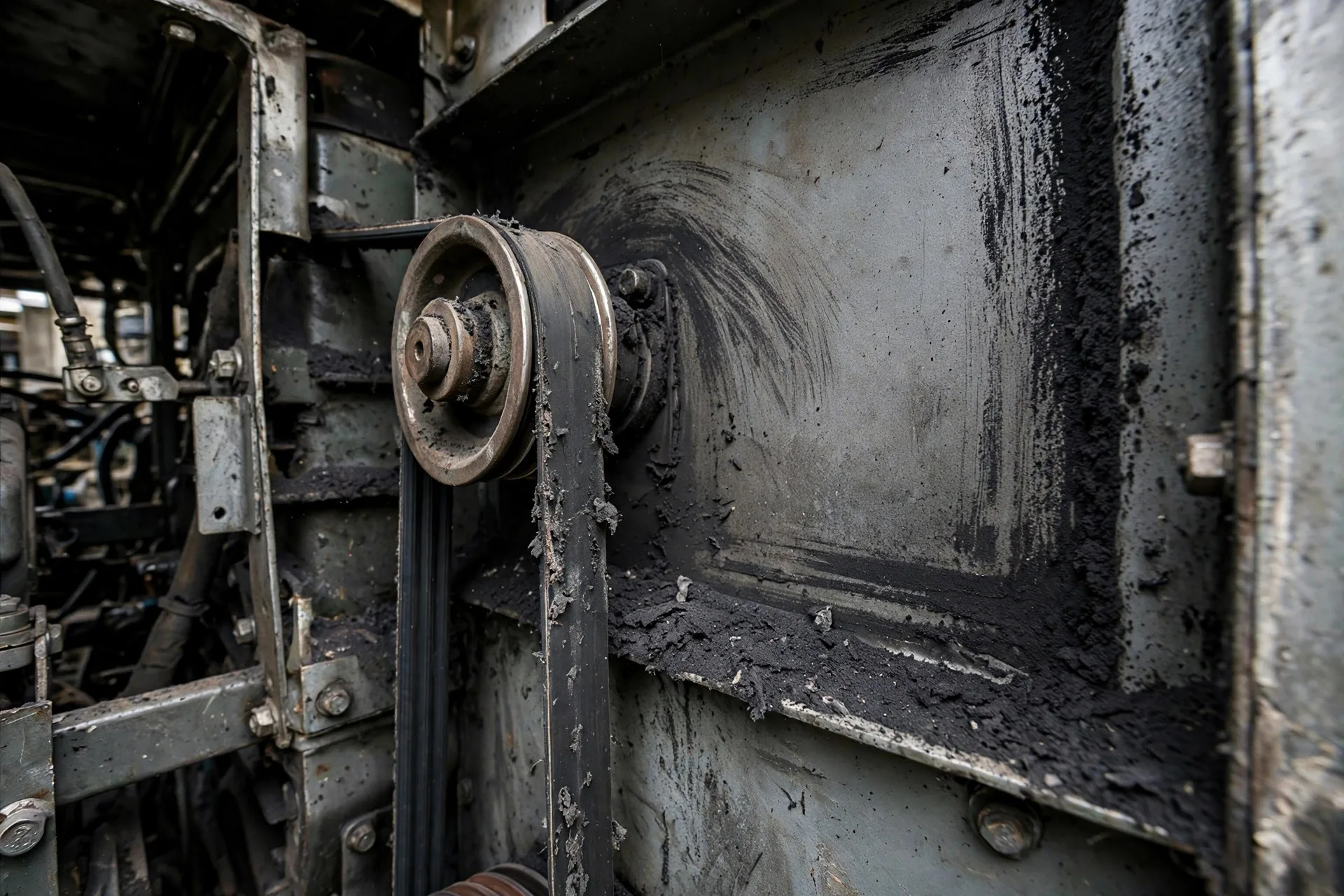

If you take one habit from this article, make it this: look for black dust. Belt dust — fine black powder coating the pulleys, the canopy walls, the frame rails near the drive — is a belt’s way of filing a written complaint. It means something is slipping, misaligned, or glazed, and it has been happening for a while.
I walked into a data center generator room once and the inside of the canopy door was gray with the stuff. The operator had noticed “a funny smell” for months. The belt was glazed top to bottom and running on borrowed time. We changed it in twenty minutes during a planned window. Had it let go during an outage, that data center would have learned what a thirty-dollar part can do to a seven-figure facility.
A quick routine that actually works: every oil change, engine off, twist each belt and read the inner ribs, check tension against spec, wipe a finger near the pulleys and look at the dust, glance at pulley alignment and groove wear. Five minutes. And treat belts as consumables — on a standby set that mostly sits, I replace them every two to three years whether they look tired or not. Rubber ages even when it’s not working. Heat cycles, ozone, and time do the rest.
For the bigger picture on keeping the whole cooling circuit alive, read my guides on generator overheating causes and fixes, coolant system maintenance, and radiator hose failure — the belt is one link in that chain. Belt-driven accessories also include the charging alternator, so pair this with battery maintenance, and if pulleys keep eating belts, check crankshaft damper and pulley alignment. The full routine lives in the maintenance checklist, and if you need a hand with any of it, talk to us.
Nobody frames a belt on the wall. But the cheapest part in the engine room decides whether the most expensive one survives the night. Twist it, tension it, replace it as a set — and wipe that dust off the canopy wall before it writes you a message you don’t want to read.
