The call came on a Tuesday morning, the boring kind of Tuesday. A clinic outside the city, 200 kVA, and a facility manager who sounded tired in a way that had nothing to do with sleep. “The power went out last night,” he said. “The generator didn’t start.” Okay. That happens. Then he said the part that made me put down my coffee: “It failed its monthly test three weeks ago. We just found out.”

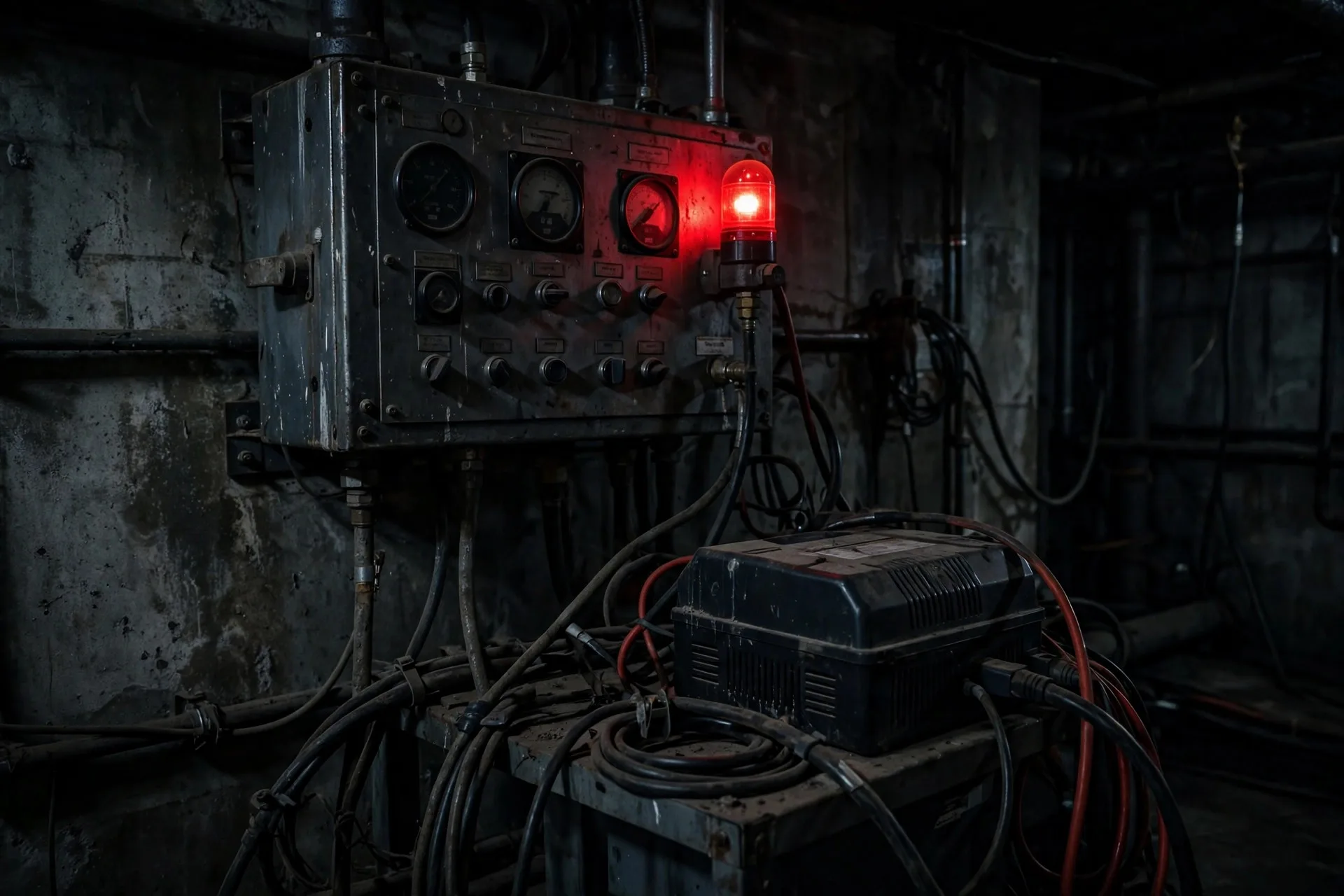

Three weeks. For three weeks that generator sat in the basement with a dead battery charger and a controller flashing a fault nobody saw — because nobody goes into the generator room. The room is locked, it’s loud when the set runs, and it smells like diesel. Nobody visits. The monthly test ran, the controller tried to crank, the batteries were flat, and the whole failure happened inside a concrete box with no audience.
Here’s the thing. That clinic had a perfectly good generator. What it didn’t have was a cheap idea screwed to the wall of the nurse’s station: a remote annunciator panel. A little box of lamps that says, in plain sight, what the generator is doing right now. Running. Not in auto. Low fuel. Charger failed. That’s it. That’s the whole product. And it would have saved them a weekend of emergency rental bills.
I tell this story because I meet that clinic everywhere. Different building, same basement, same locked door. If your standby generator lives somewhere people don’t go — and they all do — you need its voice carried to somewhere people are.
A remote annunciator is the dumbest smart device in your building, and I mean that as a compliment. It doesn’t think. It watches a handful of dry contacts from the generator controller and lights a lamp when one of them changes state. Generator running: green lamp. Something wrong: red lamp, plus a horn you can silence. That is the entire job description.
The controller on the generator already knows all of this, of course. Deep Sea, ComAp, whatever you’re running — it knows the charger failed, it knows the switch is in manual, it knows the fuel is low. It knows, and it tells the inside of a locked basement. A controller alarm nobody sees is a tree falling in a forest. The annunciator is just the controller’s voice, carried by a pair of wires to a wall where humans exist.
Don’t confuse it with remote monitoring. The IoT module that texts you at 2 a.m. is a different animal — useful, but it needs cell signal, a subscription, and someone who reads texts from machines. The annunciator needs none of that. It sits on the wall of the security office, glowing quietly, waiting for the one day it matters.
If your generator backs up life-safety loads — a hospital, high-rise egress lighting, an elevator rescue circuit — you’re in NFPA 110 Level 1 territory, and the code doesn’t suggest an annunciator. It requires one, mounted where the operating staff will actually see it. Not the electrical room. Not the basement corridor. An attended spot.
The code also has opinions about which alarms earn a lamp. The list inspectors carry looks like this:
Nine lamps. Read the list again. Half of them are the exact failures that kill generators in the real world — the charger, the batteries, the switch somebody left in manual. The code writers knew. They’ve read the same service reports I have.
Level 2 systems — optional standby, the “it would be nice to have power” category — don’t strictly require all of this. Install the panel anyway. Code minimum is a legal concept, not a reliability strategy. I’ve never met a facility manager who regretted having too much visibility into his generator.
One more code note: if the generator drives a fire pump, NFPA 20 layers its own alarm requirements on top — different panel, different rules. I wrote about fire pump generator rules separately.
The most expensive annunciator I ever saw was a full-color touchscreen, mounted inside the locked electrical room, next to the generator controller it was mirroring. Two thousand dollars of display, showing alarms to an empty room. The cheapest one that ever saved a customer was a forty-dollar relay panel screwed to the wall of a 24-hour security desk, with lamps the size of bottle caps.
Guess which one caught a “not in auto” condition before the next outage.
Put the panel where someone sits. Security desk. Nurse’s station. The building engineer’s office — the one with the chair that has his shape in it. If the building is unstaffed at night, put it where the morning person can’t miss it: next to the time clock, above the coffee machine. I’m serious. The best annunciator location I ever specified was beside a break-room microwave, because every employee in that warehouse walked past it twice a day.
And run the wiring like it matters, because it does. The signal from the controller is usually dry contacts or a serial link. Keep it simple, label both ends, and don’t share the conduit with the 480-volt feeders if you can avoid it. I’ve troubleshot more “the panel doesn’t work” calls that turned out to be wiring than actual panel failures. The panel is simple. The installation is where people get creative in bad ways.

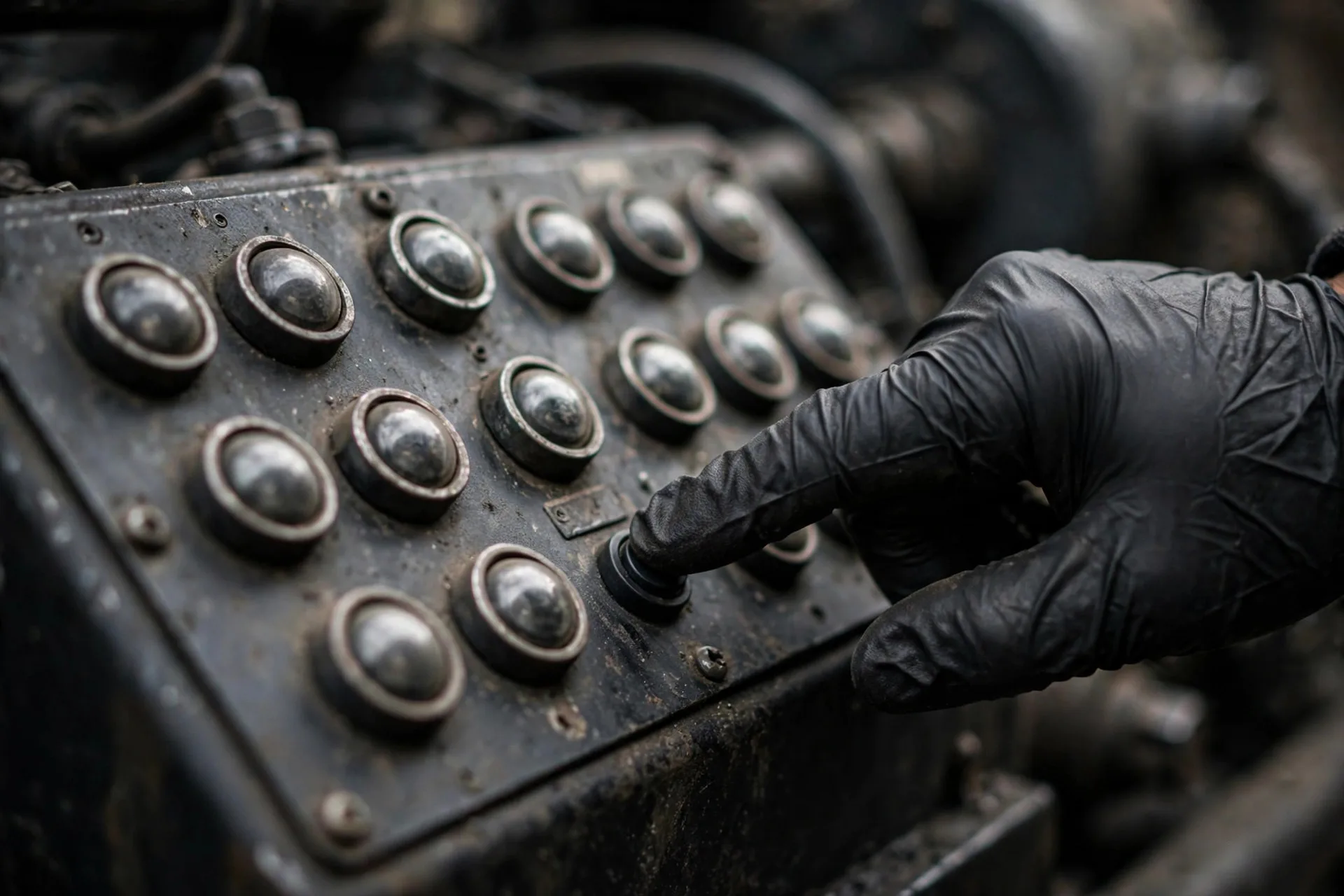

Every annunciator panel has a lamp-test button. Press it, all the lamps light up, you find the dead ones. Four seconds. Nobody does it. I’ve walked into security offices and found panels where half the lamps were burned out. On one, the “low fuel” lamp had been dead for what the dust suggested was years.
Think about that. The building paid for the panel, paid for the wiring, mounted it in the right place — and then the actual alarm, the one moment the whole thing exists for, arrived in the dark. A four-second button press, once a month, while you’re already standing there for the weekly test. That’s the entire maintenance program for this device, and it’s the part everyone skips.
Old panels with incandescent bulbs are the worst offenders. The bulbs burn out, and unlike LED retrofits, they fail silently and often. If you’ve inherited a panel from the nineties with little twist-in bulbs, either relamp the whole thing on a schedule or replace it with LED. A dead lamp on an alarm panel is worse than no panel at all, because it gives everyone false confidence. They glanced at the panel. The panel said nothing. The panel was lying.
If I had to bet on which lamps you’ll see lit, my money’s on the same three, every time. First: not in automatic. Someone runs the weekly test, switches the controller to manual, gets interrupted by a phone call, and leaves. The generator sits there for a month, ready to do nothing. The controller knows. The basement knows. Now the security guard knows too — if the panel is in his office and somebody told him what the red lamp means.
Second: charger failure. The float charger dies quietly — no drama, no smoke. The batteries just begin a slow decline. Weeks later they’re flat. This is the clinic story, and I’ve lived some version of it at least five times. The charger lamp is the cheapest early warning in the entire generator room, and it only works if somebody can see it.
Third: low fuel. Not empty — low. The day tank that didn’t refill because the transfer pump’s float switch stuck. The main tank nobody dipped since spring. The lamp buys you days. Days are everything.
Notice what’s not on my list: exotic faults. It’s never the CAN bus. It’s the boring stuff — the stuff a lamp and a human can catch. An old-timer electrician I argue with, going on fifteen years now, says annunciator panels are decoration because nobody reads them. He’s half right. A panel nobody was told to read is decoration. A panel with plain-word labels, in the guard’s office, with someone told “red lamp means call me” — that’s an instrument.
Here’s my honest opinion, and it costs me nothing to give it: buy the plain panel. Big lamps. Plain words — “GENERATOR RUNNING,” “NOT IN AUTO,” “LOW FUEL” — not code abbreviations. An audible horn with a silence button. A lamp-test button you’ll actually press.
The touchscreen annunciators look great in the submittal package. In year six, when the display’s backlight is dying and the building’s third facility manager doesn’t know the password, the plain panel with the big red lamp is still doing its job. Simplicity is a feature. In alarm devices, simplicity is the feature.
And label the lamps for the person who’ll read them, not the engineer who specified them. The security guard doesn’t know what “EPS supplying load” means. He knows what “GENERATOR IS POWERING THE BUILDING” means. Write that. The inspector might raise an eyebrow at your wording; the guard will actually call you. I’ll take the phone call.
So: a panel on the wall where people are, nine lamps that matter, a test button you press once a month, and plain words. That’s the whole project. It costs less than the fuel in the day tank. If you’re putting one on a project and want the alarm list sanity-checked, talk to us.
The clinic? They got their panel. It’s in the nurse’s station now, next to the phone. The facility manager told me the charger-failure lamp came on two months later — a loose wire, five-minute fix. He called me to tell me about it, and he sounded almost happy. That’s the thing about alarms that work. When they do their job, the story is boring. Boring is the goal.
